Solidworks - Weldmets

Drazen Vorih
Drazen Vorih
2 Apr, 2022 12:12 PM

Hi engineers!

My problem is in the category "Weldments"!

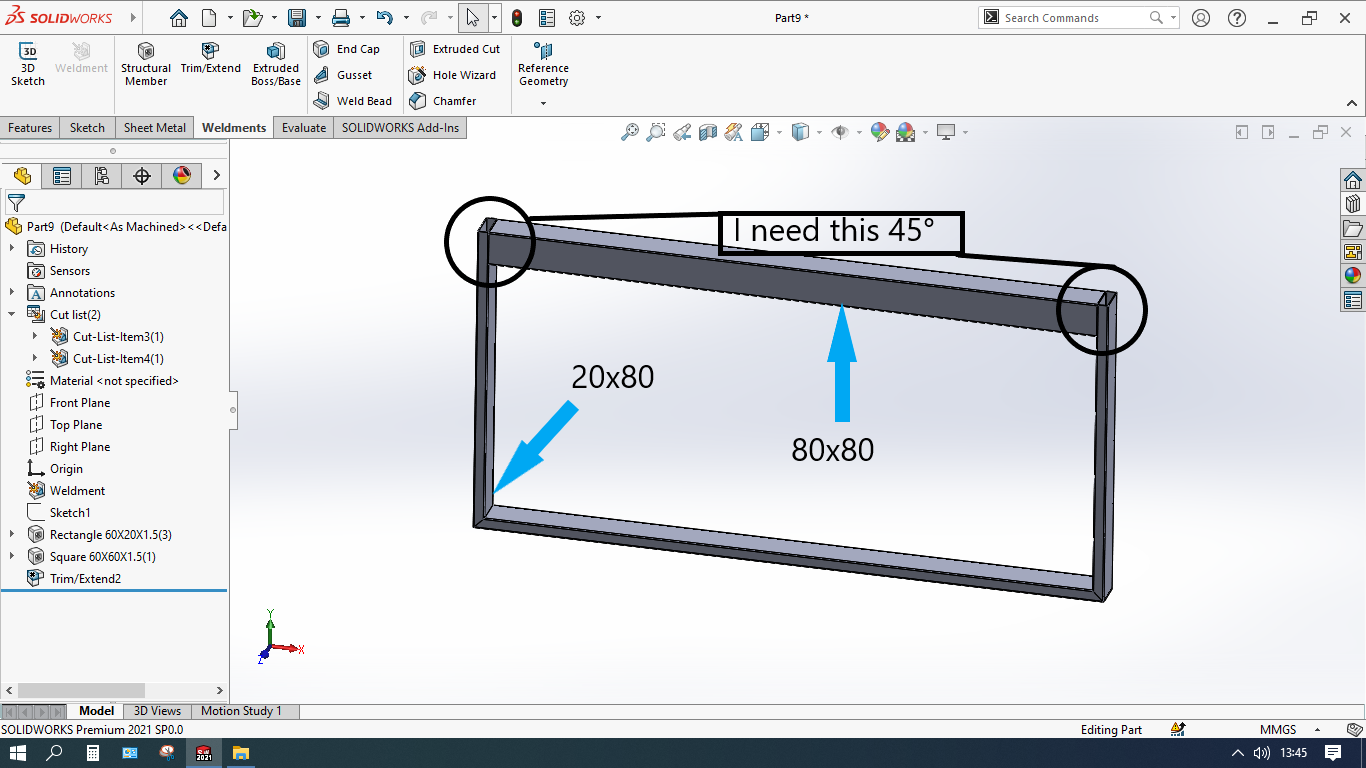

What is the easiest way to put two types of pipes in one group and they are connected at an angle of 45 degrees?
See the attachment!

Thank you!

weld.png weld.png

3 Answers

Gints
Gints
Answered on 2 Apr, 2022 03:50 PM

it should. see attached file (sw2021)
if you can't open it. send me your file i will do the corners and send you an step file

tubes.STEP tubes.SLDPRT
Carlos J. Veloso
Carlos J. Veloso
Answered on 2 Apr, 2022 06:15 PM

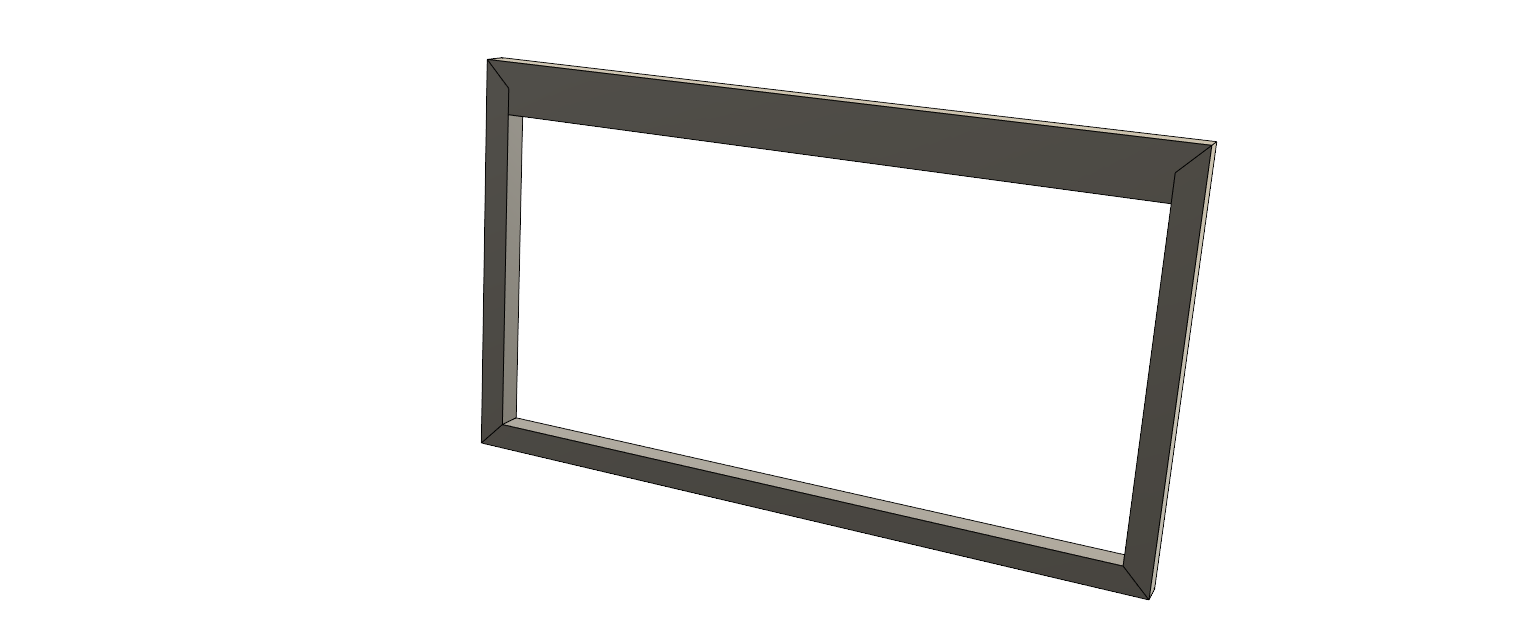

If it is going to be welded, this maybe a cleaner design and a true 45 degrees.

Frame.png Frame.png
Gints
Gints
Answered on 2 Apr, 2022 02:16 PM

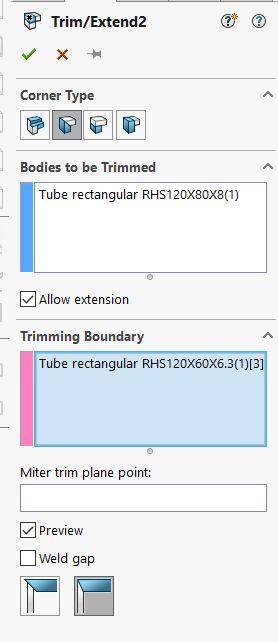

have you tried trim/extend feature?

h1.JPG h1.JPG
