Supported file formats for commonly used CAD softwares

Can anybody please help me to specify the list of native and supported formats for the following softwares:

Femap
Bricscad
AutoCAD Electrical
Autodesk Alias?
Rhino
DraftSight
Creo Elements/Pro
STEP / IGES
STL for 3D print
IronCAD
AutoCAD
Kompas-3D
Moi3D
KeyCreator
Google SketchUp
Alibre Design
Autodesk Revit
SpaceClaim
Solid Edge
NX
Pro/Engineer Wildfire
SolidWorks
CATIA
Autodesk Inventor

It could help a lot if you can write it out as follows:

Native format:

Supported format:

Thank you!

Answer

Comments 0

10 Answers

Pro/E
Native:
part -.prt
assembly - .asm
drawing -.drw
layout -.lay
sketch -.sec
format -.frm
manufacturing -.mfg
diagram -.dgm
report -.rep
Pro/desktop -.pdt
support:
granite file -.g
IGES -.iges, -,igs
STEP -.step, -.stp
SET -.set
VDA -.vda
.dxf, -dwg
.cgm
Wavefront .obj
STL
CATIA v4, v5
Rhino -.3dm
Adobe Illustrator -.ai
VRML
Parasolid -.x_t
Unigrafics -.prt
JT .jt
Inventor part -.ipt
Inventor assembly -.iam

Or you can read full list here:
http://www.ptc.com/WCMS/files/77552/en/proewf5.pdf

For Rhino read here:
http://www.rhino3d.com/4/help/fileio/file_formats.htm
(huge list, so i dont post here)


Comments 0

Inventor (supported formats may vary depending the version):
Native Formats: ipt, iam, idw, ipn for part, assembly, drawing, presentation respectivelly.
Supported formats (import) step, iges, solidworks, catia, sat, dwg, parasolid, pro/e, xt, .wire(alias), 3ds, jt, nx, .3dm up to version 4.0,
Supported formats (export): dwg, Catia V5, igs, jt, parasolid, Pro/Engineer granite (.g), Pro/Enginner neutral (.neu), Sat, step, stl, xgl,zgl,pdf,bmp,jpeg

Autocad 2012 (and other versions like mechanical, electrical, civil)
Native Format: dwg
Supported formats (import):NX, Parasolid, Pro Engineer, Rhino, Solidworks, sat, wmf, dgn, 3ds, iges, step, dxf
Export:dxf,stp,bmp,pdf,jpeg

Inventor Fusion can import/edit all the files Inventor can. Native file format is DWG


Comments 0

Alibre Design native formats
.AD_ASM
.AD_PRT
.AD_DRW
.STEP


Comments 0

These are the native formats I came out with:

Femap: mod
AutoCAD Electrical: dwg, dxf, dwf
Autodesk Alias: wire
Rhino: 3DM
Creo Elements/Pro: prt, asm, drw, lay, sec, frm, mfg, dgm, rep, pdt
IronCAD: icd
AutoCAD: dwg, dxf, dwf
KeyCreator: cde, cdl, cdw, ckd, ckt, ptn, sat
Google SketchUp: skp, dae, kmz
Alibre Design: AD_ASM, AD_PRT, AD_DRW
Autodesk Revit : rvt, rft, rfa
Solid Edge: par, asm, dft, psm
NX: prt
Pro/Engineer Wildfire: prt, asm, drw, lay, sec, frm, mfg, dgm, rep, pdt

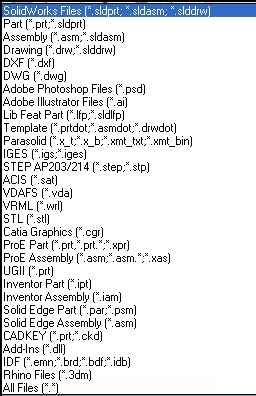

SolidWorks: SLDPRT, SLDASM, SLDDRW
CATIA: CATDrawing, CATPart, CATProduct, CATProcess, cgr, model.
Autodesk Inventor: IAM IDW IPN IPT

Correct me if I'm wrong.


Comments 0

IronCAD:
ics - scene (3d parts and assemblys)
icd - 2d drawing
exb - 2d drawing (CAXA drawing)

supported:
AutoCAD (*.dxf)
AutoCAD (*.dwg)
3D Studio (.3ds)
ACIS® R2.0 - R21.0 (*.sat)
CATIA V4 (*.model)
IGS (*.igs, iges)
Parasolid® R8.0 - R22.1 (*.x_t, *.xmt, *.txt)
Pro/Engineer up to 2000 (*.prt, *.asm, *.neu, *.g)
Raw (*.raw)
Romulus(*.xmt)
STEP AP203 / AP214 (*.stp, step)
Stereolithography (*.stl, *.sla)
TrueSpace(*.scn, *.cob)
VRML (*.wrl)
Wavefront (*.obj)
3DPDF (*.pdf )
Universal 3D File (*.u3d)
Adobe Acrobat - 3D PDF (*.pdf )
Universal 3D File (*.u3d)
Hoops Stream File (*.hsf )


Comments 0

For Kompas-3D :
native formats:
*.m3d
*.a3d
*.a3t
*.c3d
supported:
*.step
*.igs
*.sat
*.x_t
*.x_b
*.stl
*.wrl


Comments 0

Alibre Design native formats (Geomagic Design)
AD_PRT=STANDARD PART
AD_SMP=SHEET METAL PART
AD_ASM=3D ASSEMBLY
AD_DRW=2D DRAWING
AD_PKG=SINGLE FILE CONTAINING ALL PART & ASSEMBLY FILES
AD_BOM=BILL OF MATERIAL
