Surfacing using catia?

S K
S K
5 Feb, 2022 04:17 AM

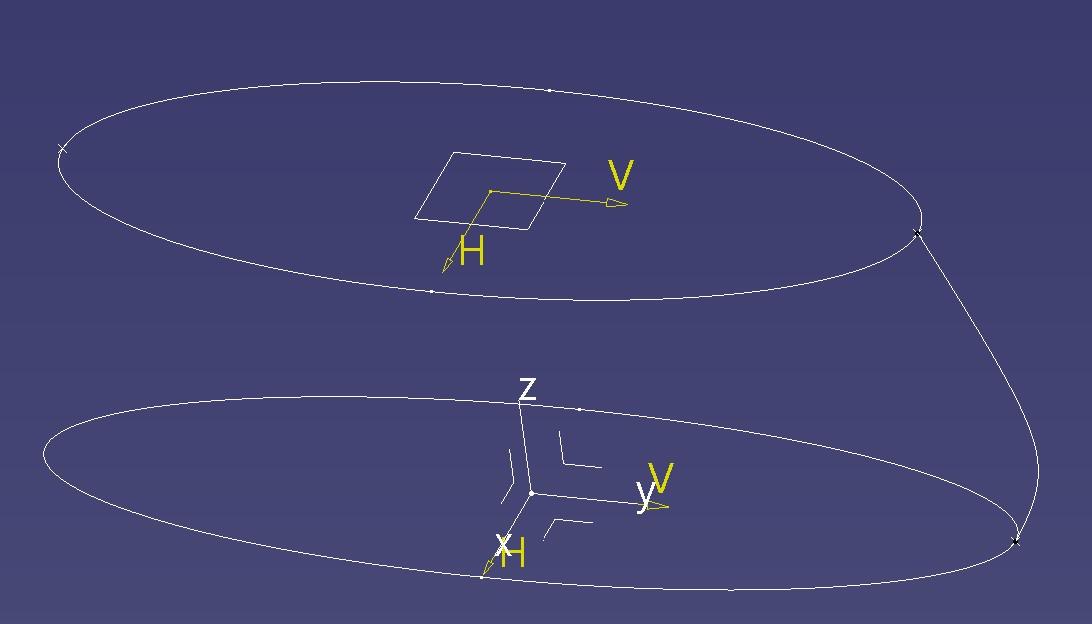

How can I surface the following wireframe? I tried to use Fill and Sweep operations with no success. Please help.

Sweep.jpg Sweep.jpg M.jpg M.jpg Screenshot 2022-02-04 231510.jpg Screenshot 2022-02-04 231510.jpg

Accepted answer

Jack K
Jack K
Answered on 6 Feb, 2022 03:46 AM

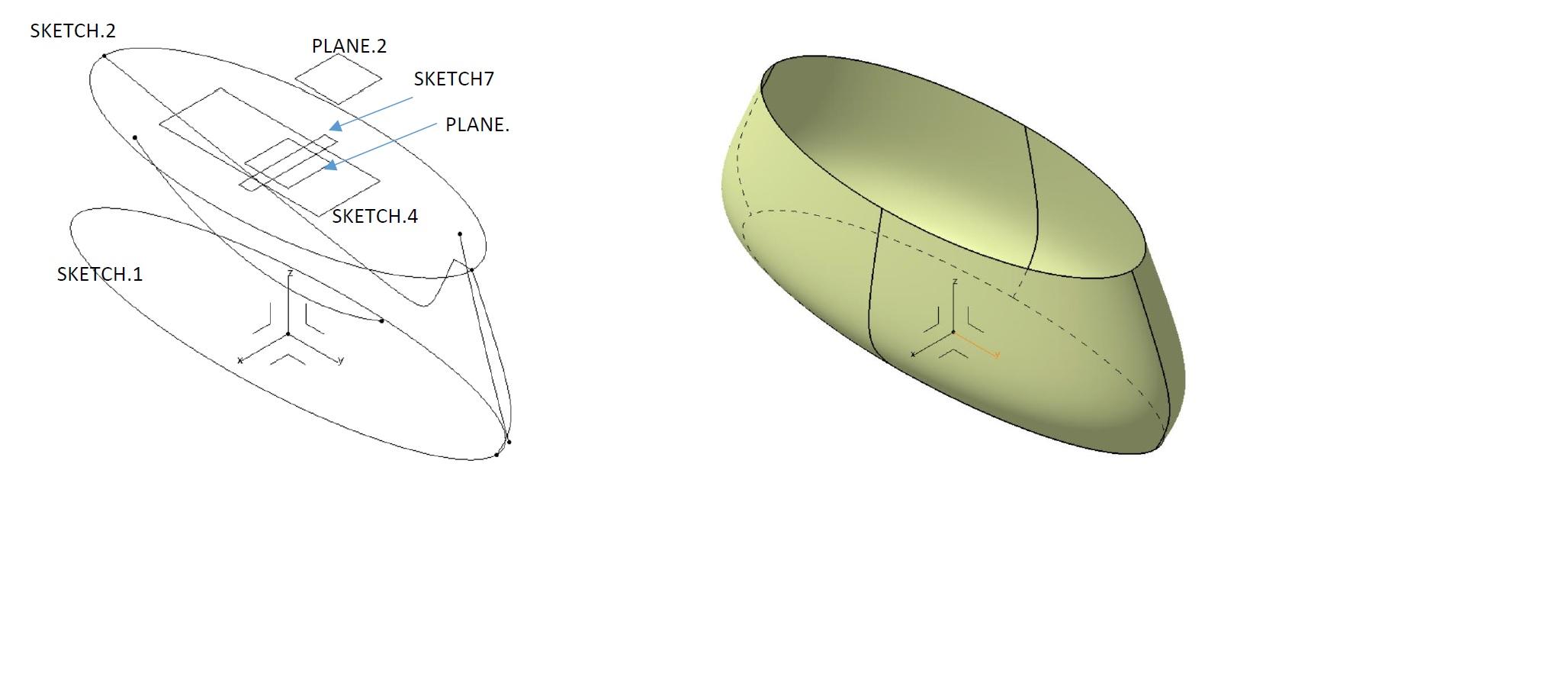

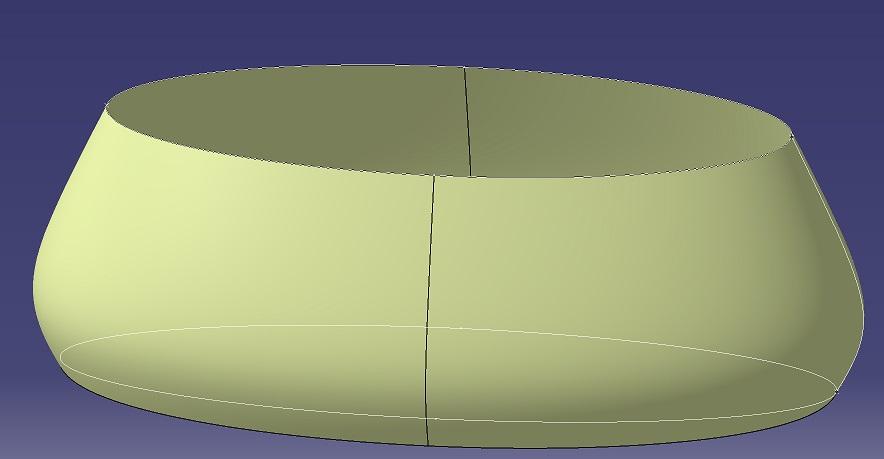

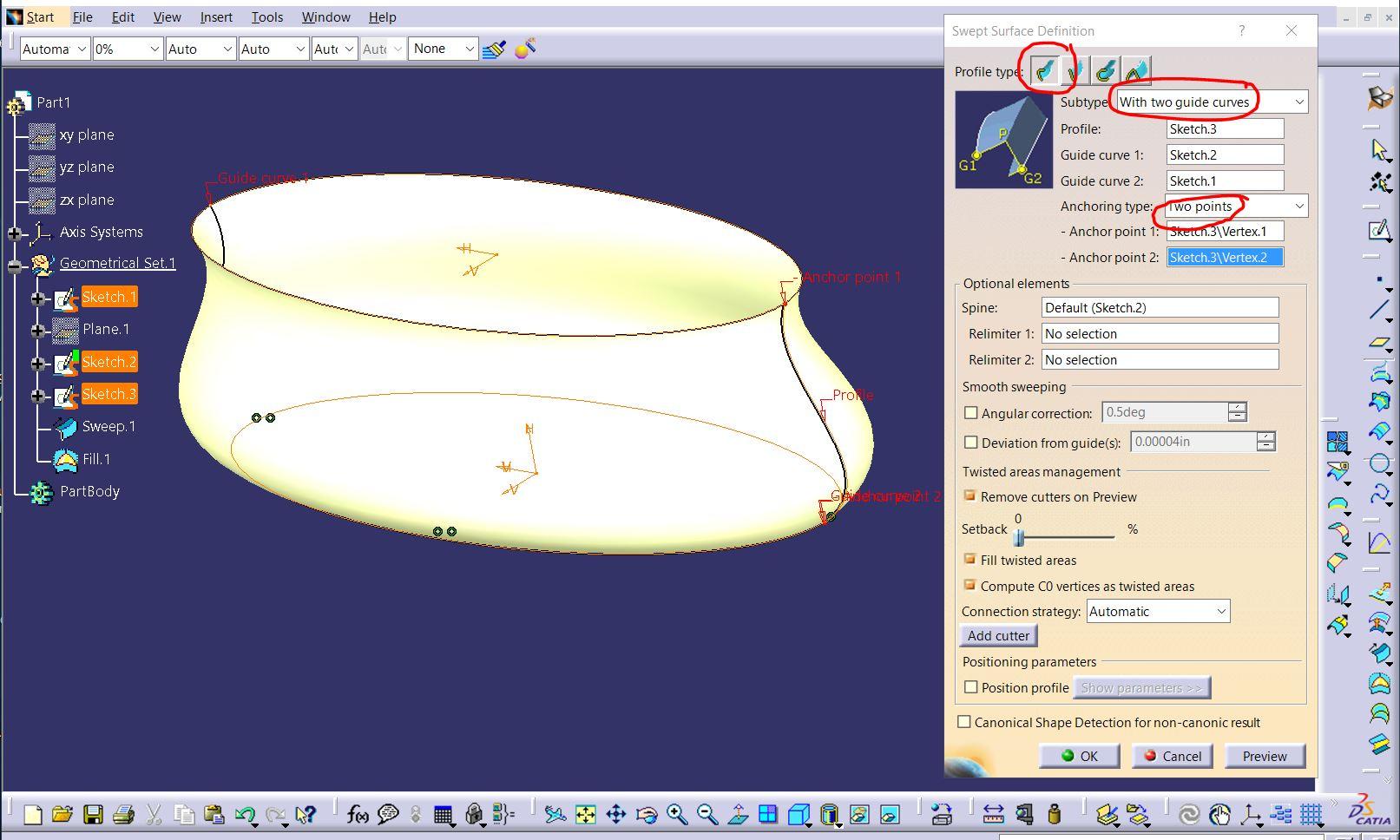

here's how I did it:

SWEEP.JPG SWEEP.JPG

1 Other answer

Jack K
Jack K
Answered on 5 Feb, 2022 06:02 PM

A Sweep should work. Did you use the top and bottom curves as Guides? What did you use for the Spine?

What happened when you tried to sweep it?
