Sweep Cut

Saurabh Kumar
Saurabh Kumar
16 Dec, 2012 08:06 AM

I'm not able to sweep cut using sketch10 as profile and Helix/Spiral1 as path.Help me out.Tell me why i'm doing wrong and solution also.By the way thanks for solution.Cheers

bolt.SLDPRT

2 Answers

Sudhir Gill
Sudhir Gill
Answered on 16 Dec, 2012 07:10 PM

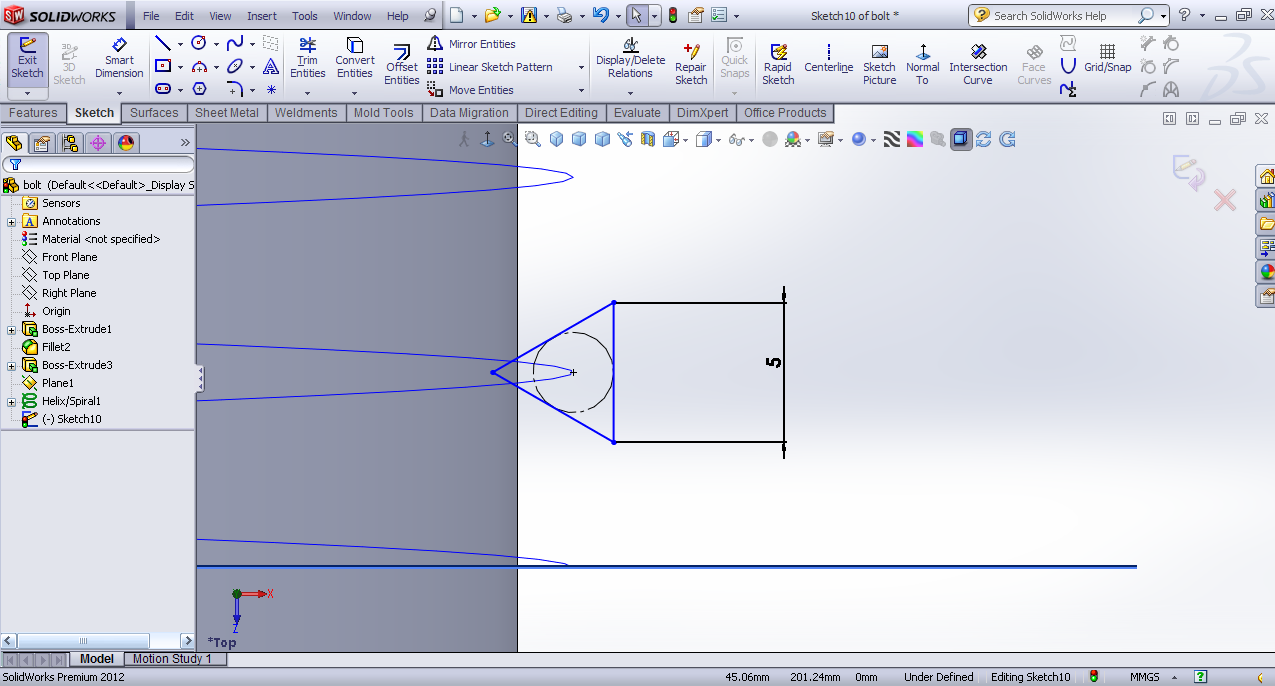

Make the polygon again with the height less then the pitch of the helix. Also place polygon so it intersects with the model.

untitled.PNG untitled.PNG
Saurabh Kumar
Saurabh Kumar
Answered on 17 Dec, 2012 03:57 AM

@sudhir: thanks brother cheers
