Tutorial - How to create a static stress analysis simulation in Solidworks?

5 answers

•
  Tom Martin about 4 years ago

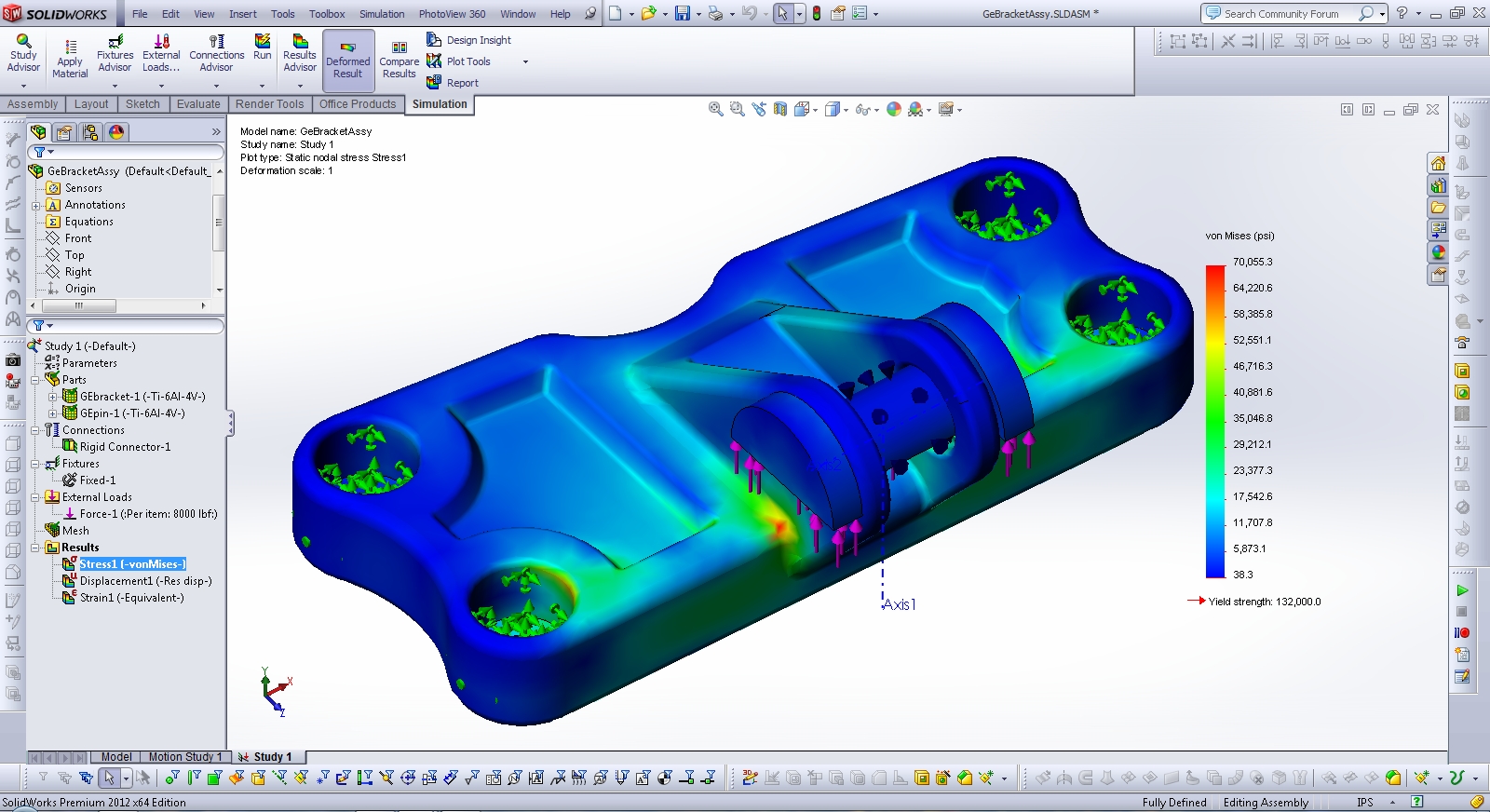

  In this tutorial I will show the basic steps to create a static stress analysis model in Solidworks. This model is from the GE jet engine bracket challenge. The goal is to find the least amount of material volume and stress based on the parameter given.

  Answered with a tutorial: https://grabcad.com/tutorials/tutorial-how-to-create-a-static-stress-analysis-simulation-in-solidworks

•
  SS Machinery about 3 years ago

  Is that an assembly? If yes, how could I do to simulate it? As far as I know, SolidWorks can only simulate parts, wright?

  1.
     SS Machinery about 2 years ago

     Ohh, got it, but I moved to Catia, so I'm trying to figure out how to handle with it. I prefer using Ansys instead. Thanks for the info!

  2.
     Tom Martin about 3 years ago

     You can simulate both assembly or a part, refer to step 3 (connectors adviser). You can decide how parts in an assembly will connect in a simulation.

  3.
     ARTHUR TAYLOR about 3 years ago

     Depends on what version you have, if you have the premium edition you will be able to do F.E.A. on assemblies

•
  simon about 4 years ago

  is this still the way to test it even with the change in rules

•
  jishnu p over 2 years ago

  please give one full tutorial video

•
  Петар Трлајић about 4 years ago

  you showed here half of pin, thats not righte or? ;)

  1.
     Tom Martin about 4 years ago

     Remember the clevis pin is "infinitely rigid", and so the half section pin is to get a realistic loading with the bracket holes. If the pin was not infinitely rigid I would've created the model in entirely different approach. Makes sense?
