Tutorial how to model a propelling pencil (17)

Aykut Dana

7 Jan, 2013 07:36 PM

17th step - second part

1. Step 1:

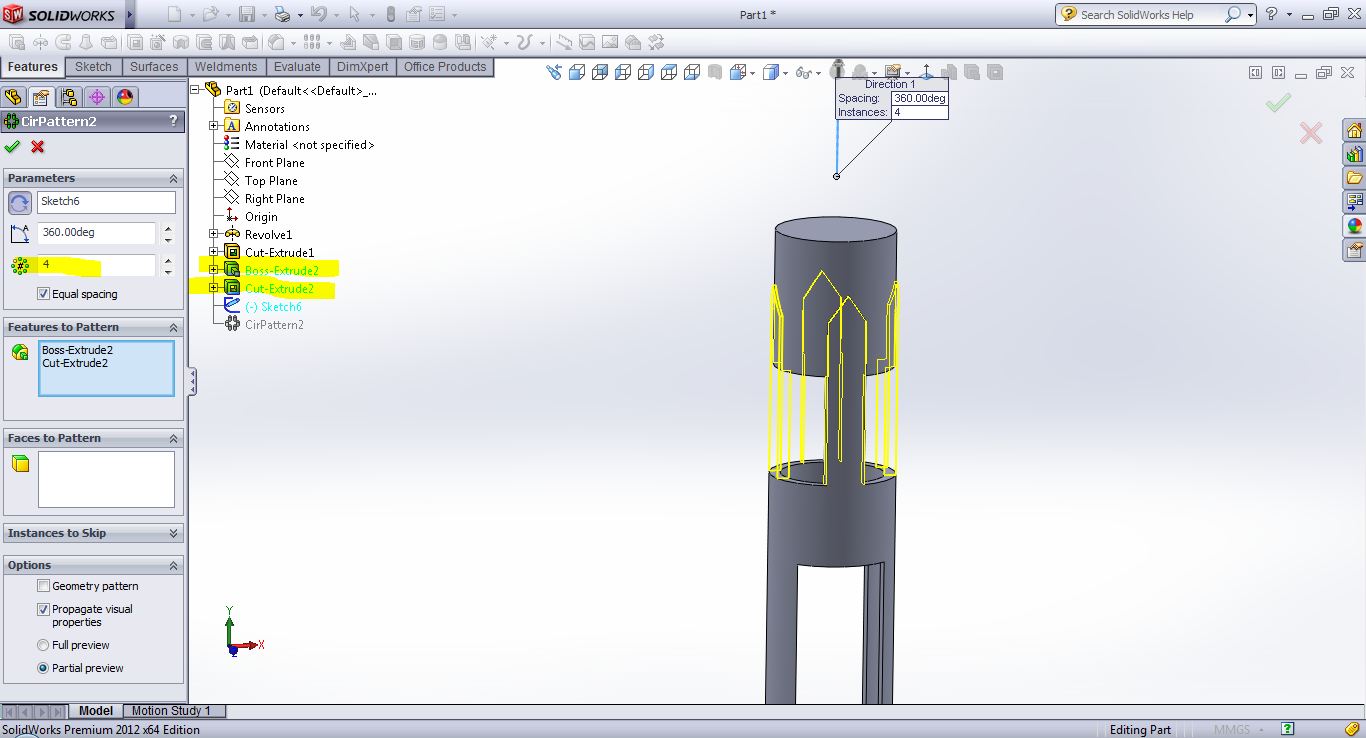

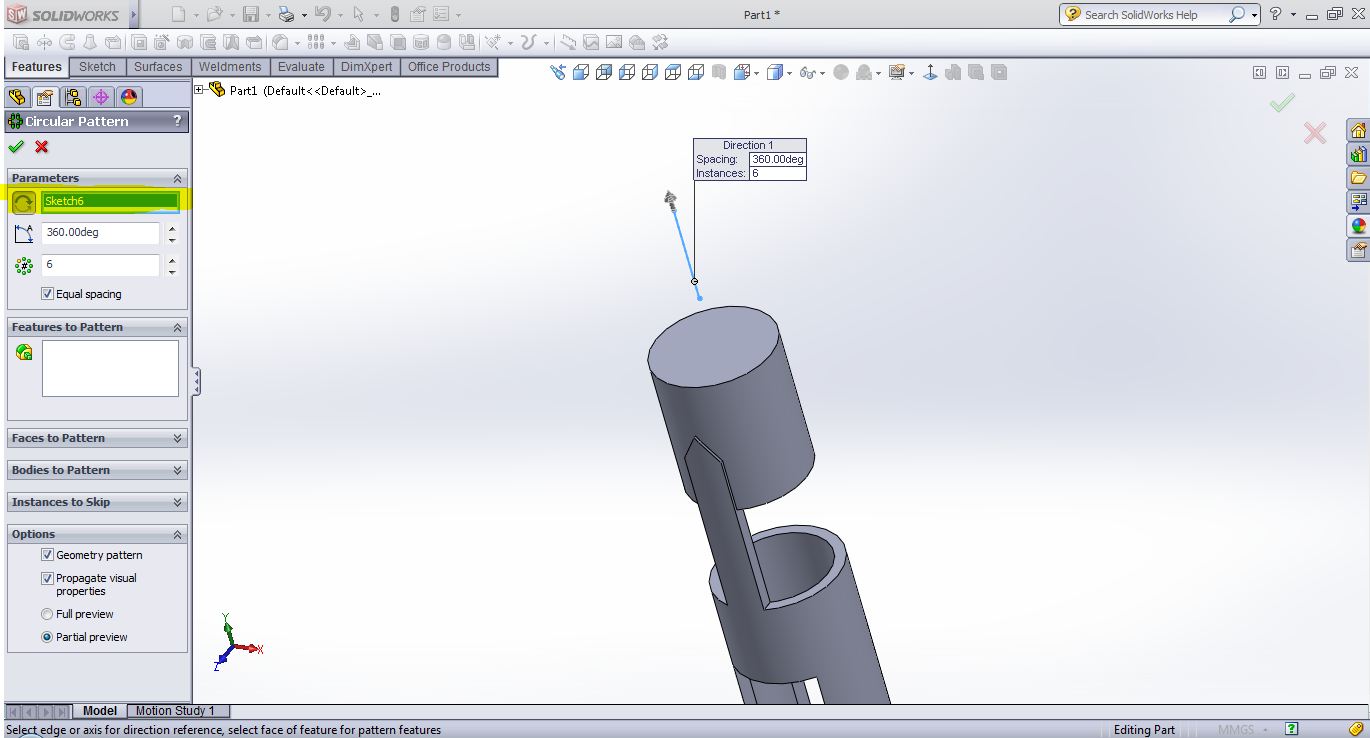

   use circular pattern command




2. Step 2:

   select the line




3. Step 3:

   select boss-extrude2 and cut-extrude2




4. Step 4:

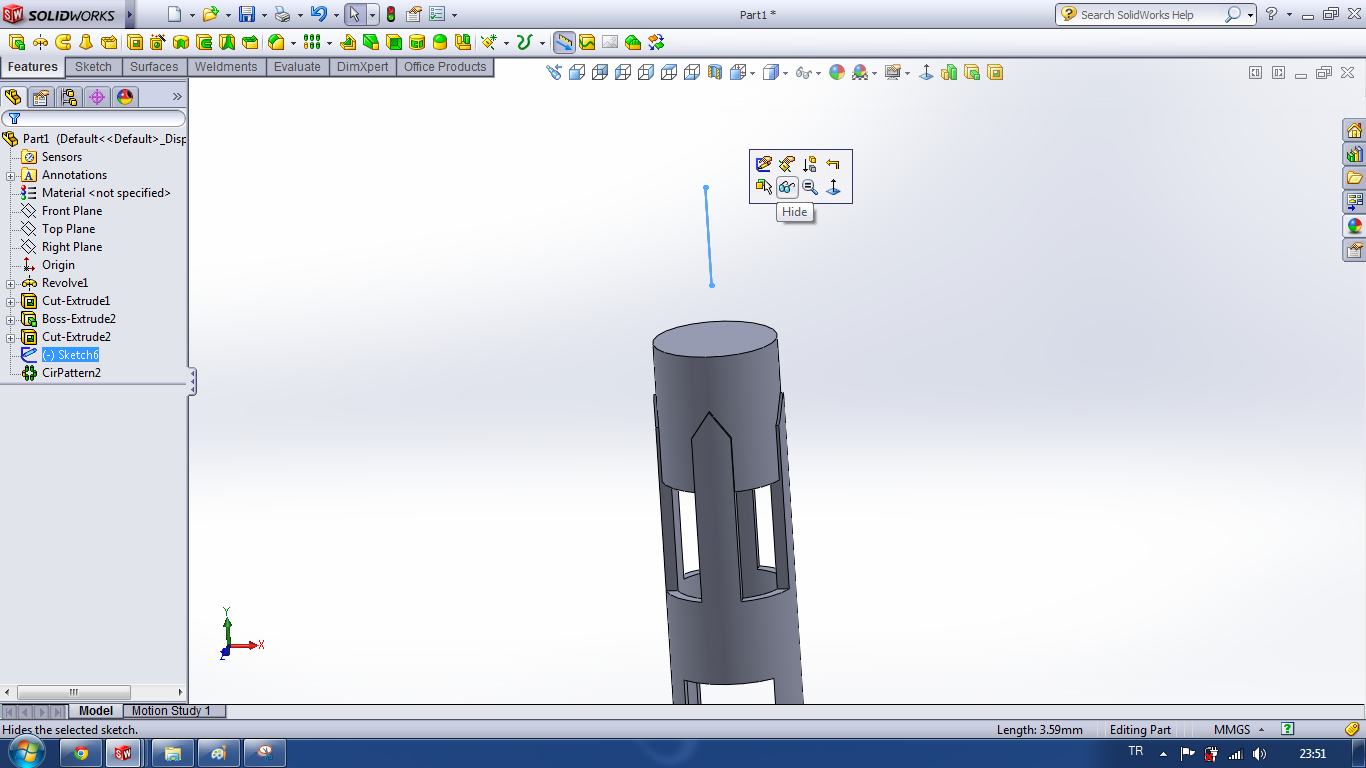

   now you can hide the centerline




5. Step 5:

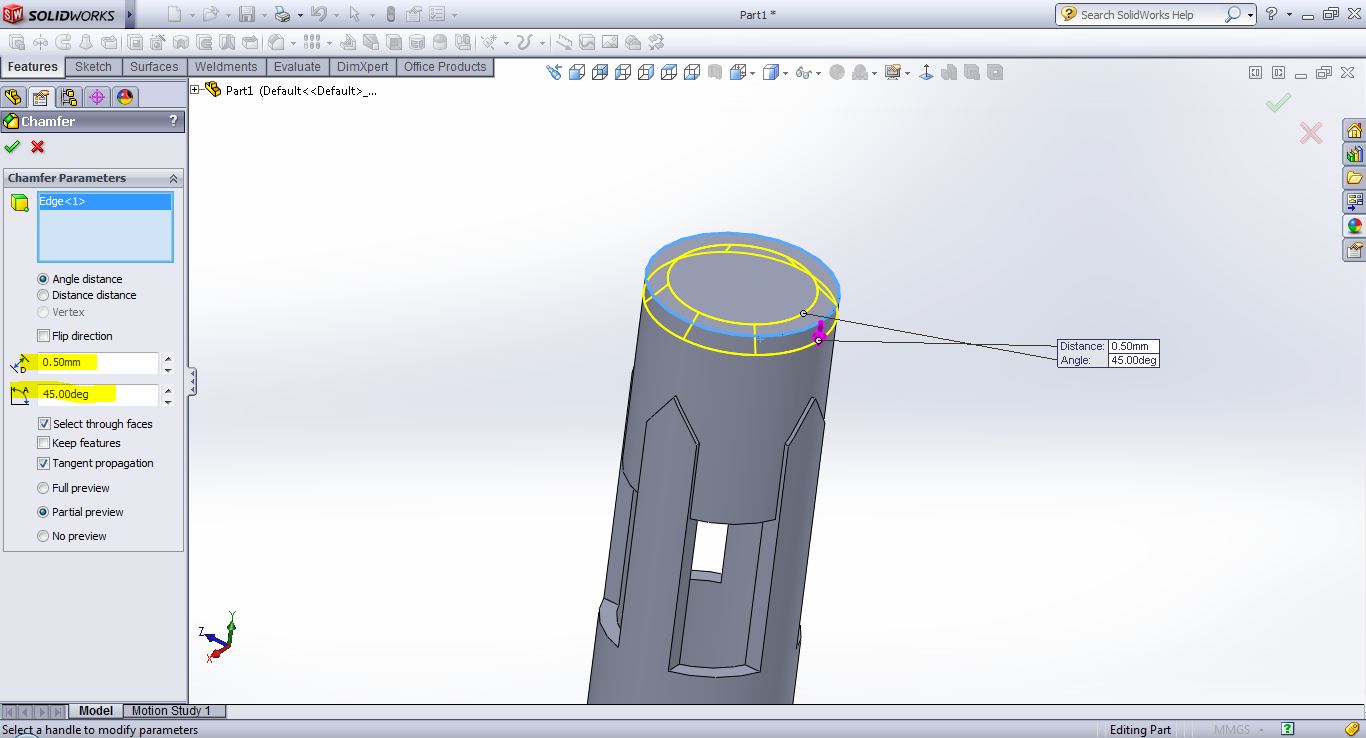

   use chamfer command

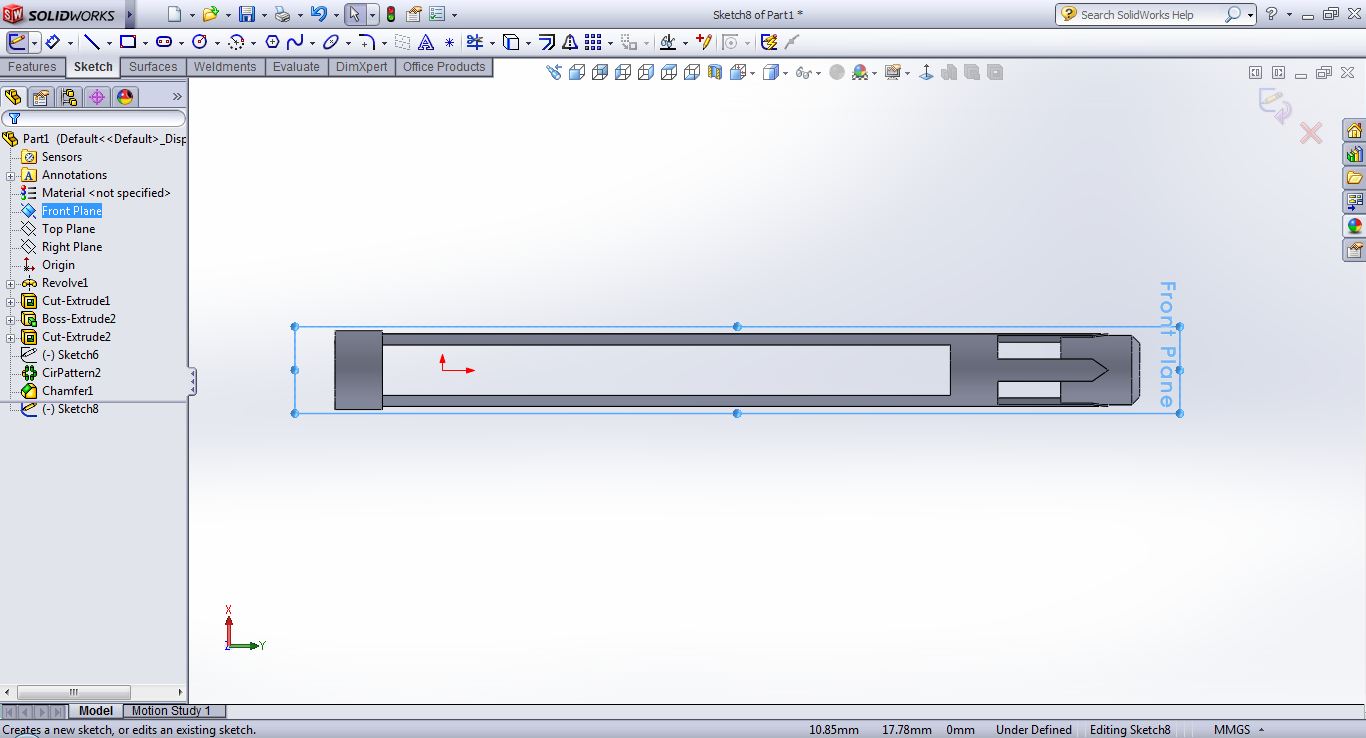

6. Step 6:

   open a sketch on the front plane...

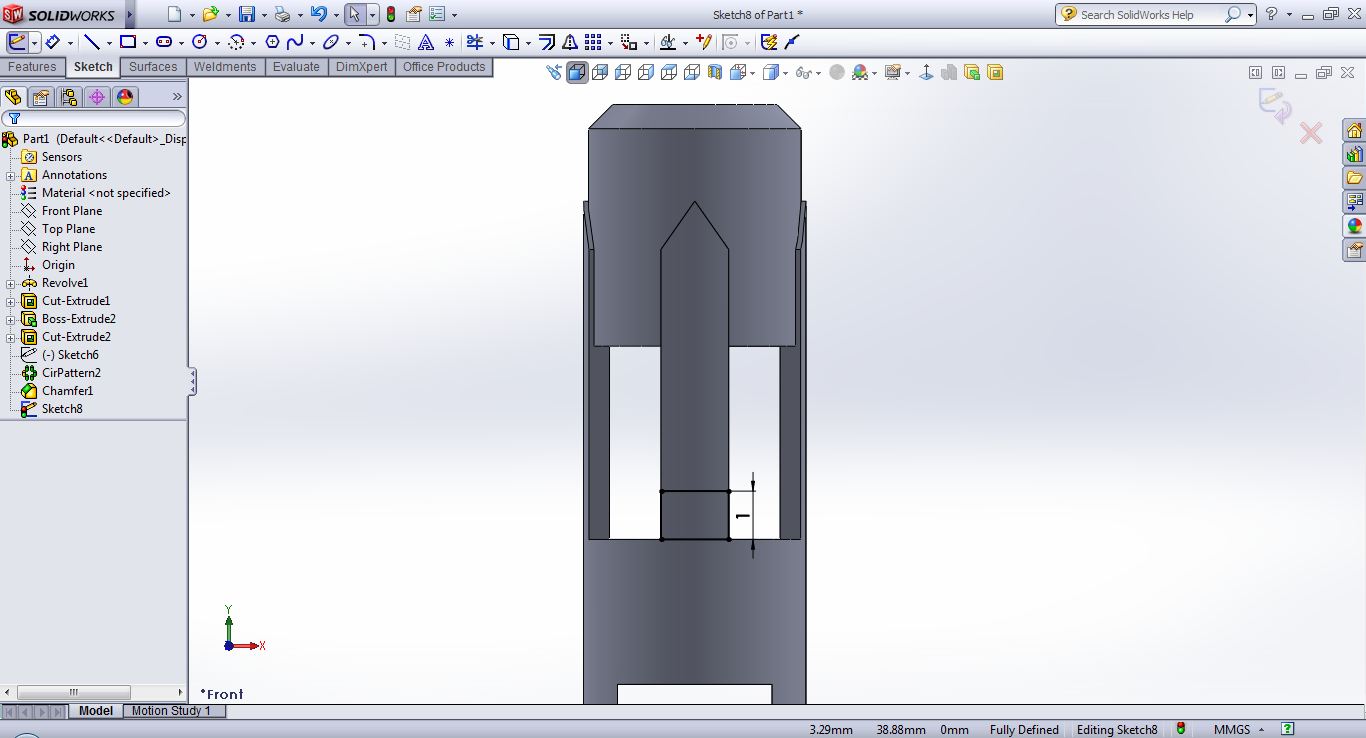

7. Step 7:

   draw a rectangle




8. Step 8:

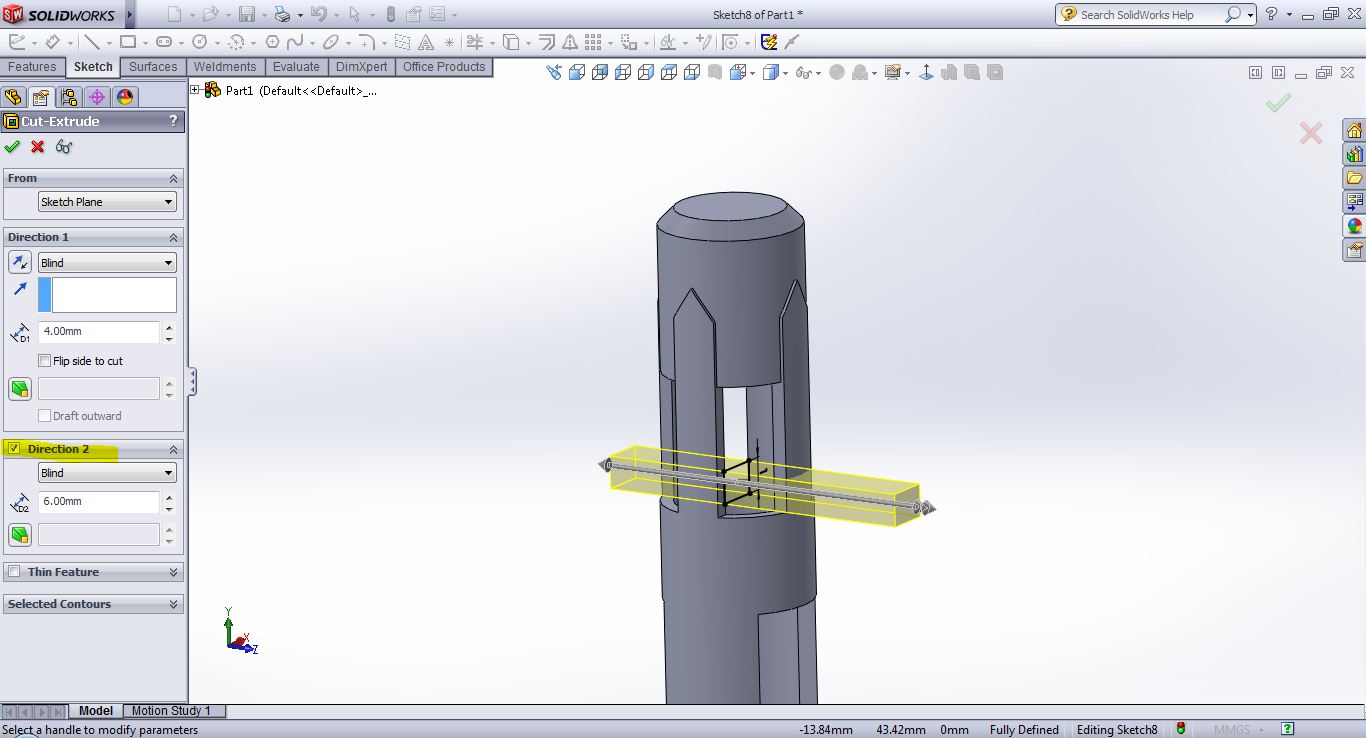

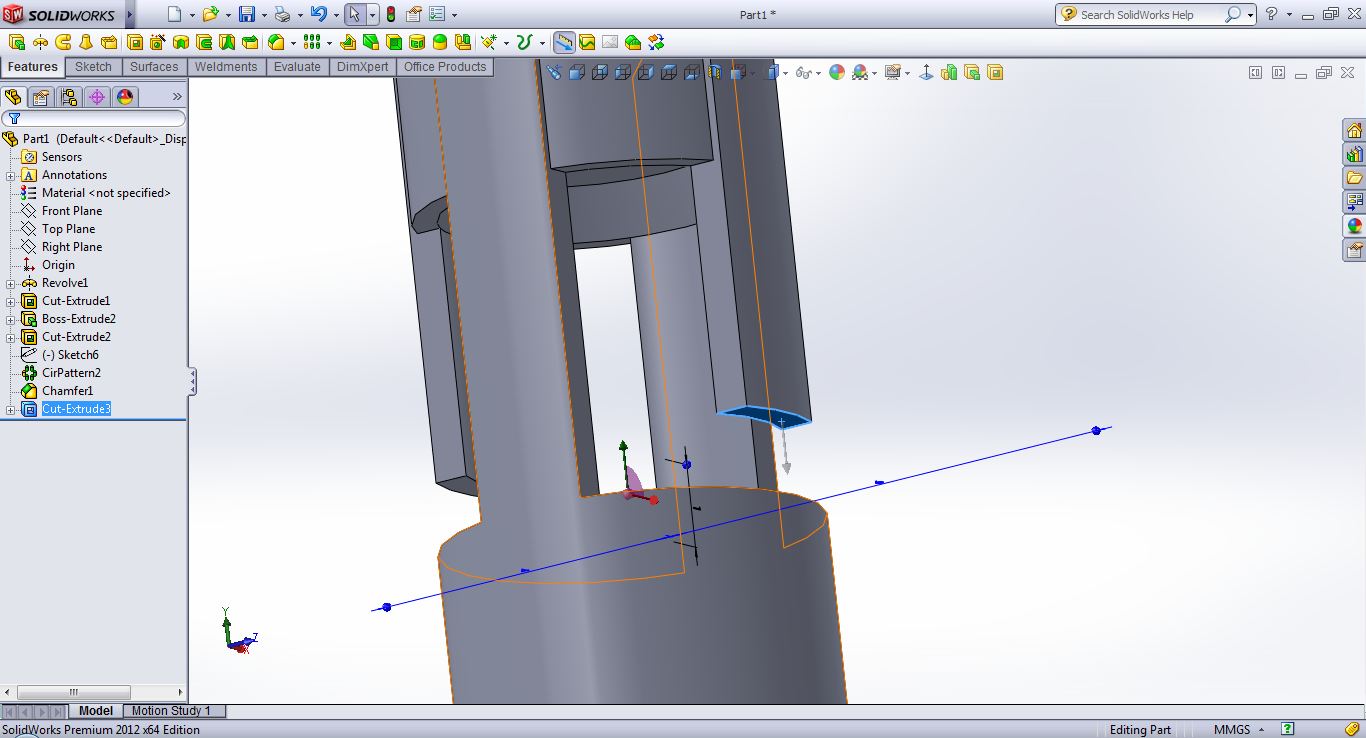

   cut the body




9. Step 9:

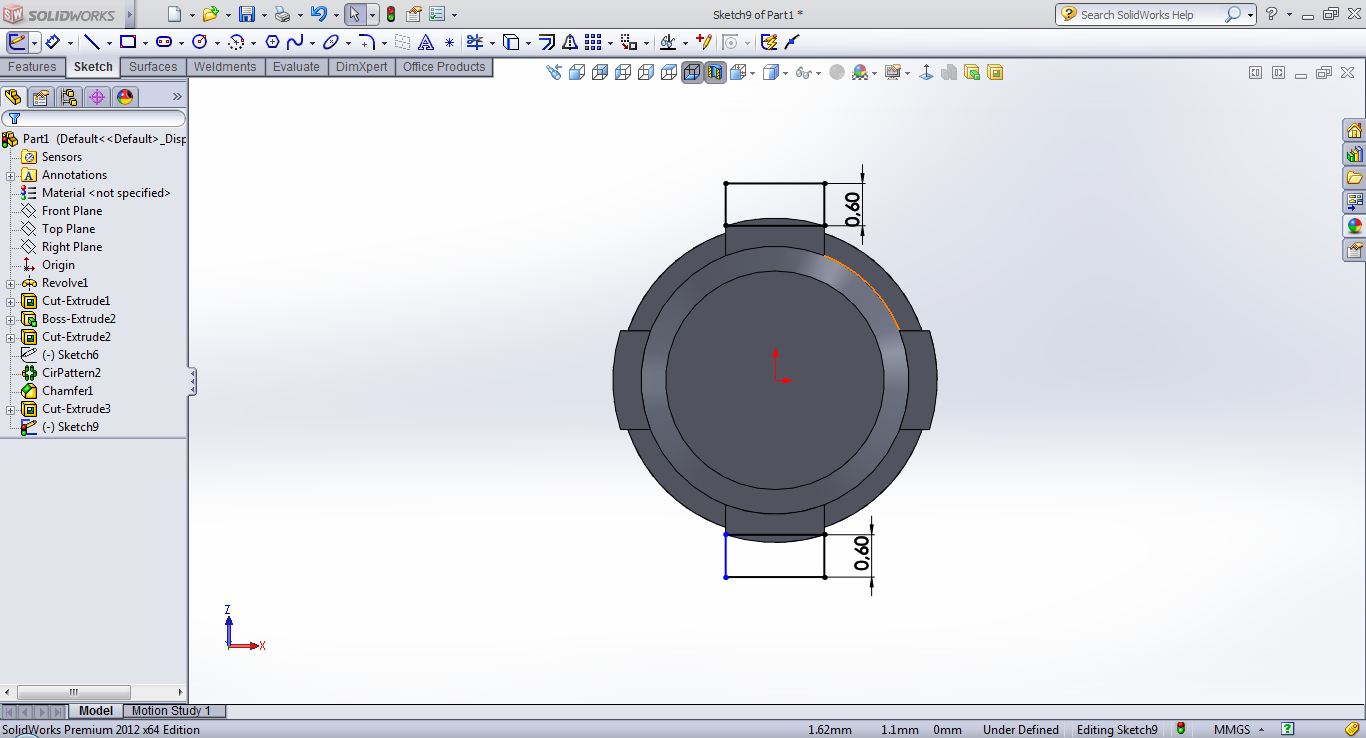

   open a sketch on this surface now.

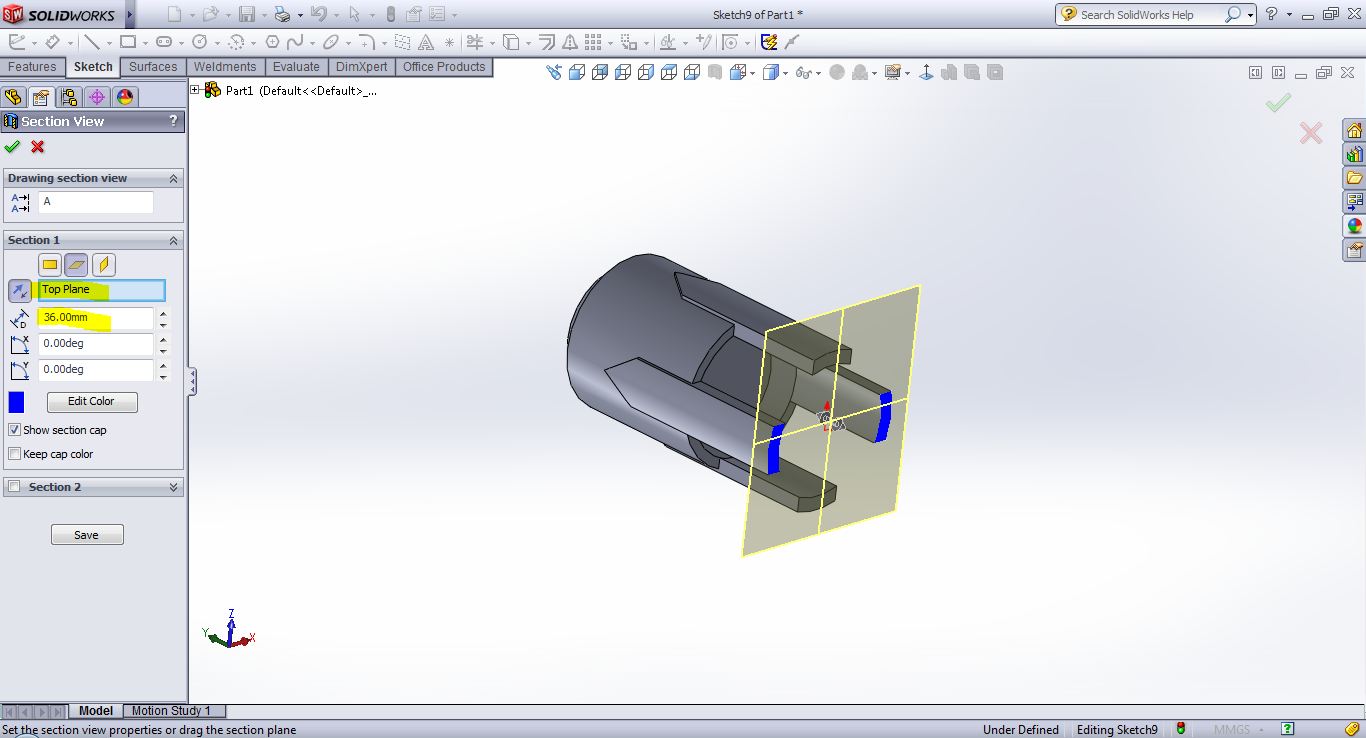

10. Step 10:

    you can use section view




11. Step 11:

    draw shown sketch




12. Step 12:

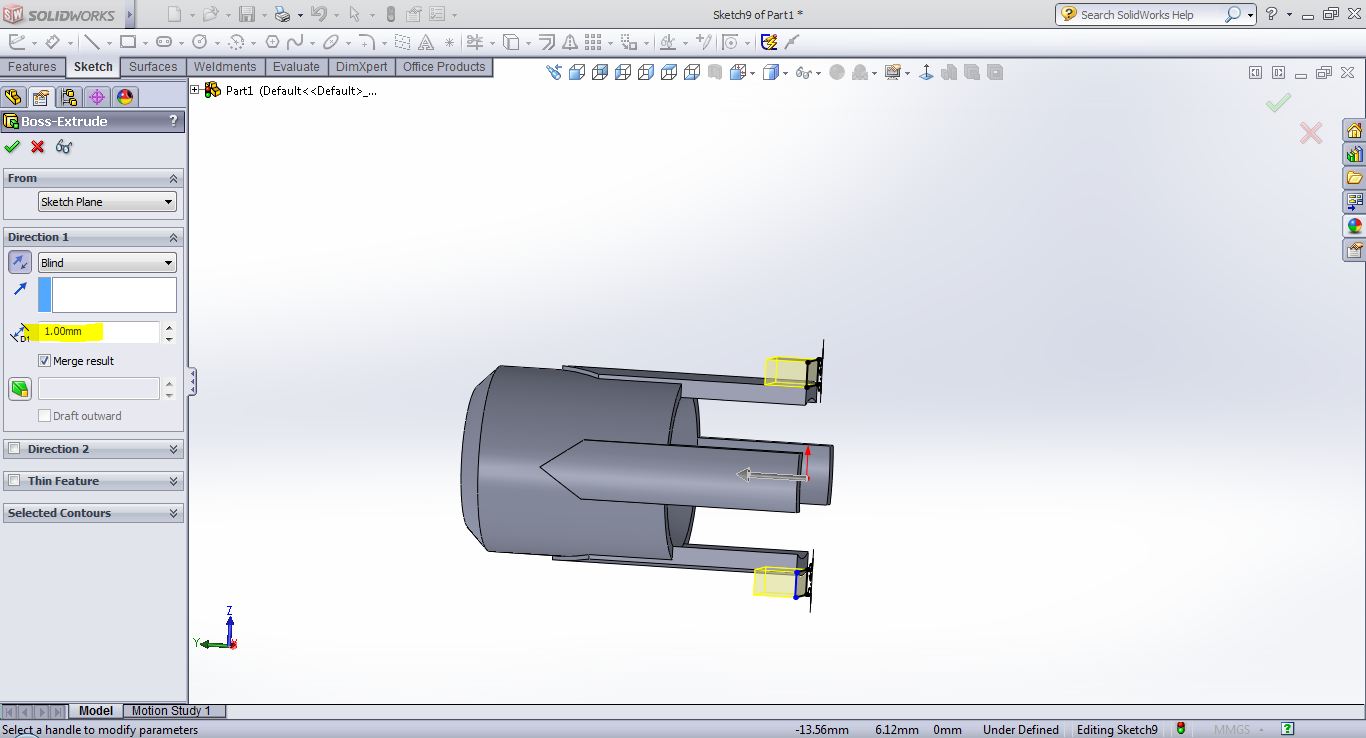

    extrude it




13. Step 13:

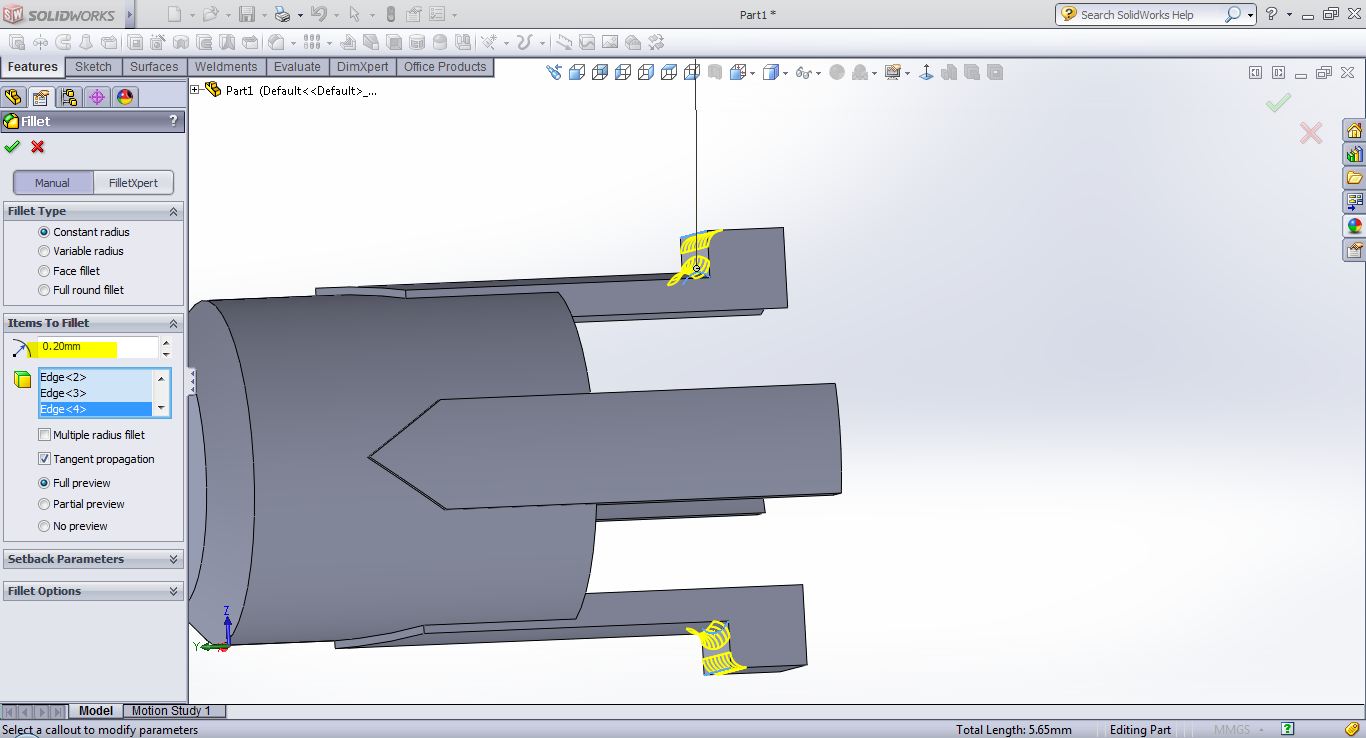

    fillet shown edges

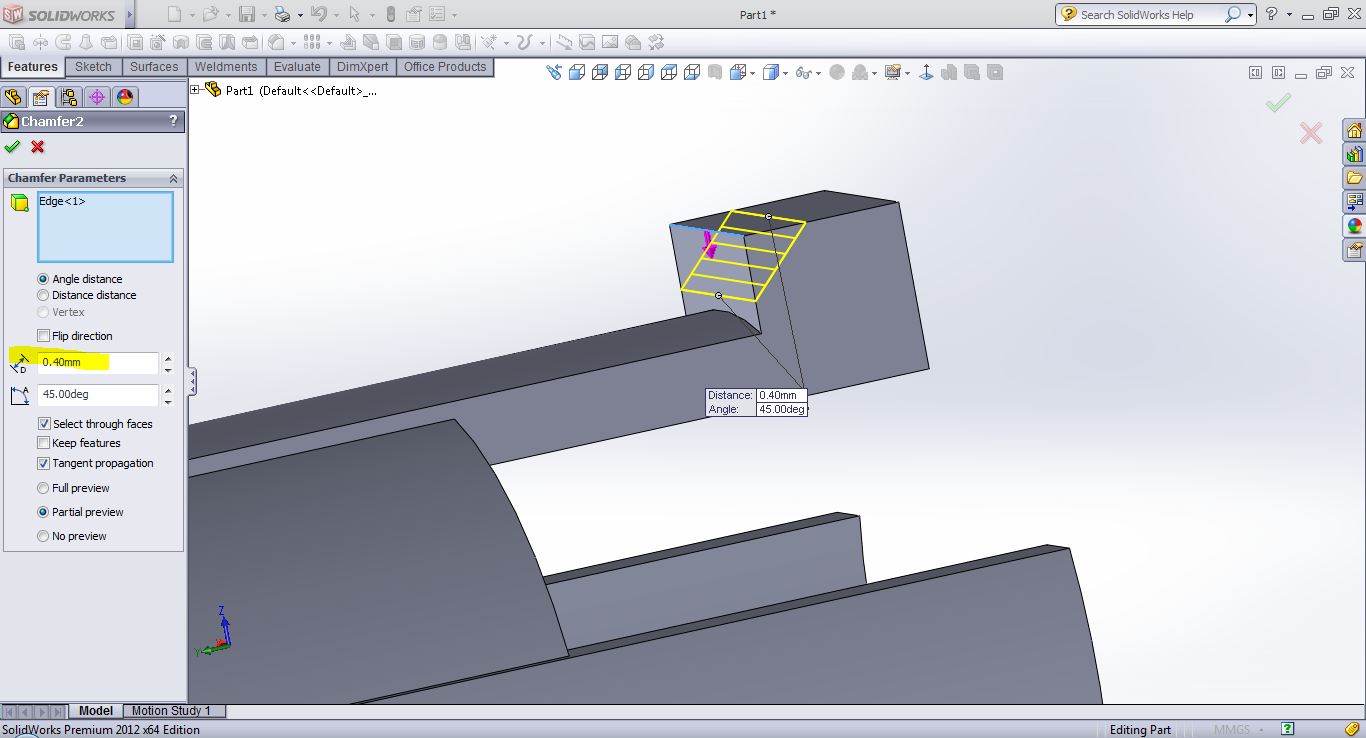

14. Step 14:

    chamfer this edges




15. Step 15:

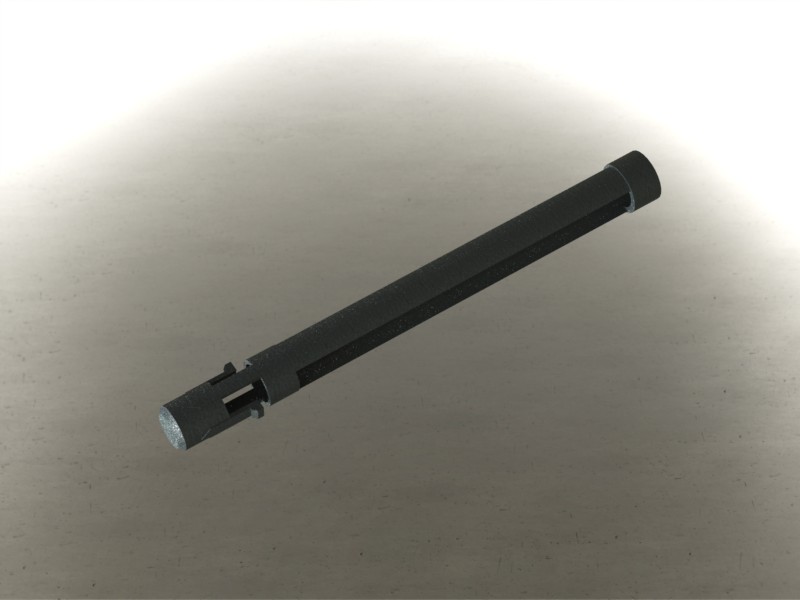

    save part 11

    next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-18
