Tutorial how to model a propelling pencil (17)

Tutorial by Aykut Dana
Small

17th part.

  1. Step 1:

    open a sketch on the front plane and draw a centerline

  2. Step 2:

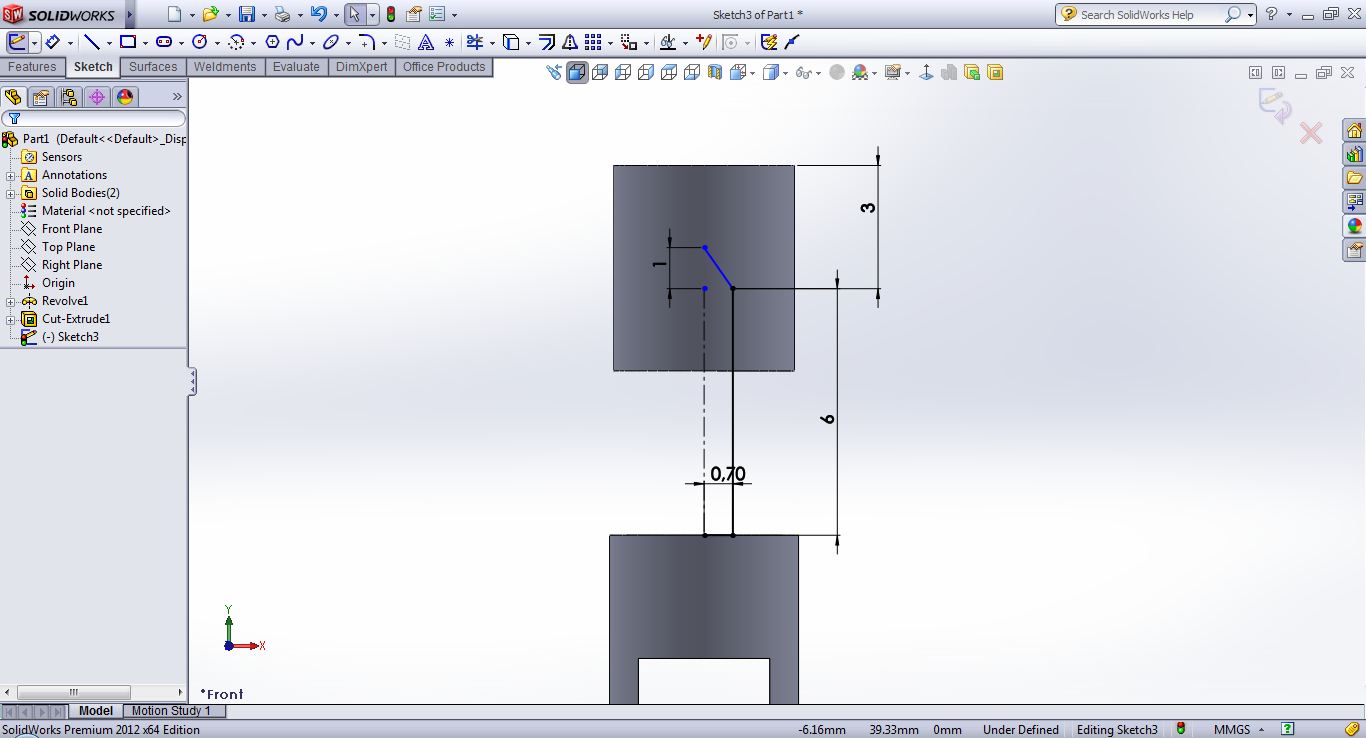

    draw shown sketch..

  3. Step 3:

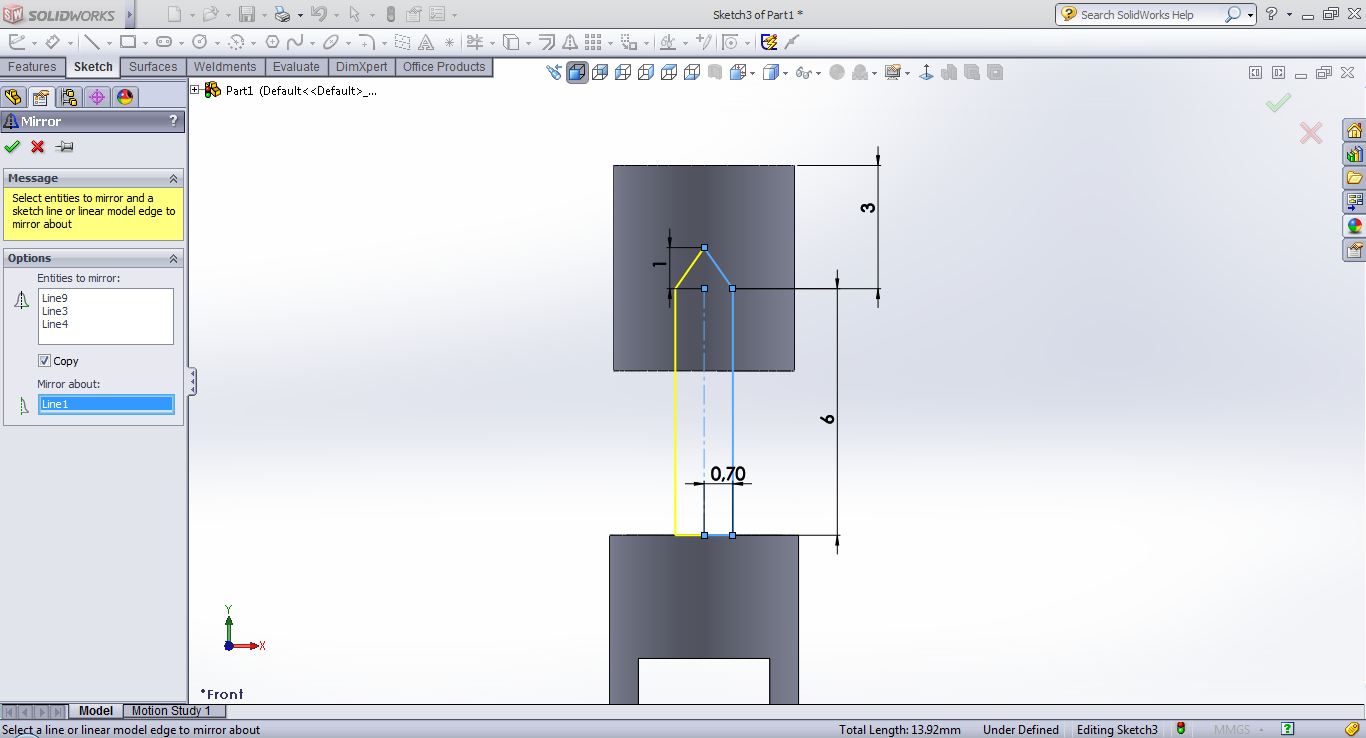

    use mirror command

  4. Step 4:

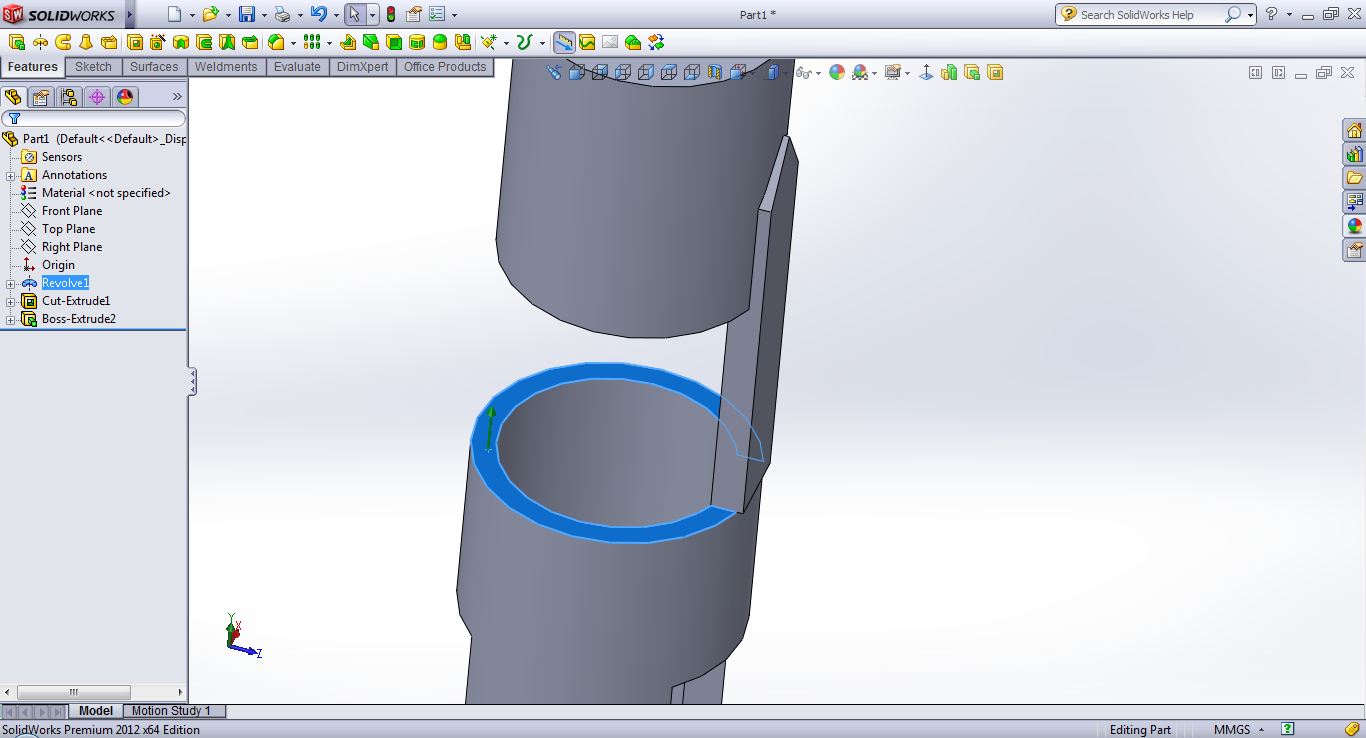

    extrude it. please check the shown places. select offset option and enter 2,30mm. select up to surface option and click on shown surface.

  5. Step 5:

    open a sketch on this surface

  6. Step 6:

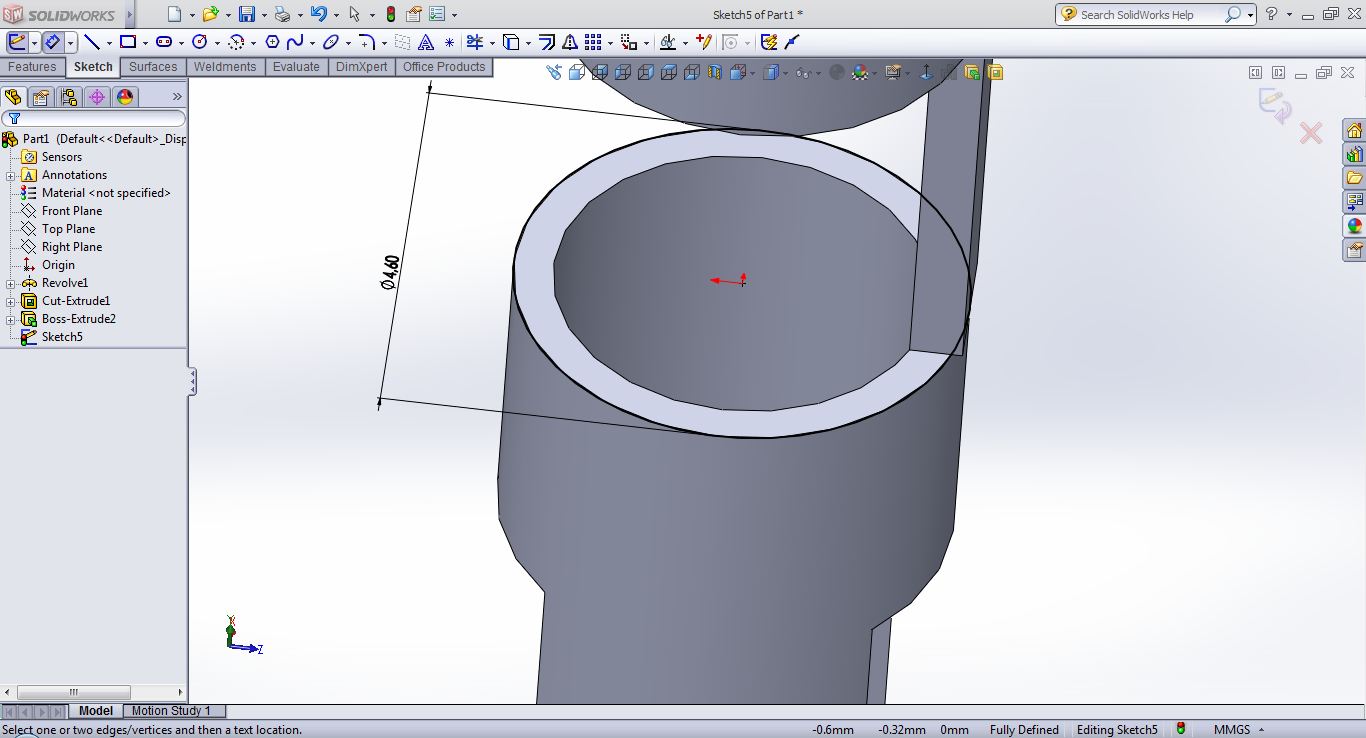

    draw a circle

  7. Step 7:

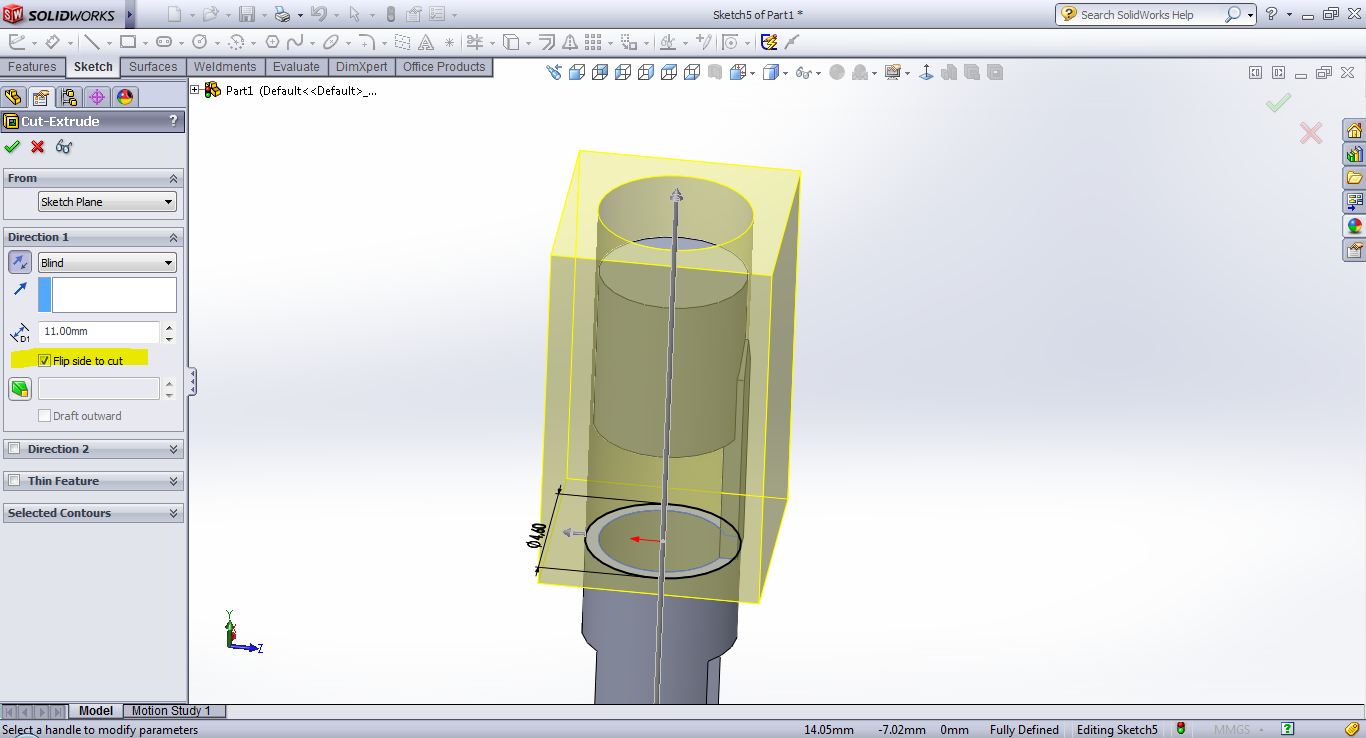

    use cut extrude command and click '' flip side to cut'' box

  8. Step 8:

    quickly open a sketch on the front plane and draw a centerline. then exit from sketch
