Tutorial: Request, Perforated tubing

Tutorial by Fahad Rafi
Small

its simple and easy. Just wrap and patterns.

  1. Step 1:

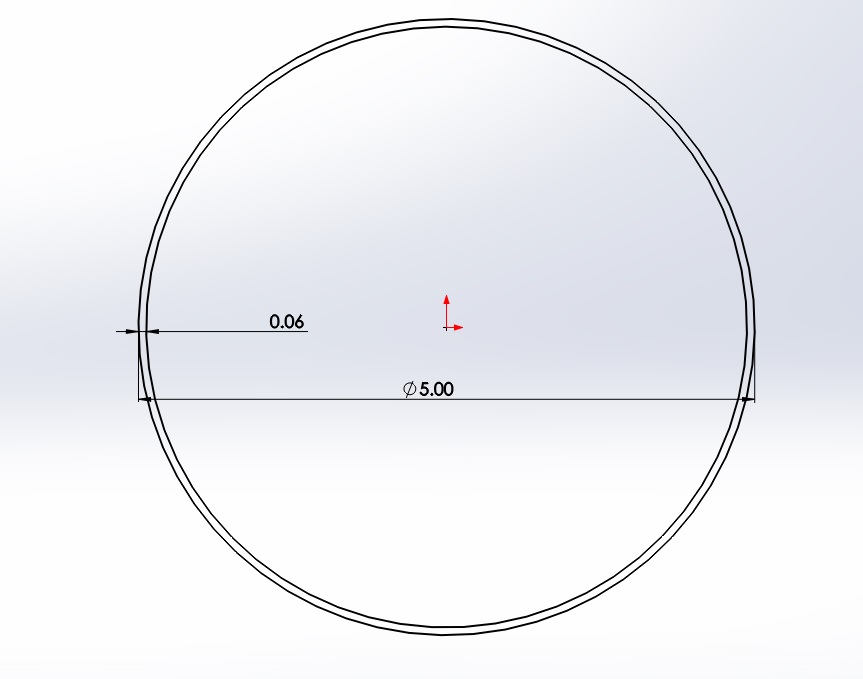

    Sketch on right plane, for tube's body.

  2. Step 2:

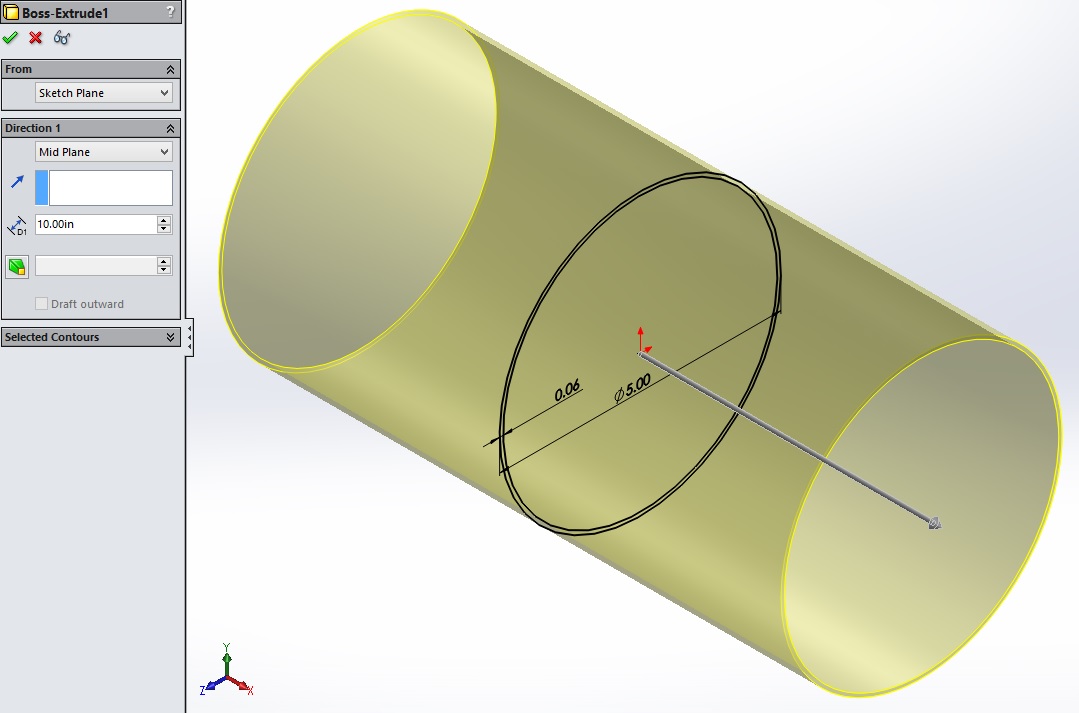

    extrude it to what ever the length of tube you want.

  3. Step 3:

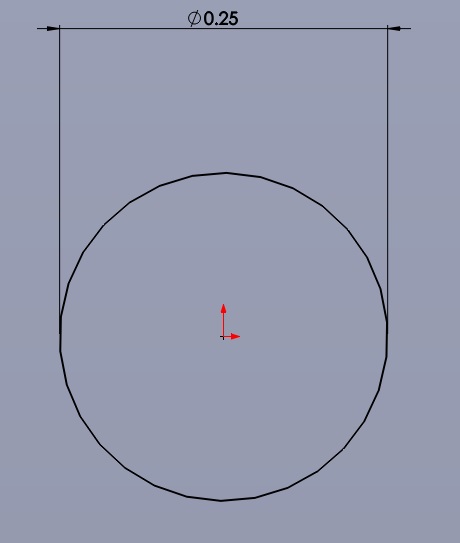

    Sketch this on the top plane.

  4. Step 4:

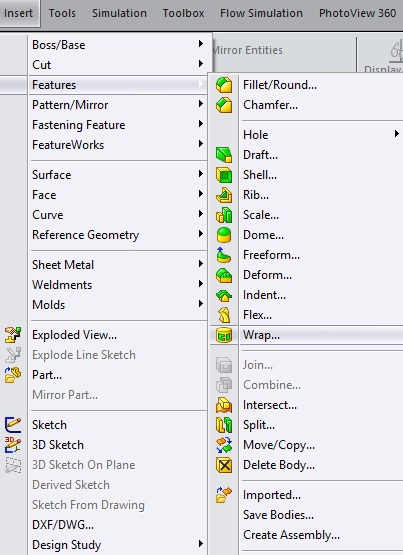

    Select wrap feature.

  5. Step 5:

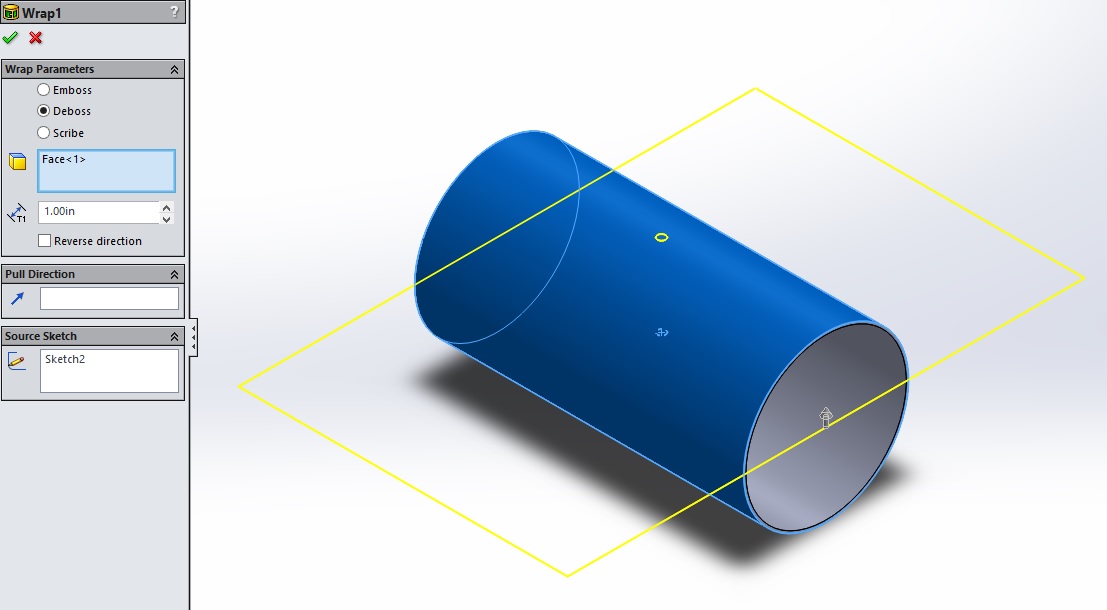

    Create a de boss wrap feature.

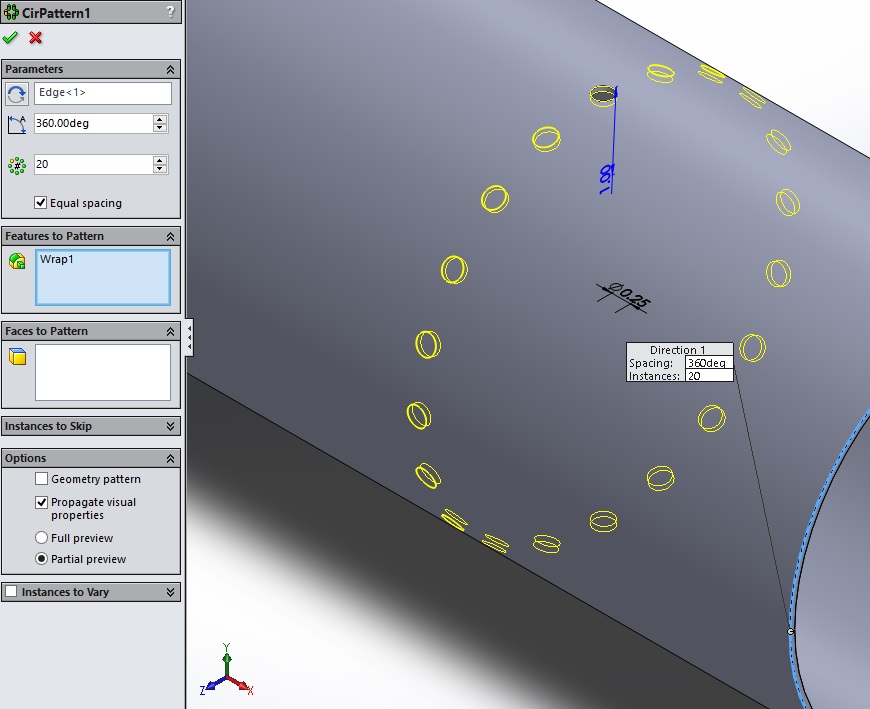

  6. Step 6:

    Make a circular pattern of the wrap feature.

  7. Step 7:

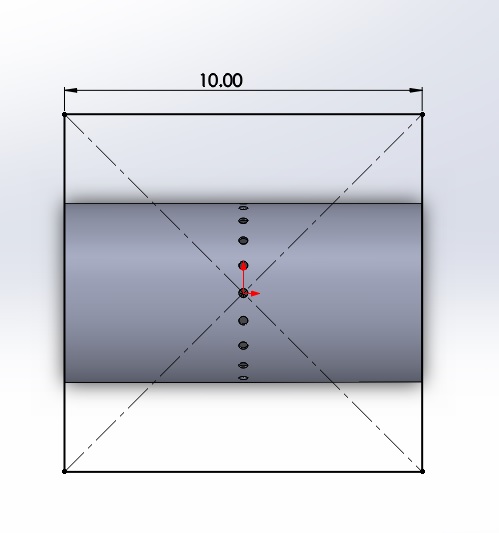

    Create this sketch on the top plane, must have straight lines parallel to axis of the tubing.

  8. Step 8:

    Surface extrude it, use any length you want. This just a helper surface for the linear pattern.

  9. Step 9:

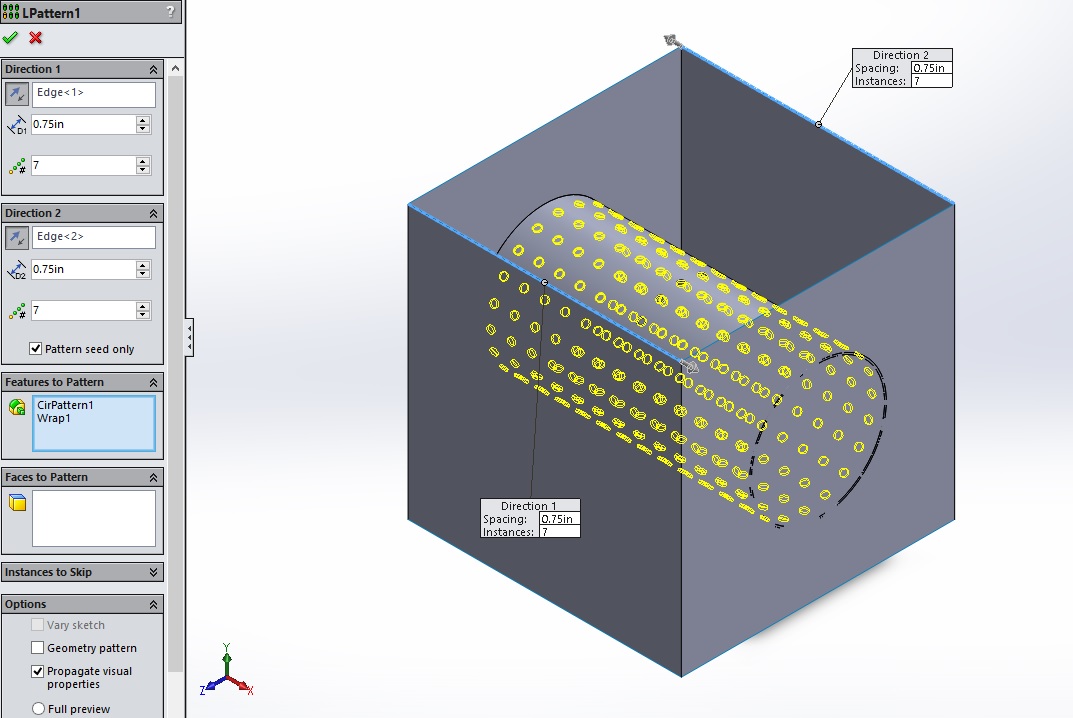

    Make a linear pattern, in second direct, pattern seed only. Same distance in both directions, obviously.

  10. Step 10:

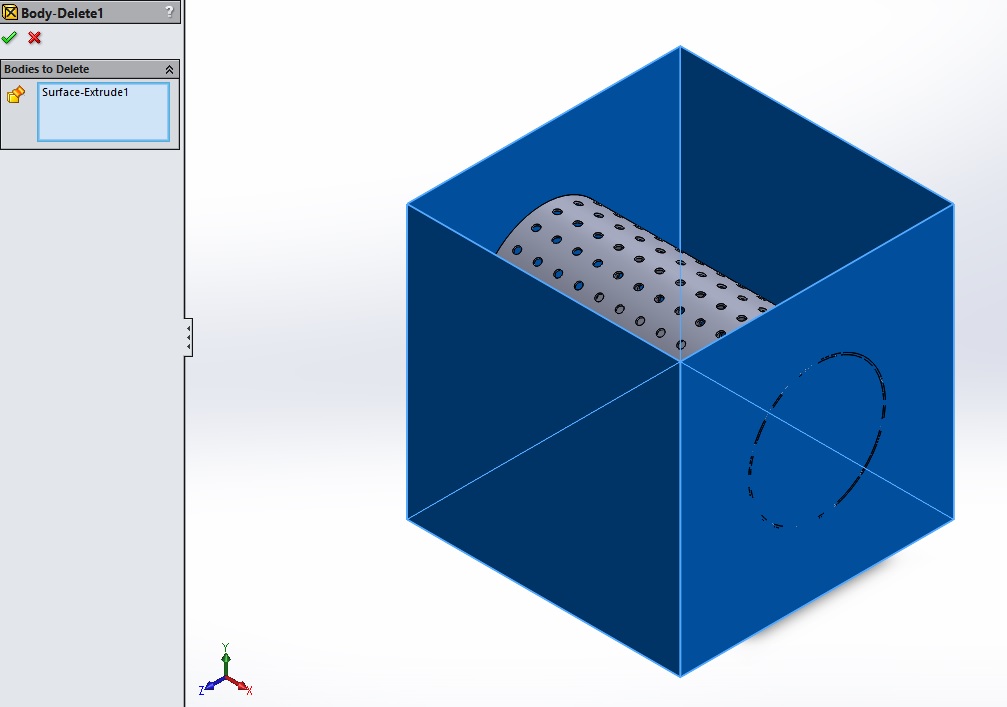

    Delete the surface body.

  11. Step 11:

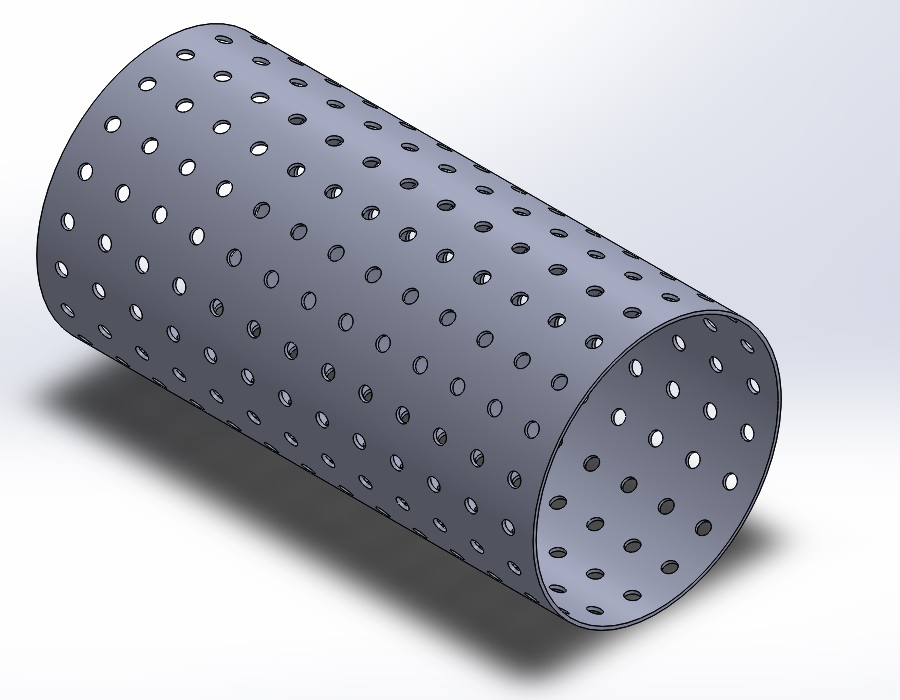

    The finished part.
