Are There Any Ways ?

Amir Malekzadeh
Amir Malekzadeh
30 Nov, 2022 06:11 AM

hi guys

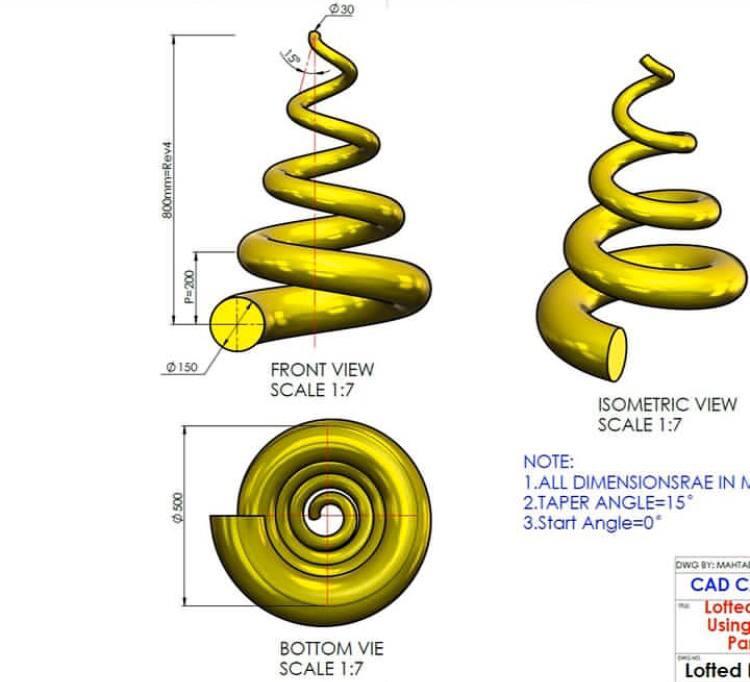

I tried to model this spring, but I didn't find any ways.
could you please advice me?

photo_2022-11-23_22-05-24.jpg photo_2022-11-23_22-05-24.jpg

Accepted answer

StrongDinosaur
StrongDinosaur
Answered on 30 Nov, 2022 10:35 AM

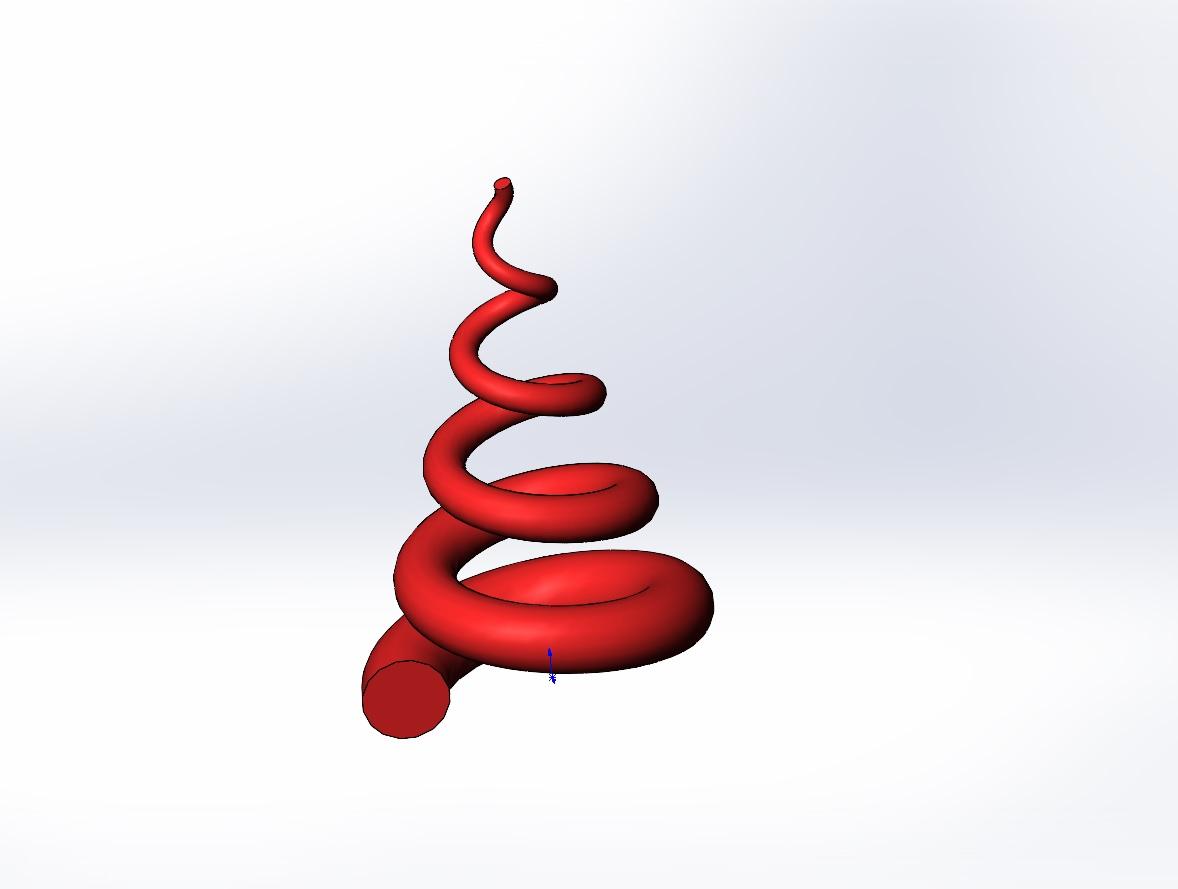

It's very easy to draw. See attachments.

spring.jpg spring.jpg test_spiral.SLDPRT

1 Other answer

SolidTweaks
SolidTweaks
Answered on 30 Nov, 2022 10:39 AM

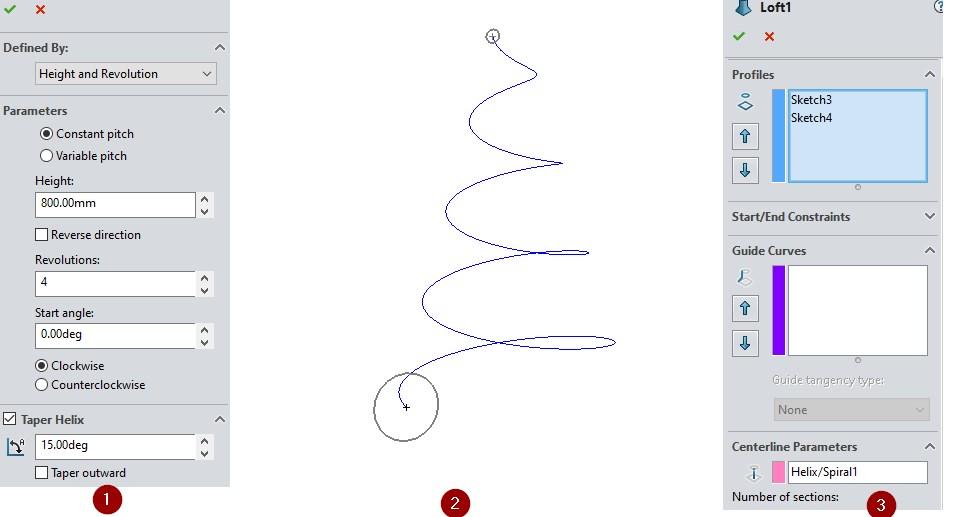

1. Create a Helix/Sprial with 800mm Pitch and 4 Revolutions (Use the Taper Angle from the drawing)
2. Create the circles with the given diameter at both the ends.
3. Use Loft feature and select the Helix/Spiral as the Centerline Parameter.

Tapered Coil.jpg Tapered Coil.jpg
