Catia Complex Part Design Modeling

Brylle
Brylle
23 Jun, 2013 01:57 AM

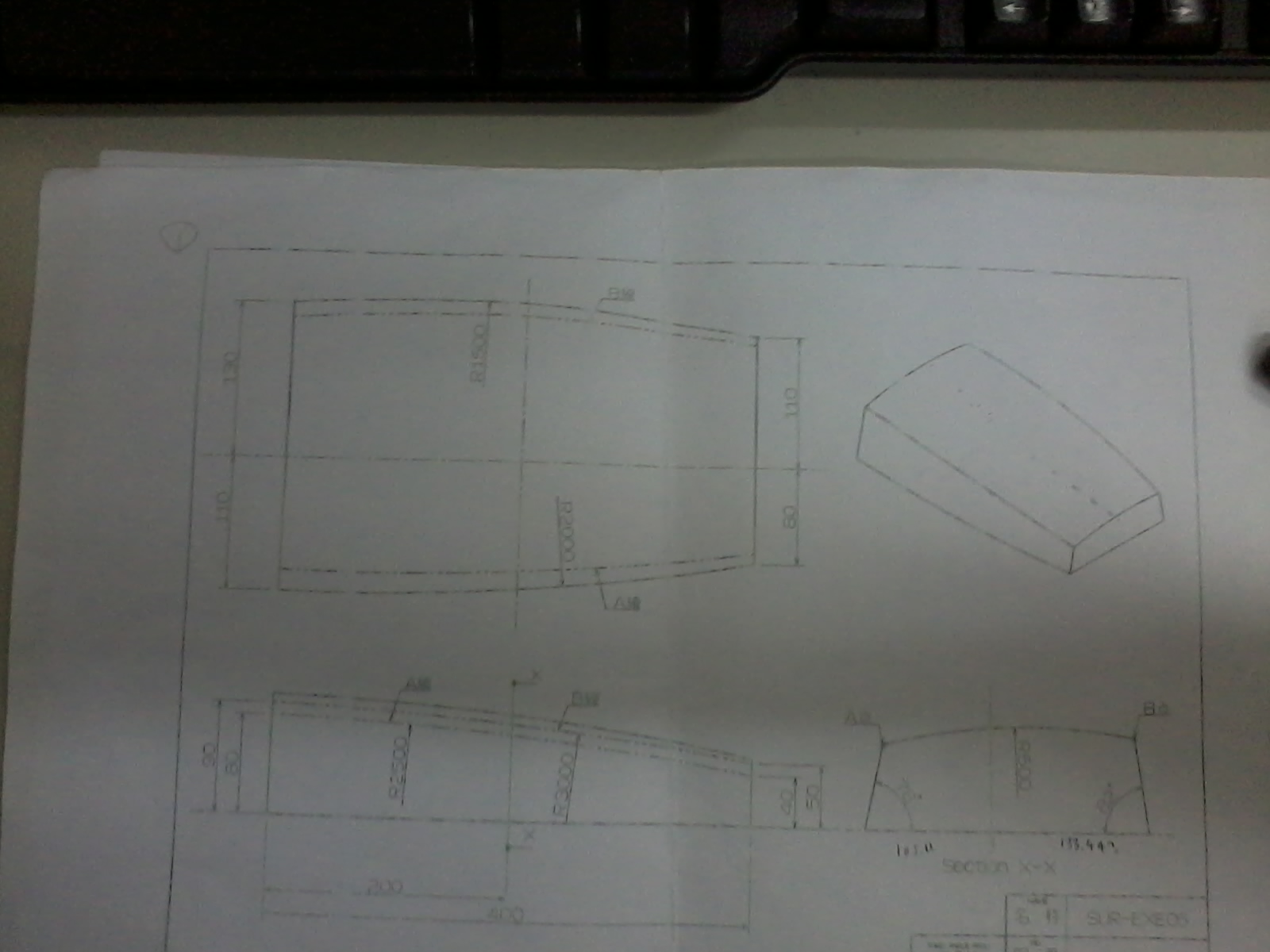

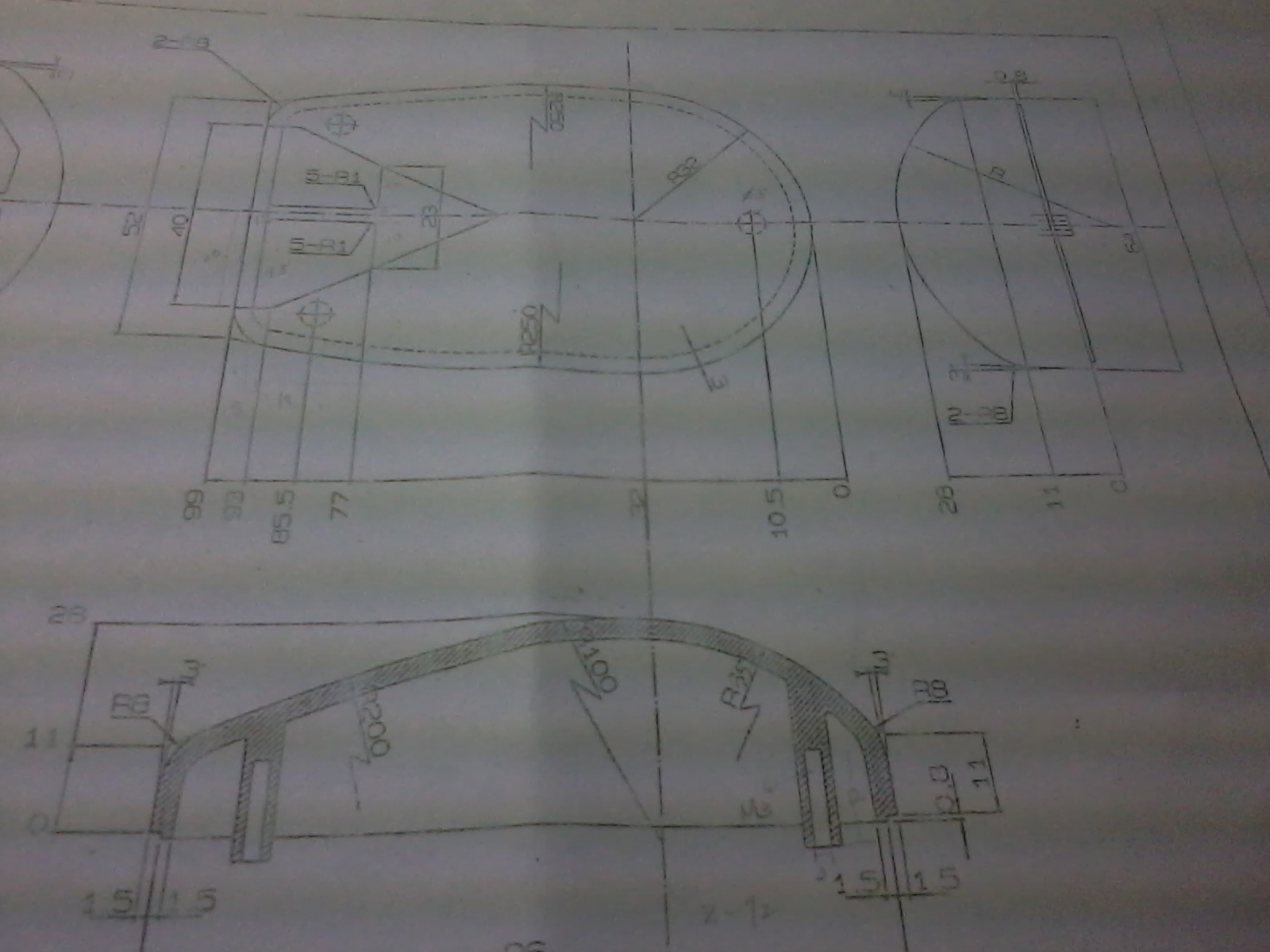

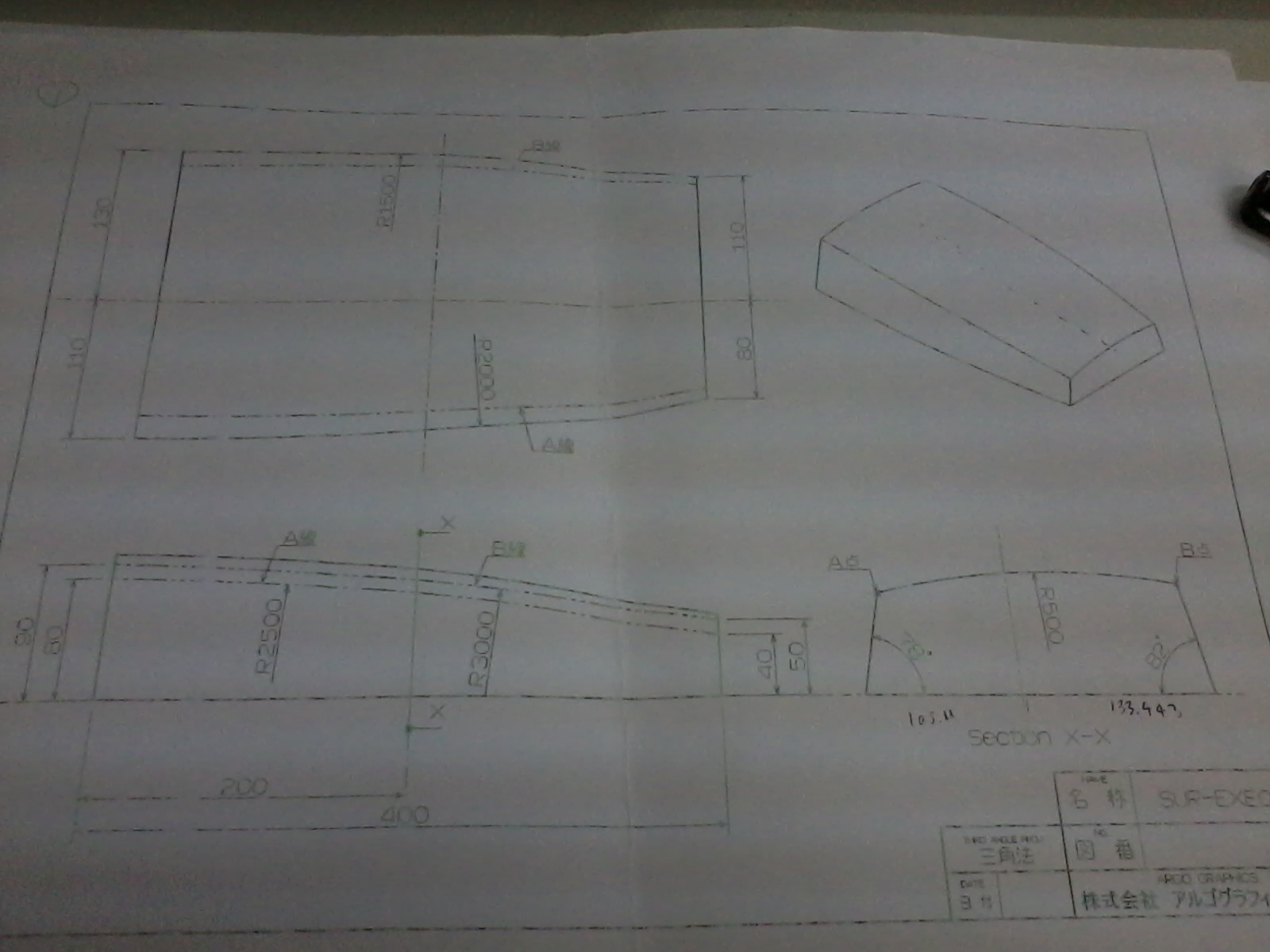

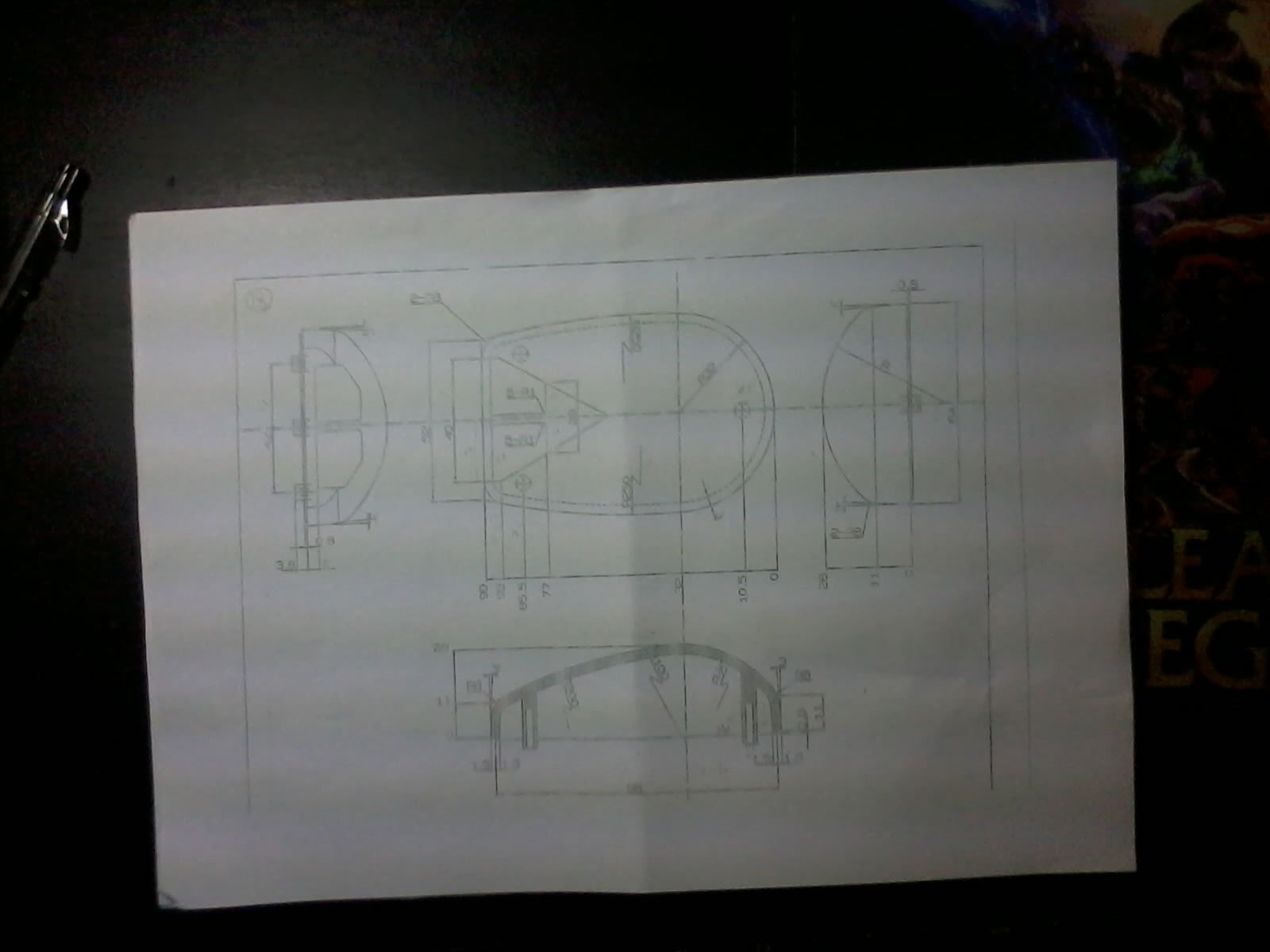

Need help grabcad. Below are images of a complex part. I'm really puzzled on the multiple radius stuff. I need to model it using pure part design only. I need to learn techniques on how to model complex parts such as this. thanks in advance

2013-06-23_09.42.47.jpg 2013-06-23_09.42.47.jpg 2013-06-23_09.42.15.jpg 2013-06-23_09.42.15.jpg 2013-06-20_14.07.44.jpg 2013-06-20_14.07.44.jpg 2013-06-20_14.07.15.jpg 2013-06-20_14.07.15.jpg

1 Answer

dave summ
dave summ
Answered on 3 Jul, 2013 12:08 AM

Easy, use multi section solid, shell, pad, pocket, fillet & variable fillet
