Complex modelling a wingmirror (Loft?)

Harry Dressel
Harry Dressel
30 Jul, 2016 11:27 PM

Hello,

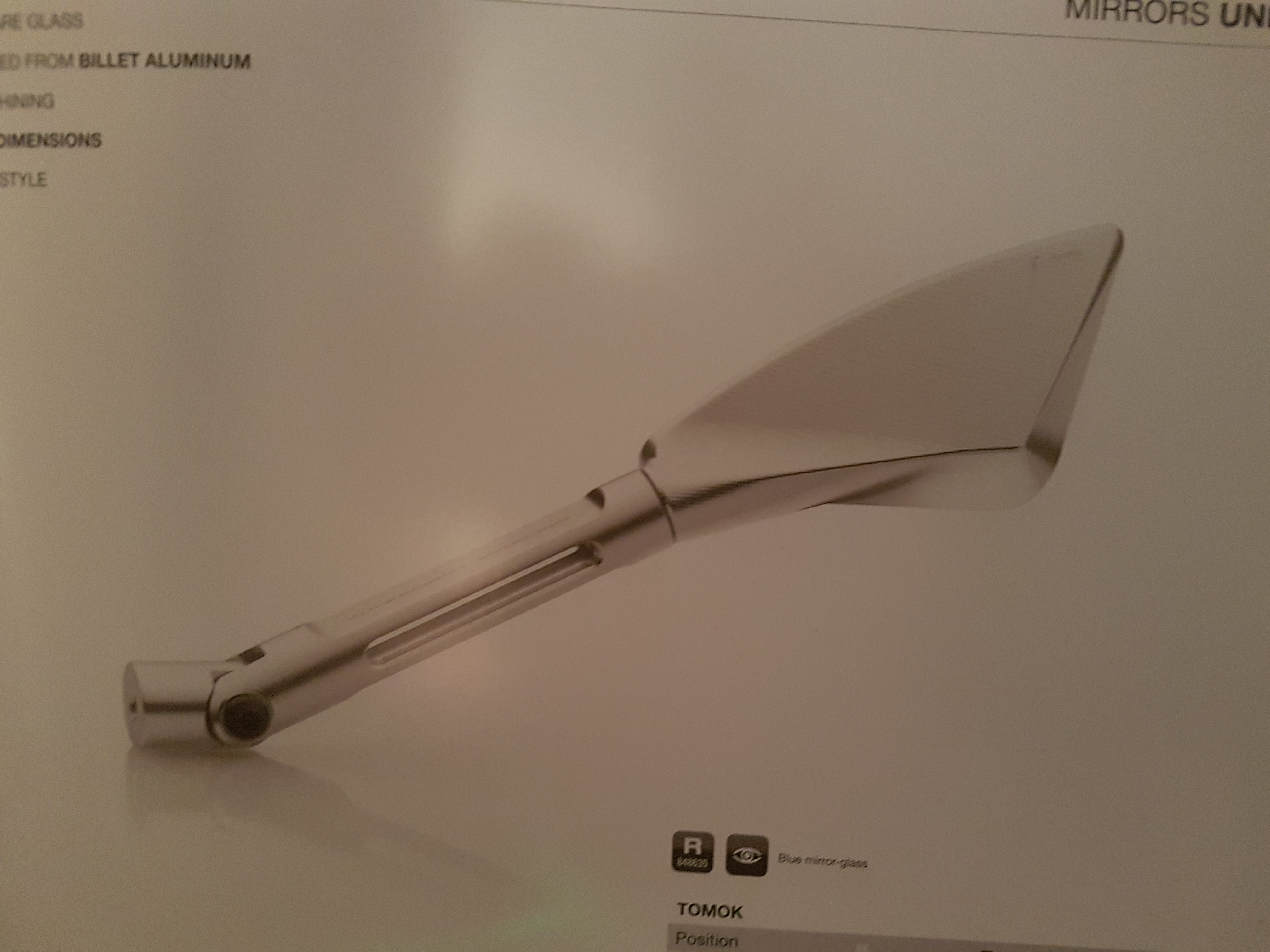

I am trying to recreate this Rizoma wingmirror for a college project but I cannot get this shape correct! I cannot get a circle to loft with the face of the mirror. I have tried adding a fillet around and extruded circle to blend it but it is not working as expected. Images attached!

Thanks,
Harry

20160731_001414_2_.jpg 20160731_001414_2_.jpg

1 Answer

Sahedul Abedin
Sahedul Abedin
Answered on 2 Aug, 2016 12:58 PM

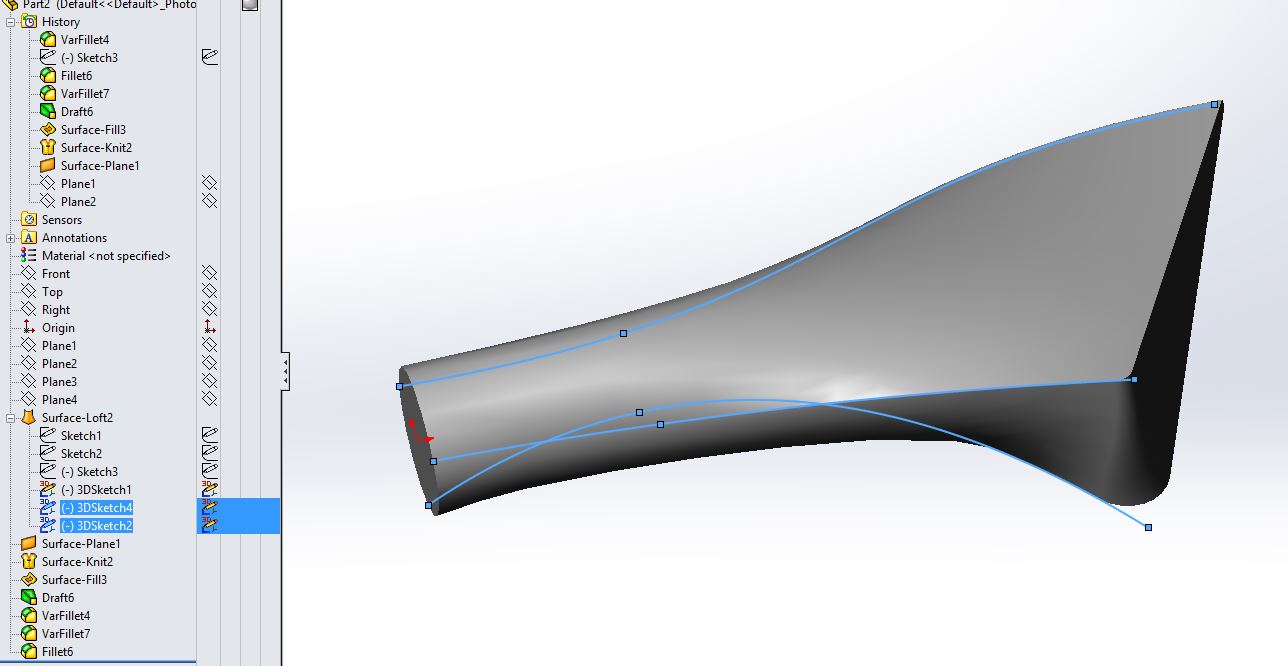

Quick try

Capture50.JPG Capture50.JPG
