Catia Part Design

By Brylle on 16 Jun 11:00 5 answers 4024 views 3 comments

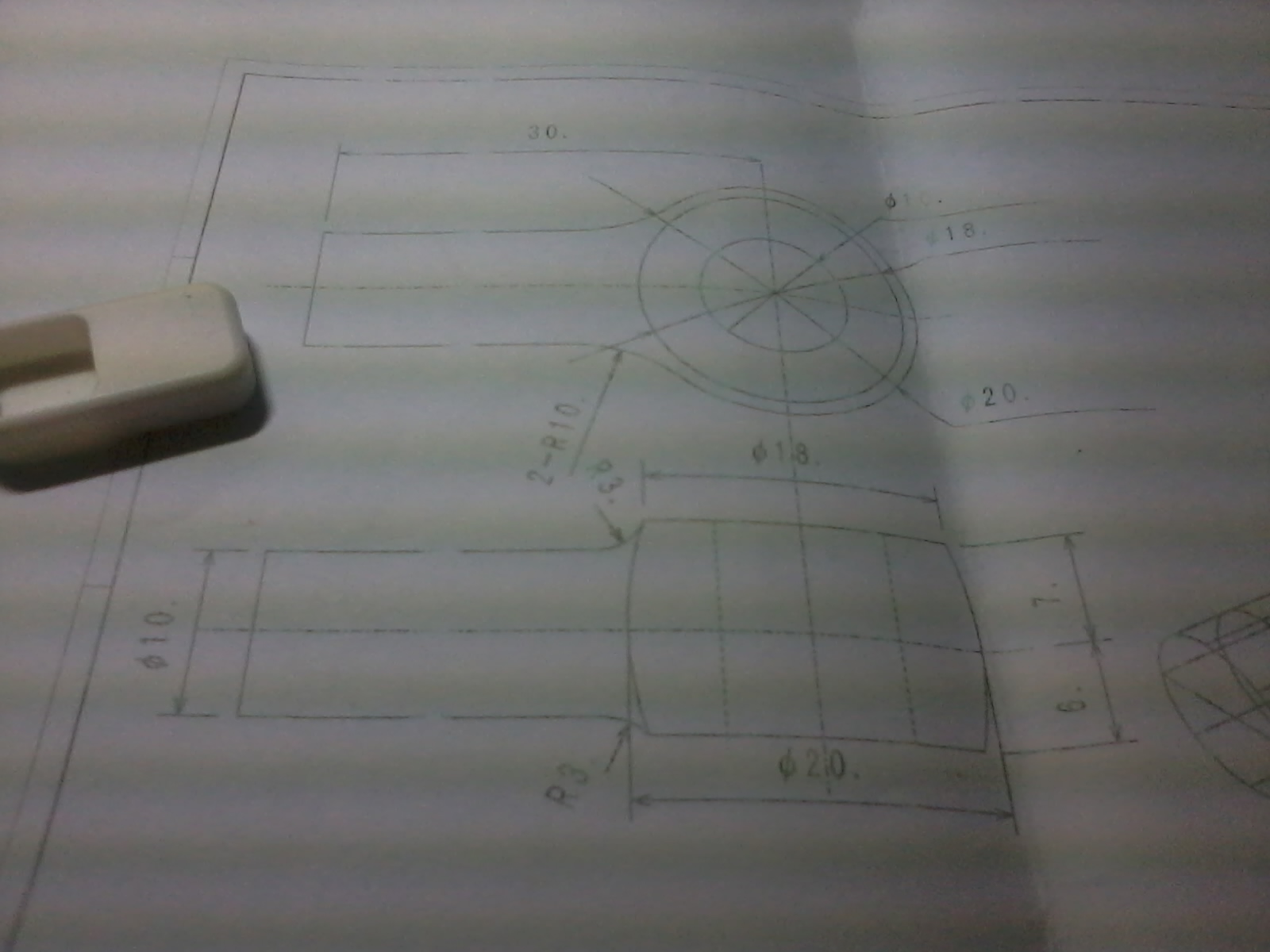

I'm really puzzled how to input the 3mm fillet on the side view and the 10mm fillet on top view of the model. please see image below

Added images

Square

5 answers

  • G15
    G15 about 4 years ago

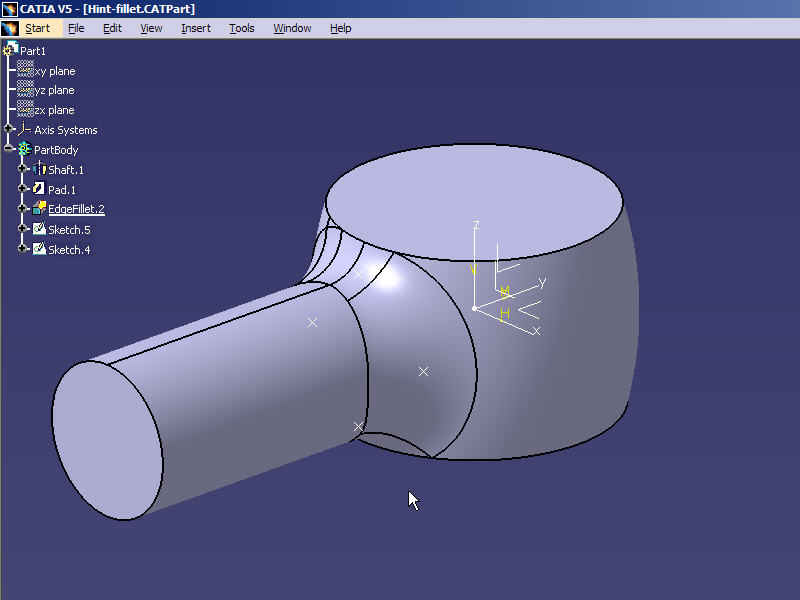

    here is the file.

    Attachments

    Hint-fillet.CATPart, 196 KB
    Download
  • Brylle
    Brylle about 4 years ago

    that was really fast man. thanks. btw how did you input those points?

  • Brylle
    Brylle about 4 years ago

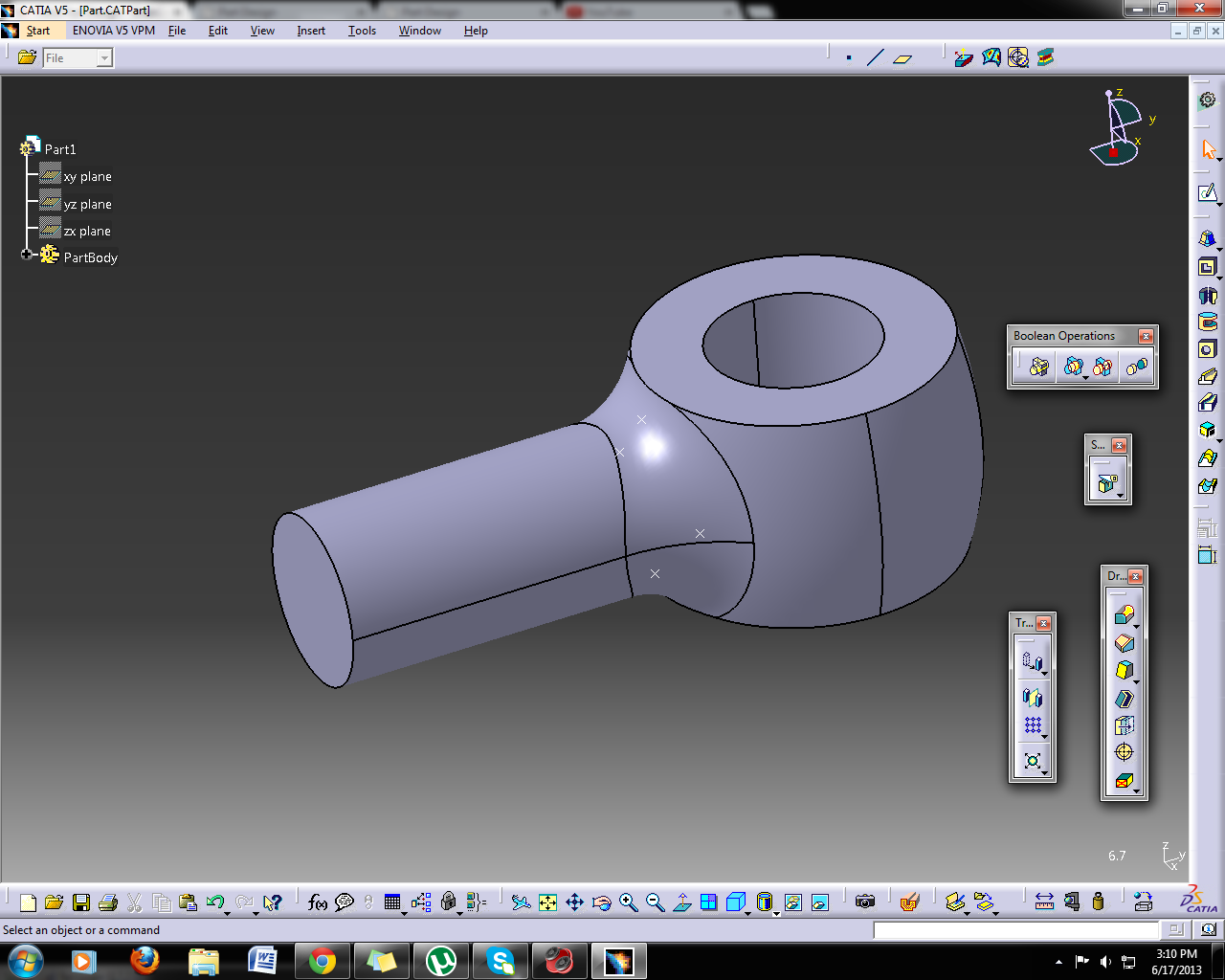

    Thanks guys. I was able to do it with the help of 'point on curve' and 'extremum definition'. below is the outcome. I was asked to do different geometries without using gsd. just pure Part design. I'm a trainee in a company using catia. I'll move to GSD after I understood the basics of part design. If you can suggest good tutorials (both part design and GSD) I would really appreciate it. Youtube has a lot of them but doesnt include the audio.

  • Kulbir Singh
    Kulbir Singh almost 4 years ago

    Attachment

    Hint-fillet.CATPart, 196 KB donot get opened in the catia software...it shows some error....can anyone plz guide me
