catia v5r20

Question by Ravi Tarun

hi how to assemble a cylinder in an elongated hole

Answer

Comments 1

3 Answers

Hugo Alanis
Answered on 15 Feb, 2016 04:44 PM

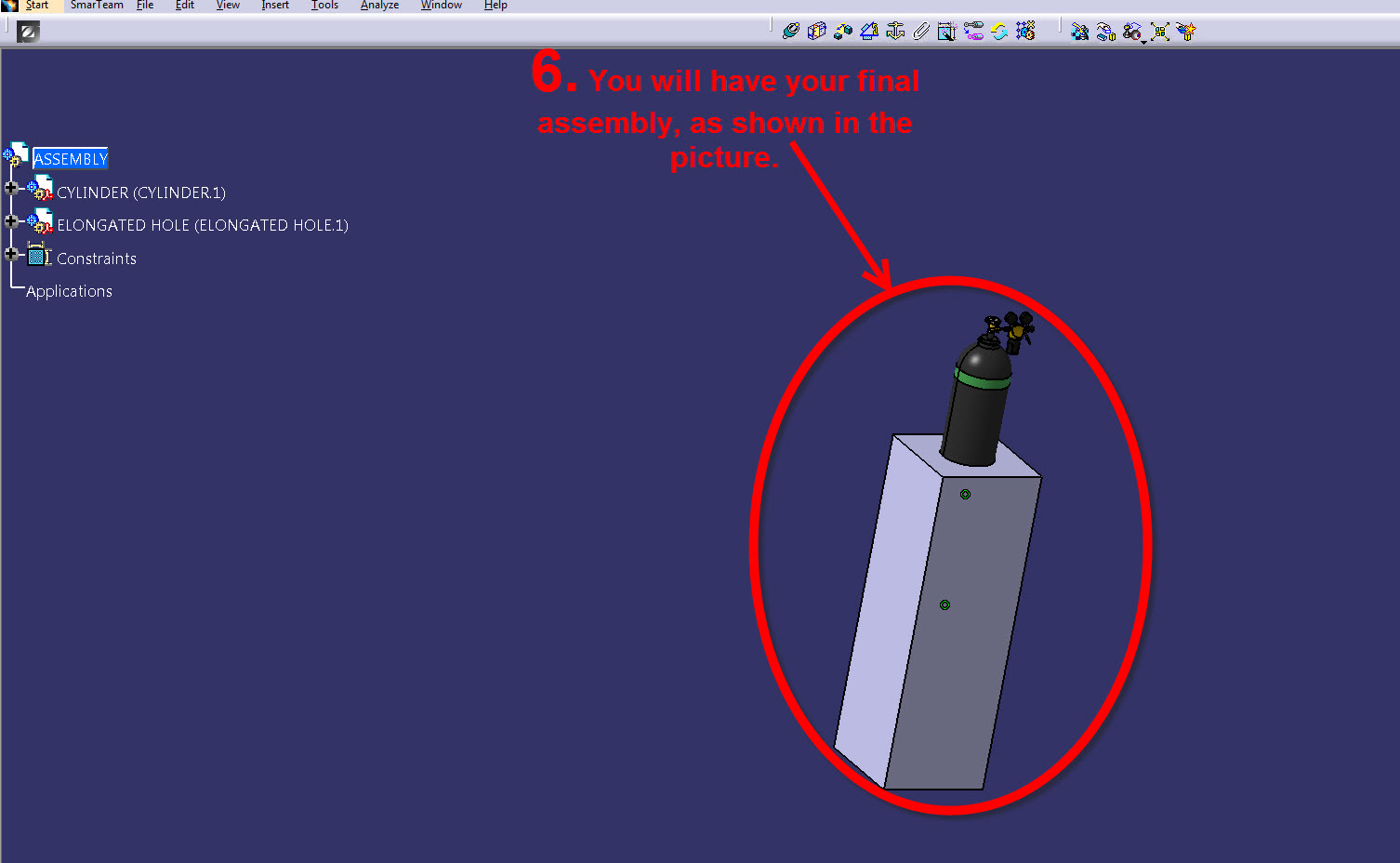

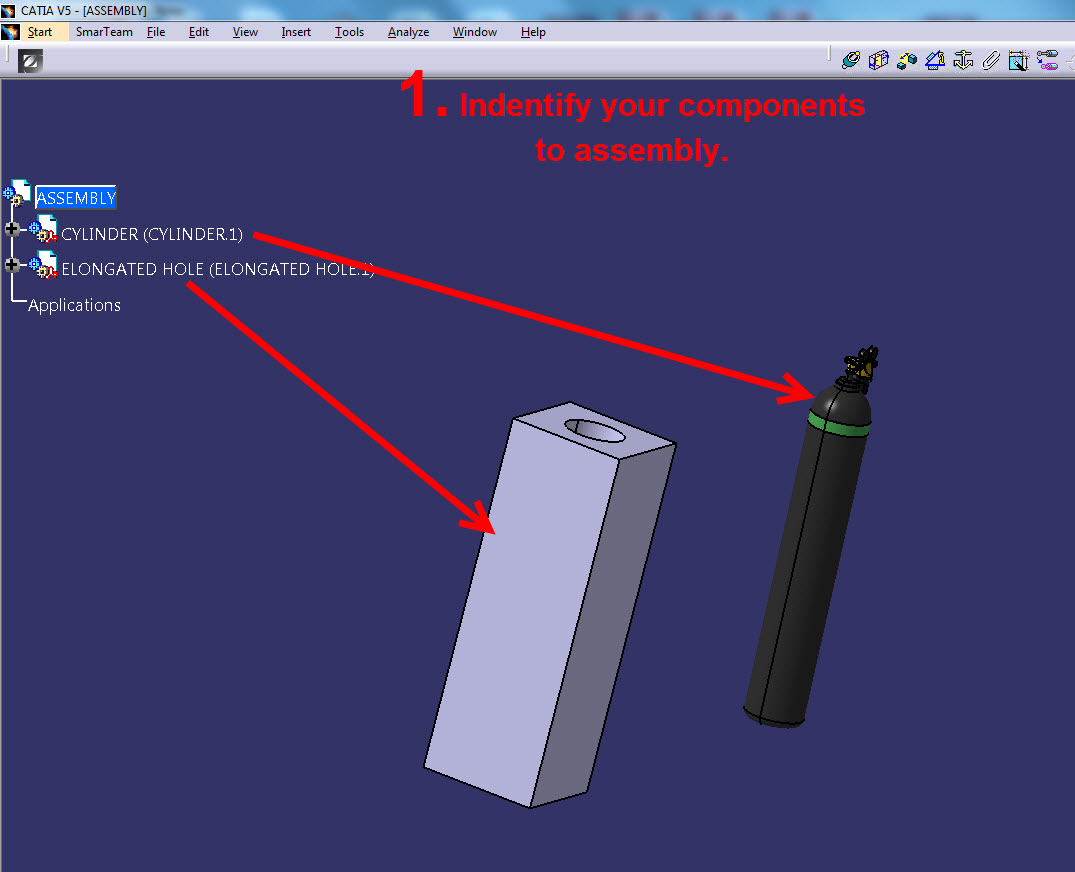

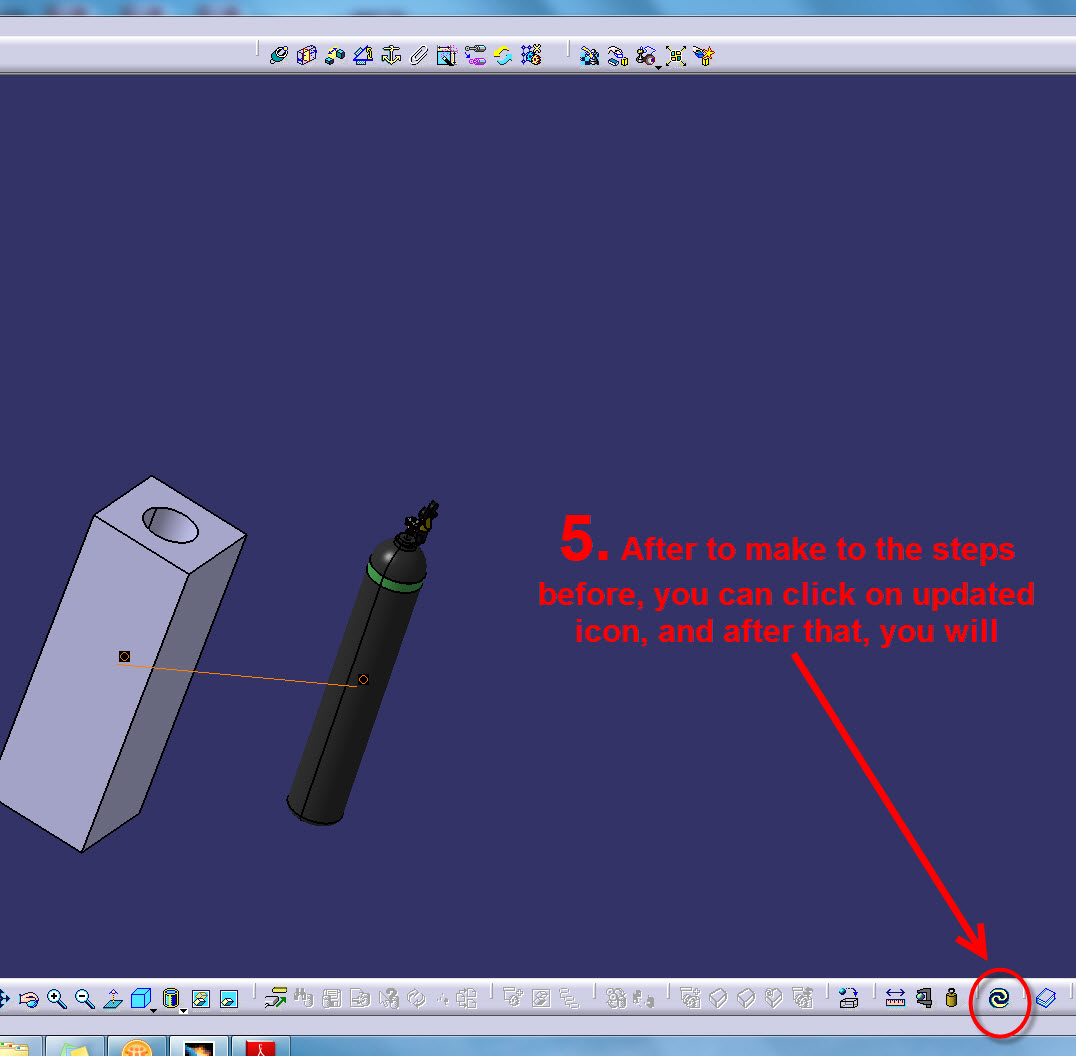

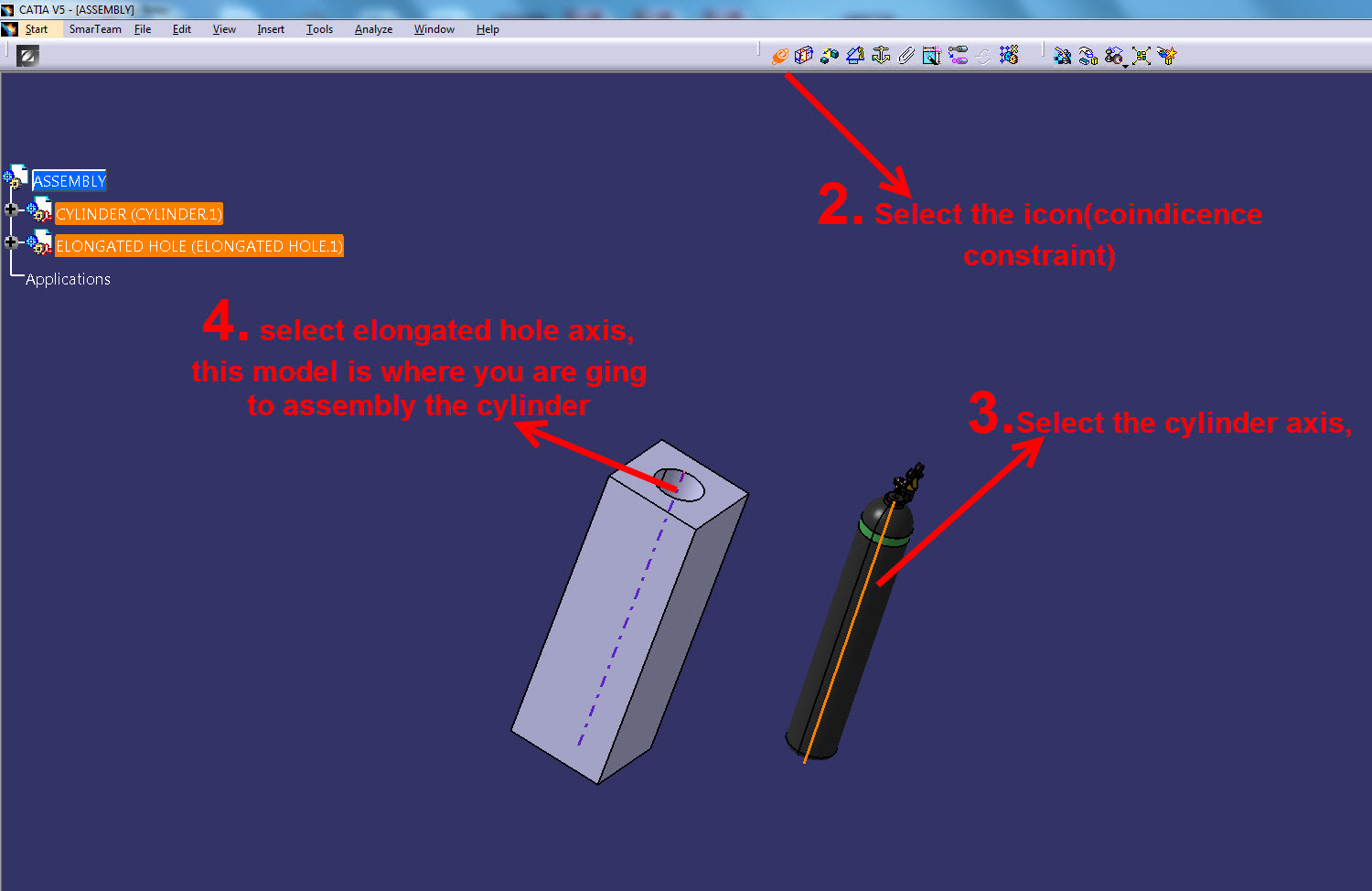

Hi friend good morning, I ve created some snapshots with models I hope that can help you.

whatever comment, suggestion, doubt, they are welcome.

Have a good day,

Answered with a tutorial: https://grabcad.com/tutorials/catia-v5r20


Comments 0
545514fd
Answered on 15 Feb, 2016 07:56 AM
prasad suryawanshi
Answered on 16 Jun, 2016 06:18 PM

how to cut slot of 0.5mm of spiral shape on 70mm dia of circular sheet with 1mm thickness? also spiral angle should 180 360 540 degree.
