Fillet and Chamfer Merging Problem

By Simon Davis on 07 Mar 19:52 1 answer 426 views 2 comments

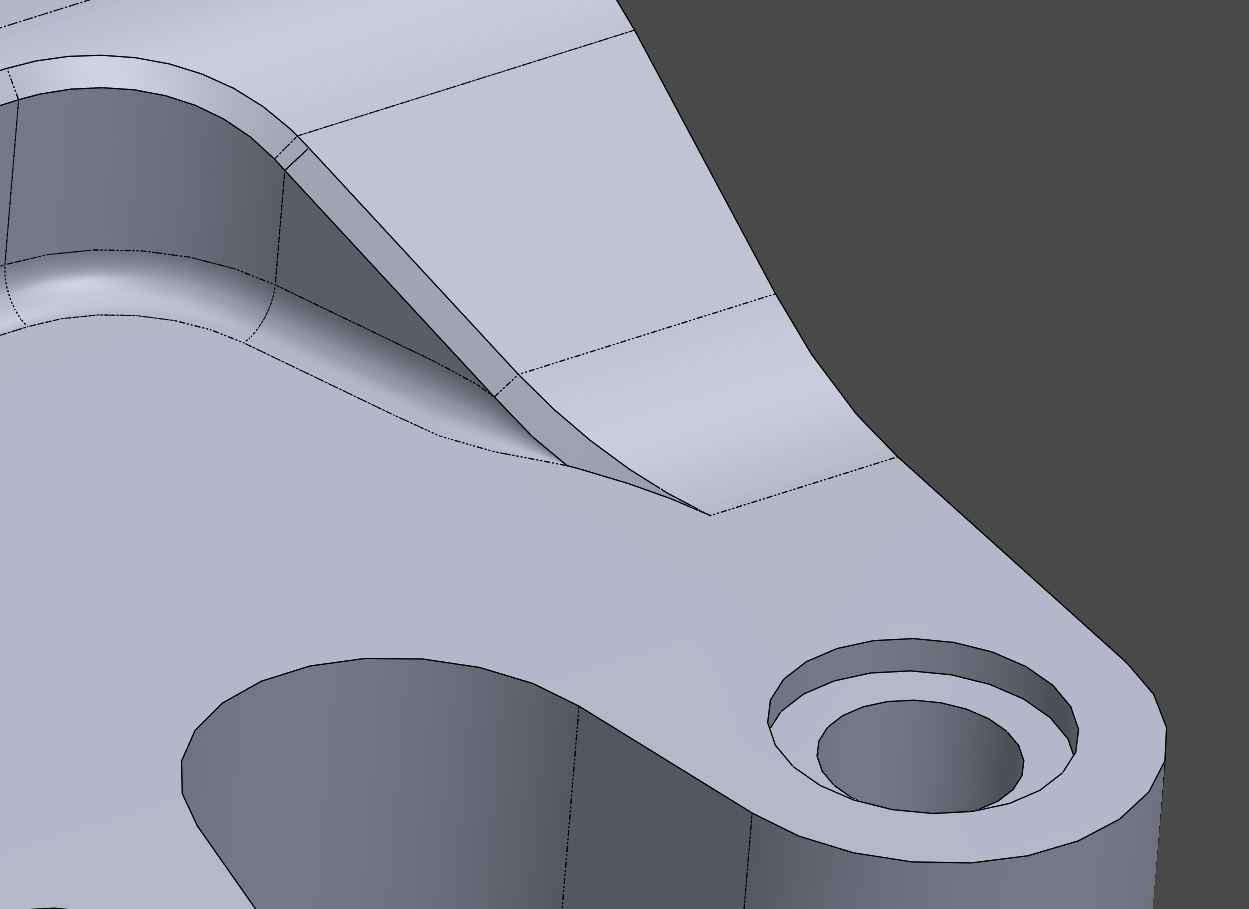

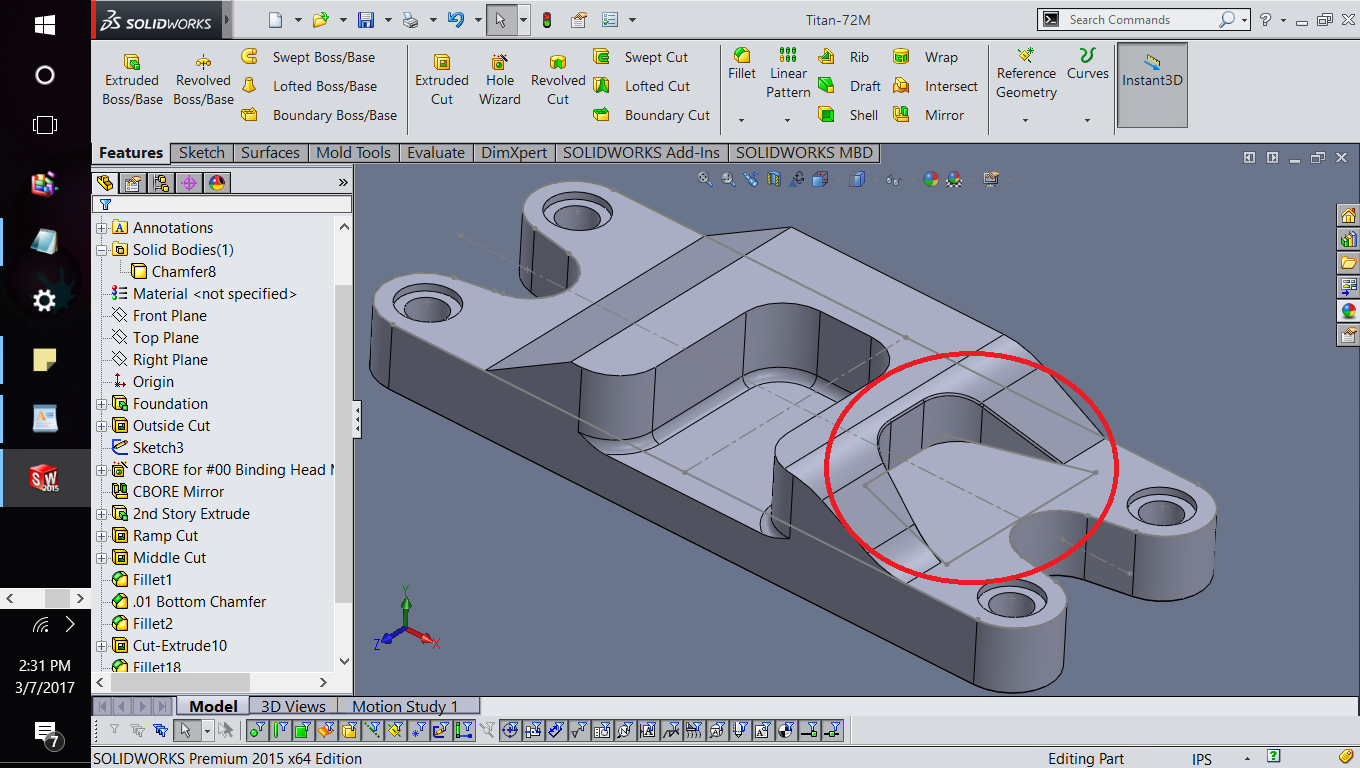

I've uploaded the part and files. The fillet and chamfer are not merging like in the geometry of the blueprint.

Added images

Square

Attachments

Titan-72M.pdf, 763 KB
Download
Titan-72M.SLDPRT, 245 KB
Download

1 answer

  • Robert H.
    Robert H. 6 months ago

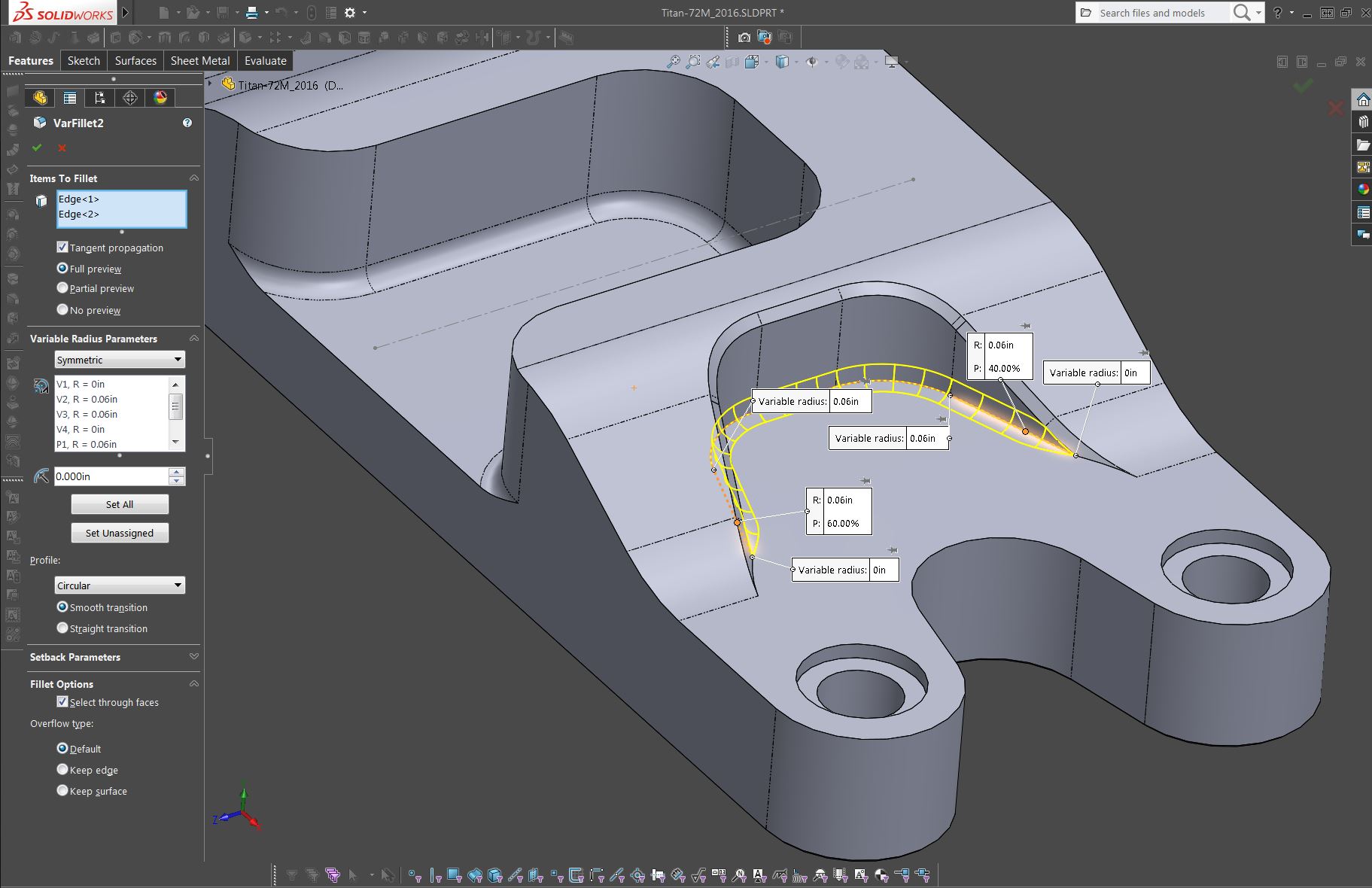

    This one is kind of a booger. The closest I've been able to come to looking like the model in the PDF is by using a variable radius fillet. I'm not sure how nice that plays with a machined part though. Also I changed the chamfer on that edge to .025
