hello cad users,, i got another beginner question ,, with pic (

By yolles694@gmail.com on 02 Jul 15:41 1 answer 477 views 0 comments

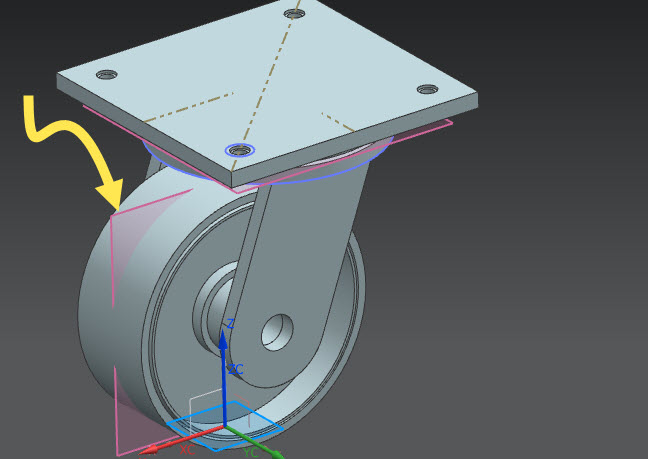

i had built this simple part because im trying to lean nx9 and i left the finally extrusion for the end which will be the bolt,, in solidworks i can but a circle in the center plane and extrude midplane and cut through everything ,, but in nx i had to extrude each time to get through all the objects am i missing something or is this how its done ,, thanx

Added images

Square

Attachments

simple question.prt, 338 KB
Download

1 answer

  • Vinoth
    Vinoth about 3 years ago

    In NX where you need Extrude feature just select the plane and draw one sketch like circle. Then choose finish sketch(ctrl+q) then comes to collapsed menu like BOOLEAN select subtract icon. Then procede pattern command to place holes in specified places like Rectangular Pattern for the plate circular cut.
