How to copy/translate a pattern along a curve in Catia

Question by a a

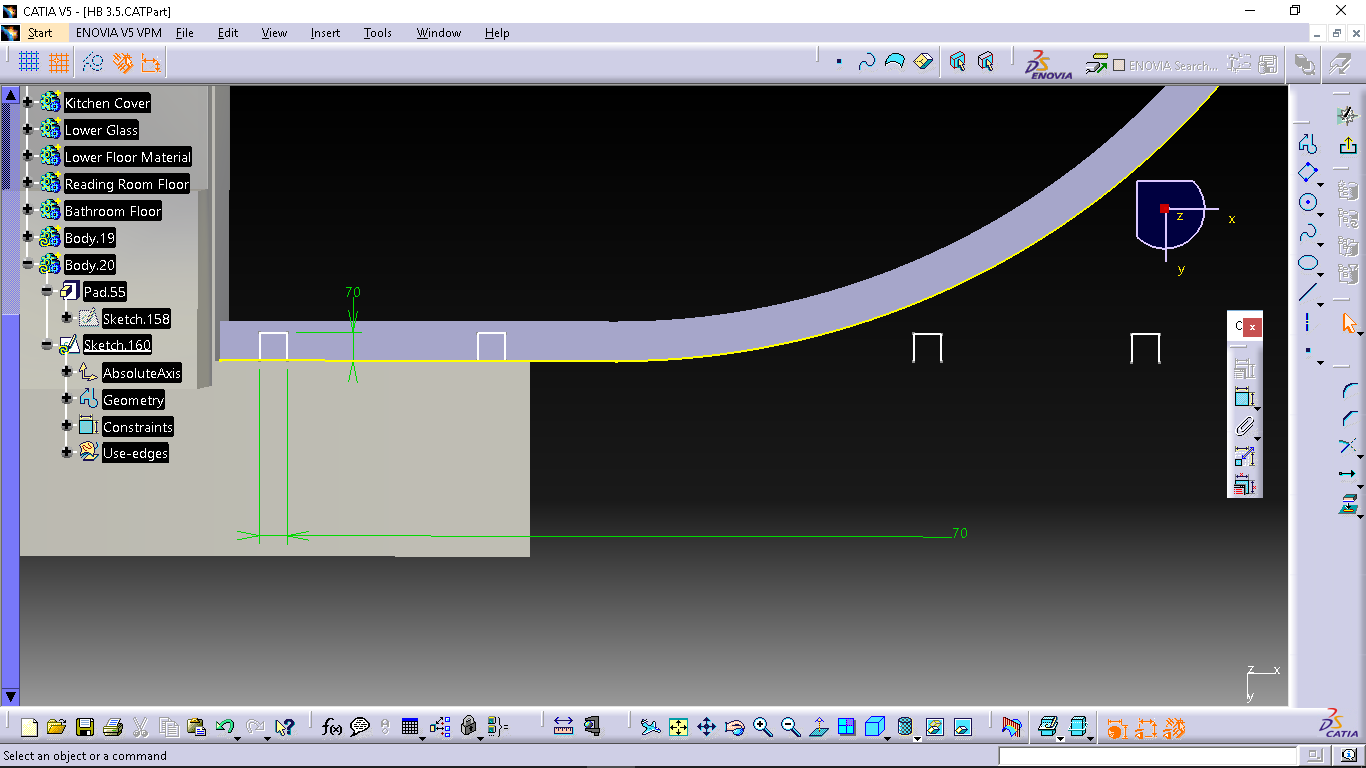

As you can see in the picture I'm how to copy the square along the curve in Catia V5?

Answer

Comments 0

4 Answers

carl malia
Answered on 7 Apr, 2016 12:31 PM

The only way i know how to do this is to use an "axis to axis" translation for every instance you require and project those into a single sketch

Answered with a tutorial: https://grabcad.com/tutorials/how-to-copy-translate-a-pattern-along-a-curve-in-catia


Comments 0
Hugo Alanis
Answered on 7 Apr, 2016 03:24 PM

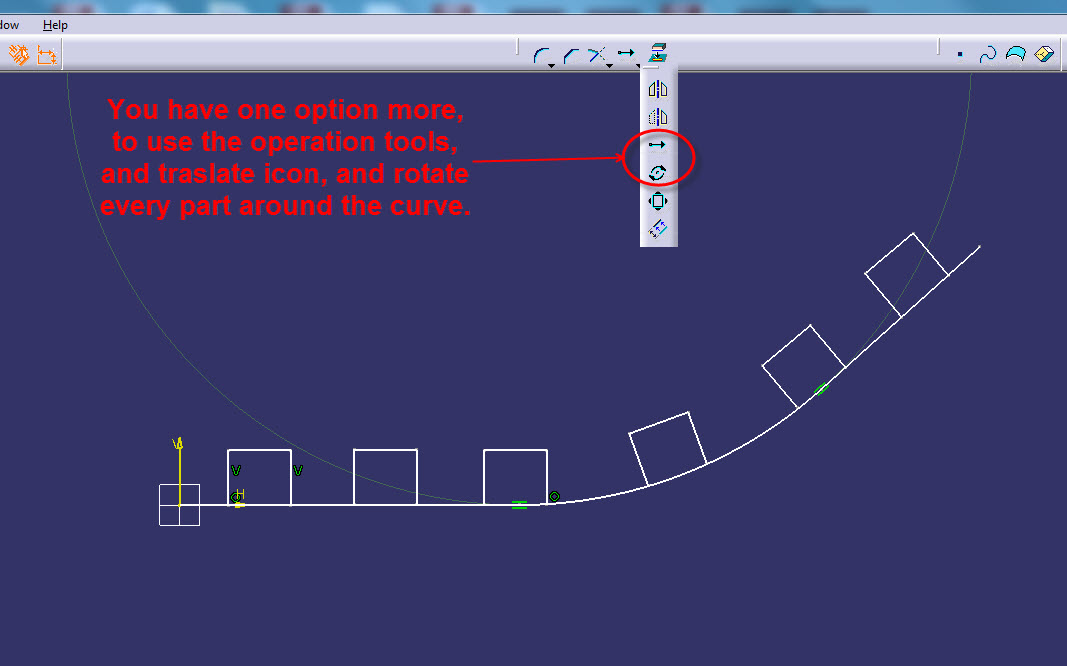

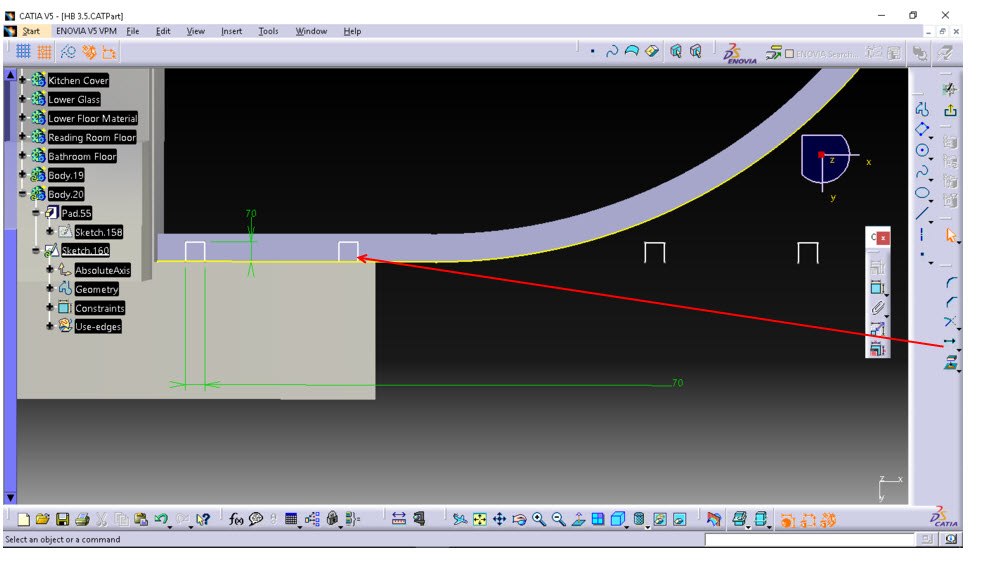

Hi friend, Hope you are having a great day, I am sending you a picture, to solve your issue, I hope my comments have had helped you.

whatever comments, suggestions just let me know!!

Have a good day,

Best Regards,


Comments 0
Hugo Alanis
Answered on 7 Apr, 2016 03:29 PM

I dont know what are you designing friend, but if I can help you, just let us know!!

Have a good day,

Best Regards,


Comments 0
A J
A J
Answered on 21 Apr, 2016 03:01 PM

Maybe this helps: Create equidistant points along the curve first:
https://www.youtube.com/watch?v=qHVQx3GLBlk
then use them to place the squares.

If the yellow curves in your sketch are two curves, select both of them first and right click->selected objects -> concatenate. This will generate a new, combined curve.
