How to create this part in CATIA V5

Kin Chan
Kin Chan
6 Sep, 2013 06:56 AM

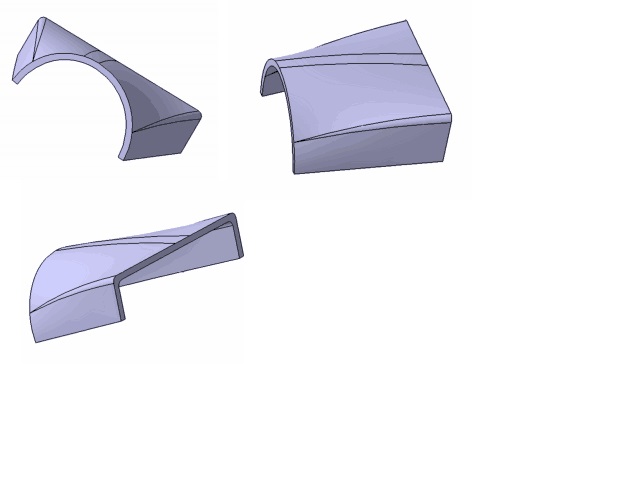

I am trying to create this part using CATIA V5 Generative Sheet Metal Design with the help of the Hopper command. I can't seem to get the front to be the circular and the back side to be rectangle shape, any ideas? Perhaps I should create this Generative Shape Design maybe?

Thanks

Part.jpg Part.jpg

2 Answers

özgür kesebir
özgür kesebir
Answered on 10 Sep, 2013 08:23 AM

Tutorial ready.

Answered with a tutorial: https://grabcad.com/tutorials/how-to-create-this-part-in-catia-v5

özgür kesebir
özgür kesebir
Answered on 6 Sep, 2013 08:48 AM

Multisectionsolid with square and circle.
Example catpart and sheetmetal added.

multi-sections_solid.CATPart multi-sections_solid_sheetmetal.CATPart
