how to have dimensions locked by default once i modify the value

By varun on 14 Feb 09:58 5 answers 5 comments

in creo / pro e sketcher
when ever i modify a value of a dimension , its still can be changed when i tried to move the entities through mouse.
and it can be locked by right clicking the dimension and set to lock
yet its annoying to set every dimension to locked

i what to know whether there is a possibility to change any setting , so that when even i set a value for a dimension , the geometry should be locked and should not alter when its dragged with mouse.

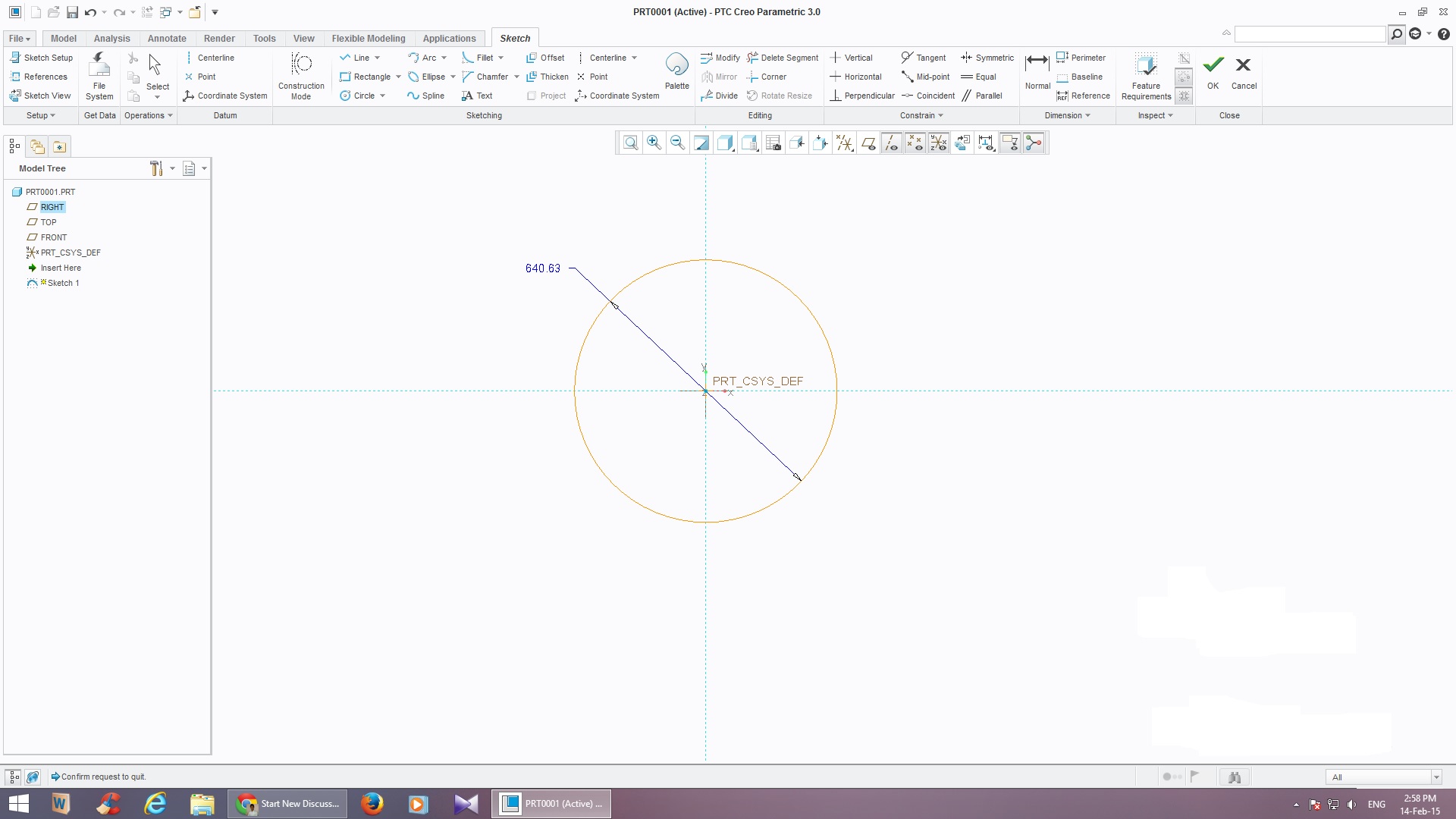

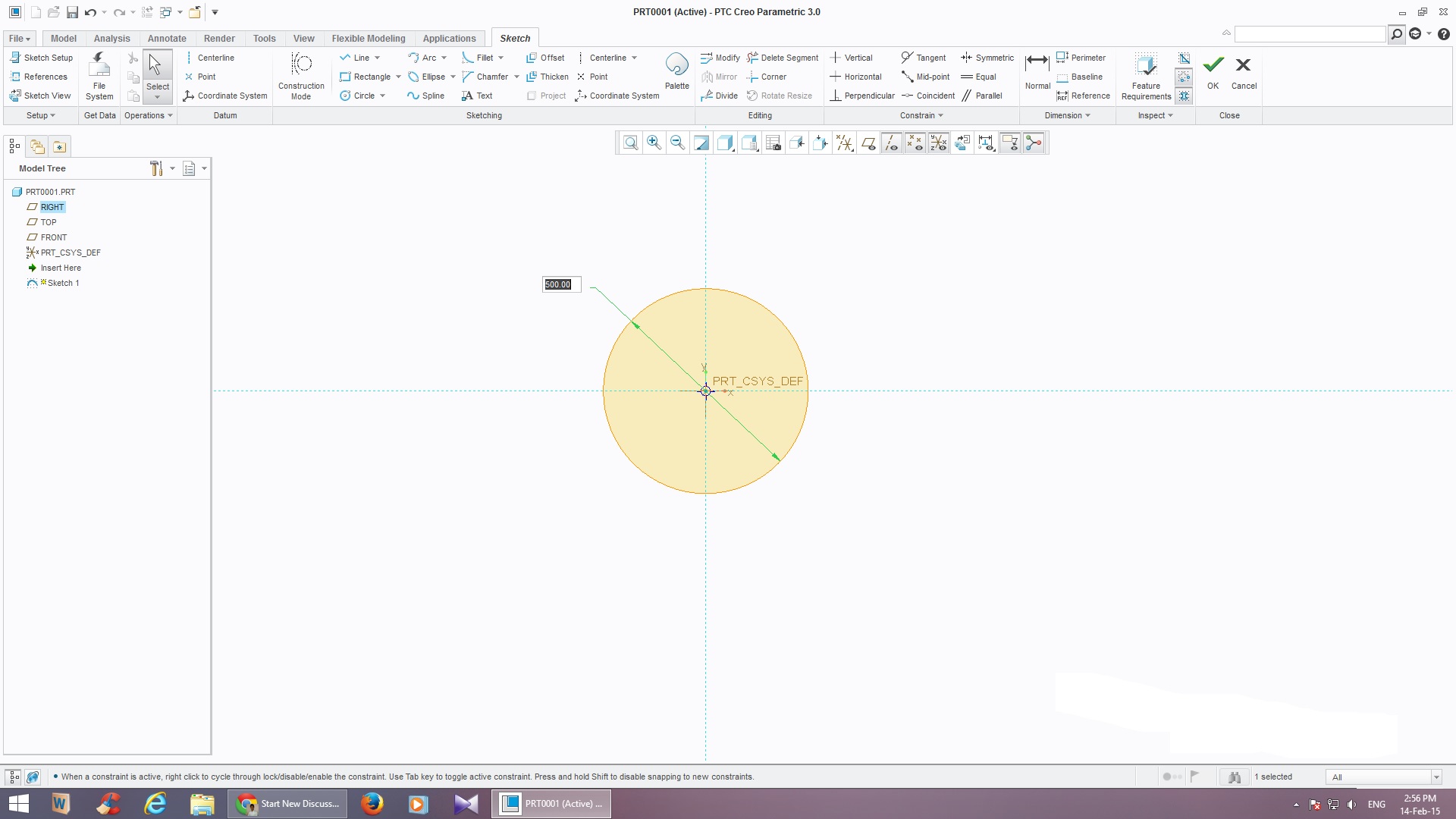

Added images

Square Square

5 answers

  • Mohit Saxena
    Mohit Saxena almost 3 years ago

    Tutorial: "how to have dimensions locked by default once i modify the value"

    Answered with a tutorial: https://grabcad.com/tutorials/how-to-have-dimensions-locked-by-default-once-i-modify-the-value

  • varun
    varun over 2 years ago

    Gourav Upadhyay i have found ...

    u can set to auto lock the dimension in proe by going to
    Tools/options ..
    a dialogue box opens
    in the left pane u can find the "sketcher" option if u scroll down
    on clicking it u can the option to set the dimension to auto lock ....

  • Evan R
    Evan R about 2 years ago

    You can also edit your config.pro with:
    sketcher_lock_modified_dims = yes
