How to make a Triangular Based Pyramid ?

By Albertus Putra on 04 Dec 01:45 7 answers 0 comments

how to optimally use basic features in SolidWorks to make a Triangular Based Pyramid?
further information please click: Triangular Based Pyramid (challenge)

Added images

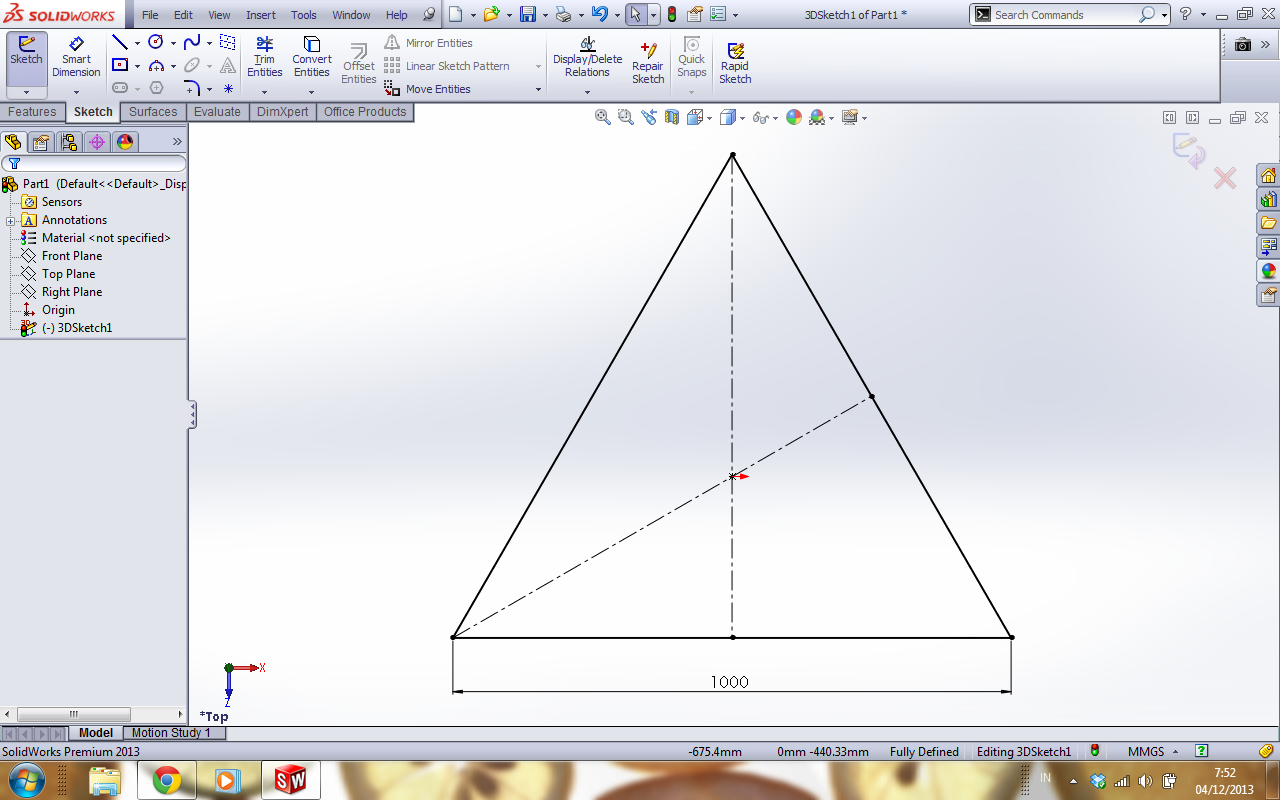

Square

7 answers

  • Albertus Putra
    Albertus Putra almost 4 years ago

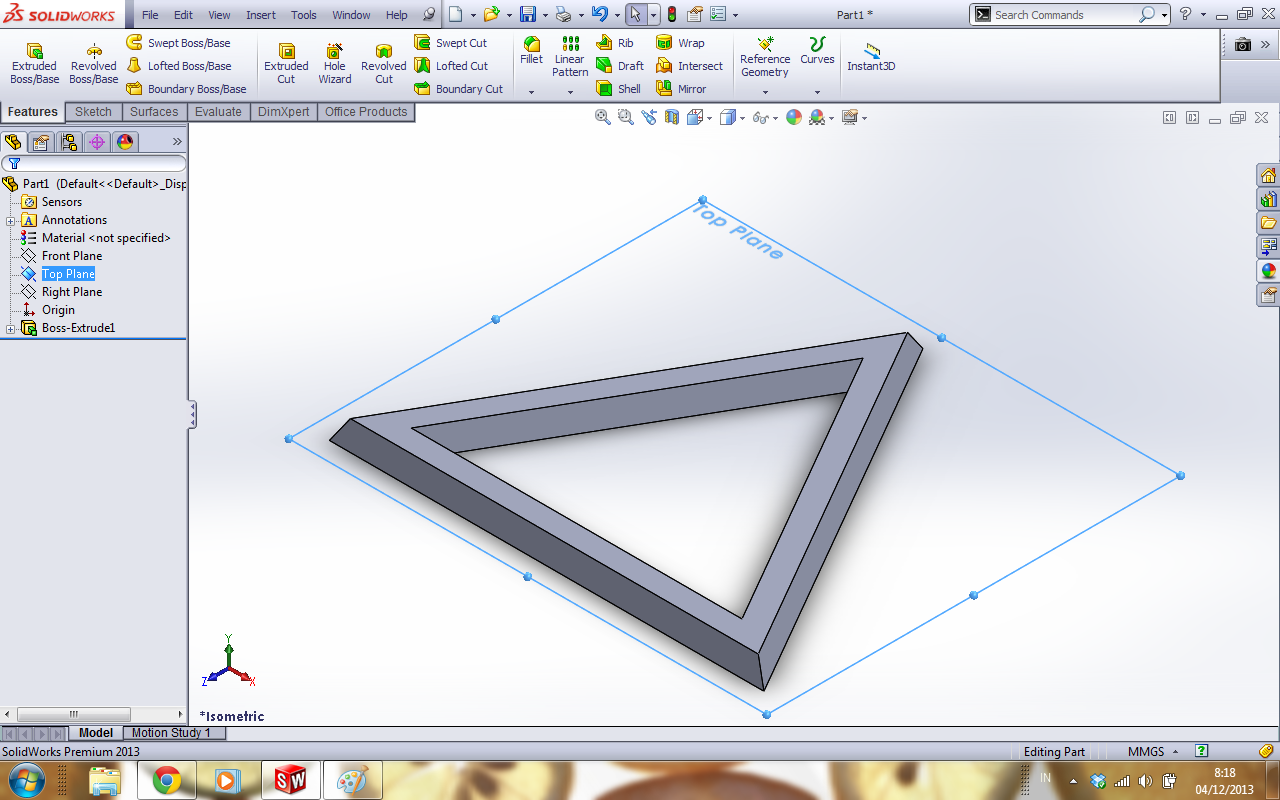

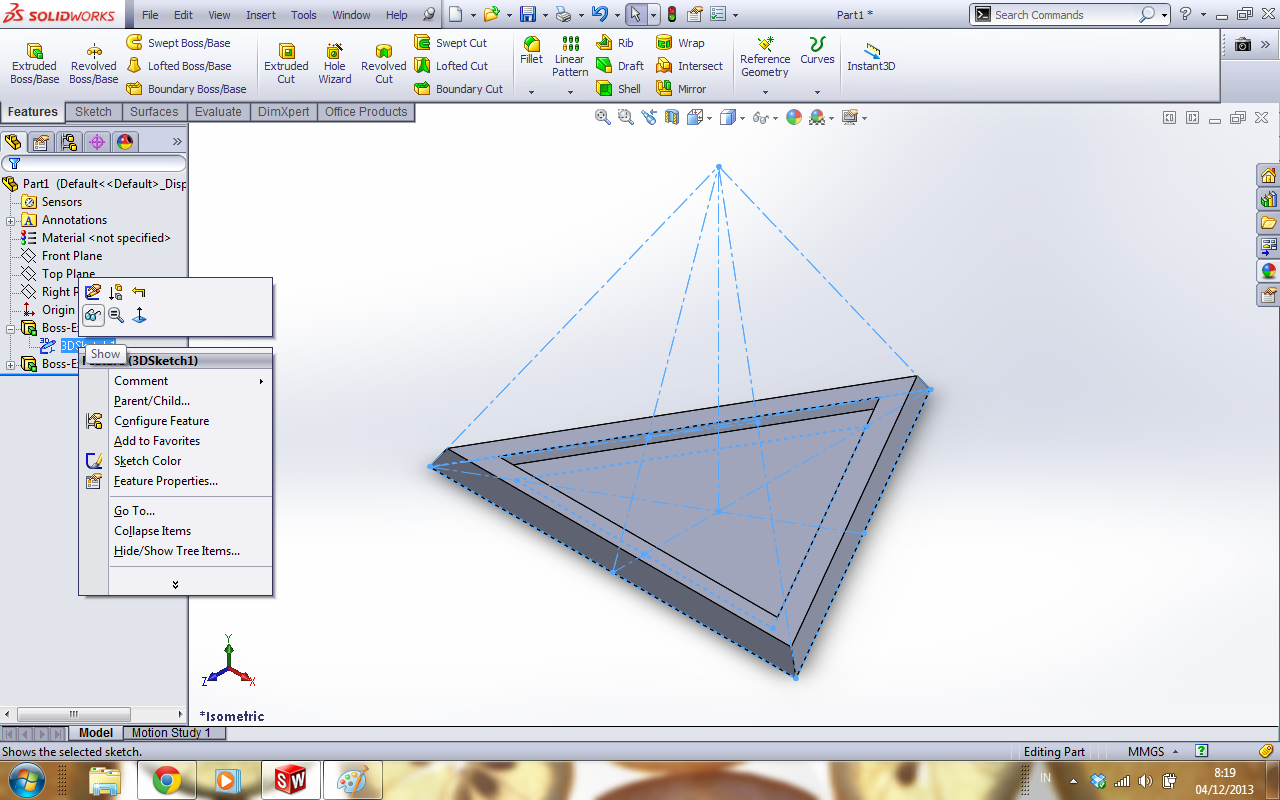

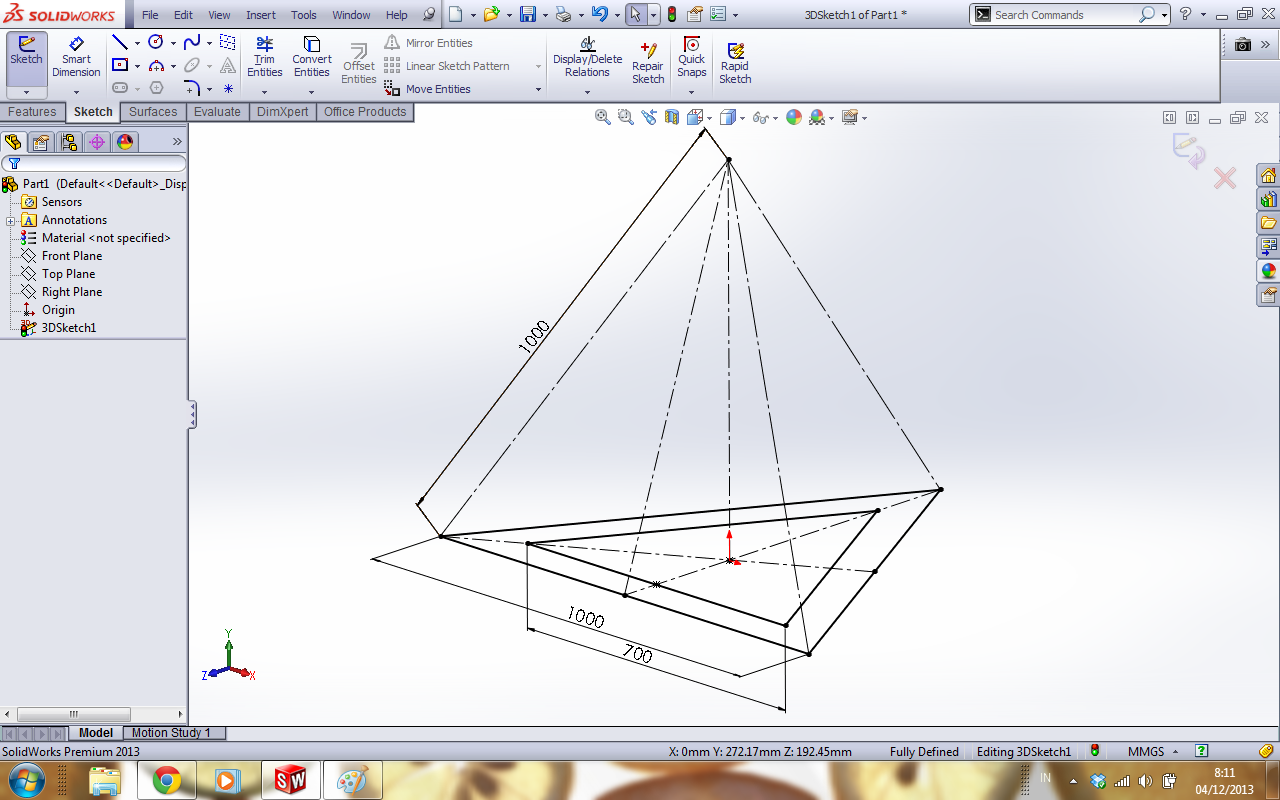

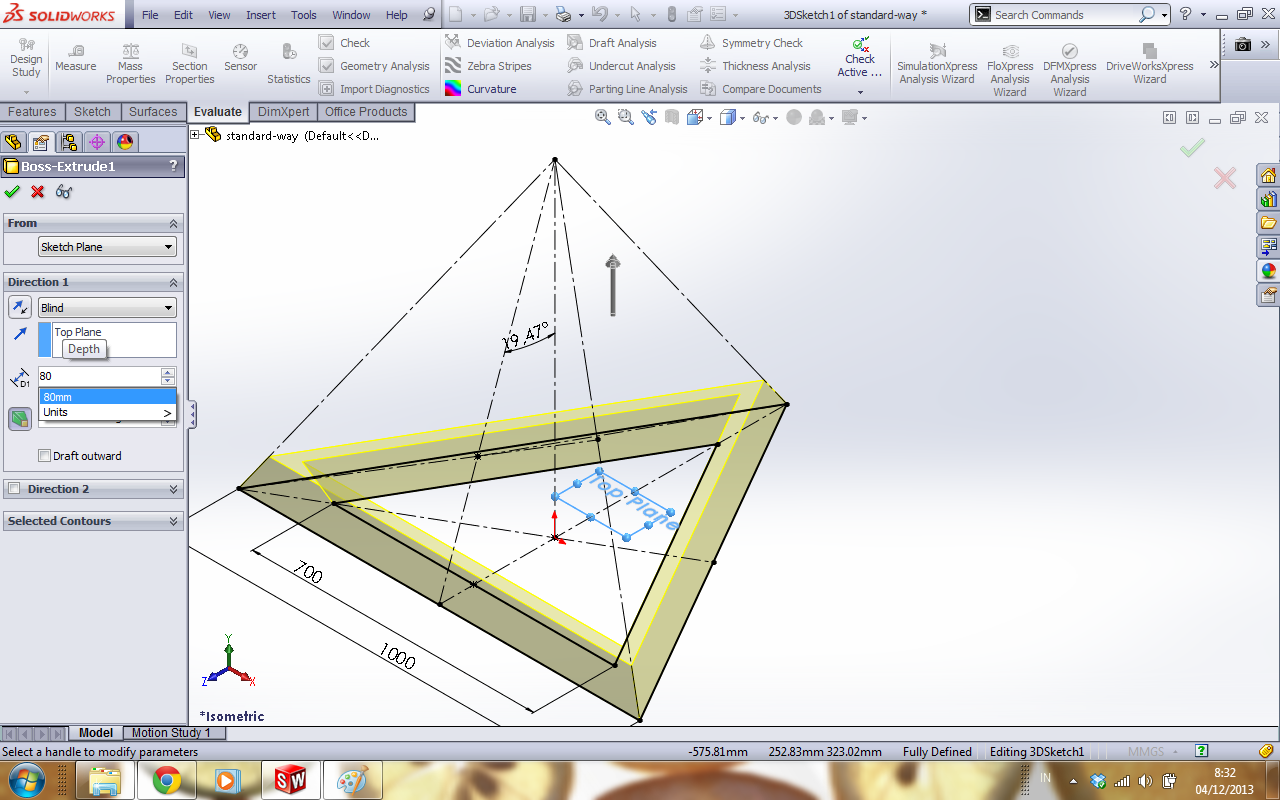

    then, add the construction line to build the pyramid

  • Albertus Putra
    Albertus Putra almost 4 years ago

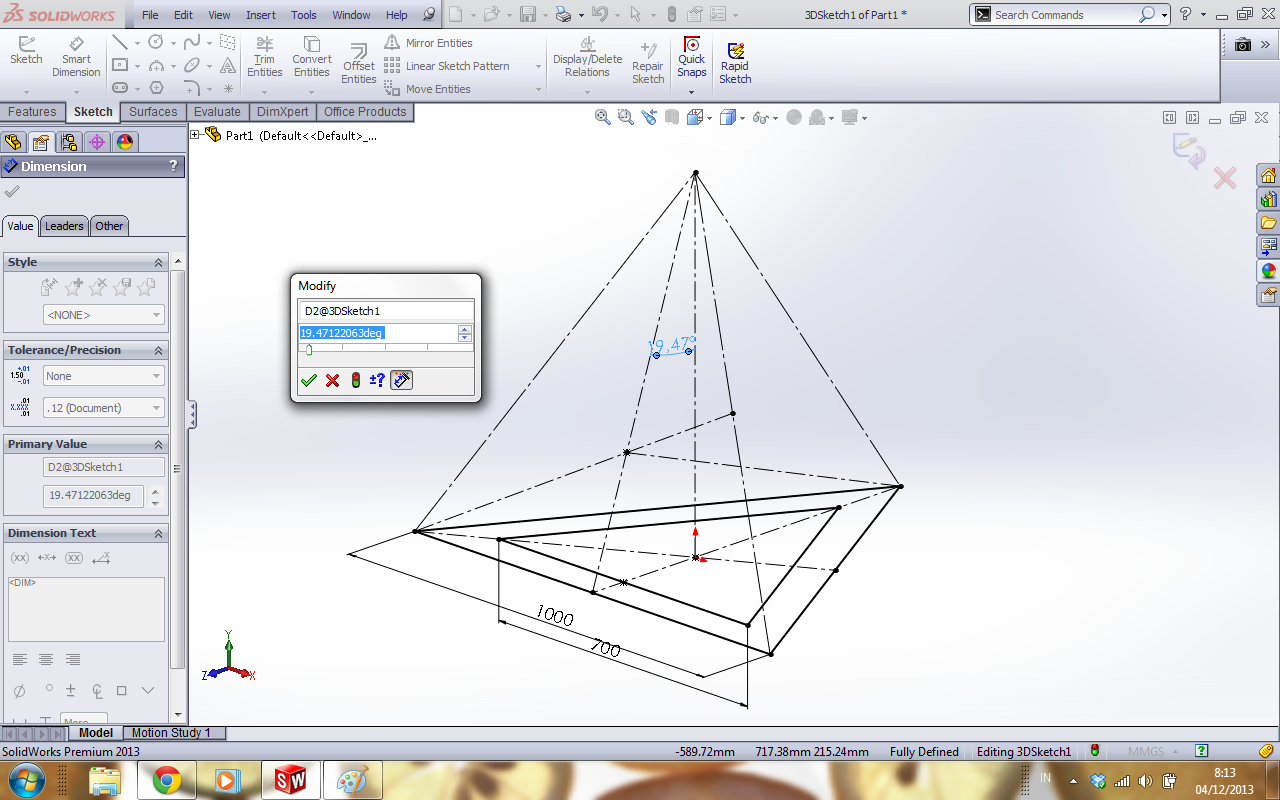

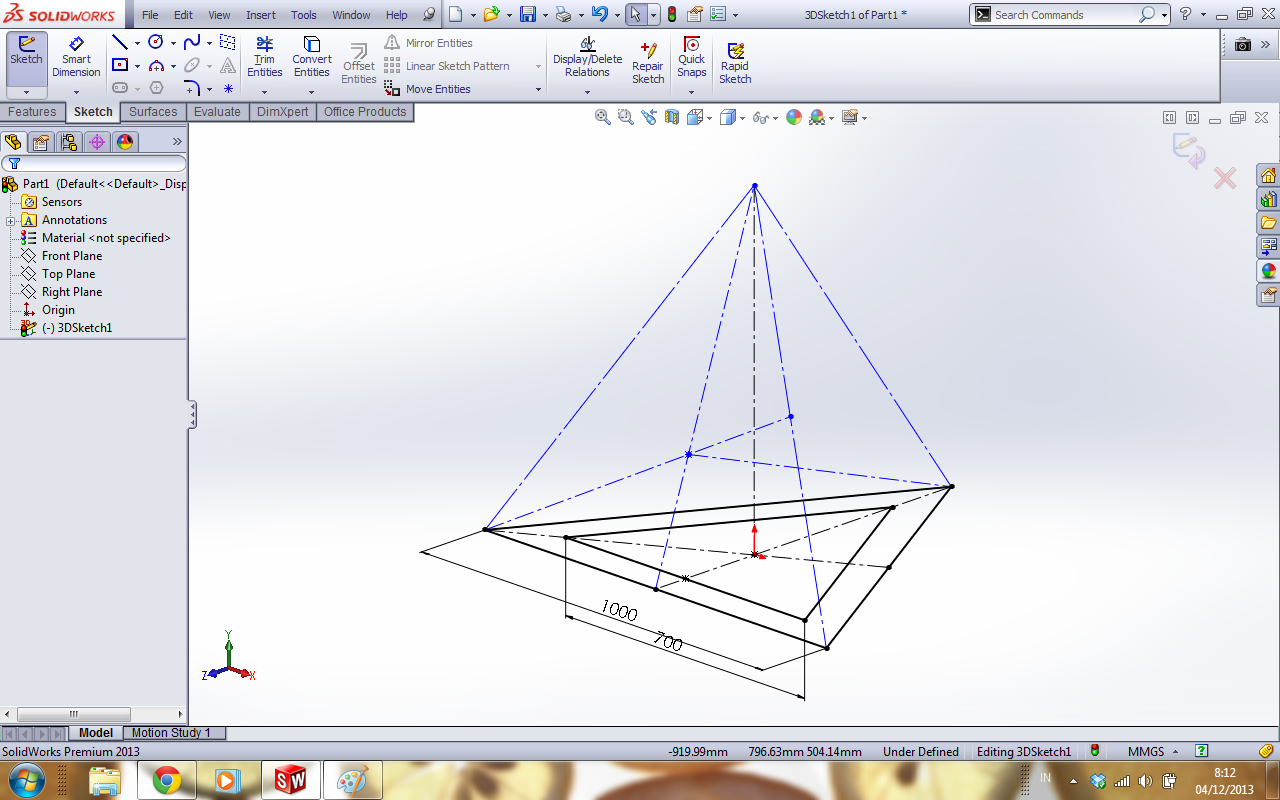

    delete the leg's dimension, change to angular dimension
    the angle will be given automatically

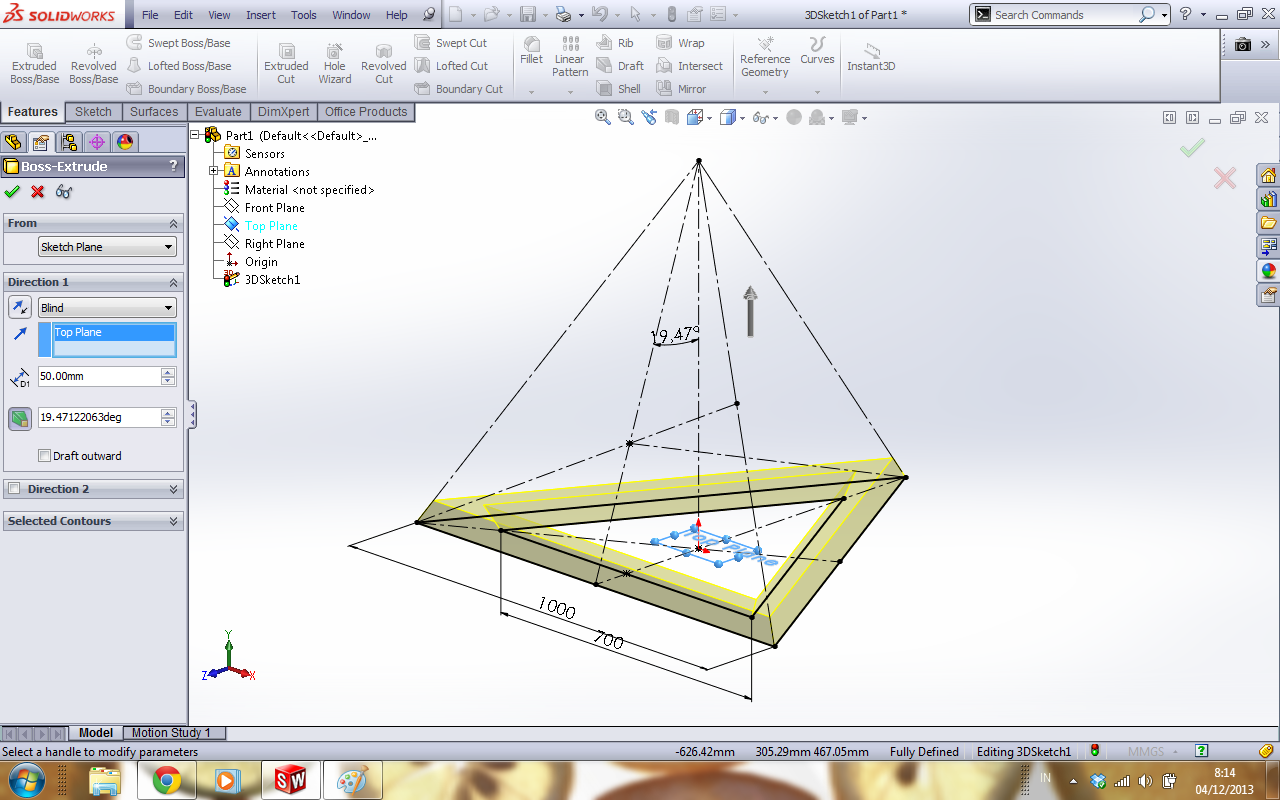

    copy the angle and use it on draft option in extrude command

  • Albertus Putra
    Albertus Putra almost 4 years ago

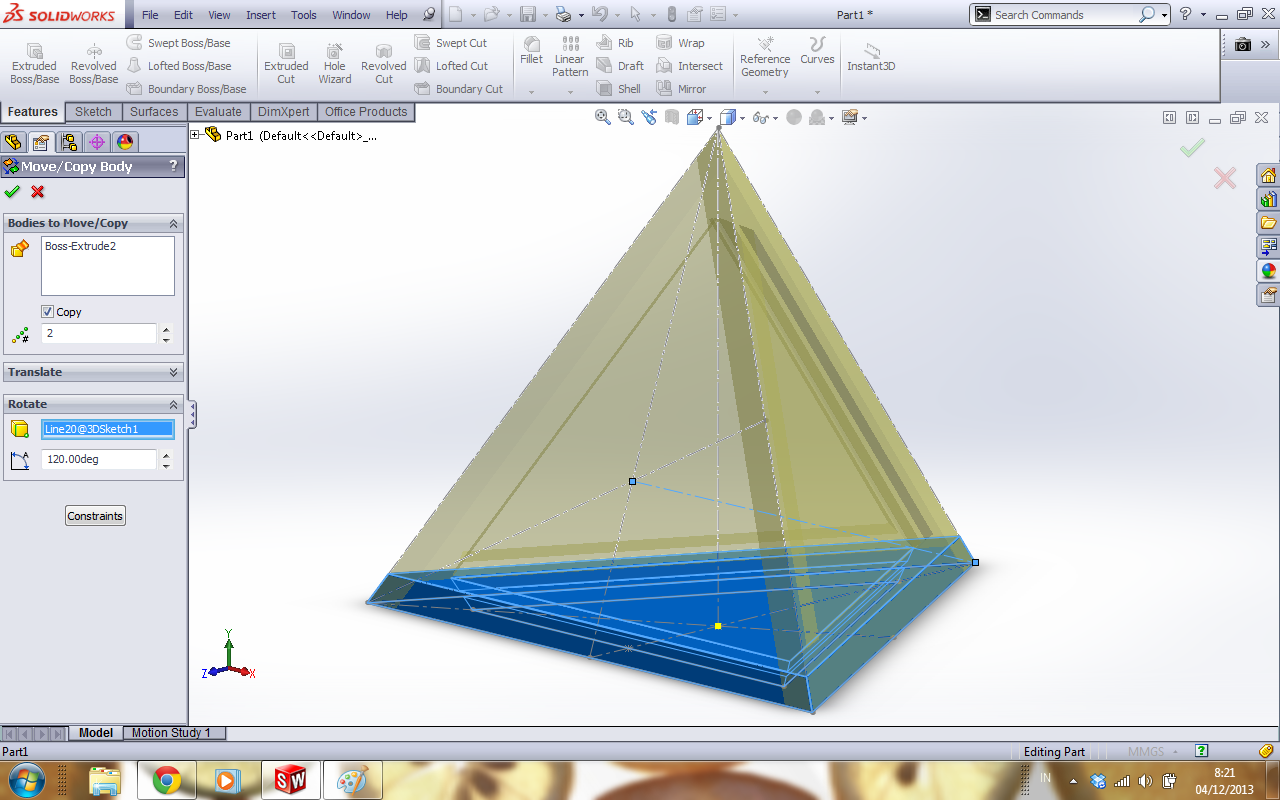

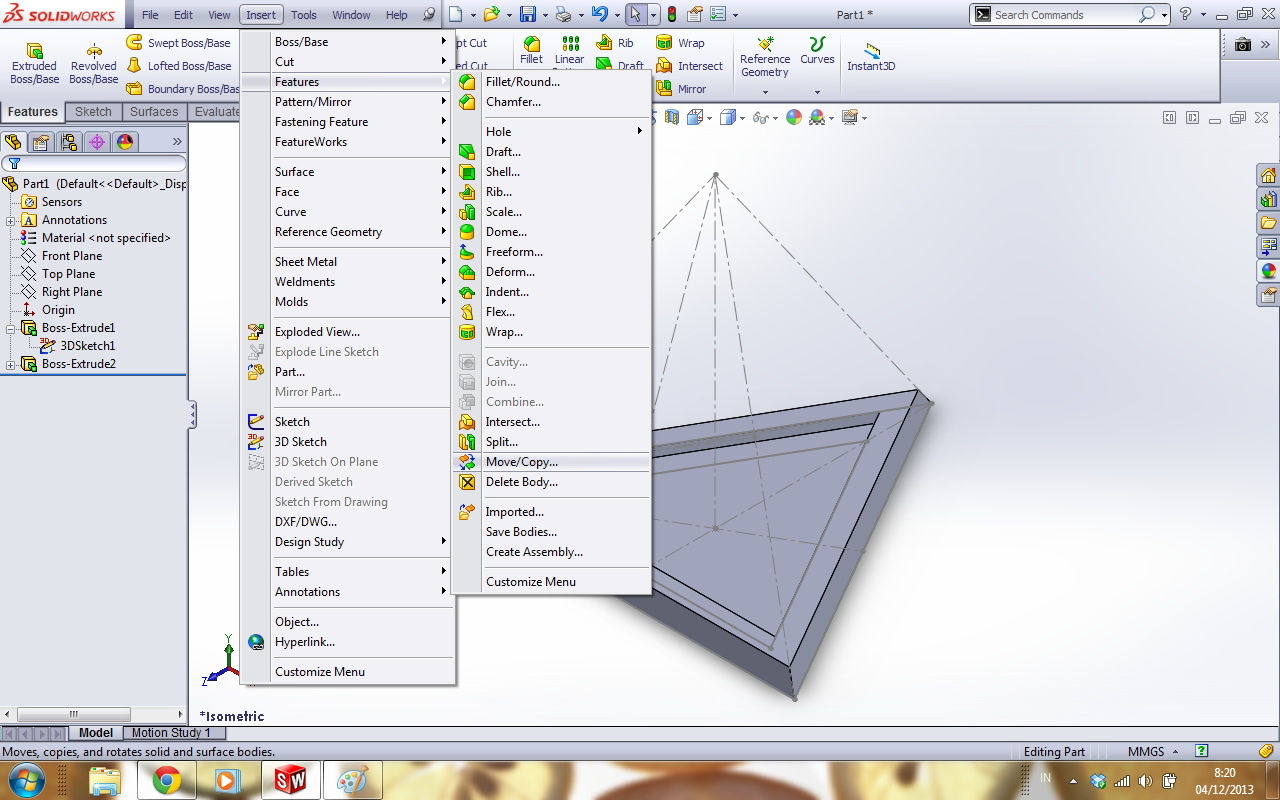

    use move/copy body command to circular array the body
    using move/copy body command will allow us to select a right line, even it is a construction line

  • Albertus Putra
    Albertus Putra almost 4 years ago

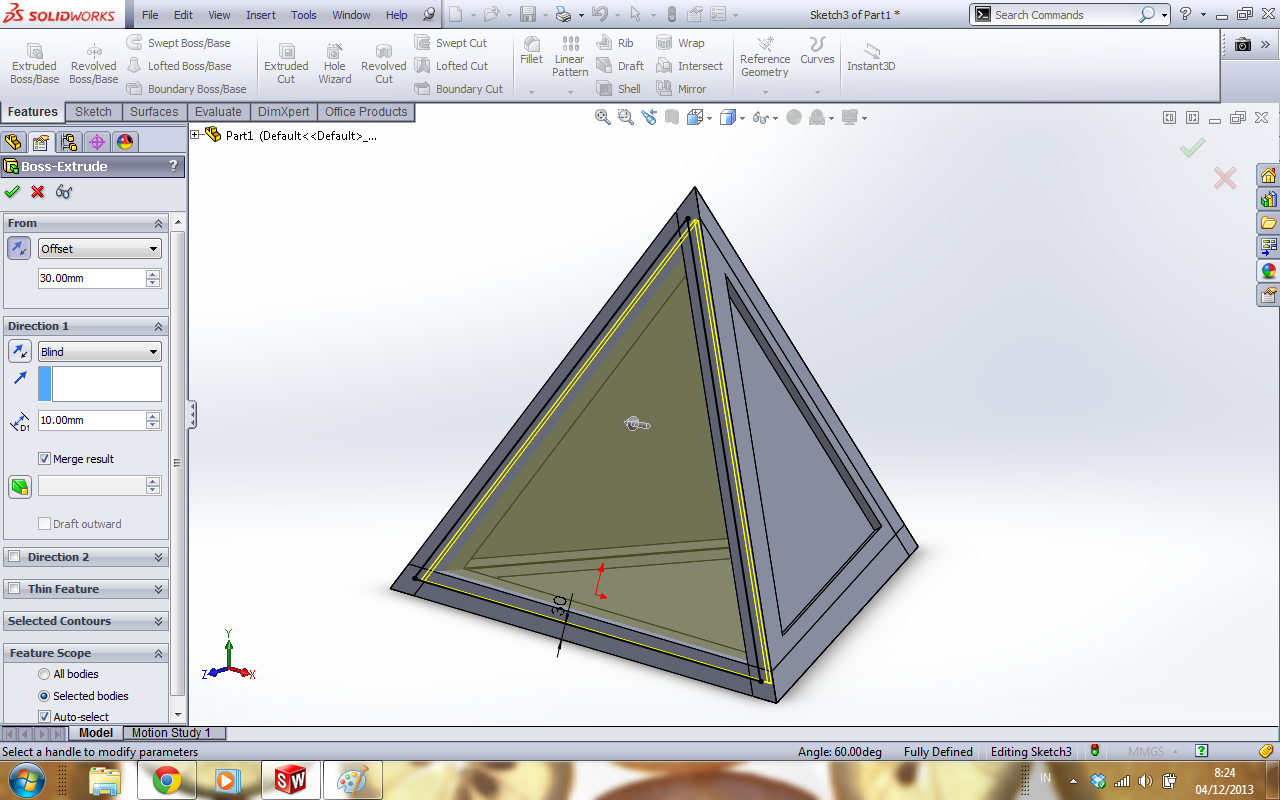

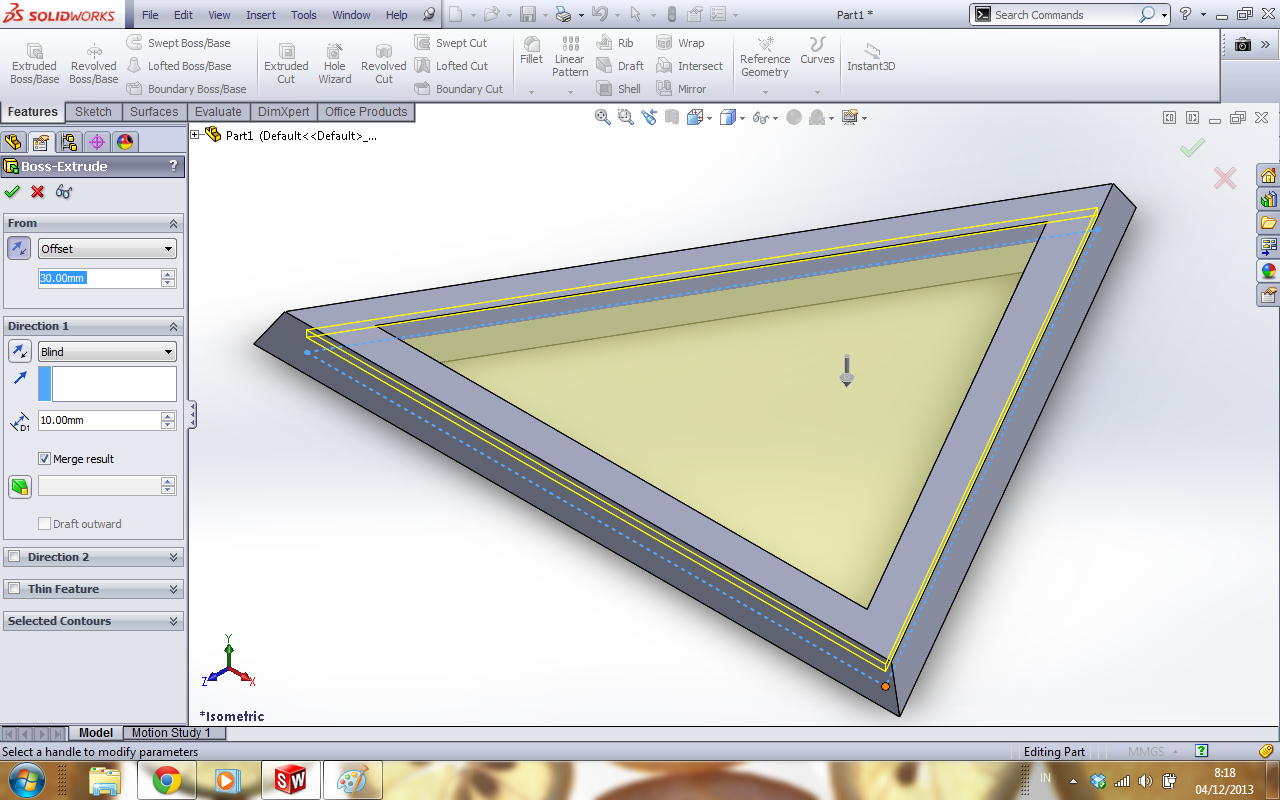

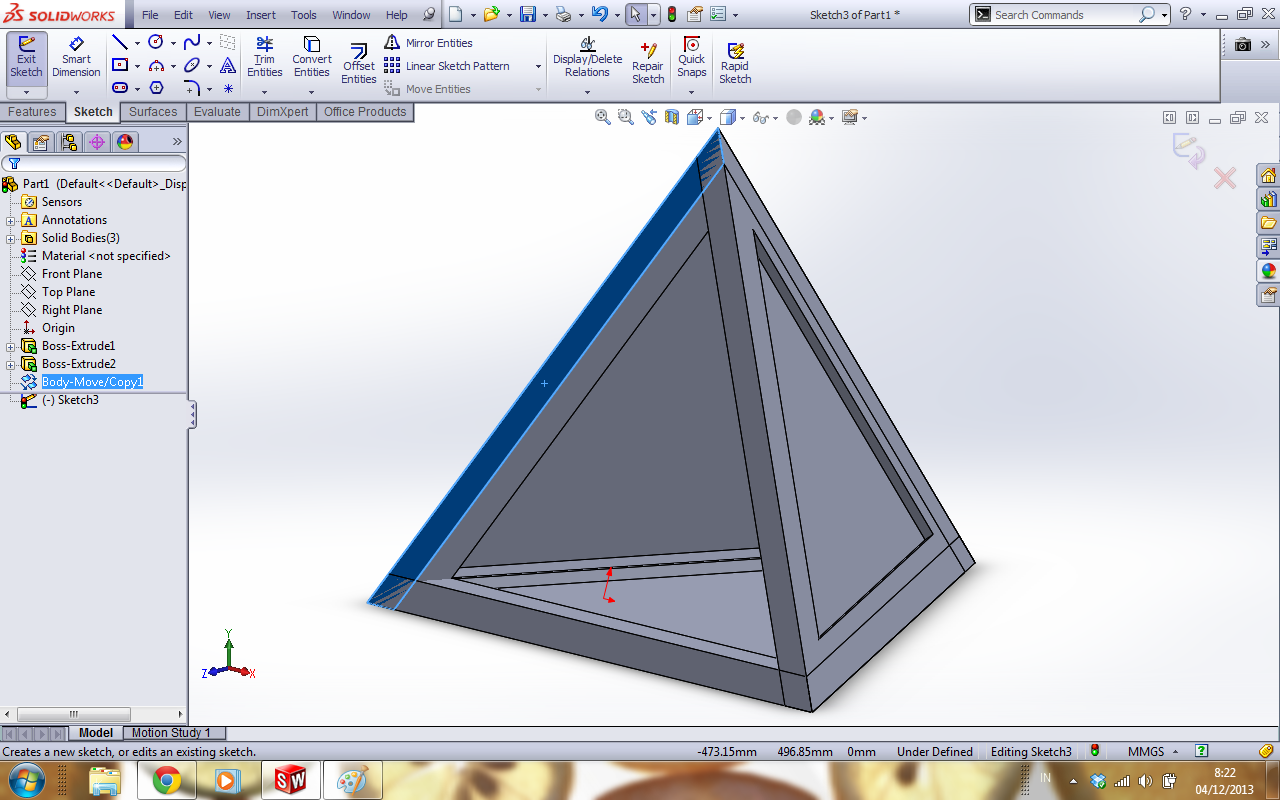

    make an extruded base on the hollow face

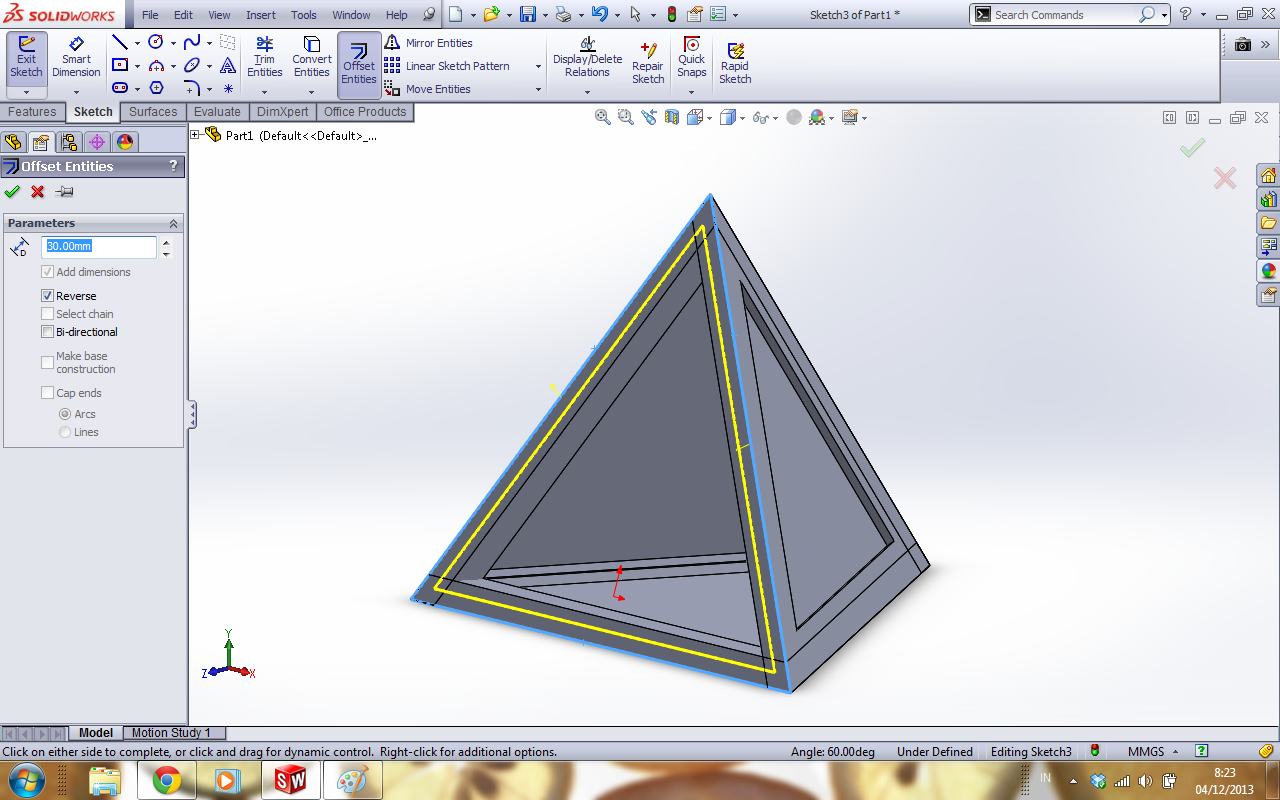

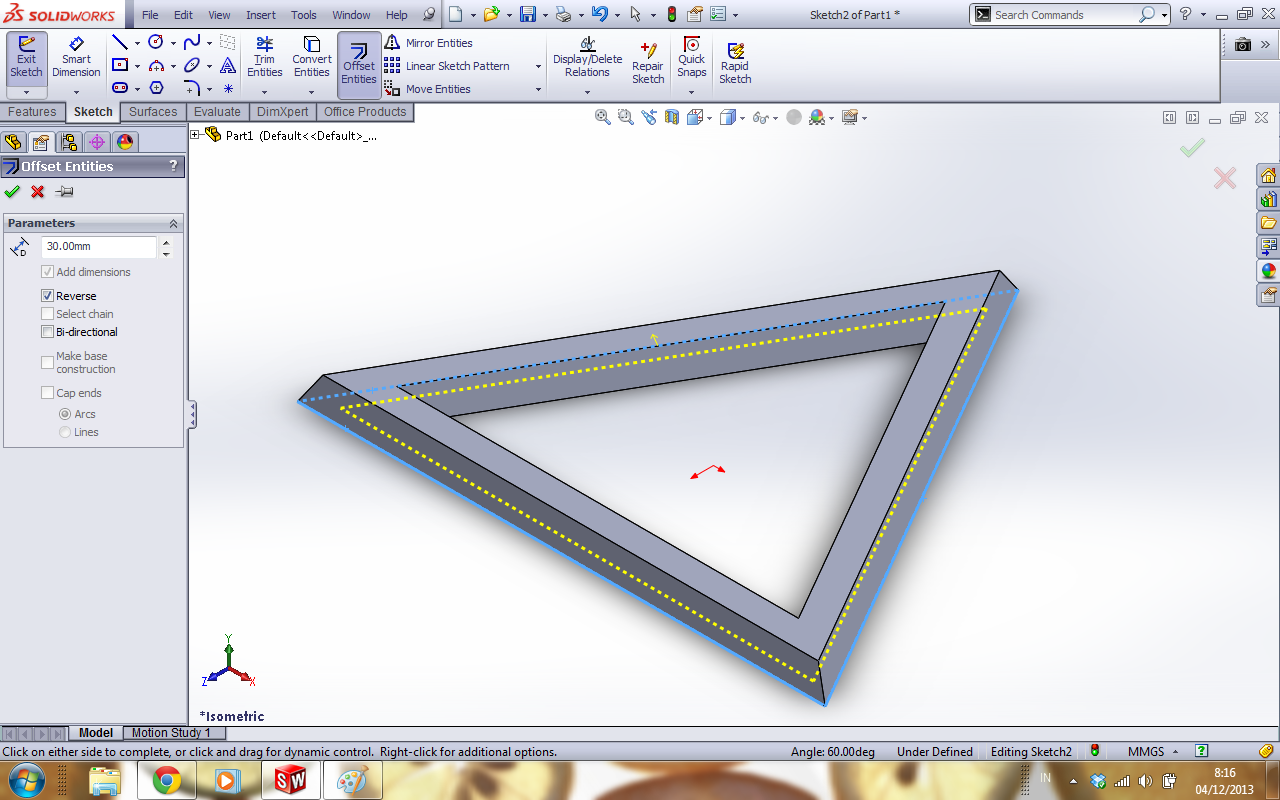

    create lines by offseting the shape

  • Albertus Putra
    Albertus Putra almost 4 years ago

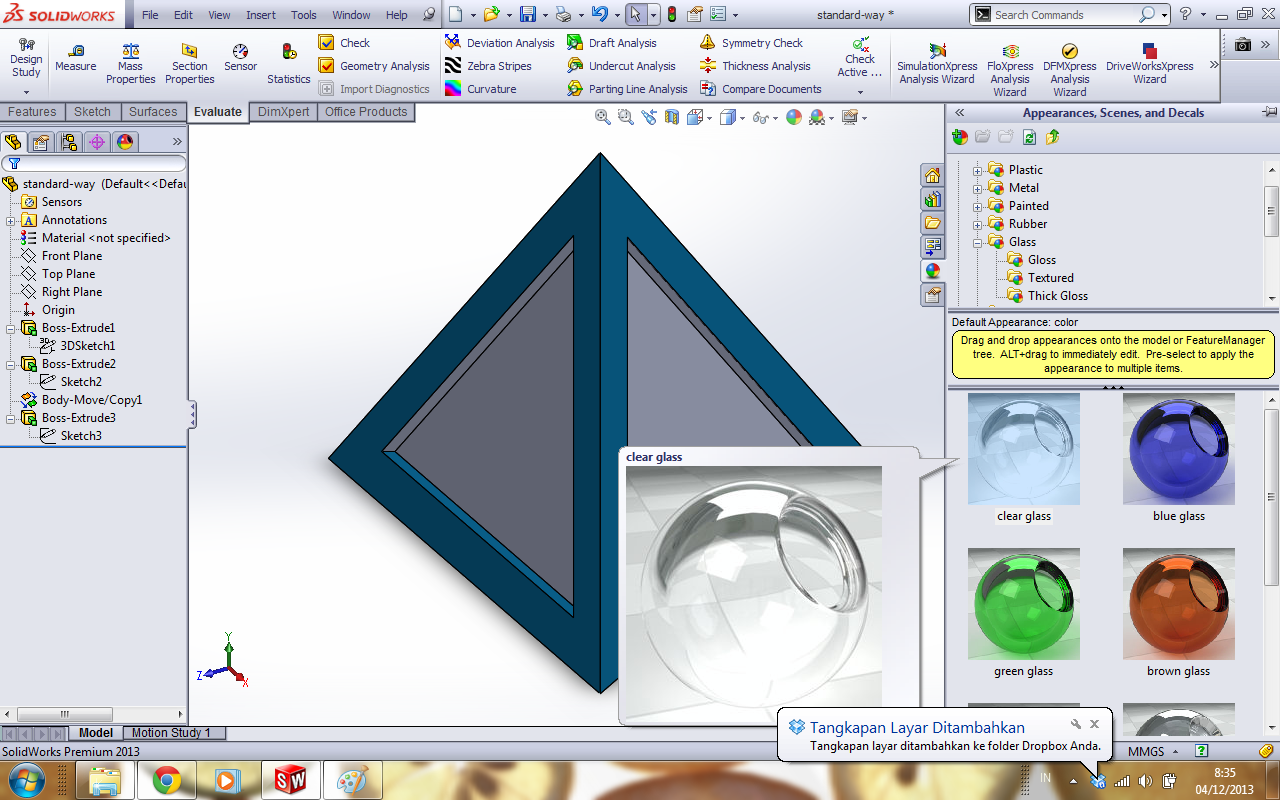

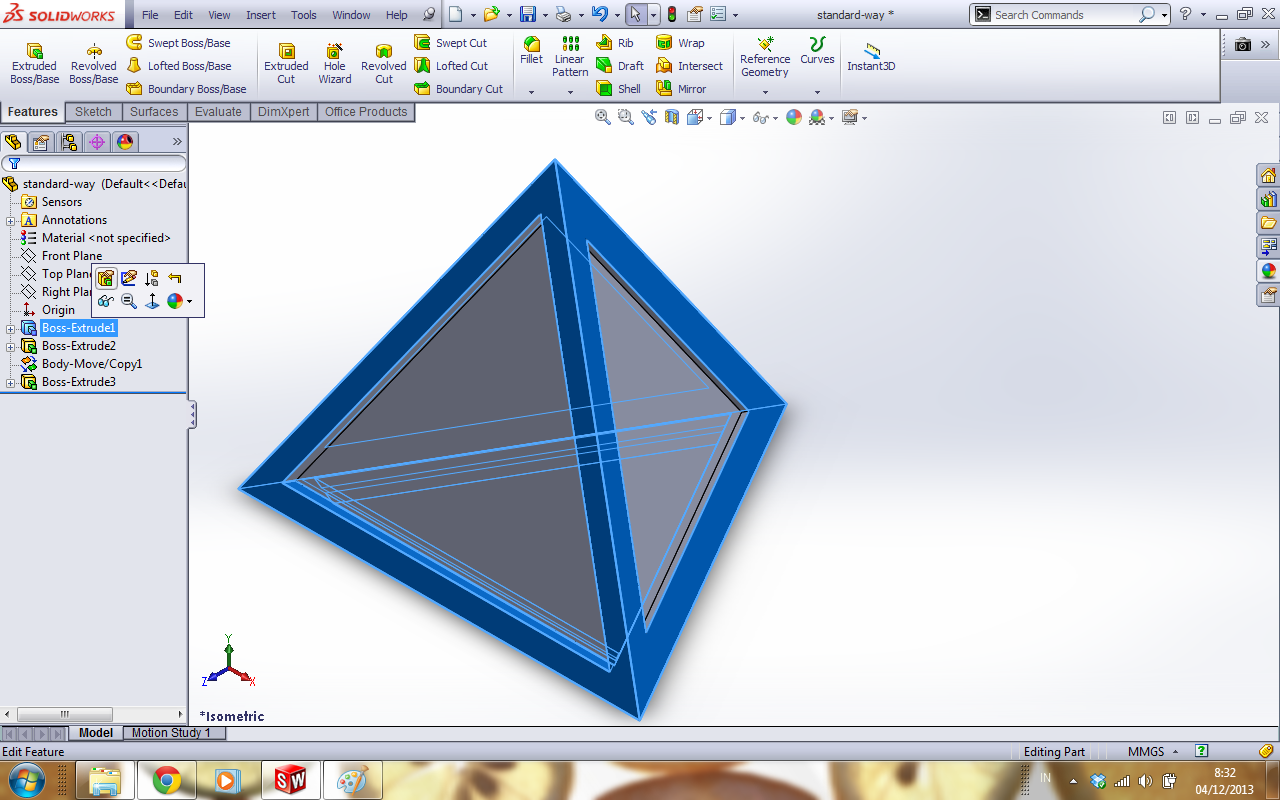

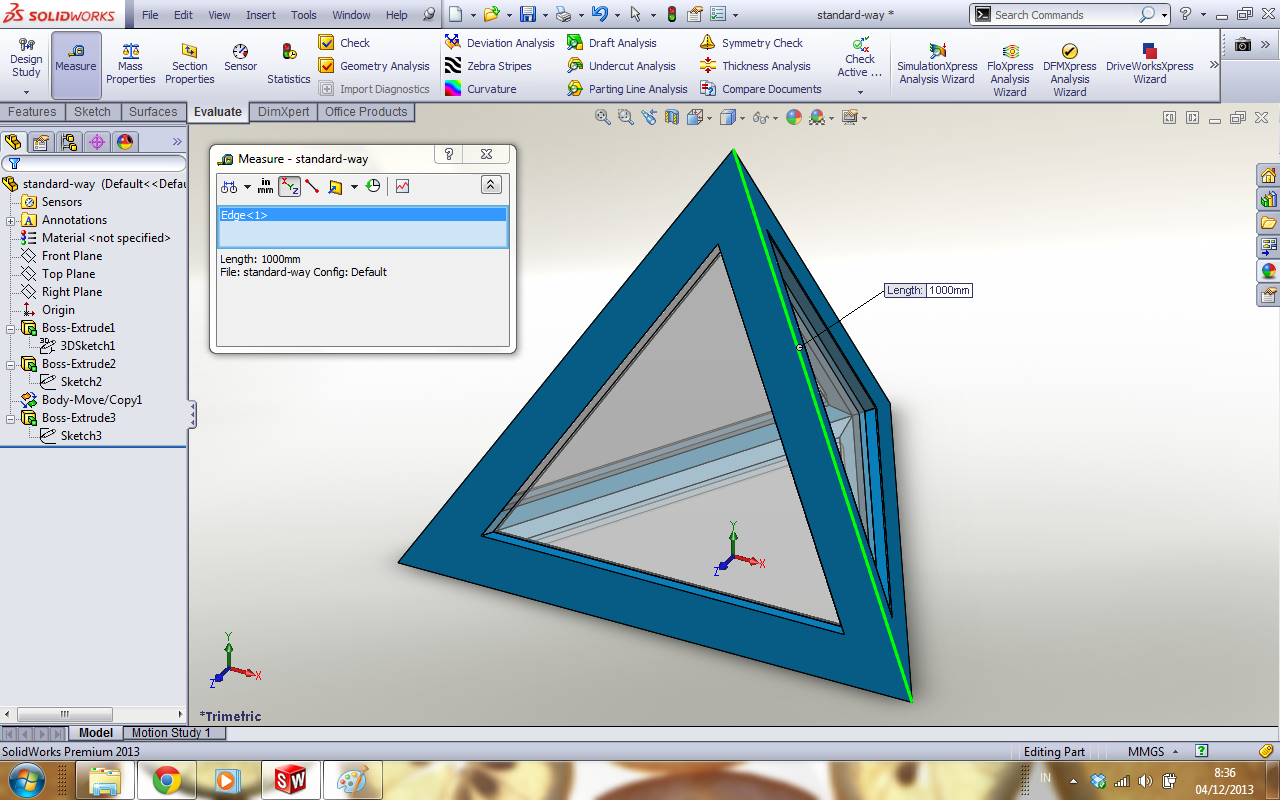

    final step is to change the depth of the first extruded base
    we just use 2 different commands, and total 4 commands to build this pyramid
