how to calculate radius of curvature

Answer

Comments 0

5 Answers

In CATIA you can use measure tools and change few settings to get desired output.


Comments 0

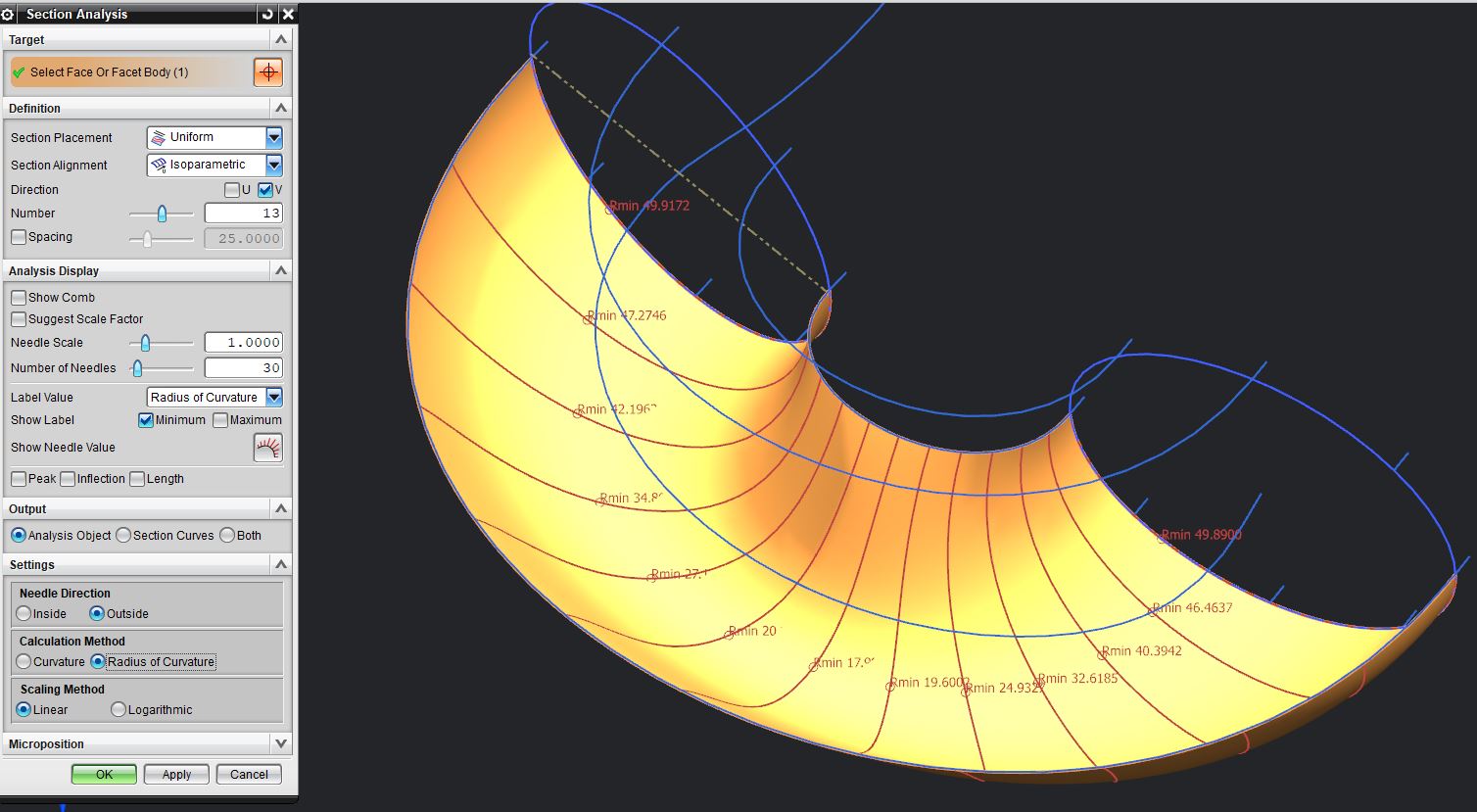

In NX, use the "Section Analysis" tool set to "Radius of Curvature", then decide the definition of the check; isoparam, planes, etc..


Comments 0

"You can create planes and make skech in this planes with the intersection of your surface to be measured. This option will create a line that you can then compare with others and know the angle diff..."

https://grabcad.com/questions/how-can-i-check-the-angel-radius-and-depth-in-catia-v5

Credit: vicen


Comments 0

Sectioning the curve surface, then calculate the curve edge in sketch editing space....


Comments 0
