how can I bend the Tip of the Model like the sketch?
thnaks for the Help, I hope that the file explains everything.
I hope that's helpful, I suppose you can use sheet metal features for your part.
AttachmentsPart4.SLDPRT, 169 KB
thanks I will take a look at it is it possible to get an small Tutorial how you dit this? I have never used sheet metal.
The history of the part explains how to do the first sketch.
1. take Insert/Sheet Metal/Base Flange.
2.The next step is to unfold the part.
Choose a flat surface and take the feature Insert/Sheet Metal/Unfold and hit the "Collect All Bends" button and execute it.
3.You have now a flat sheet and you can cut the round tip end.
4. Now choose the feature Insert/Sheet Metal/Fold and choose the same flat surface as described above and also "All Bends" and execute it.

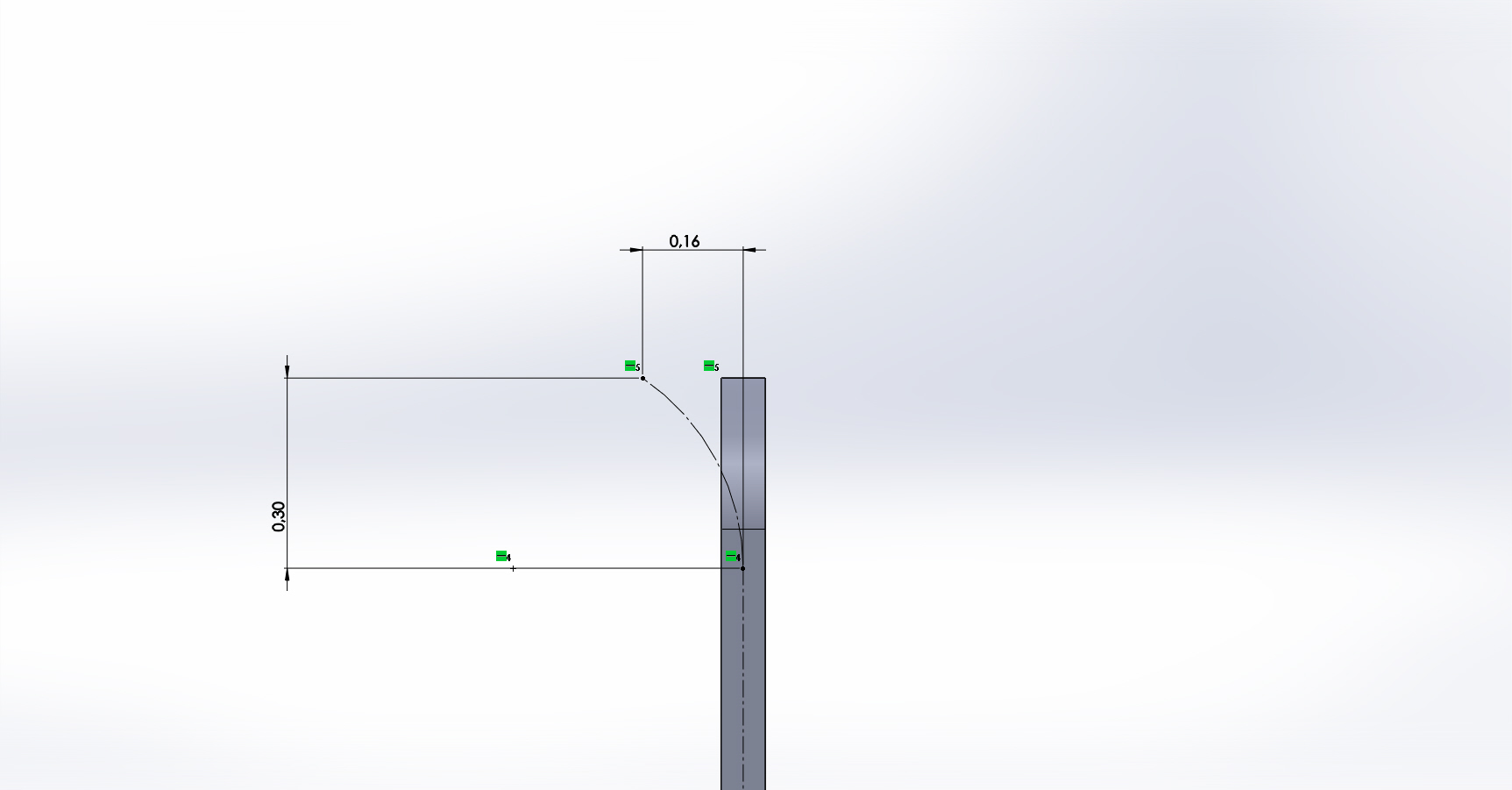

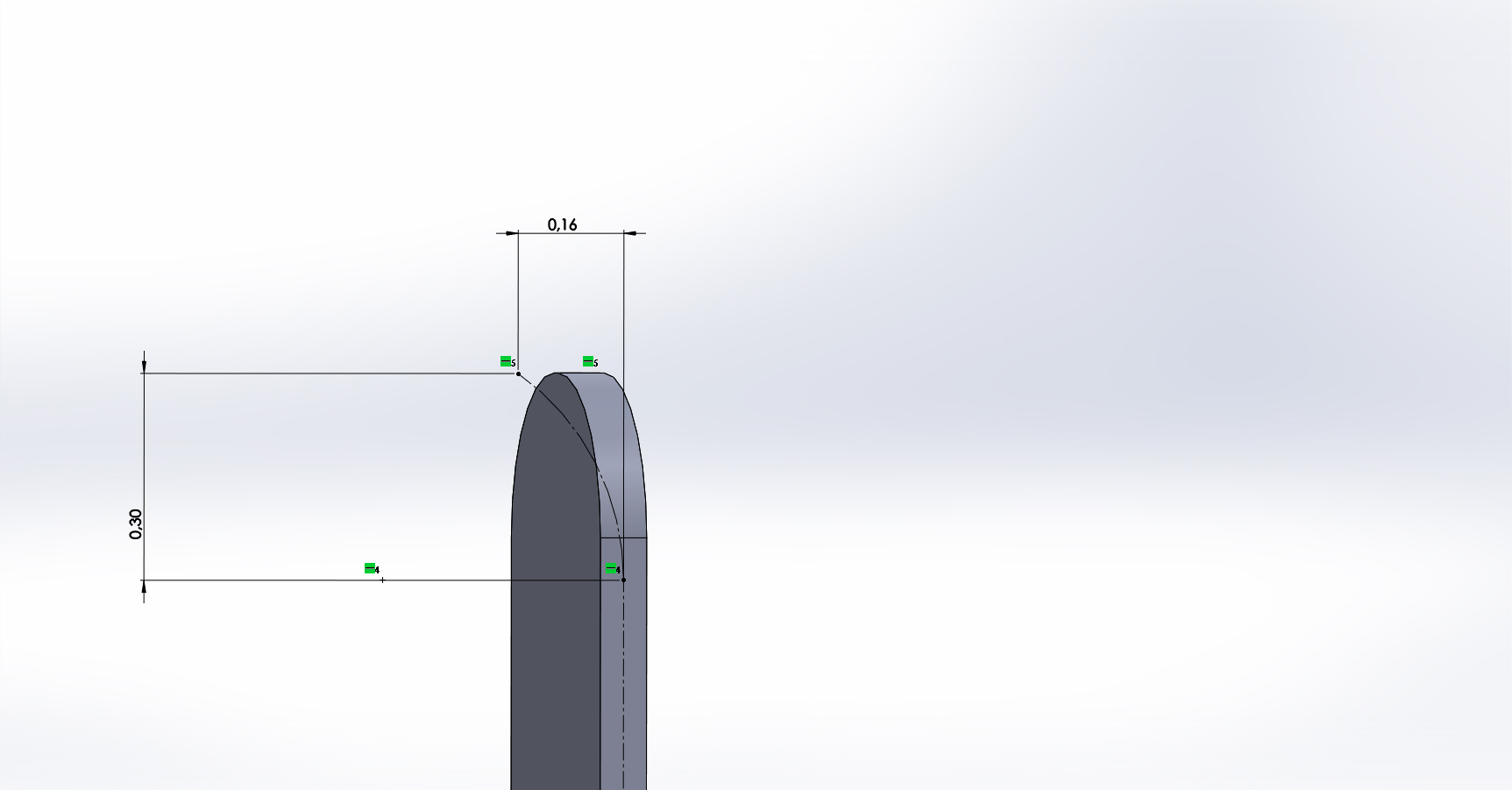

Here some Pictures for those how can't open the File.
