How to join a part from two points simultaneously

Damian Fowler
Damian Fowler
4 Jan, 2016 02:52 AM

Hi,

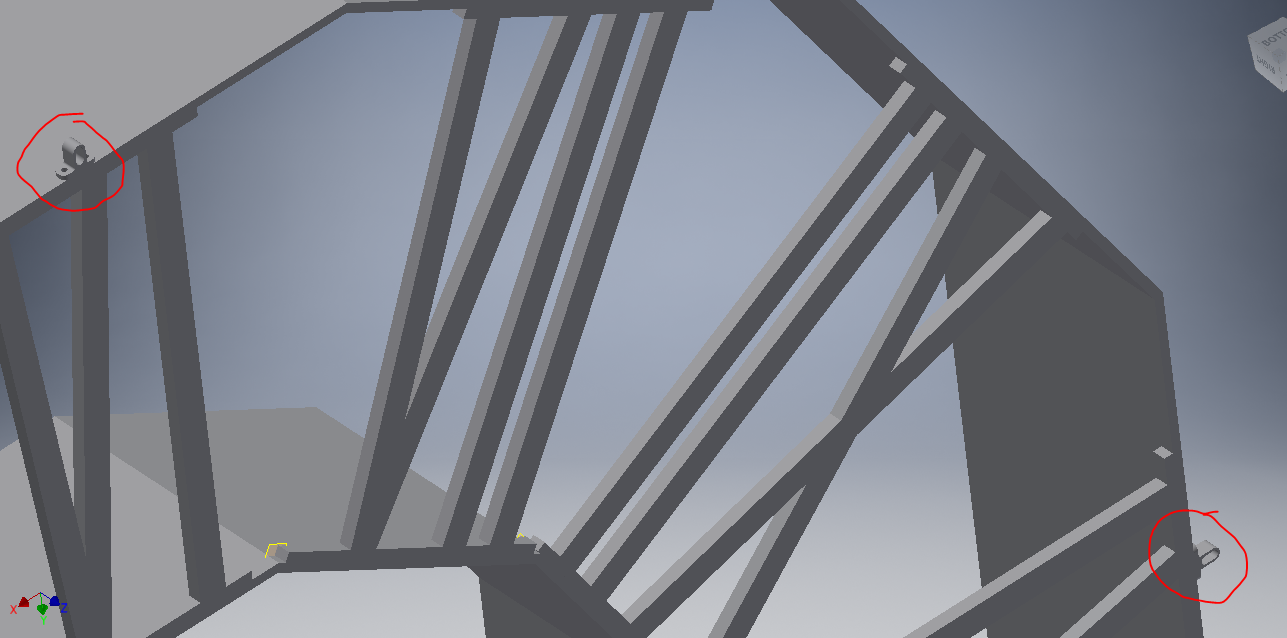

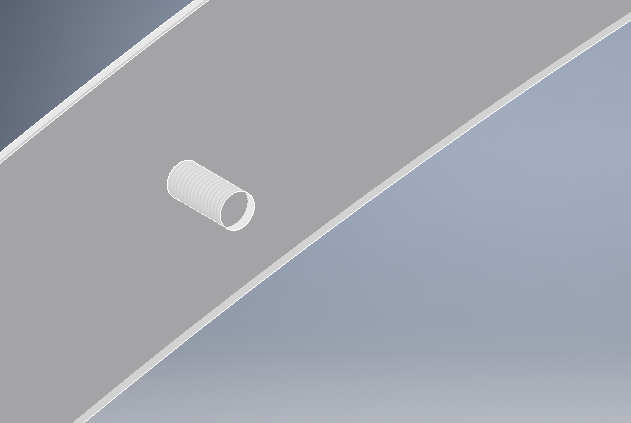

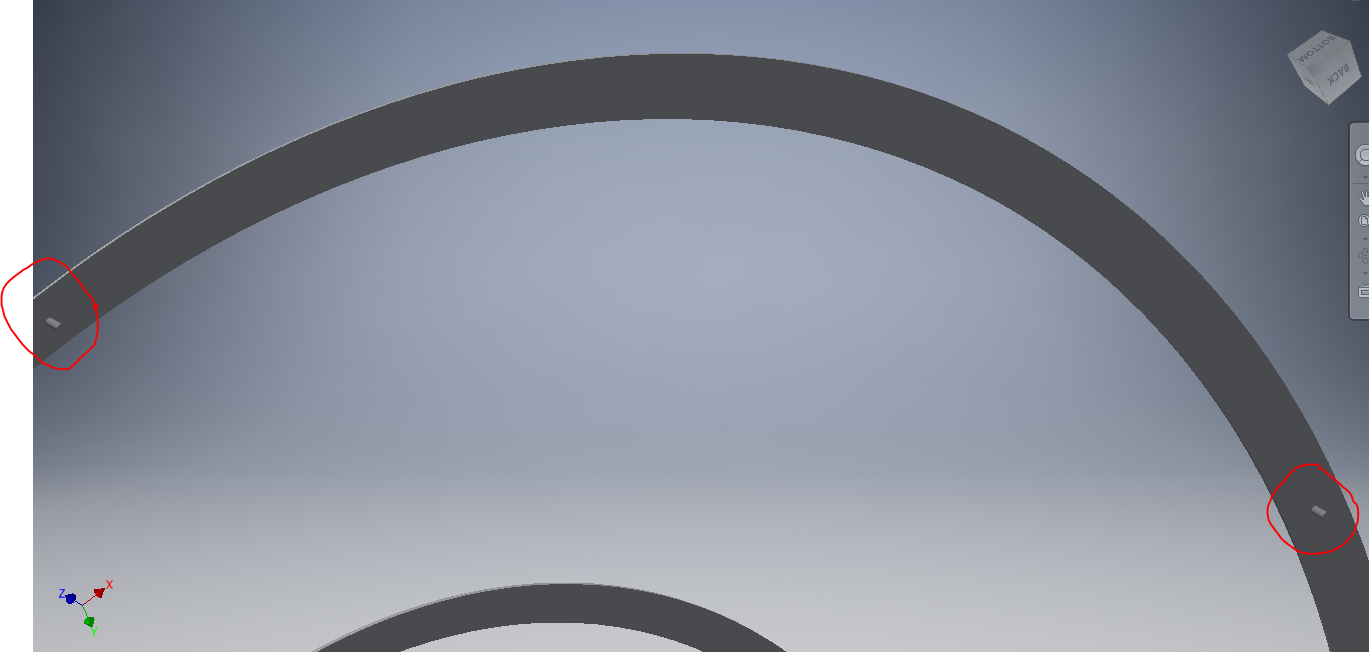

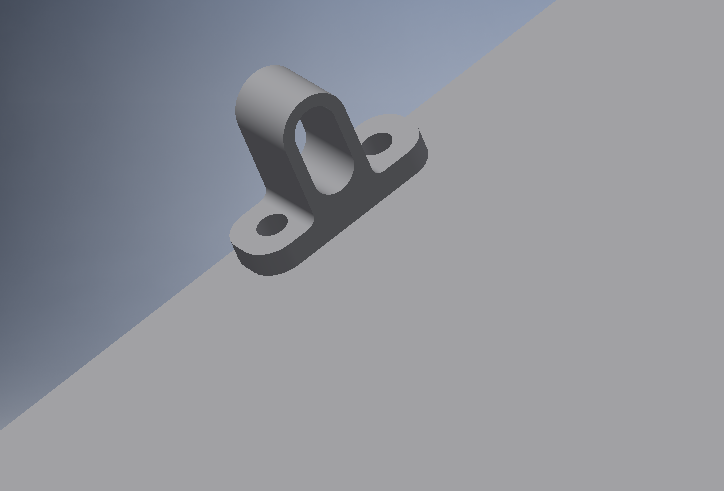

I was just wondering how i can join two parts together (part A & part B), while aligning two shafts (on part A) with their respective housings (on part B). See attached pics for further details.

Thanks

4.PNG 4.PNG 3.PNG 3.PNG 2.PNG 2.PNG 1.PNG 1.PNG

1 Answer

Alessandro Marconi
Alessandro Marconi
Answered on 18 Mar, 2016 03:26 PM

Using "Place Constrain" => "Assembly" => "Insert"
