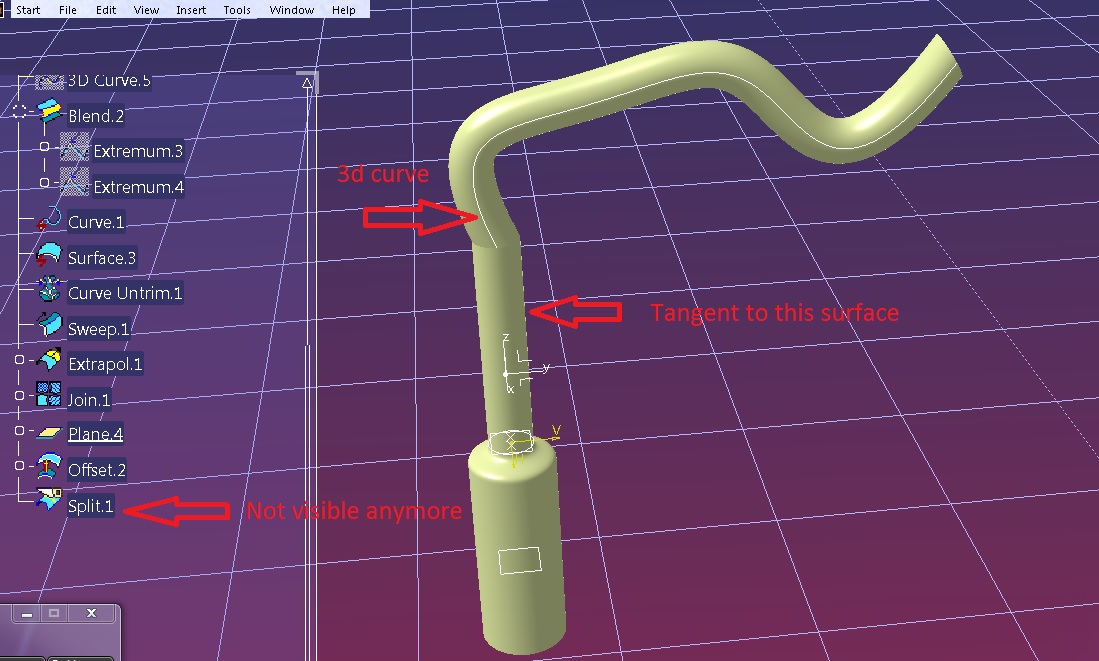

Im new to catia however not new to modelling. I am trying to create a smooth continuous surface by making 1st and 2nd vertices of 3d curve in the pic tangent to the surface.
My second question as I discovered is that I made a split surface by using plane as cutting element. After the operation was done I just moved the plane slightly down and the split surface became invisible. I can see the surface when I double click the split operation on the tree but not when I close it. The split is the last operation in the attached file
Hi friend, good morning!!
Just quick question, what are you release using for this 3d model? because I am using catia release 24!! this is because I can't open your 3d model!!
I hope you, can let me know, what catia release are using, or if you can save in .step.
Also I dont have any drawings because I am just testing the software. I used Solidworks before :)
Thanks a lot for that! Actually for 3d curve curvature I tried to partially fix the problem by "imposing tangency and curvature on the starting point of 3d curve and rotating the tangency arrow" I do believe and wanna know if there is any Catia operation that automatically does that make the 3d curve's first point tangent to the surface?
Hello Hugo, I am using Catia P3 V5-6R2015. I will save .step but will the operations be saved as well?
Try to make that friend!!! or another way that you can make, send me the dimensions I mean the drawing!!! I will try to make it, since new. if you have the drawing, if not only on .step I will try to help you.
Well i got to know that Catia automatically hides the surface if you modify the parent object....After clicking "define in workspace" i was able to reveal the split surface....well not cool if you have lots of modifications to be done later.
