Isometric View

0c00d3ce
0c00d3ce
7 Oct, 2013 04:35 PM

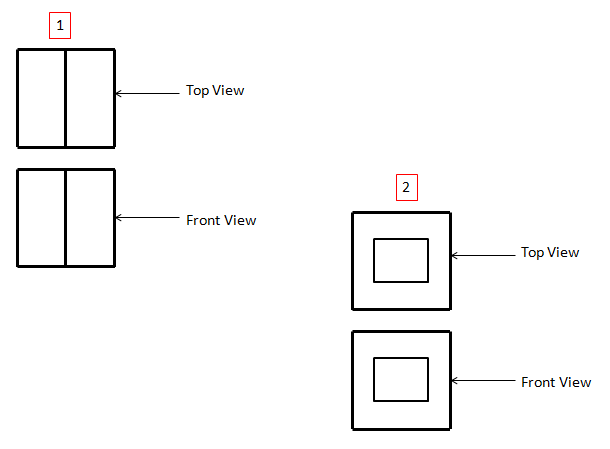

Please provide me the isometric view of the 2d drawings attached in the file.

Isometric_View.png Isometric_View.png

2 Answers

özgür kesebir
özgür kesebir
Answered on 7 Oct, 2013 05:37 PM

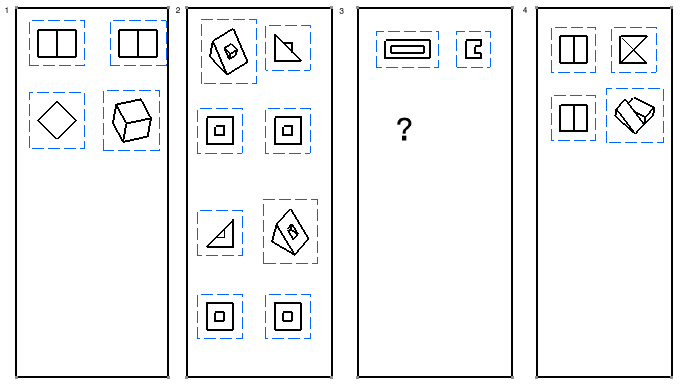

Sorry i misunderstood the first one. new picture added. and first answer is in last rectangle.

views2.jpg views2.jpg
özgür kesebir
özgür kesebir
Answered on 7 Oct, 2013 05:23 PM

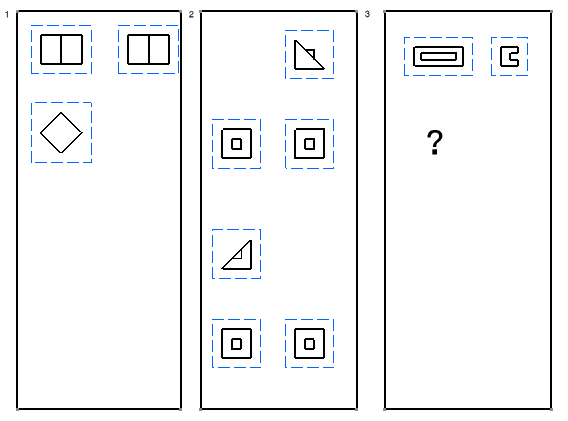

Here is the answers. What is the third one?

views.jpg views.jpg
