Tutorial how to make engine part 22

Aykut Dana

27 Feb, 2012 10:25 PM

Assembly 2

1. Step 1:

   insert a piston and a connecting rod




2. Step 2:

   make contentric this surfaces




3. Step 3:

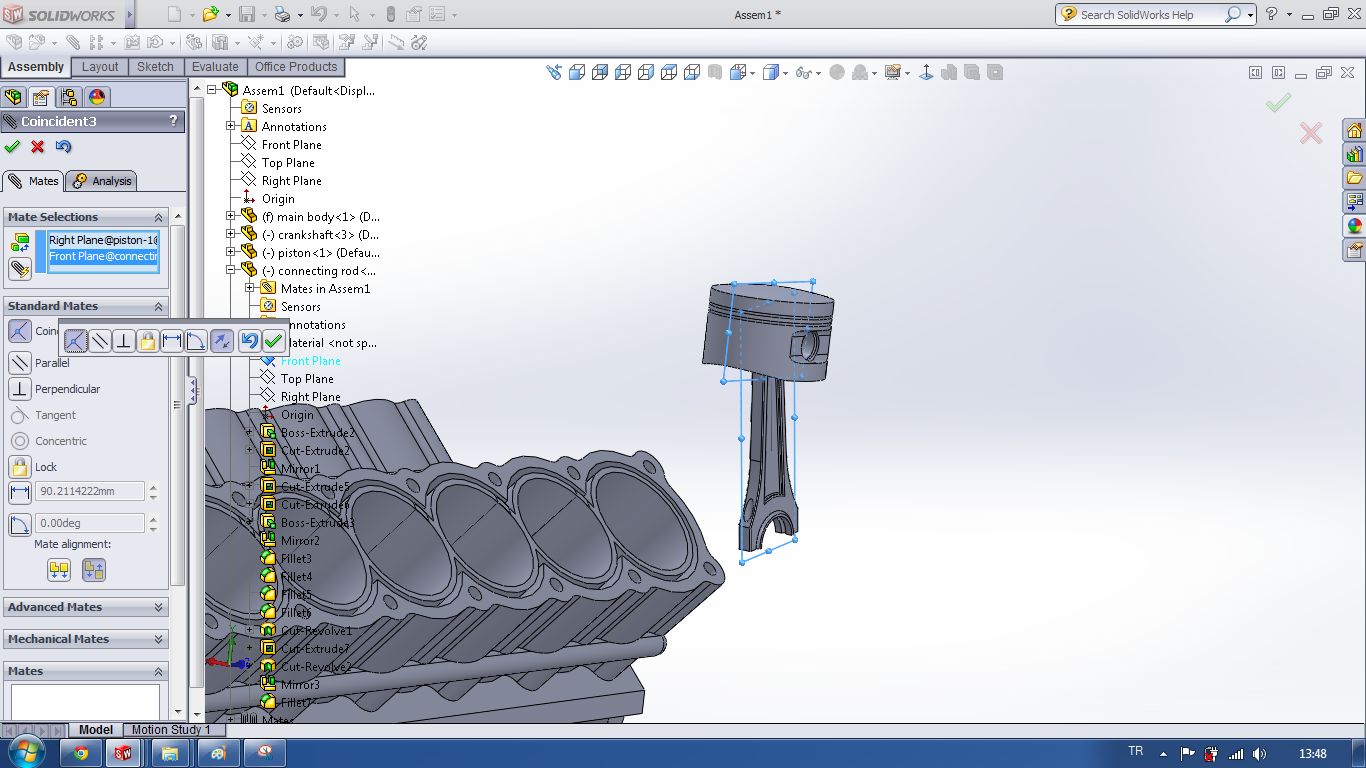

   select right plane of the piston and click on matte command




4. Step 4:

   find connecting rods front plane from feature tree




5. Step 5:

   make them coincident




6. Step 6:

   make this survaces concentric




7. Step 7:

   confirm that




8. Step 8:

   use matte command again and select this surfaces




9. Step 9:

   click on ok




10. Step 10:

    add 11 more piston and connecting rod . unfortunately you have to make same things for all
