Tutorial: How to make engine part 34

Tutorial by Aykut Dana
Small

CYLINDER HEADS

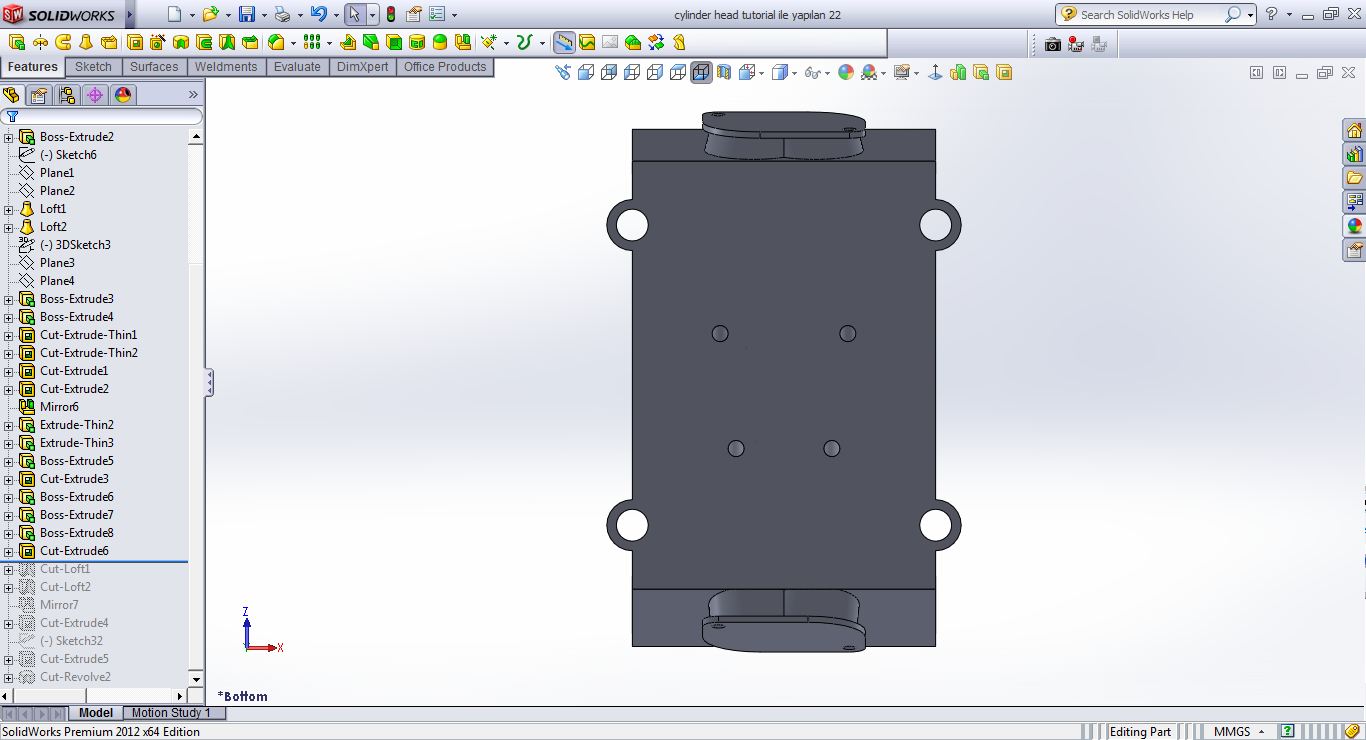

  1. Step 1:

    roll it back up to here again

  2. Step 2:

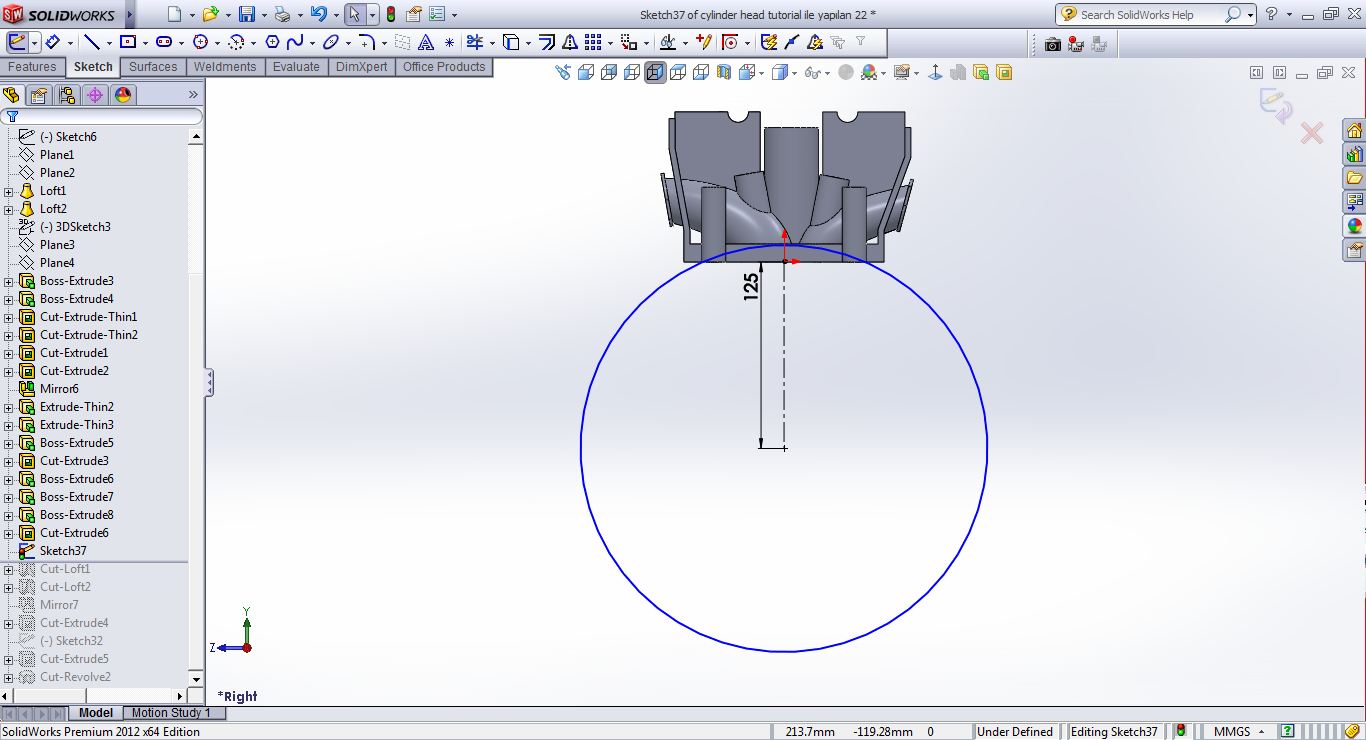

    open a sketch on the right plane and draw a big circle

  3. Step 3:

    continue the sketch

  4. Step 4:

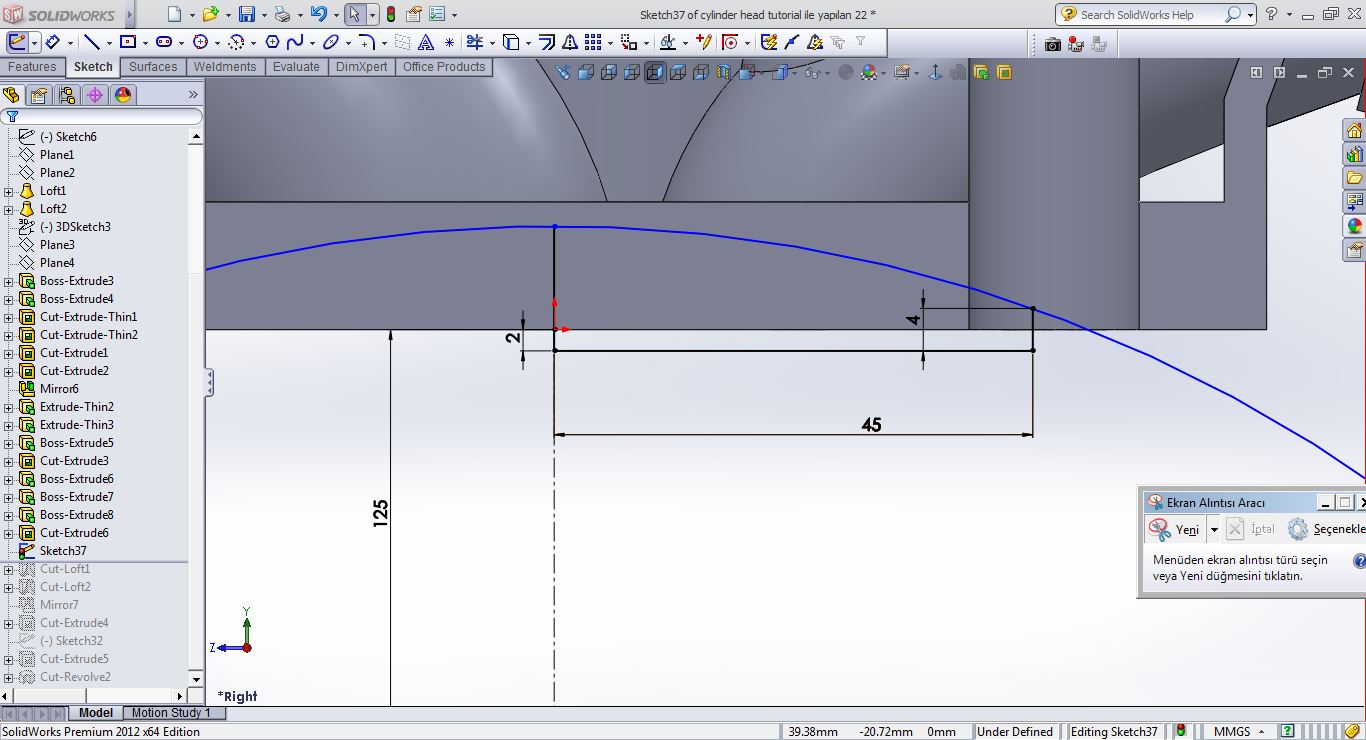

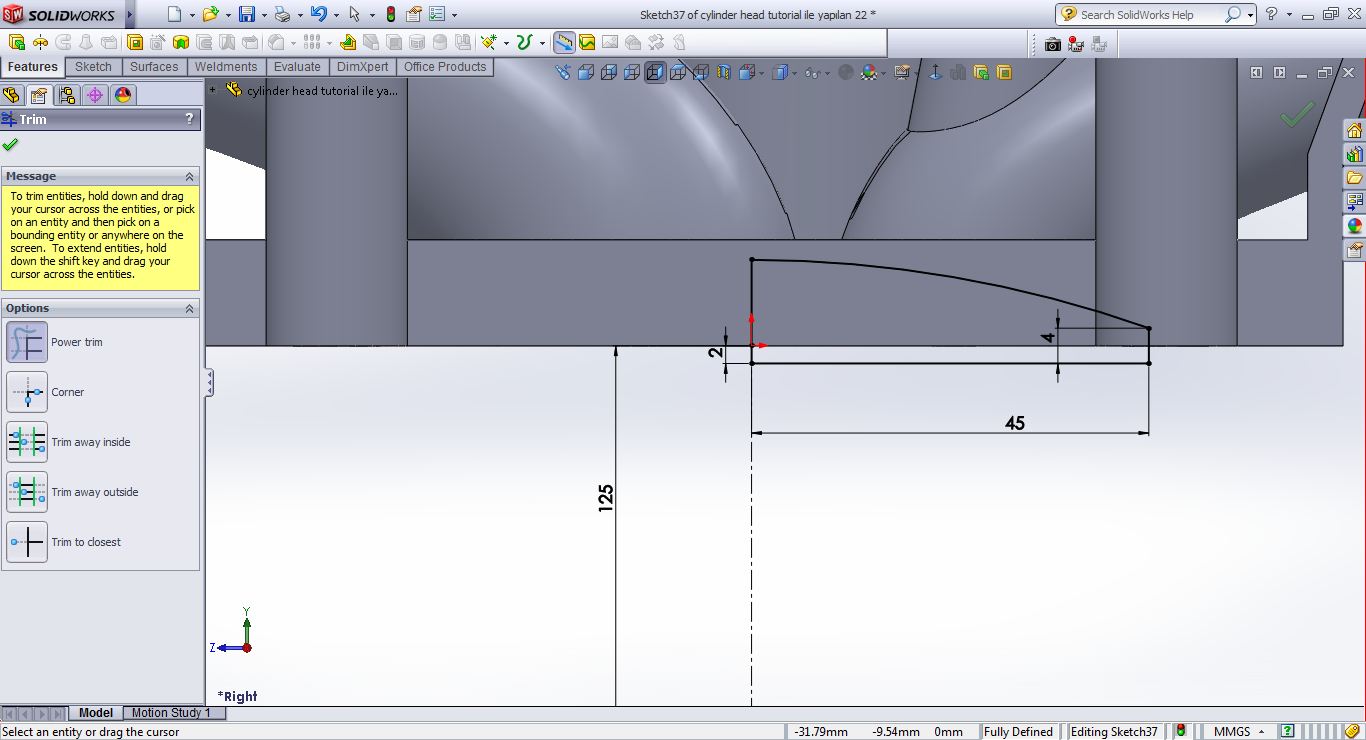

    use trim command and finish your sketch

  5. Step 5:

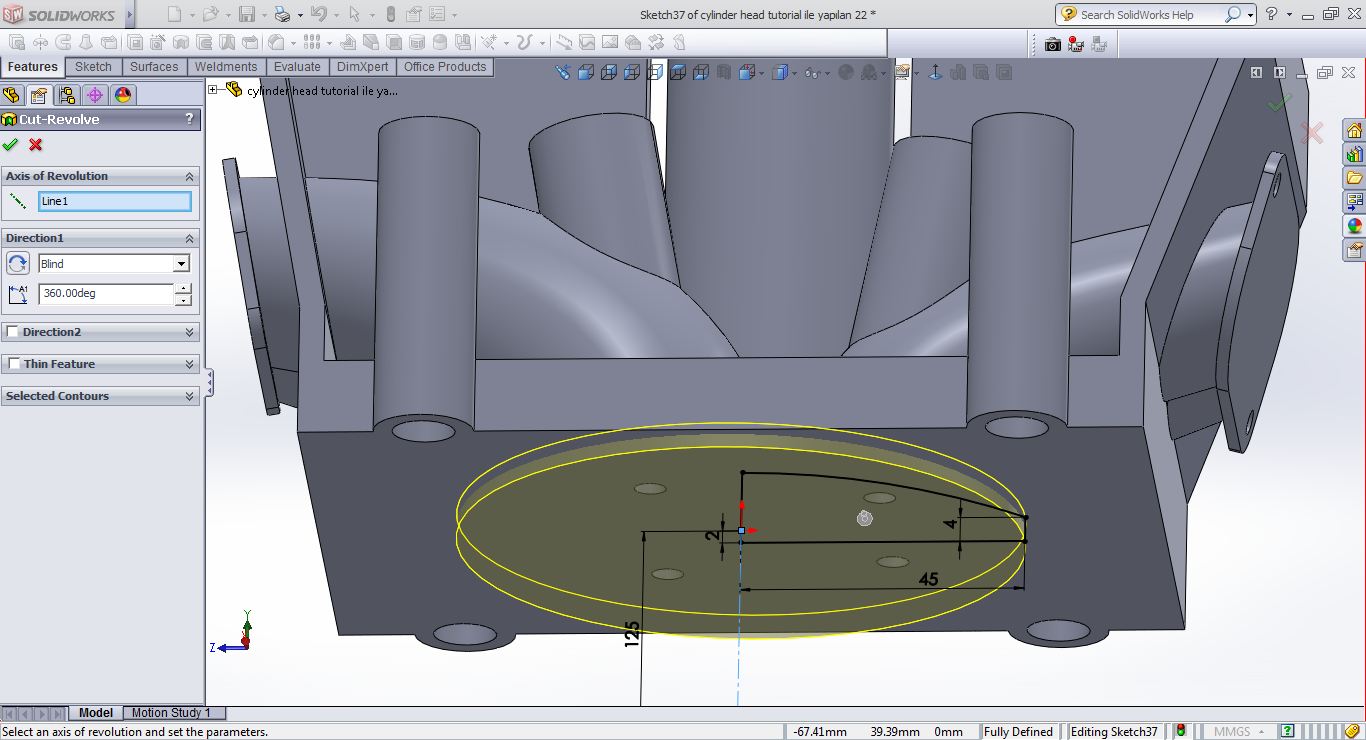

    use cut revolve command

  6. Step 6:

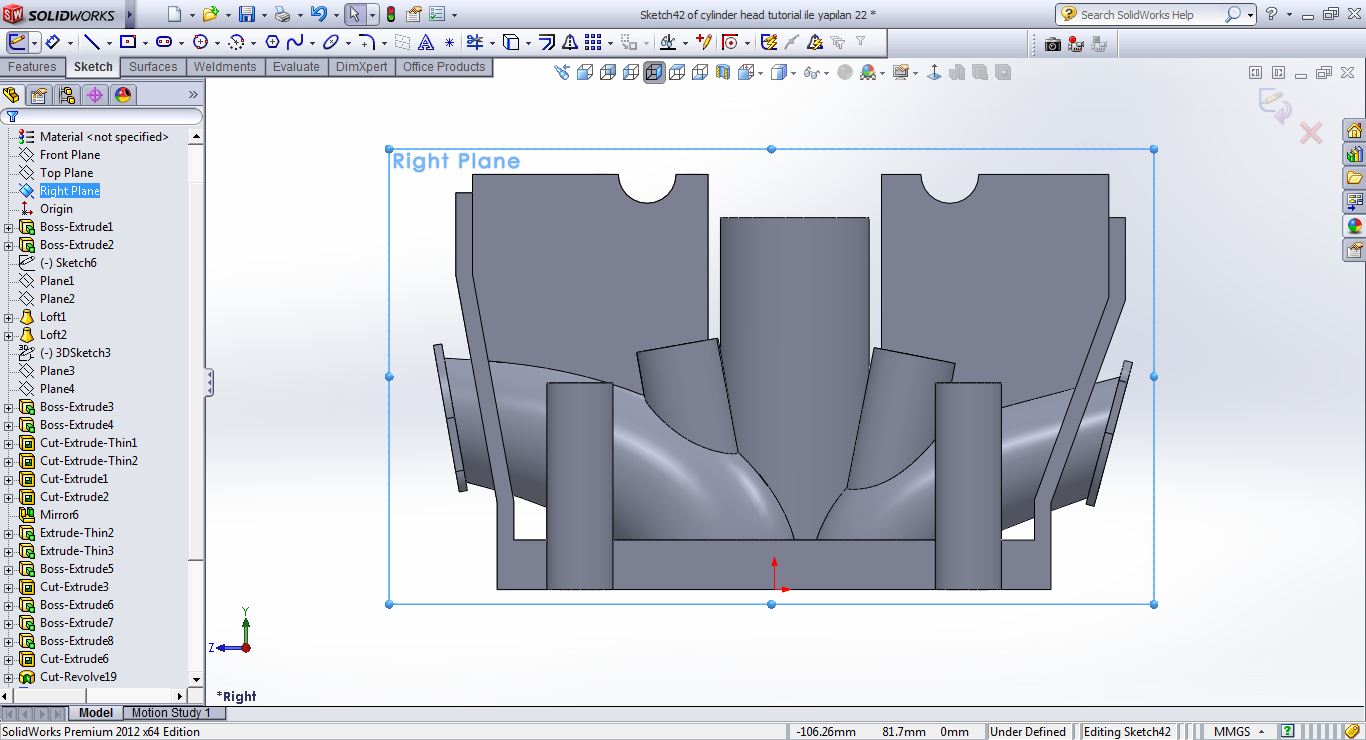

    open a sketch on the right plane again

  7. Step 7:

    start to drawing

  8. Step 8:

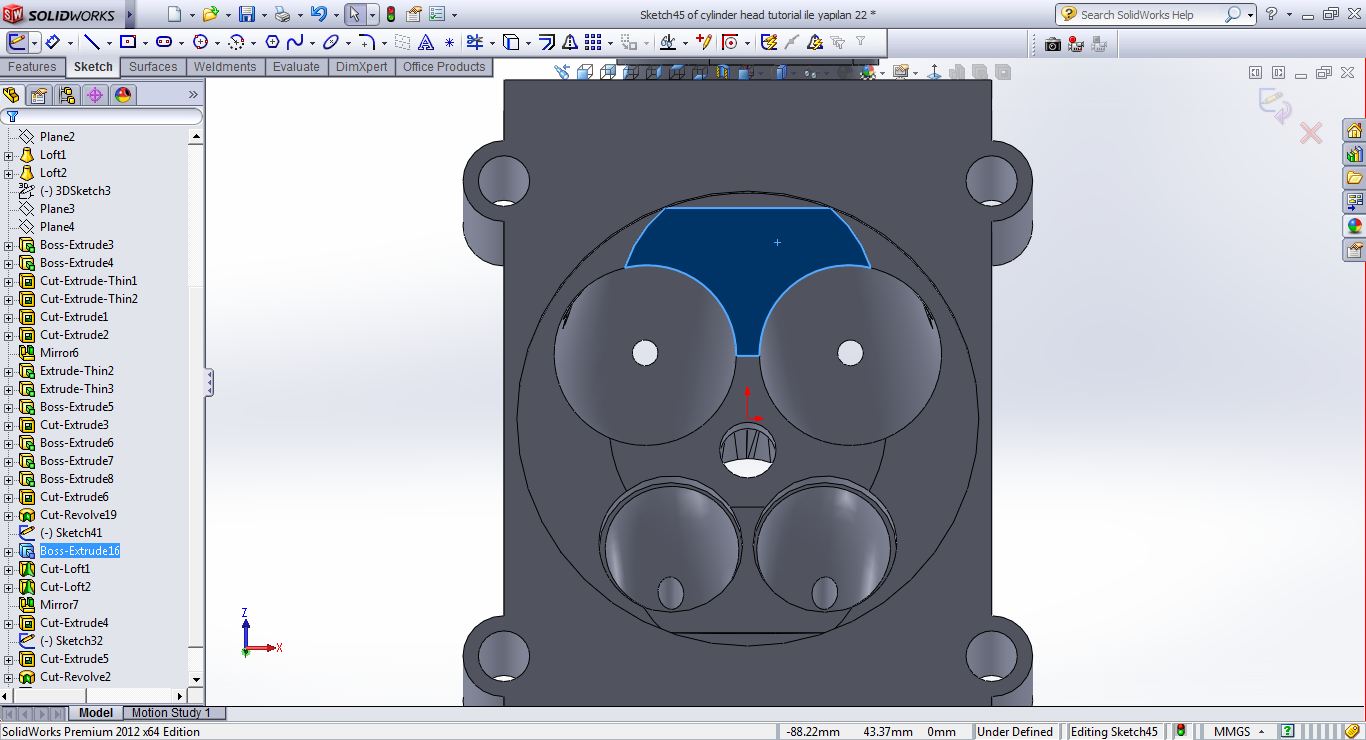

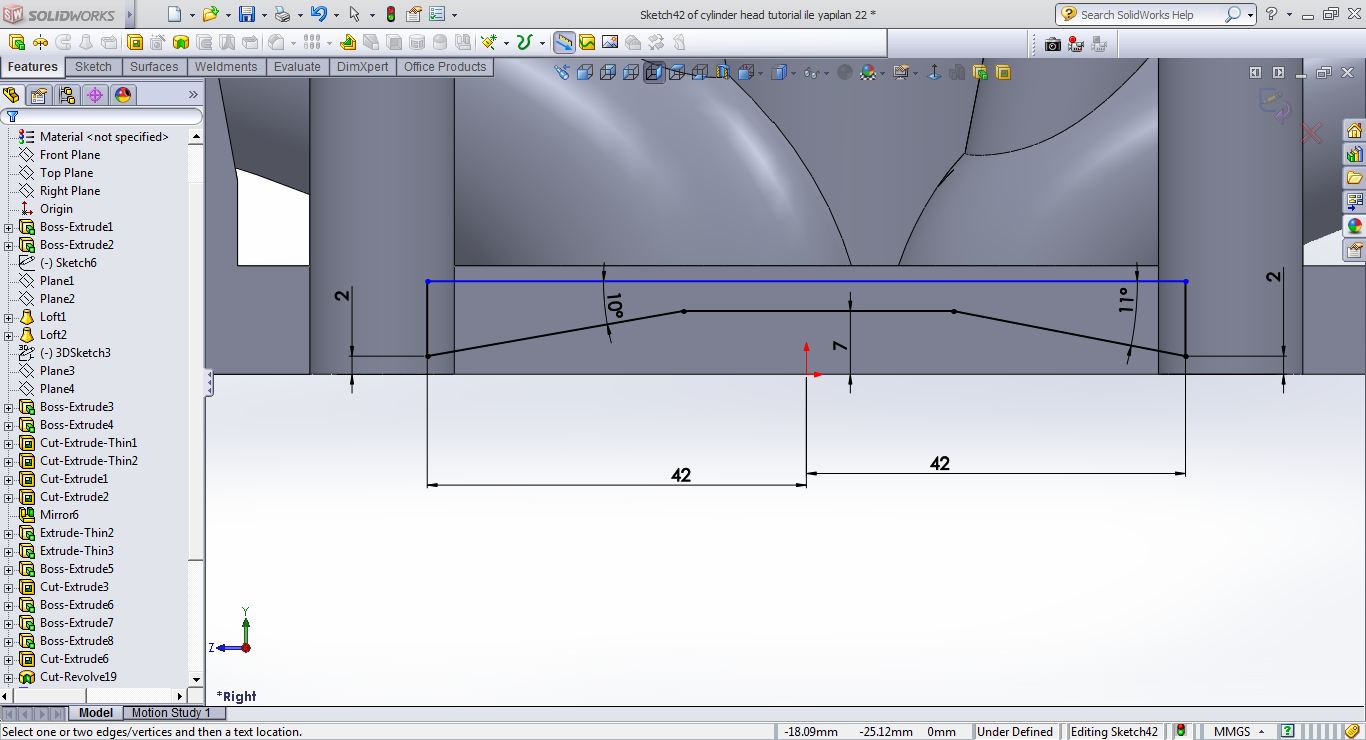

    finish your sketch

  9. Step 9:

    use extrude command

  10. Step 10:

    roll the line forward

  11. Step 11:

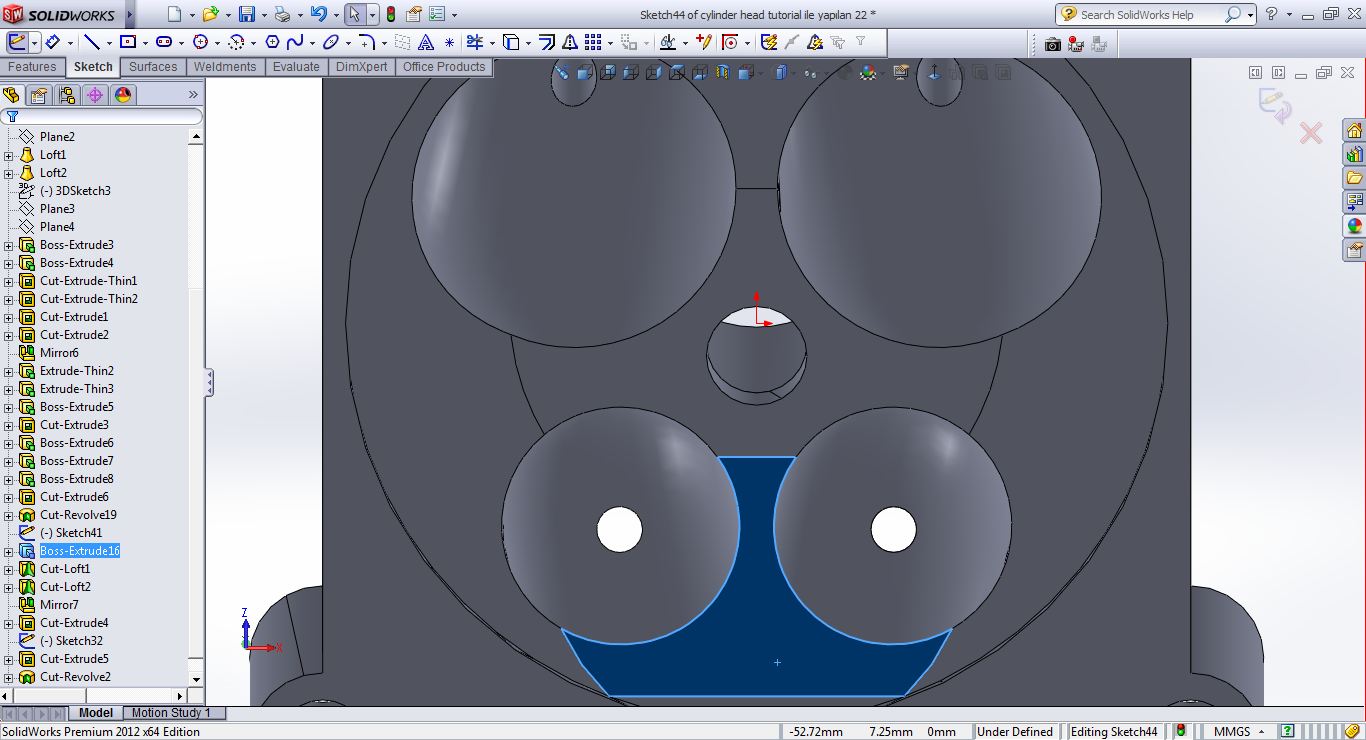

    open a sketch on the shown face .

  12. Step 12:

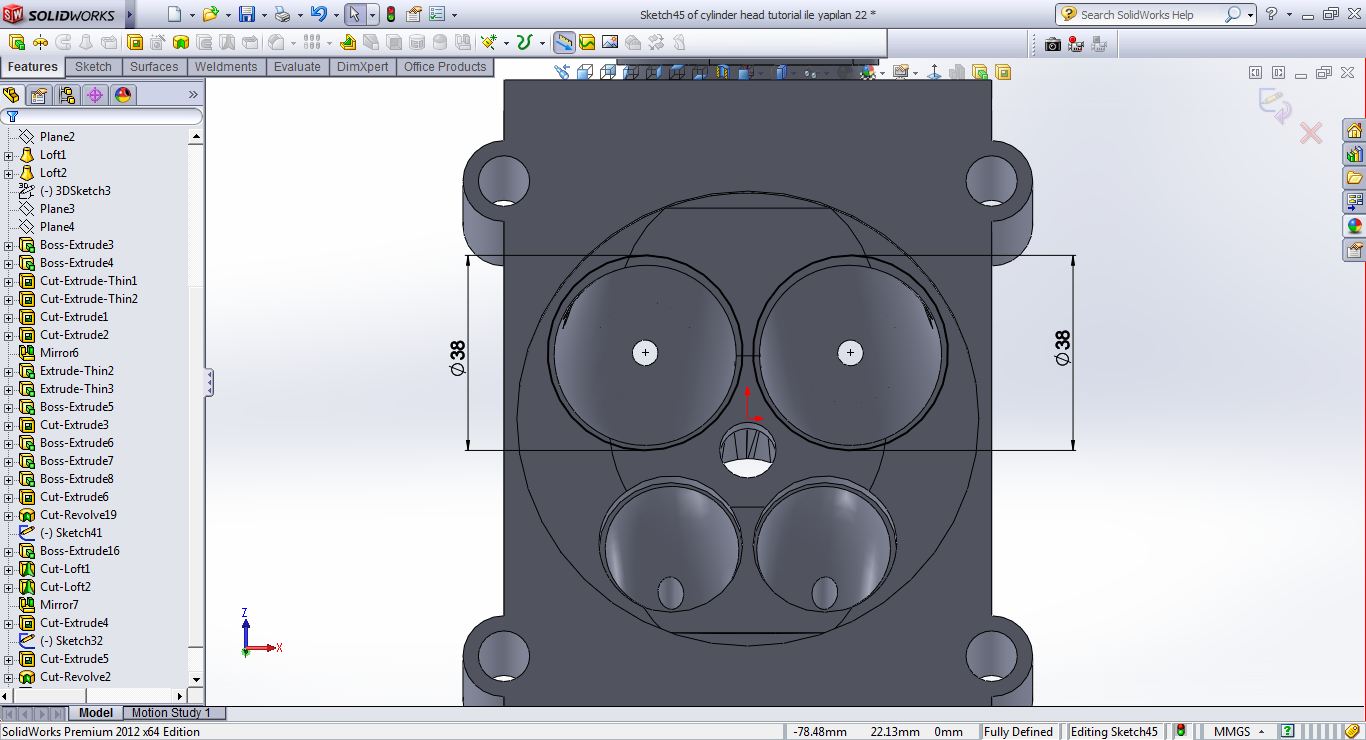

    draw two circles

  13. Step 13:

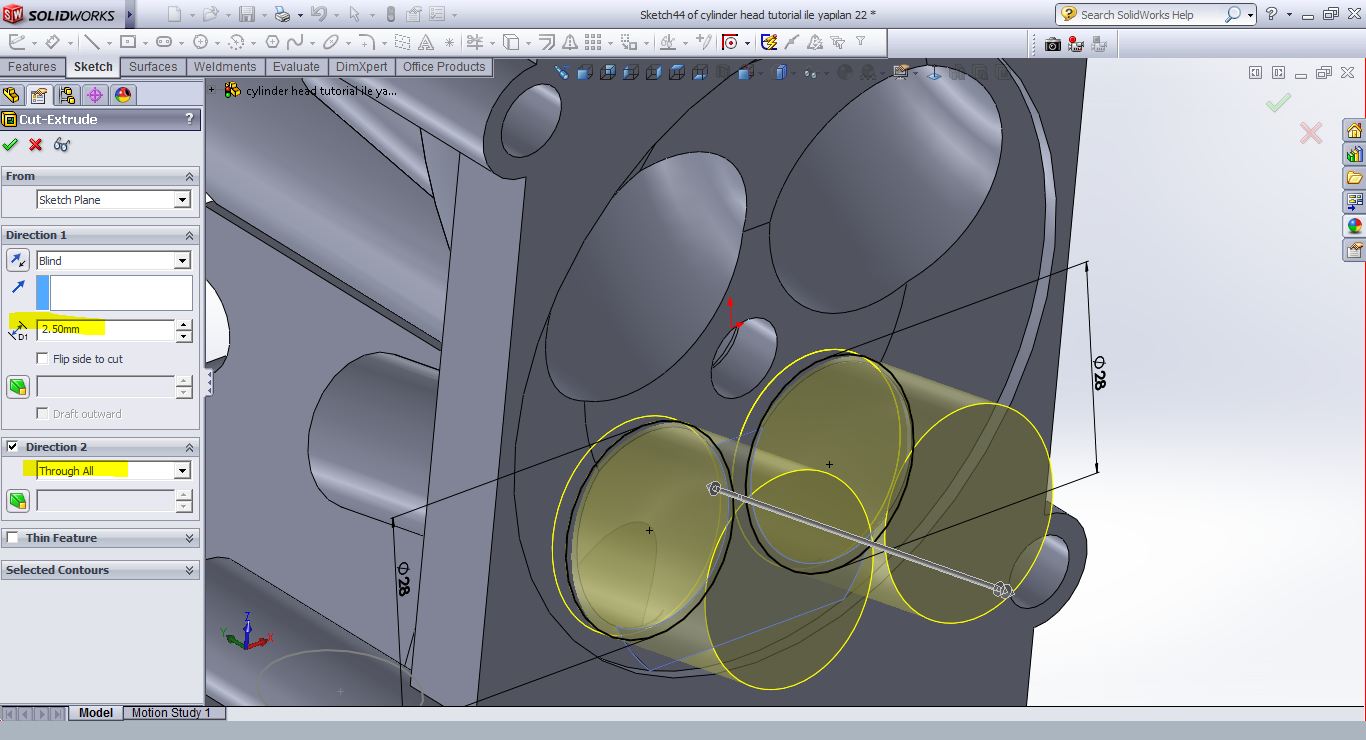

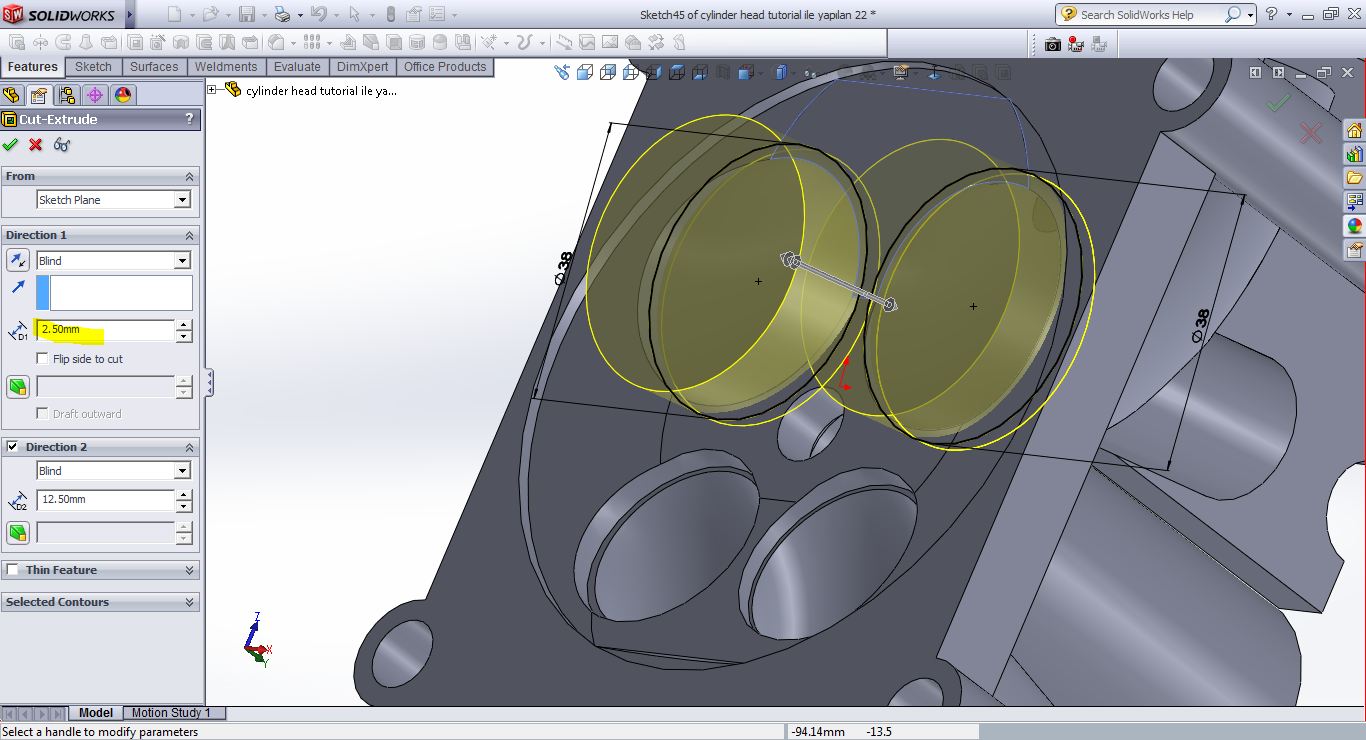

    use cut extrude command

  14. Step 14:

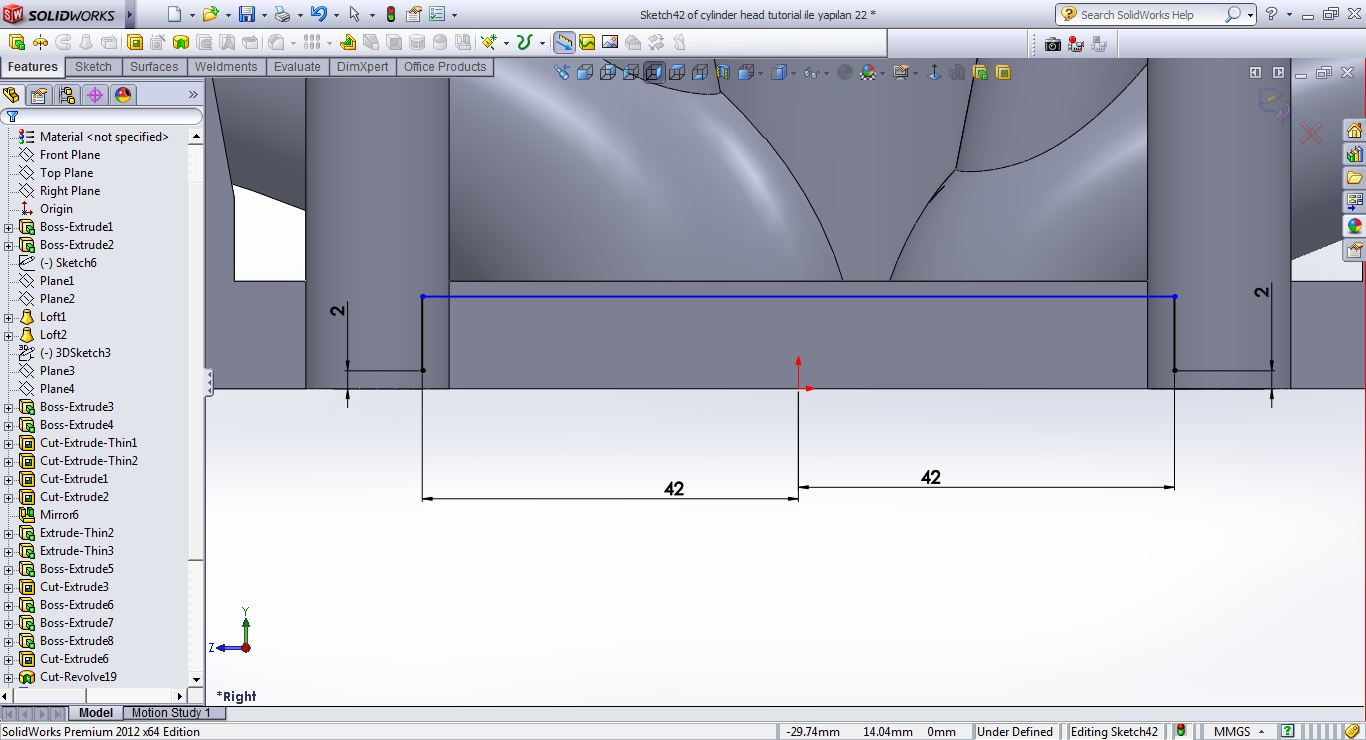

    open a sketch on this face at this time

  15. Step 15:

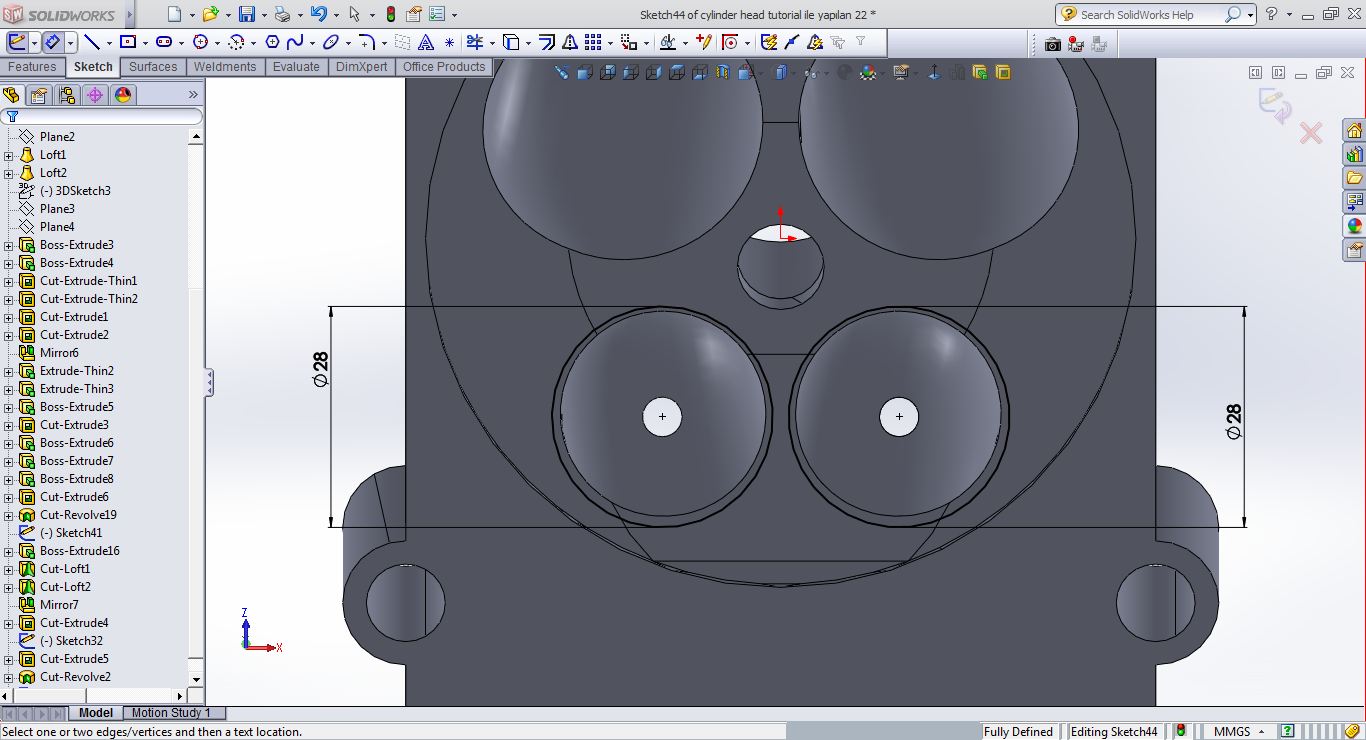

    draw two 19mm radiused circles

  16. Step 16:

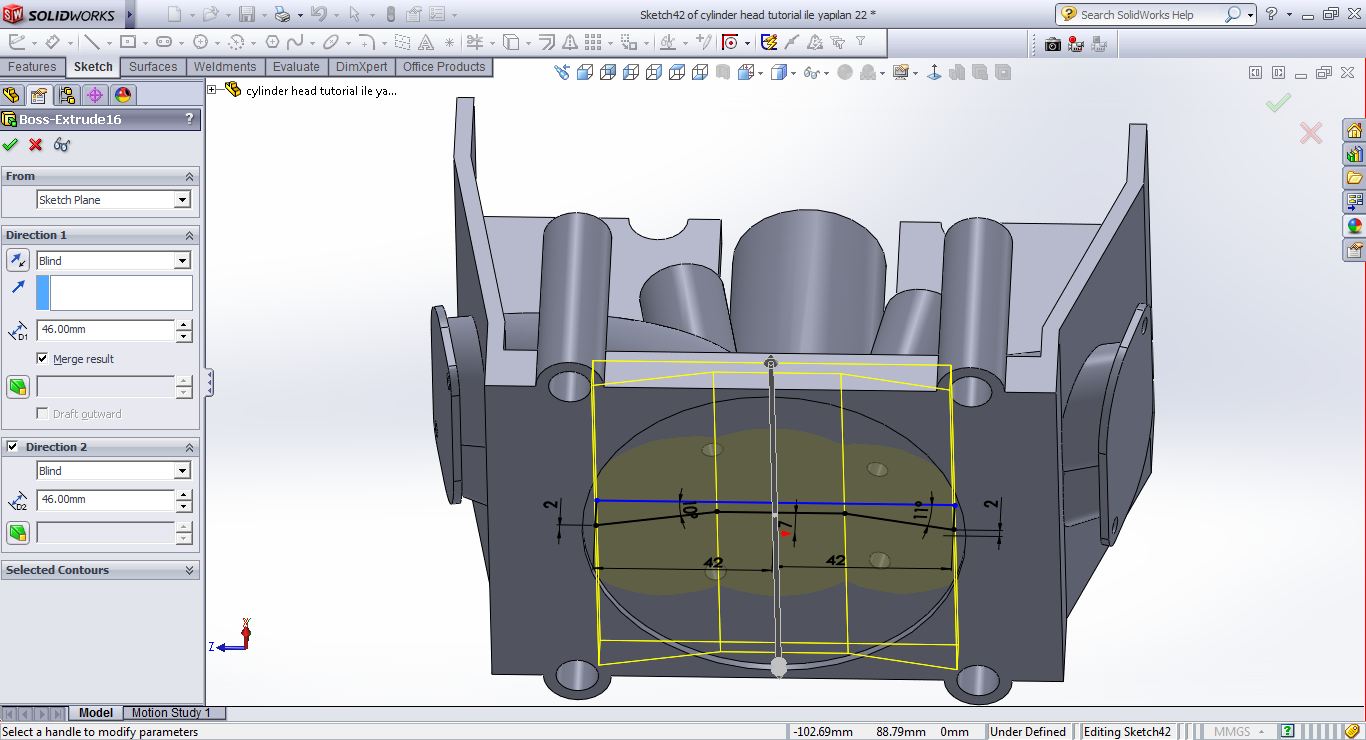

    cut the body like shown

    next: http://grabcad.com/questions/tutorial-how-to-make-engine-part-35
