This challenge seeks an innovative design for a brick connection into a collection cavity that is reliable, has a watertight seal, is quick to connect and can be retrofitted into current assemblies. An effective seal is critical to the success of well-designed industrial components and their broader systems, and a faster connection will expedite the manufacturing process.
The physical and digital worlds are converging, ushering in a new age of manufacturing and industry. New manufacturing methods through advanced manufacturing, fabrication and additive applications are redefining traditional constraints—making what was once impossible—possible. These advancements proliferate across industries and the entire manufacturing value chain —allowing for redesign of key parts and components that are the building blocks of broader systems. Thereby, the innovation designs that maintain quality and performance while accelerating assembly processes through the creation of a simple part can have a ripple effect in the manufacturing improvement across global industrial systems.
The designs submitted will be analyzed and evaluated by a panel of at least four (4) judges at GE and the up to five (5) designs will be selected for awarding from a total prize pool of $10,000. The winning entries will best satisfy all of the requirements, are suitable for mass production, simple and reliable.

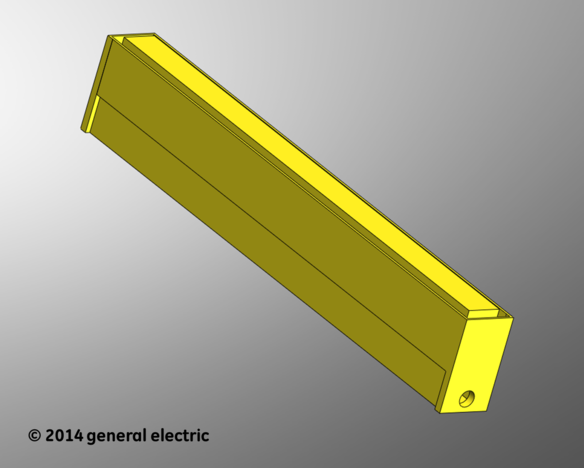

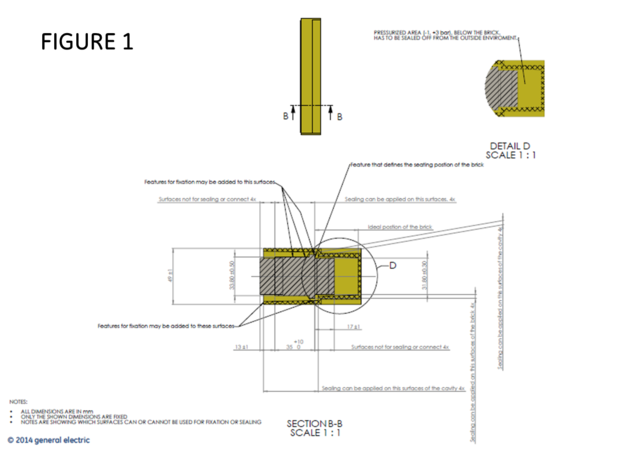

Full-sized Diagram (Figure 1) available by clicking the “Download Specifications” button.
Your entry must include:
- STEP or IGES version
- CAD file in any format
- Evidence sealing will meet technical requirements (data sheet, calculation, etc.)
You are encouraged to include:
- STL file
Technical requirements:
1. Part dimensions must maintain dimensions of Section B:B in Figure 1 (Figure 1 also available in pdf and CAD file formats on this page);
2. Cavity ideally one piece but can be made out of two or more;
3. Fixed and modifiable dimensions according to attached drawing;
4. Materials (should be compatible to work in a water environment with a temperature range of 1 to 40 degrees centigrade):
- Brick: Currently urethane (poured into a shaped manufacturing mold)—but open to
- Cavity : Injection molded plastic,
- Sealing: To be defined in your proposal,
- Quick connect elements: To be defined in your proposal;
5. Sealing: Water tight seal; holds -1 to +3 bar pressure (pressurized volume shown in Figure 1, Section D);
6. Expertise and capabilities of Entrant. Share your experience and expertise, discuss other work of a similar nature, highlight other capabilities or competencies.
Judging criteria:
1. Suitability of brick connection for mass production (e.g., use of element production technology such as molding, machining, welding) and simplicity of assembly;
2. Simplicity of design (e.g., whether the parts feature simple geometries and assembly);
3. Reliability of seal (e.g., minimum space utilization required for seal; seal is water tight for the range of -1 to +3 bars);
4. Ability to connect quickly (e.g., connects or cures in less than 10 minutes);
5. Permanency or removability of connection (a permanent connection is acceptable but a removable connection is preferred);
6. Entrant’s capabilities and experience.
BY REGISTERING FOR THE COMPETITION, YOU ACCEPT THE CONDITIONS STATED IN THE OFFICIAL RULES (http://blog.grabcad.com/quick-connect-challenge-rules/), agree to be bound by the decisions of the judges and warrant that you are eligible to participate in the competition. If you do not accept all of these official rules, then please do not register for the competition. We recommend that you print a copy of these official rules for your future reference.
Must be 18 years of age or older to participate. No purchase necessary. Void where prohibited.
THESE OFFICIAL RULES SUPERSEDE ANY OTHER RULES AND TERMS & CONDITIONS ON THE WEBSITE OF SPONSOR OR GRABCAD.
This Challenge starts on February 9, 2015 and ends on March 9, 2015.
The finalists will be announced by April 6th, 2015.
The winners will be announced by June 8th, 2015.
$10,000 total prize pool. Up to five (5) winners will each receive a cash prize of $2,000.
Entries will be evaluated by panel of at least four (4) judges who are GE employees with expertise in industrial components and design.
