how to write text on solid in solidworks?
how to write text on solid in solidworks?
4 Answers
I usually wrap text onto a surface, which there are different modes for emboss, deboss, and scribe.
Resp. Sir.
I Attached a step by step Detail in front of your Question.
Hopping, this information should be useful.

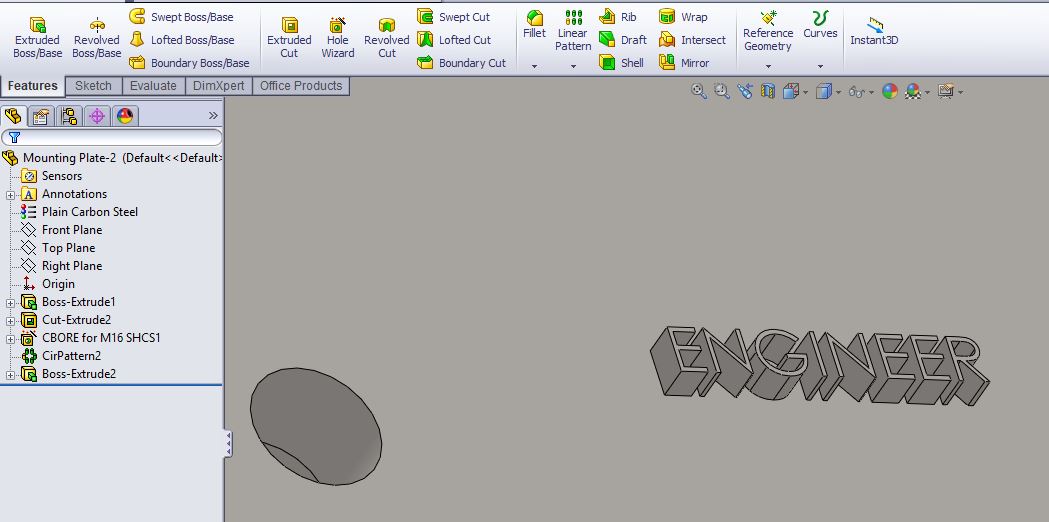

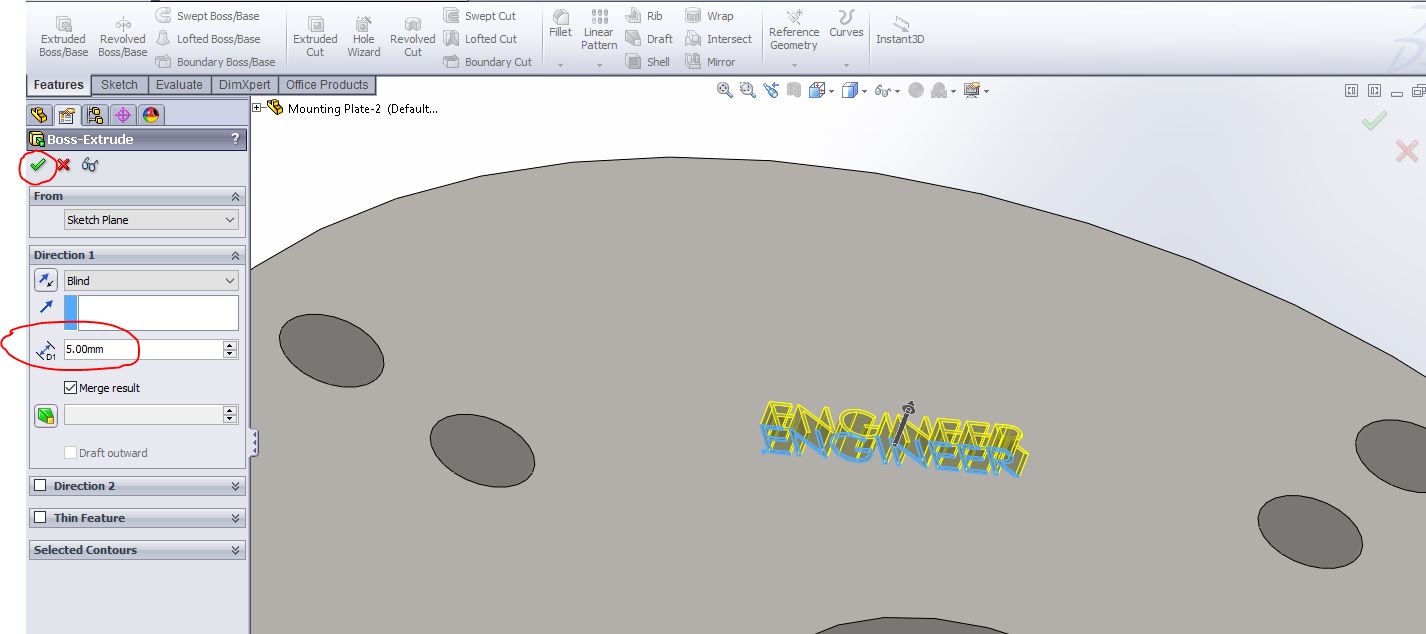

10-Specify Hight and Click on Right.JPG

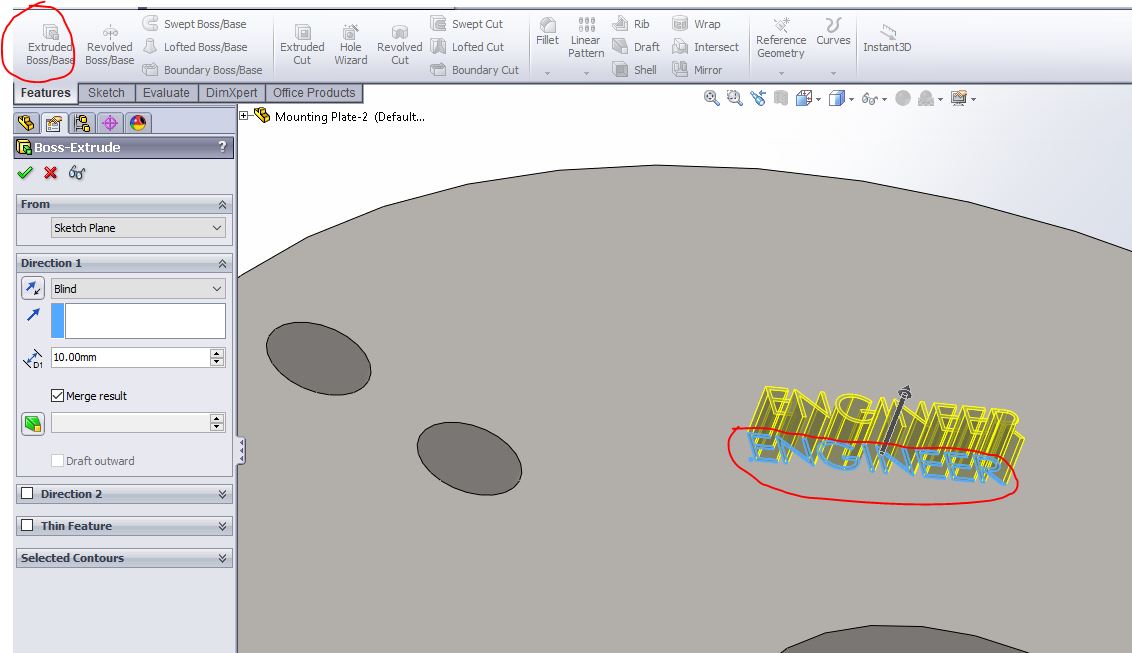

9-Select Sketch and Press Extrude Command.JPG

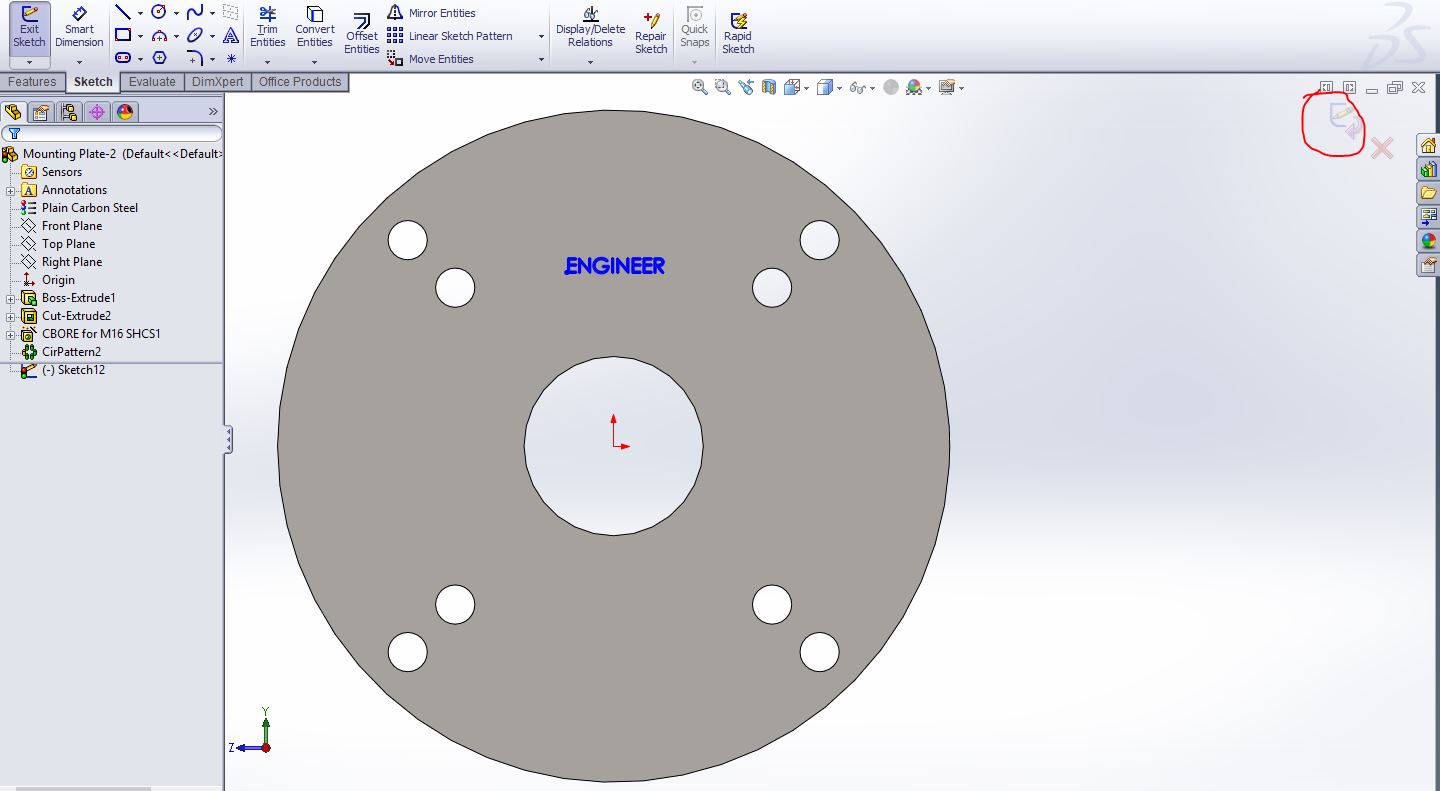

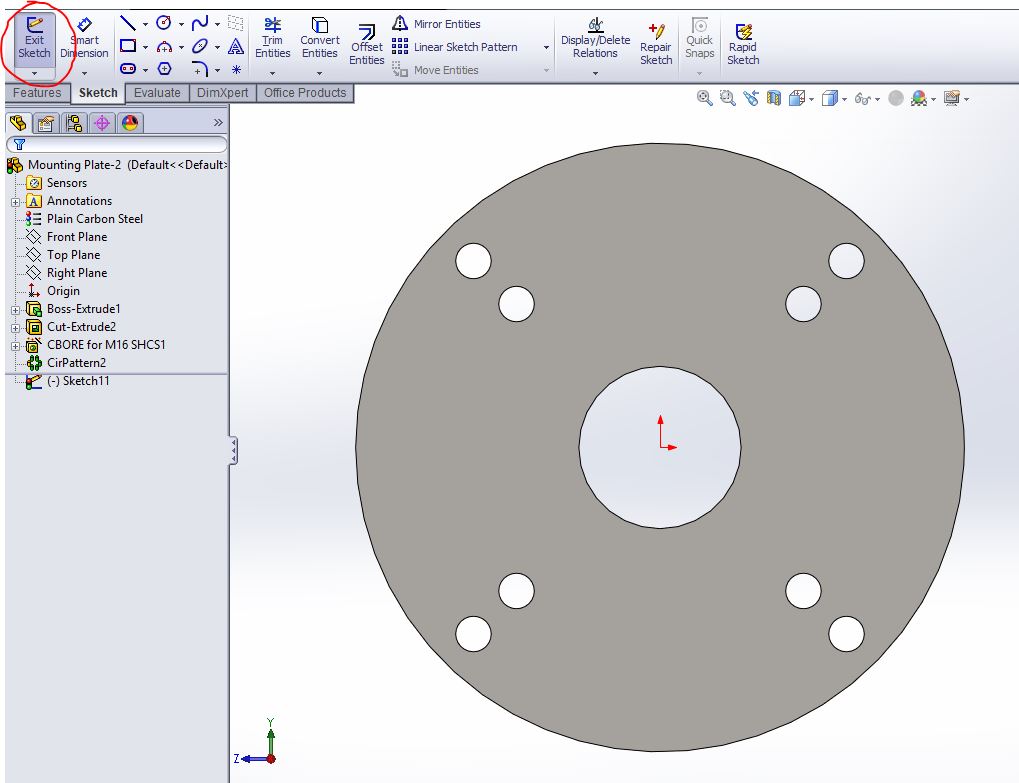

8-Exit Sketch.JPG

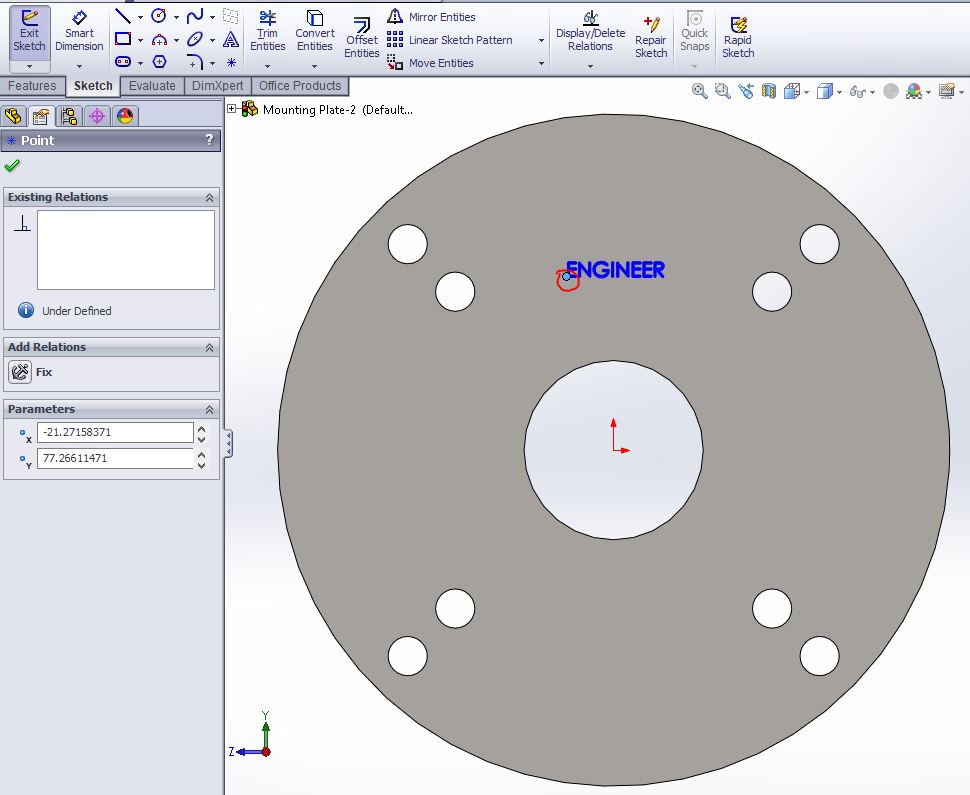

7-Move Fonts by Dragging this Point.JPG

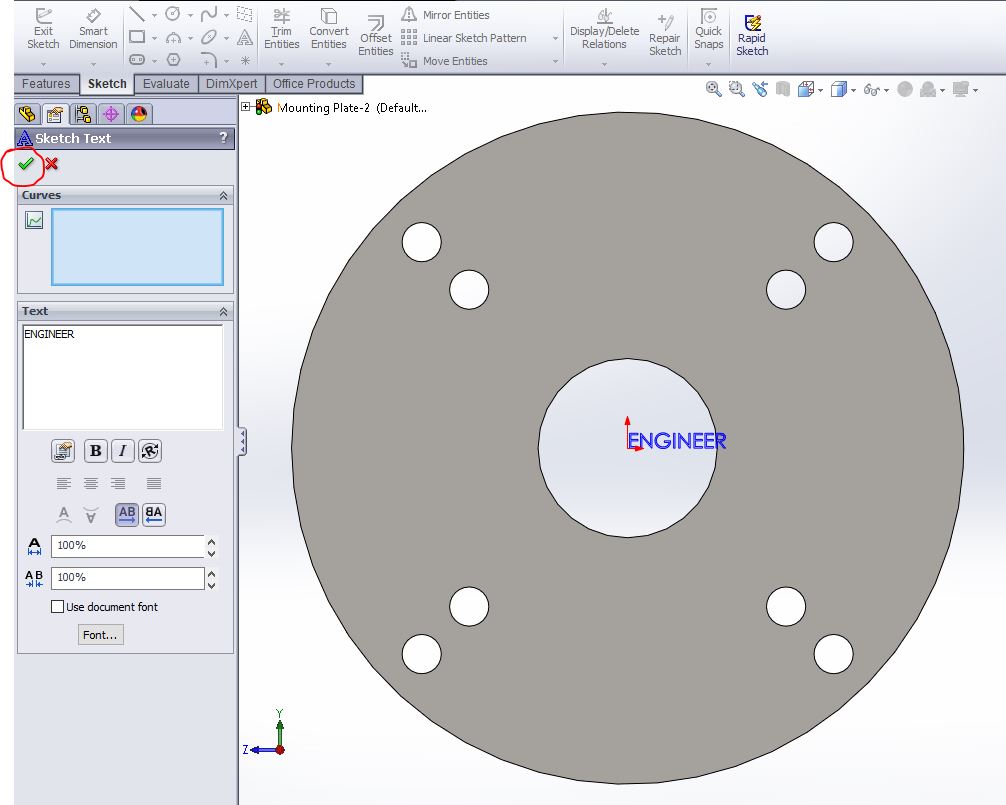

6-Click on Rignt and Go Back.JPG

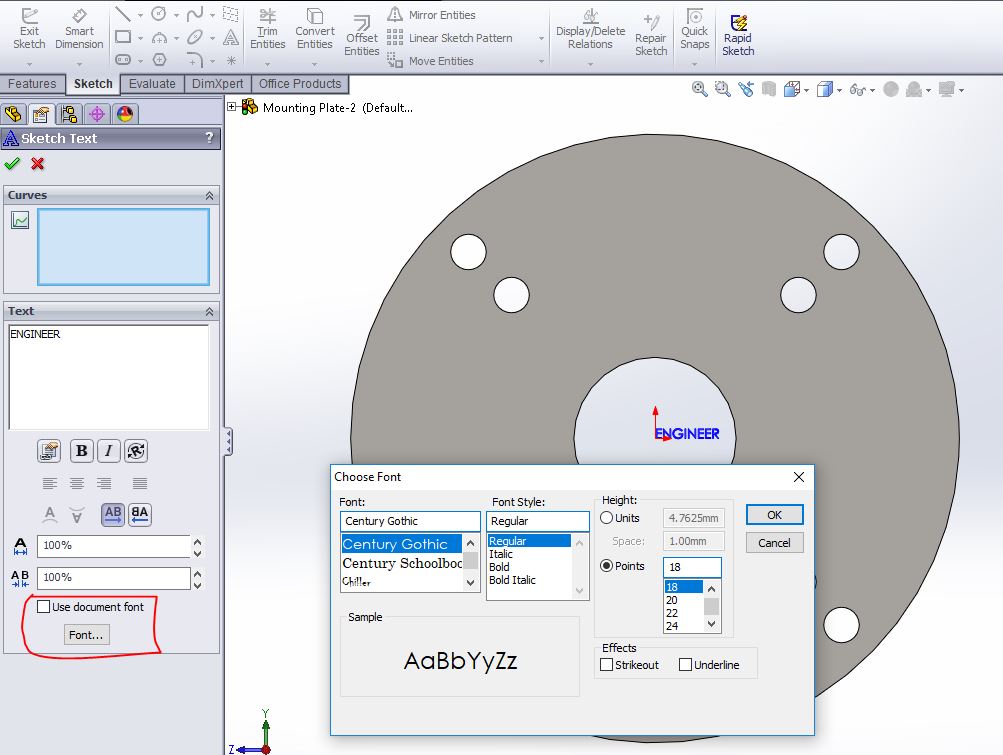

5-Change Font size or Edit Font.JPG

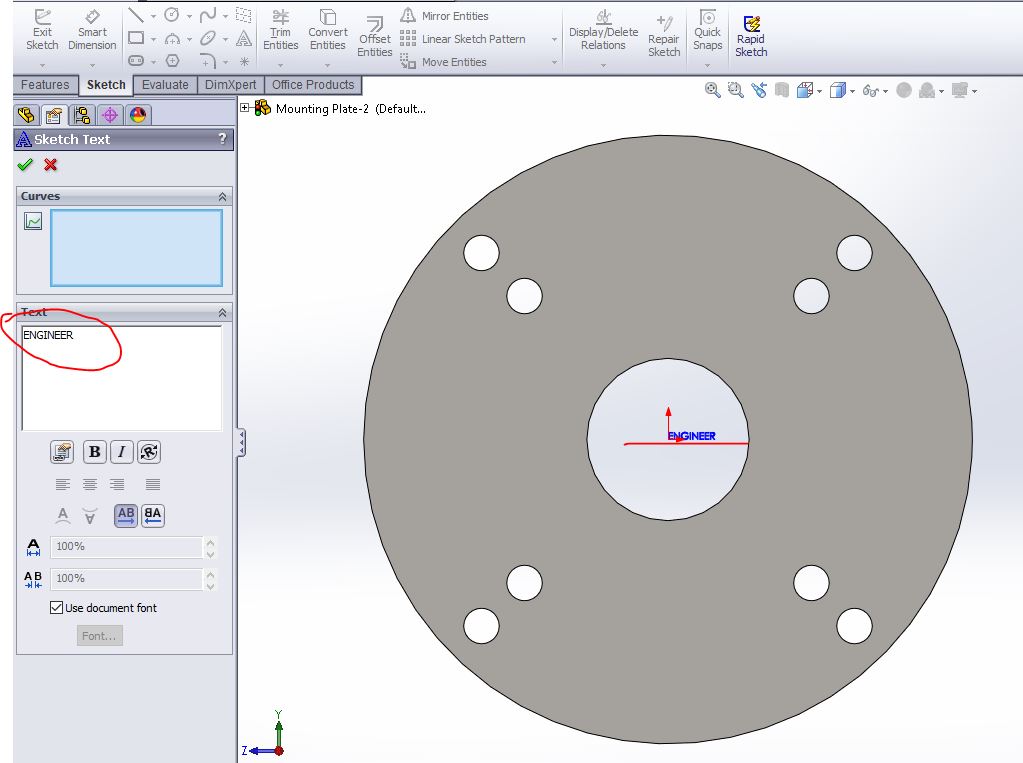

4-Type Texts.JPG

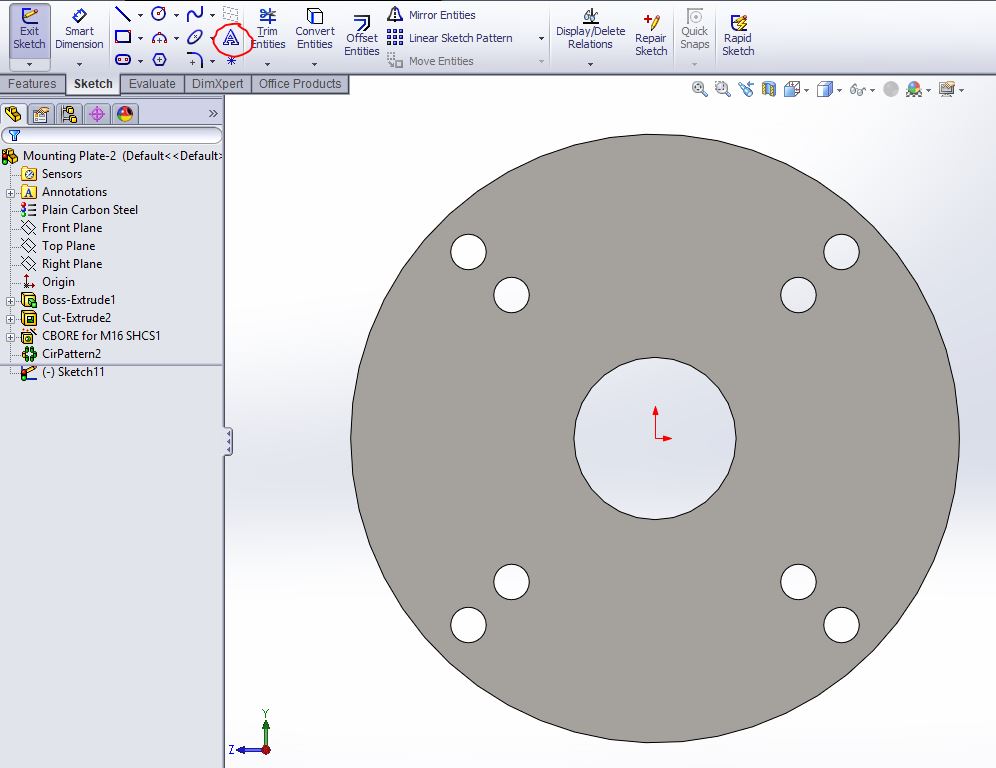

3-Select on Text.JPG
2-Select Sketch with Plane.JPG

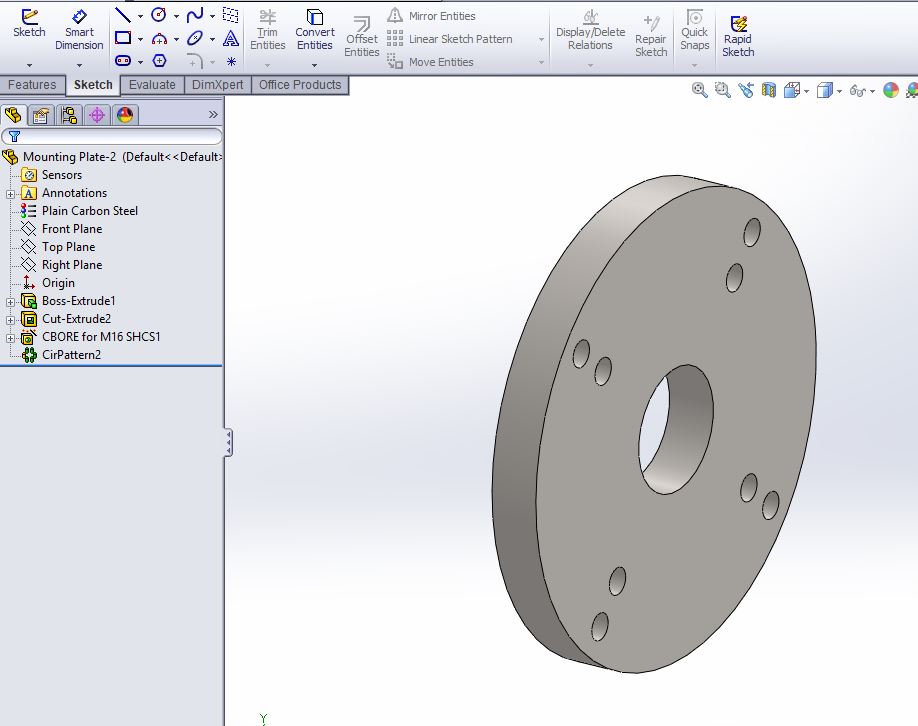

1-Open part.JPG
In sketch mode there is a Font icon. Use it to write text which can be used as a feature to add or remove material.
In Solidworks,
1) right click on the surface you want to write and then click on normal to.
2) select that surface and then click on sketch
3) in the panel where you see circle or line or rectangle, you will also notice a letter A. using that letter you can write any text.
4) now you can choose whether you want to go for cut extrude which will give you engraving or you want to go for extrude boss/ base which will give you embossing.
5) Have Fun!!!!
