Tutorial: How to make engine part 29

Tutorial by Aykut Dana
Small

CYLINDER HEADS

  1. Step 1:

    draw a spline between these points

  2. Step 2:

    go to left view and make your spline like this

  3. Step 3:

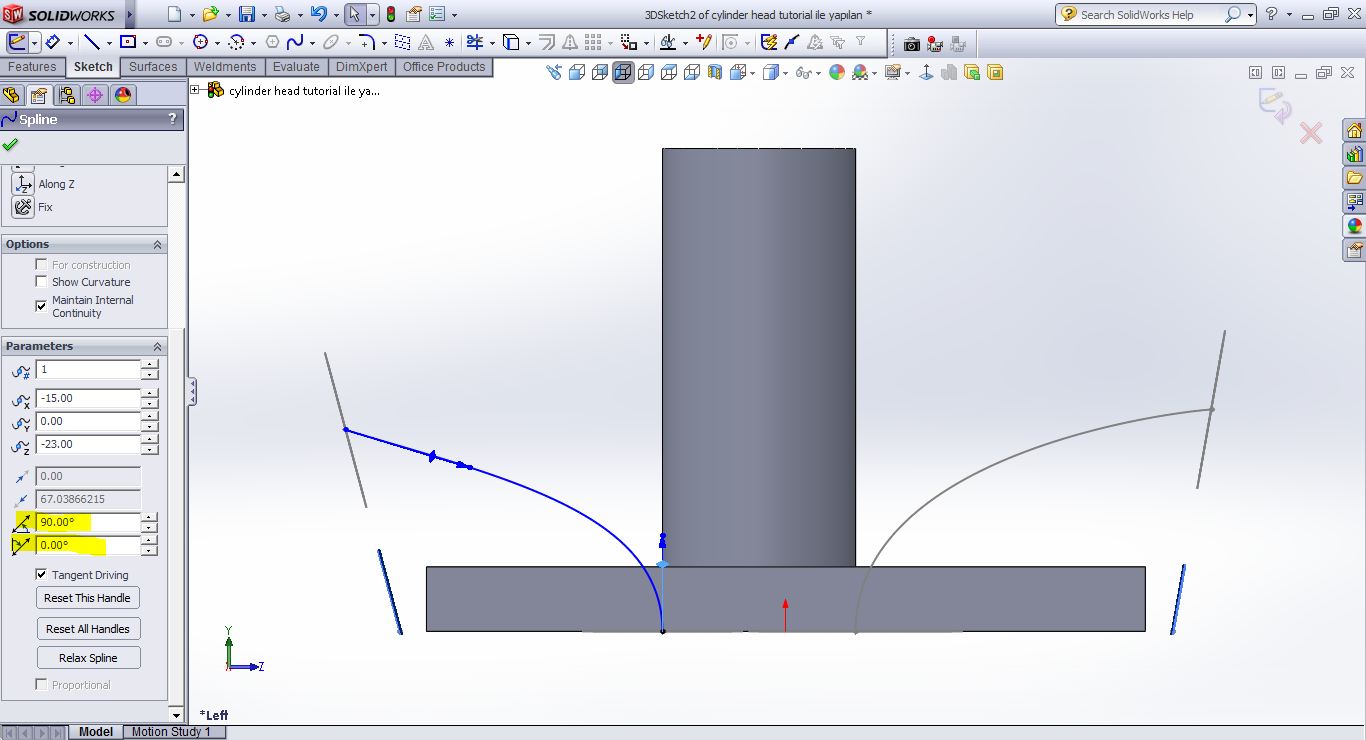

    go to top view and enter shown values for the spline handle

  4. Step 4:

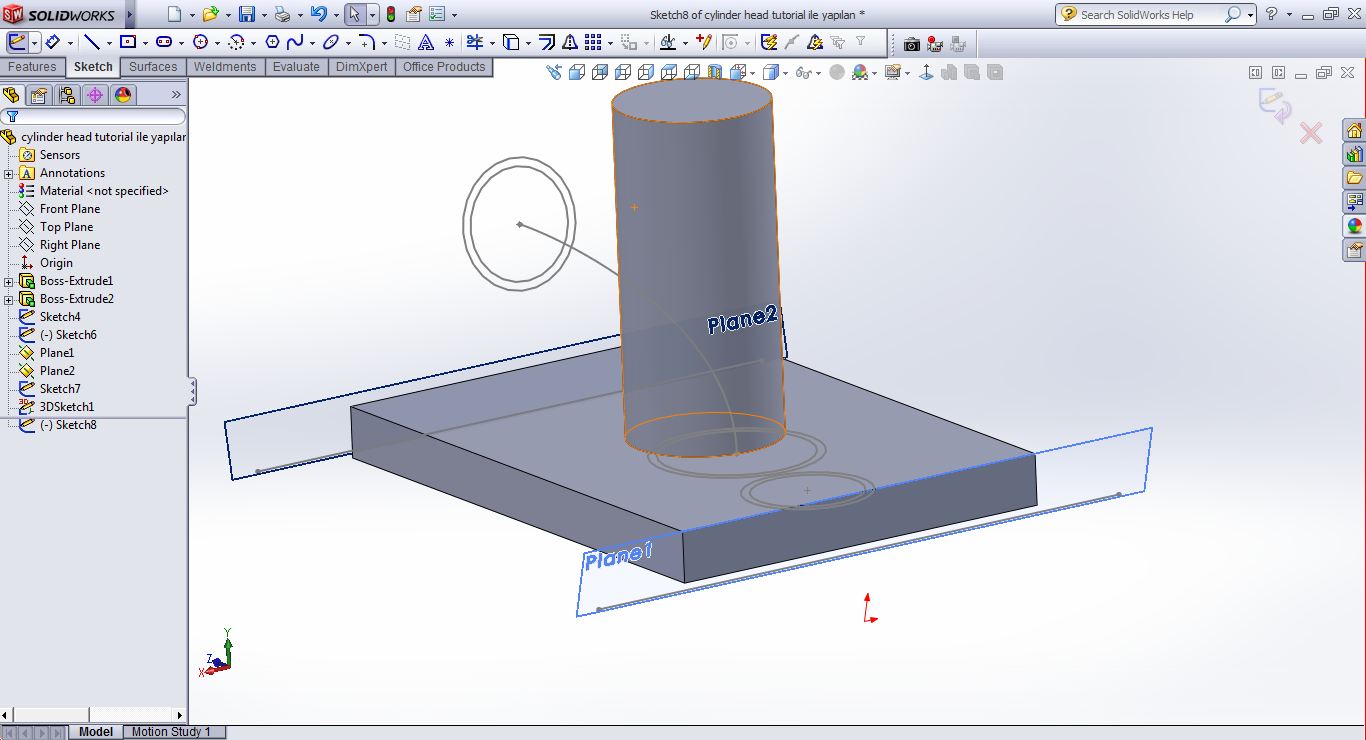

    now open a sketch on the plane 1

  5. Step 5:

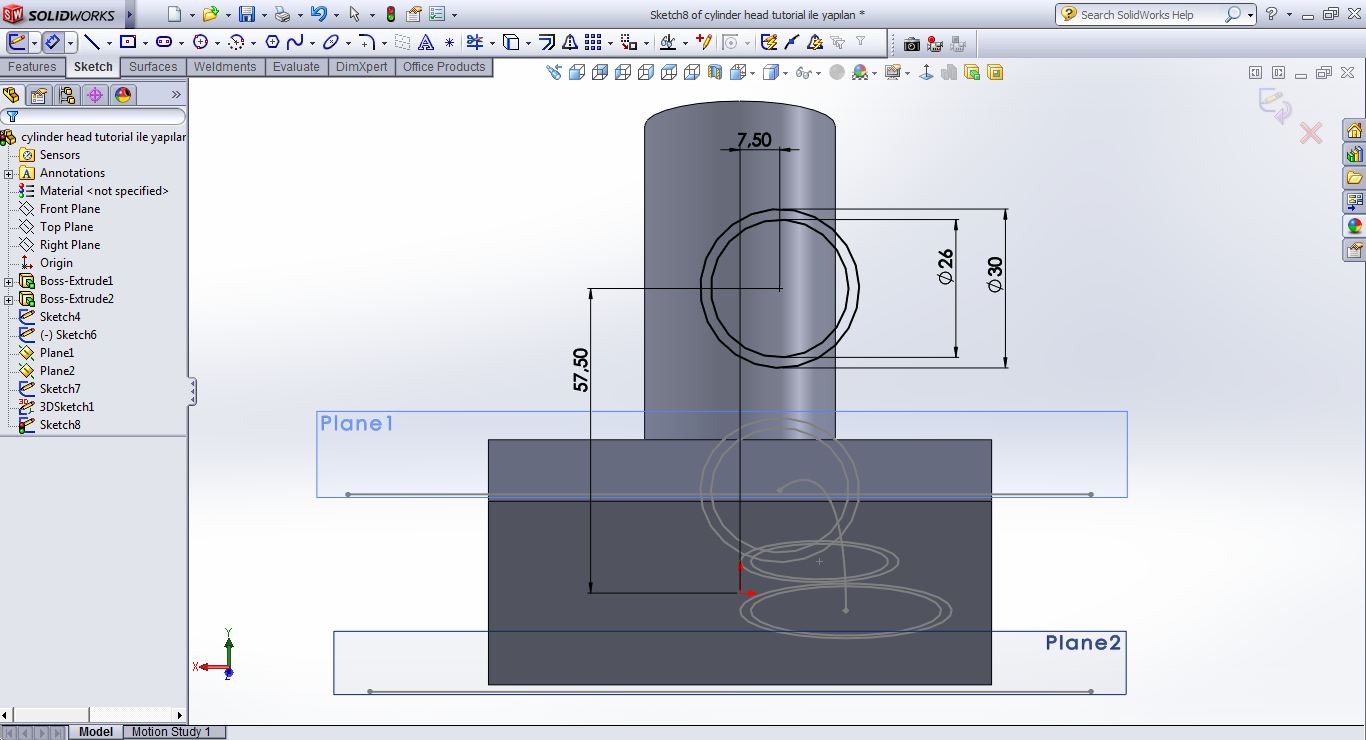

    draw shown circles

  6. Step 6:

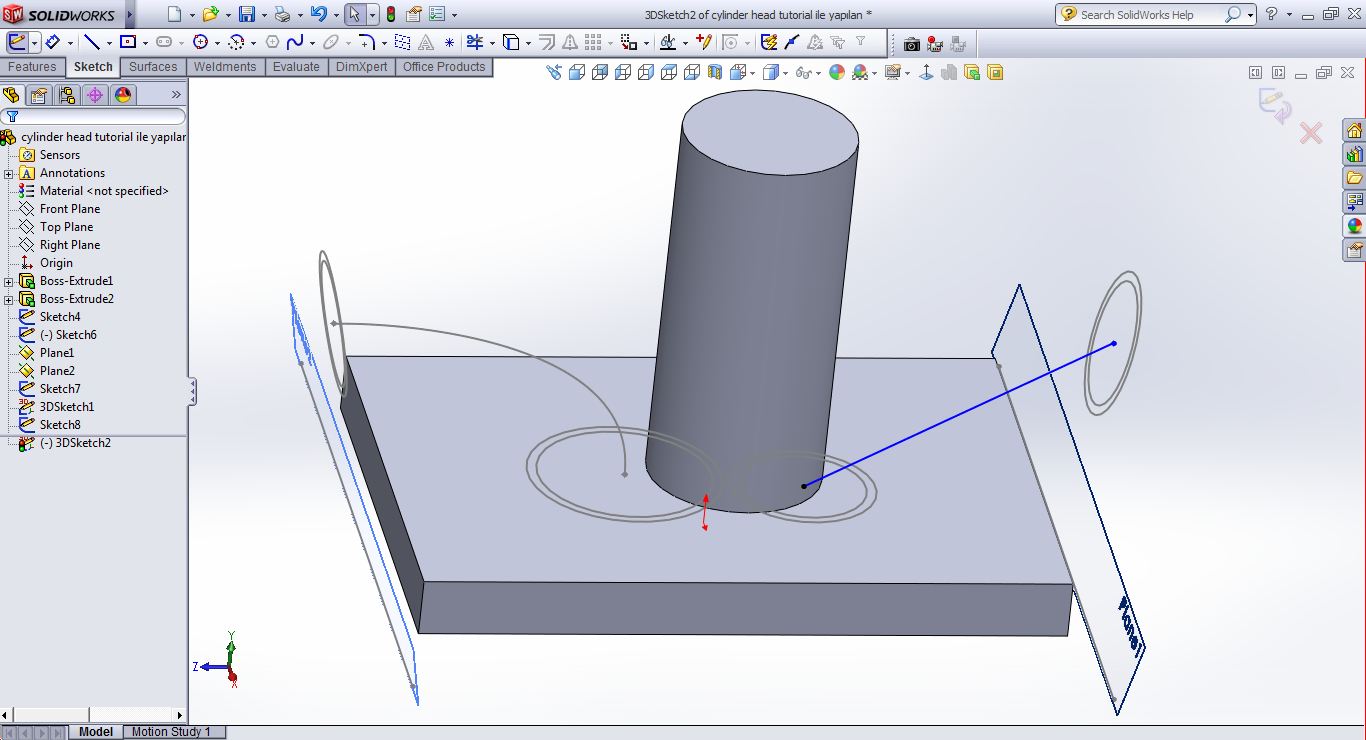

    use 3d sketch again and draw a spline between shown points

  7. Step 7:

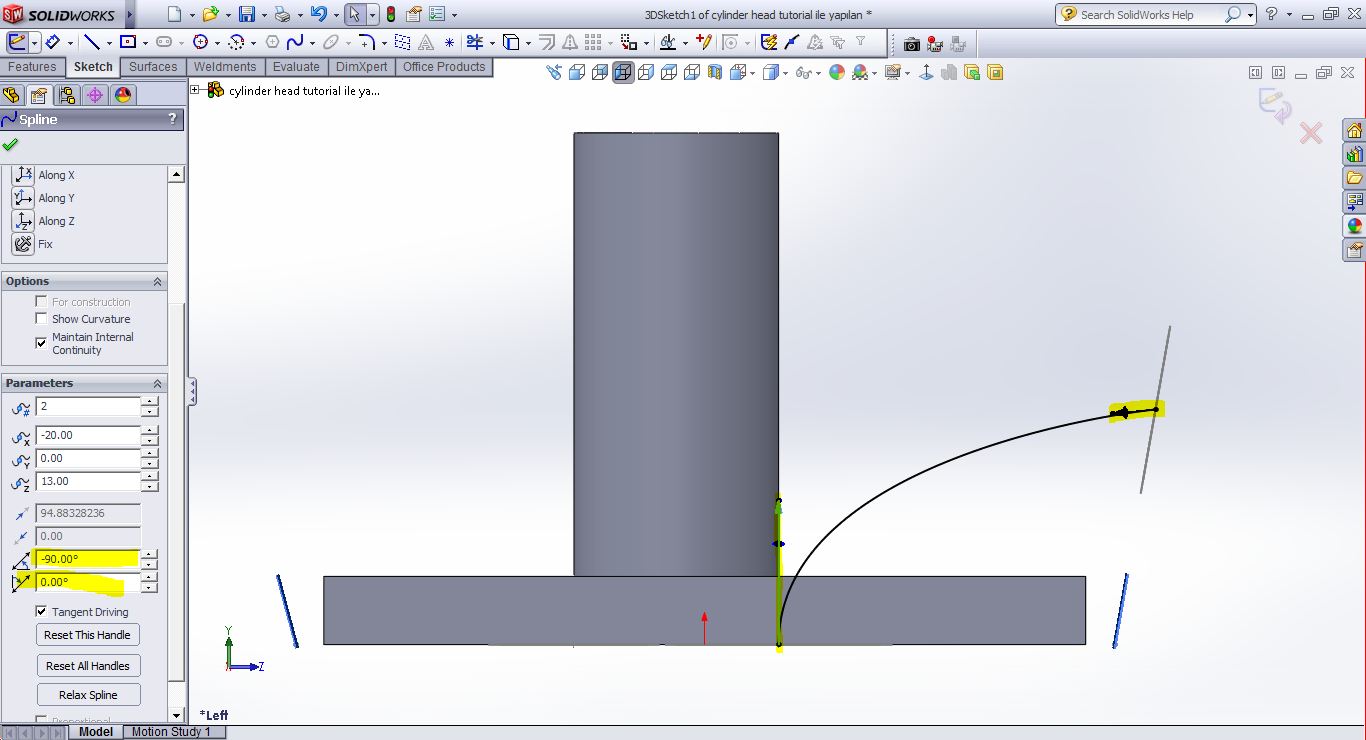

    make your spline handles like this

  8. Step 8:

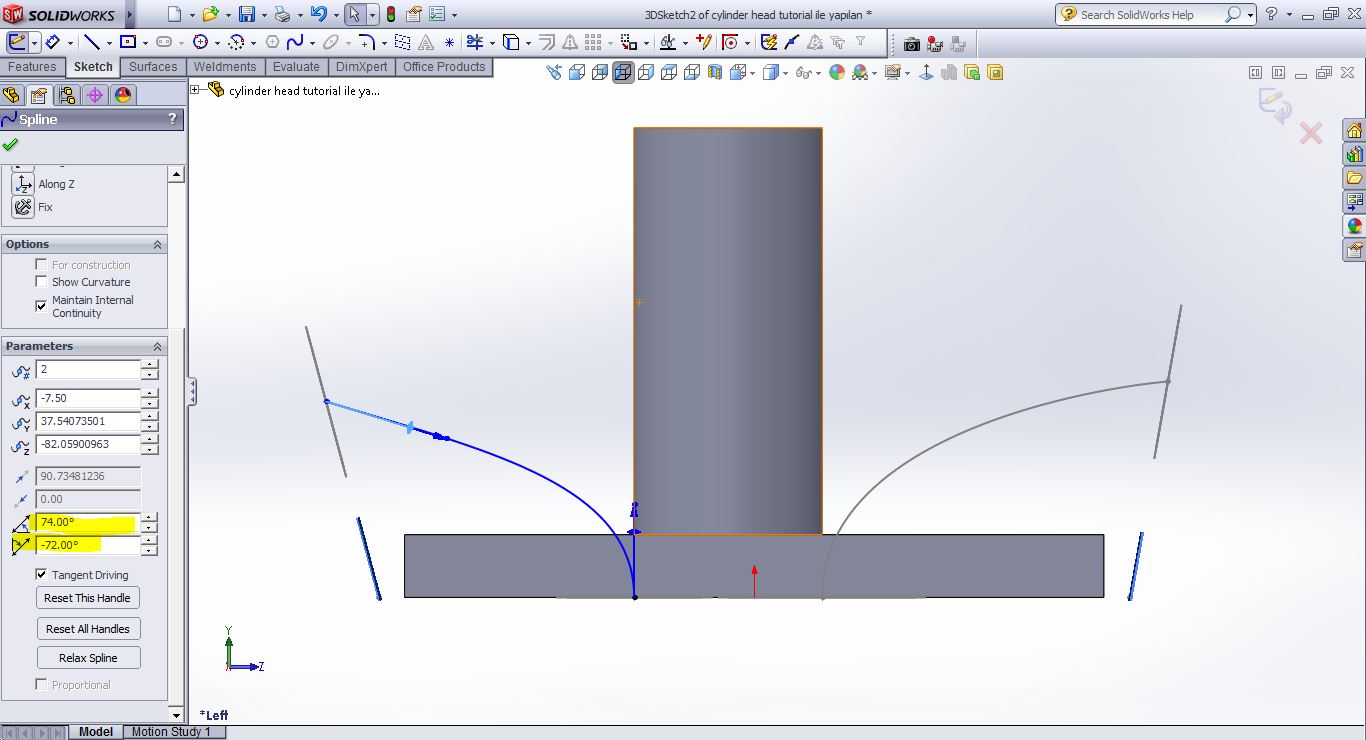

    enter shown values for shown handle

  9. Step 9:

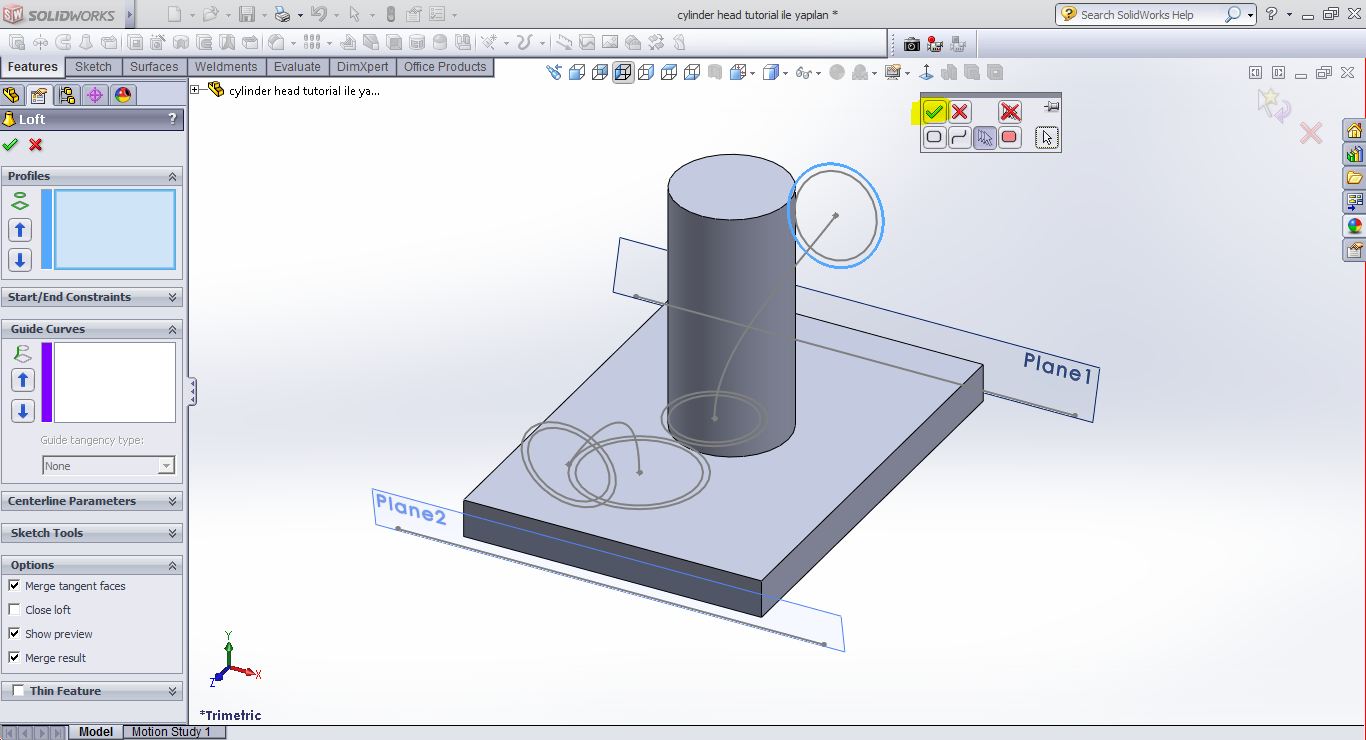

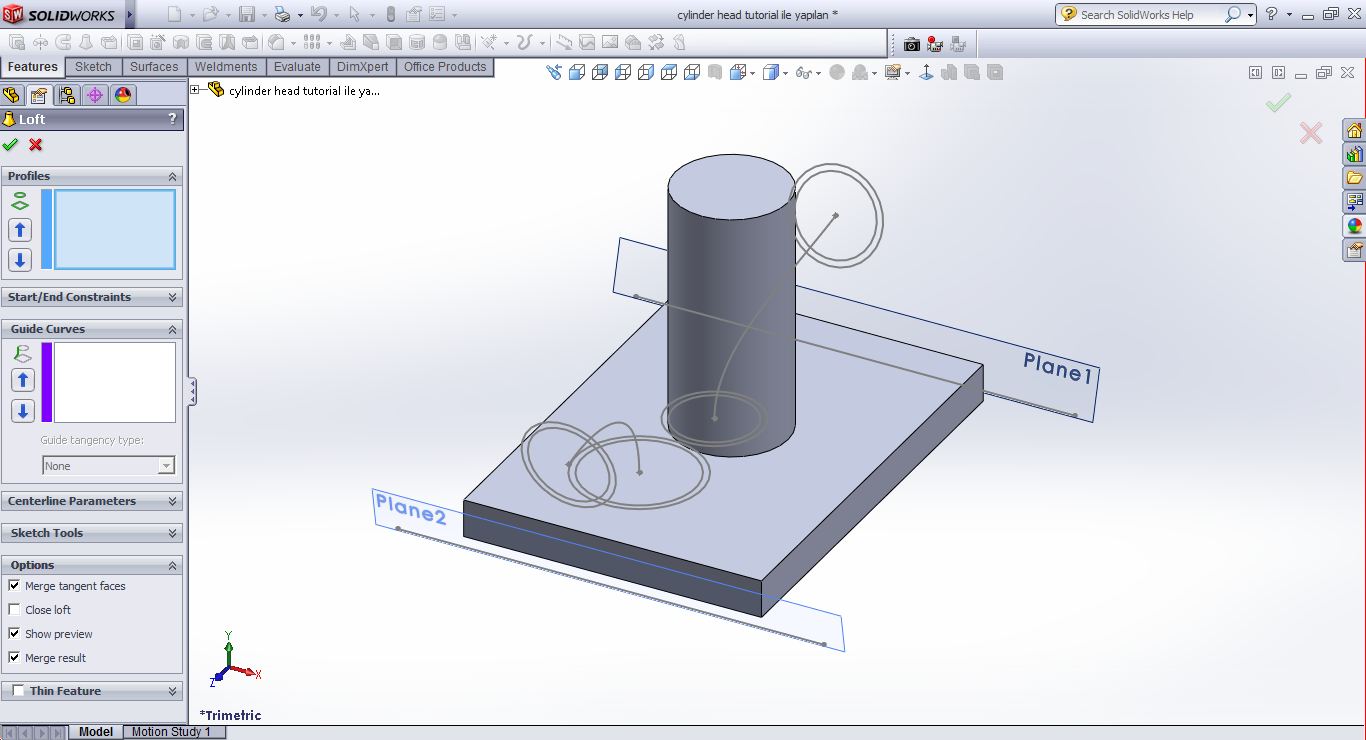

    now we will use loft command

  10. Step 10:

    select shown circle

  11. Step 11:

    then select shown bigger circle. dont forget to click on tick

  12. Step 12:

    now click on the centerline parameters box

  13. Step 13:

    select the 3D spline for centerline

  14. Step 14:

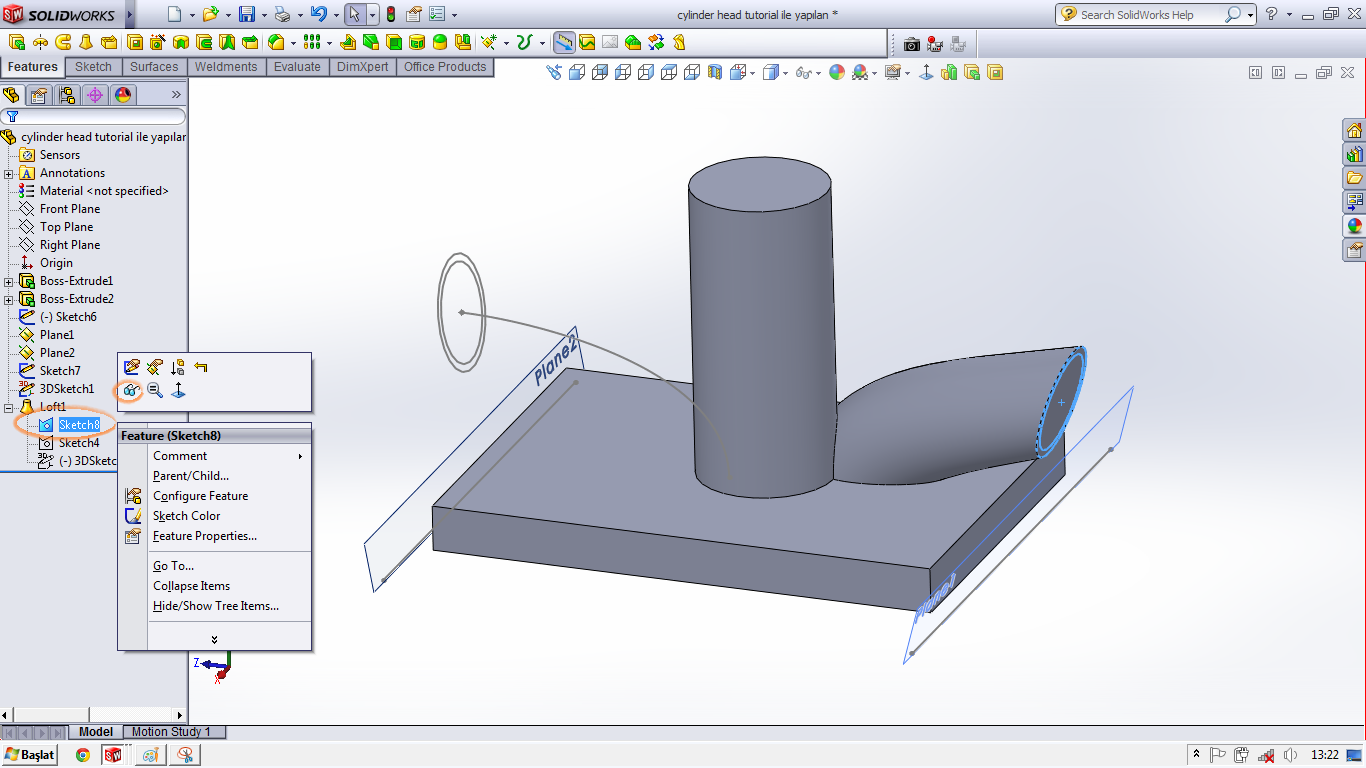

    confirm that. right click on the skecthes and show them

    next: http://grabcad.com/questions/tutorial-how-to-make-engine-part-30
