Tutorial how to make engine part 18
How to make 12 cylinder engine - part 18 -
Carter
part 1: http://grabcad.com/questions/tutorial-how-to-make-engine-part-1
part 2: http://grabcad.com/questions/tutorial-how-to-make-engine-part-2--1
part 3: http://grabcad.com/questions/tutorial-how-to-make-engine-part-3
part 4: http://grabcad.com/questions/tutorial-how-to-make-engine-part-4
part 5: http://grabcad.com/questions/tutorial-how-to-make-engine-part-5
part 6: http://grabcad.com/questions/tutorial-how-to-make-engine-part-6
part 7: http://grabcad.com/questions/tutorial-how-to-make-engine-part-7
part 8: http://grabcad.com/questions/tutorial-how-to-make-engine-part-8
part 9: http://grabcad.com/questions/tutorial-how-to-make-engine-part-9
part 10: http://grabcad.com/questions/tutorial-how-to-make-engine-part-10
part 11: http://grabcad.com/questions/tutorial-how-to-make-engine-part-11
part 12: http://grabcad.com/questions/tutorial-how-to-make-engine-part-12
part 13: http://grabcad.com/questions/tutorial-how-to-make-engine-part-13
part 14: http://grabcad.com/questions/tutorial-how-to-make-engine-part-14
part 15: http://grabcad.com/questions/tutorial-how-to-make-engine-part-15
part 16: http://grabcad.com/questions/tutorial-how-to-make-engine-part-16
part 17: http://grabcad.com/questions/tutorial-how-to-make-engine-part-17
part 18: http://grabcad.com/questions/tutorial-how-to-make-engine-part-18
part 19: http://grabcad.com/questions/tutorial-how-to-make-engine-part-19
part 20: http://grabcad.com/questions/tutorial-how-to-make-engine-part-20
part 21: http://grabcad.com/questions/tutorial-how-to-make-engine-part-21
part 22: http://grabcad.com/questions/tutorial-how-to-make-engine-part-22
part 23: http://grabcad.com/questions/tutorial-how-to-make-engine-part-23
part 24: http://grabcad.com/questions/tutorial-how-to-make-engine-part-24
part 25: http://grabcad.com/questions/tutorial-how-to-make-engine-part-25
part 26: http://grabcad.com/questions/tutorial-how-to-make-engine-part-26
6 answers
-
Aykut Dana about 1 year ago
Carter 3
-
Step 1

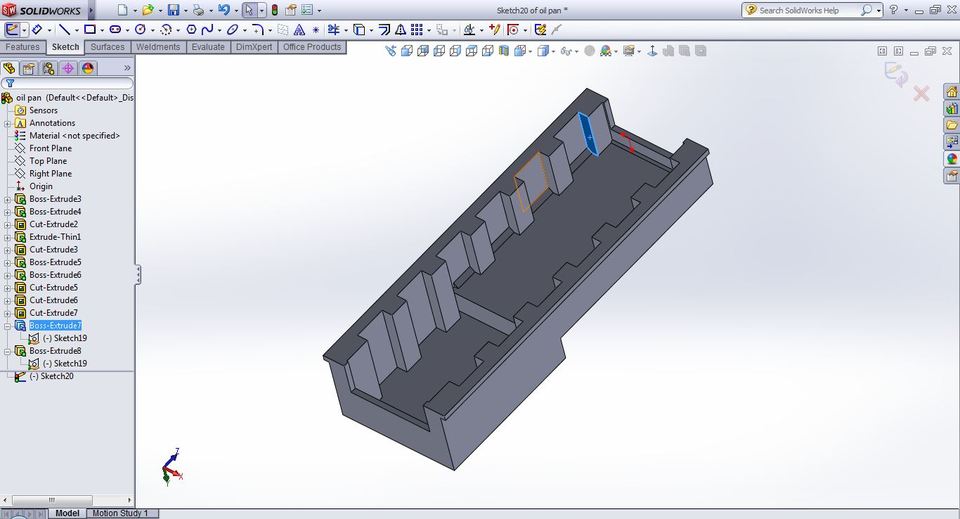

open a sketch on this surface
-
Step 2
use cut extrude command
-
Step 3

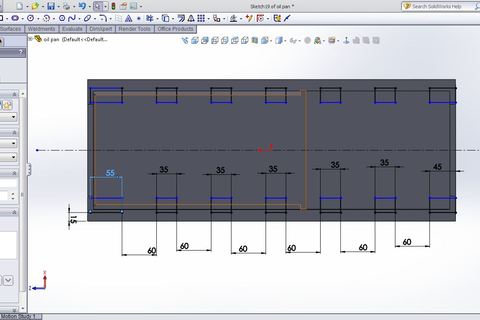

draw shown on the blue surface
-
Step 4

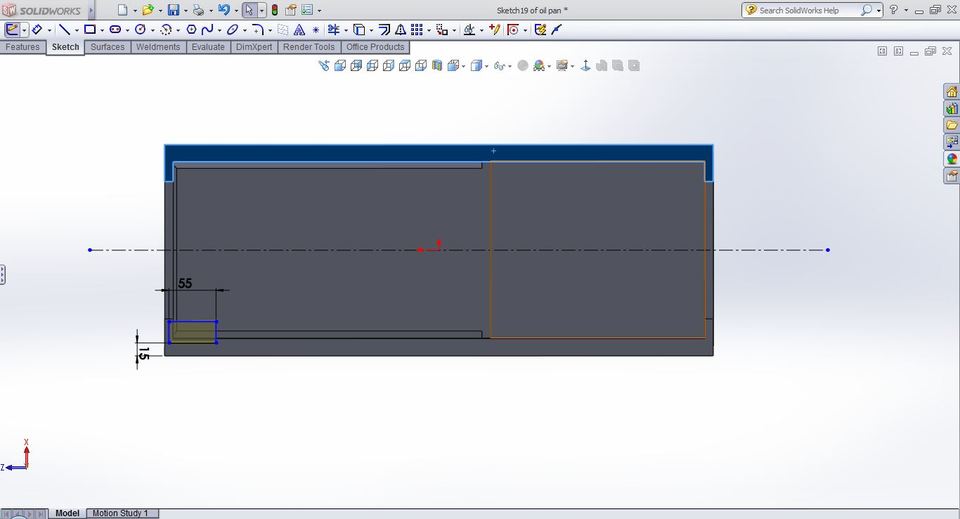

please examine the shown sketch. draw the same. then exit from sketch
-
Step 5

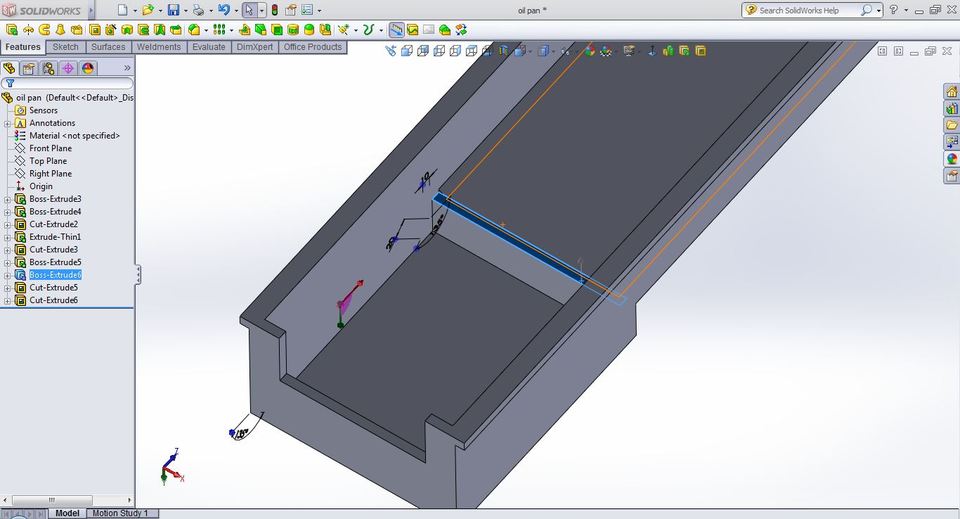

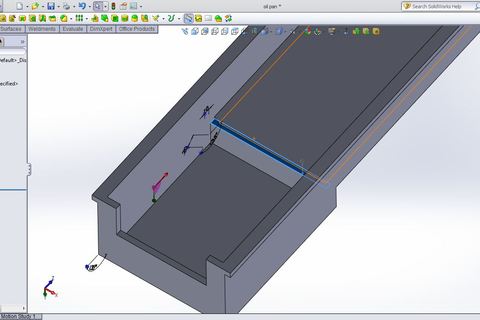

click on the sketch from feature tree and click on show button
-
Step 6

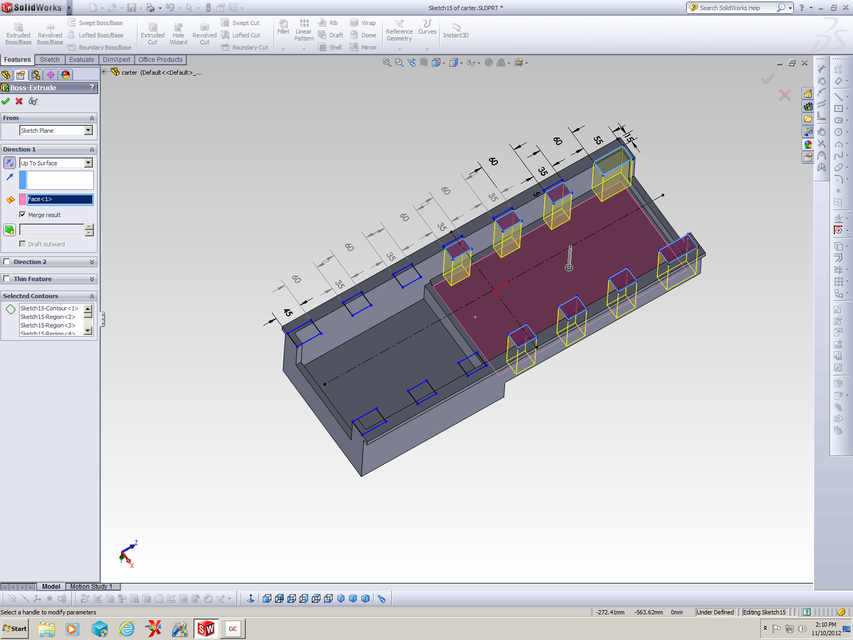

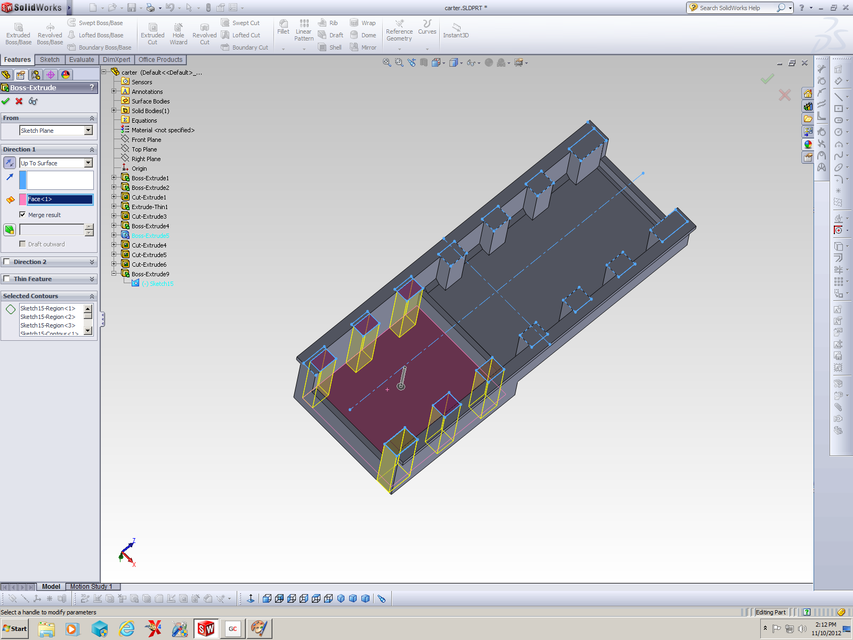

extrude this rectangles up to pink surface
-
Step 7
open a sketch on this surface..
-
Step 8

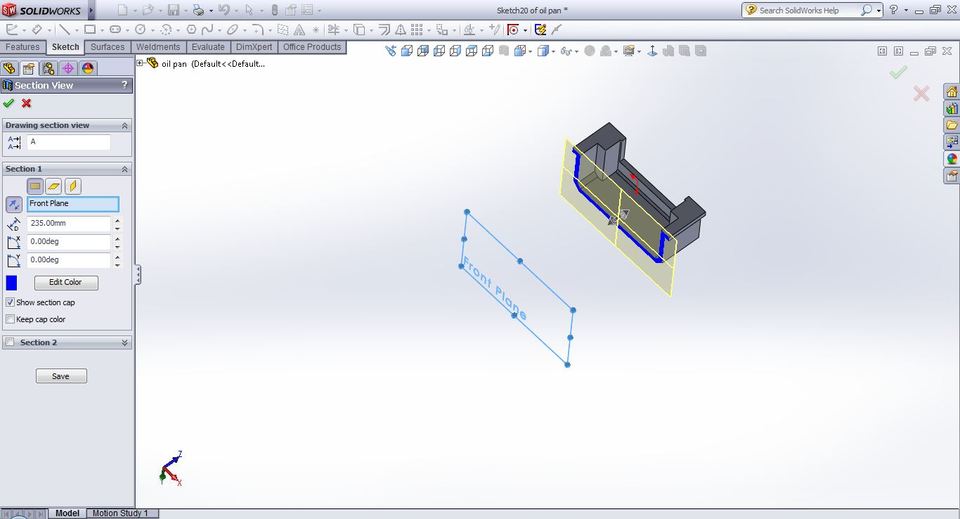

use section view command
-

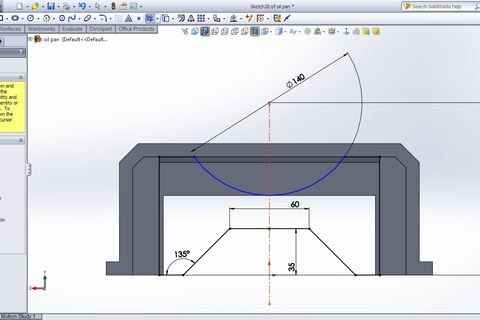

Step 9

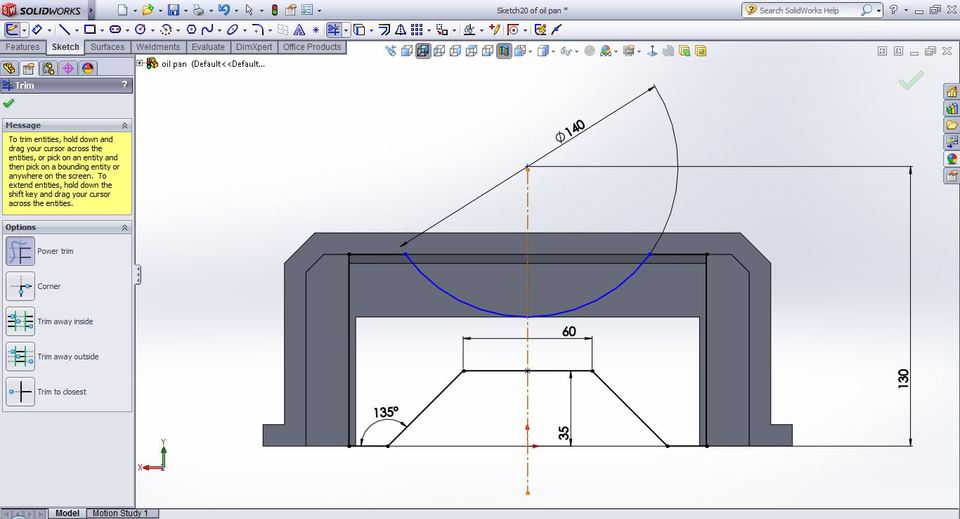

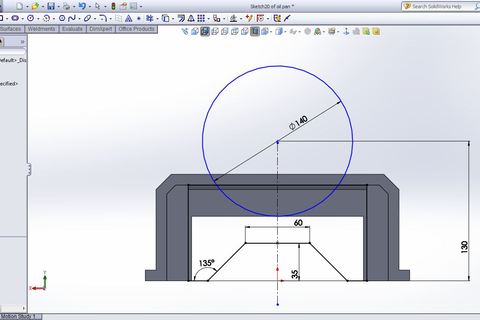

draw shown sketch
-

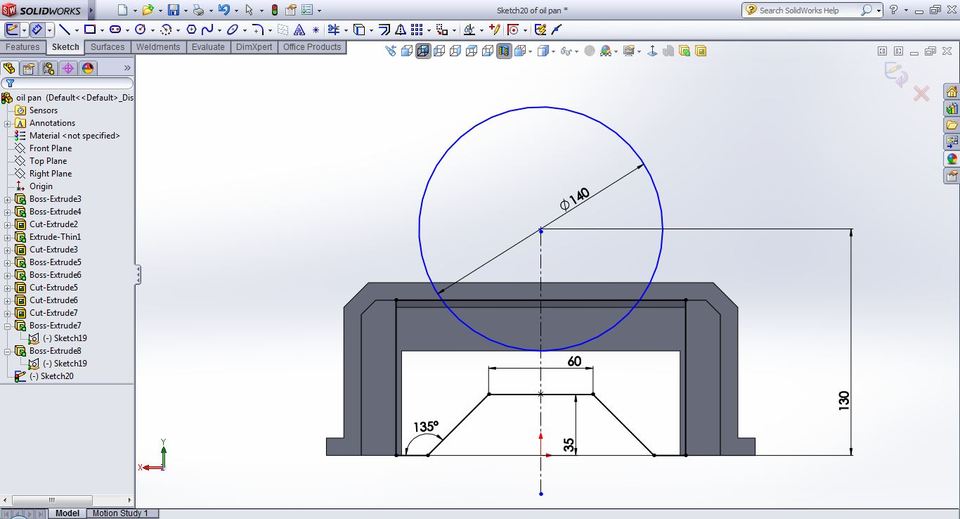

Step 10

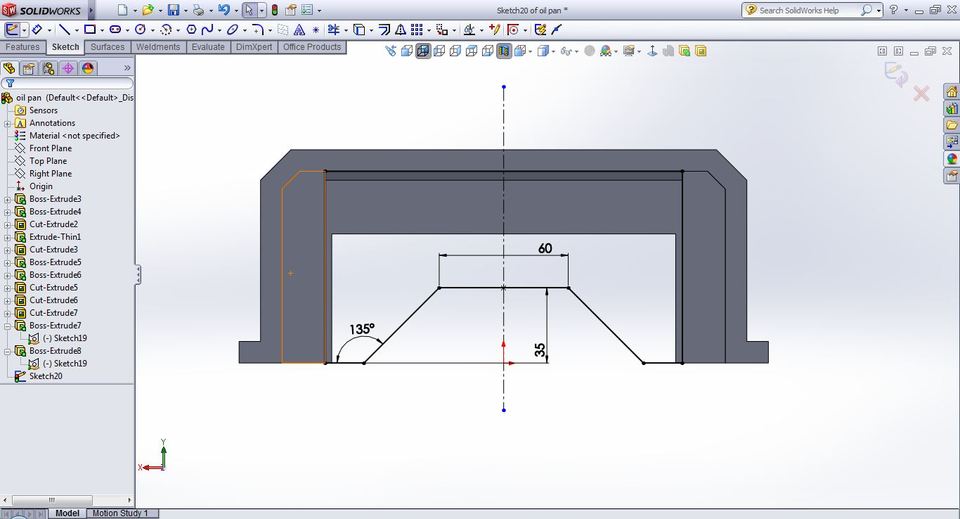

add a circle
-
Step 11

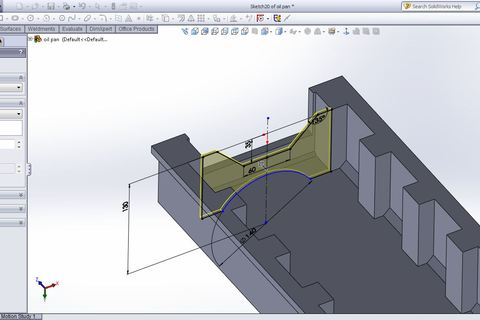

use trim command
-
Step 12

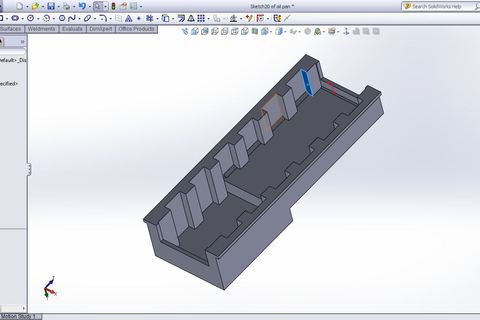

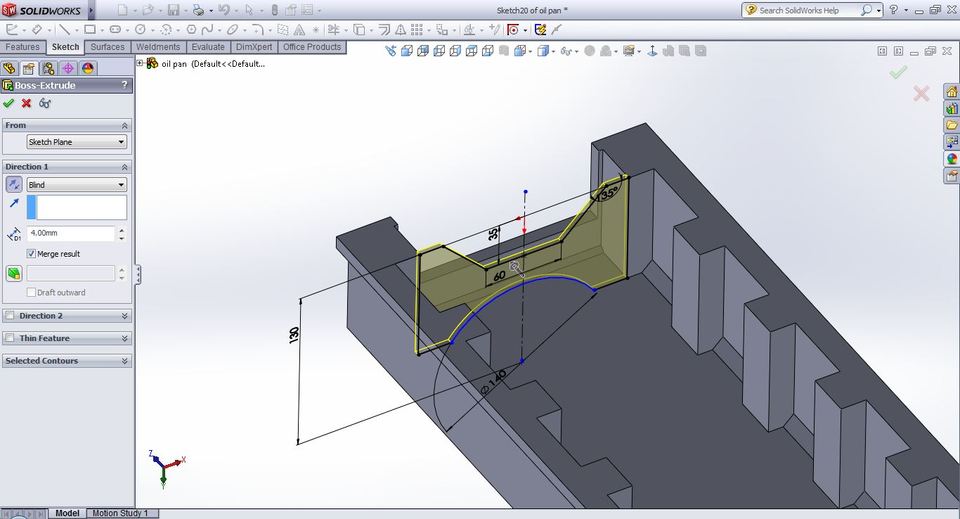

extrude the sketch 4mm. make untick 'merge result' option
-
-
hcortez 6 months agoStep 5 really through me for a loop, but I figured it out after about 20 minutes. I'm not sure what Aykut is saying about "show" in the feature tree but i couldnt make it work.
Here's what I found that works for me, hope it helps others out. Thanks again Aykut for making this learning experience possible!!
-

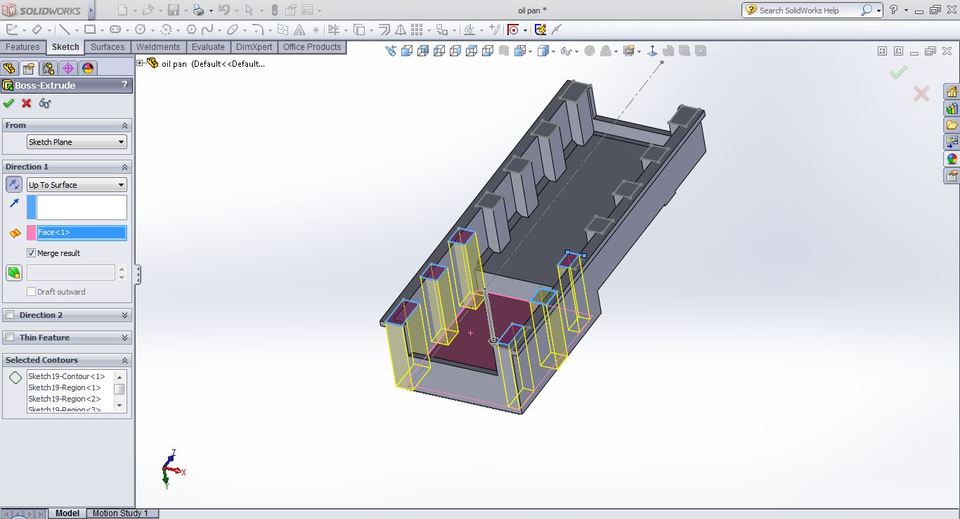

Step 1

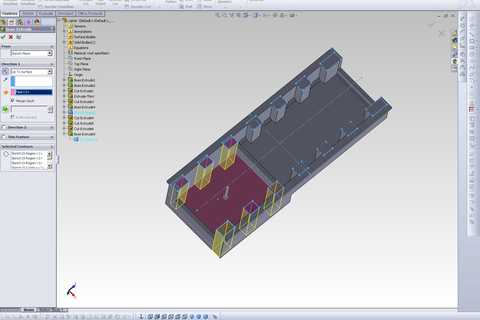

Select extruded boss/base, under direction 1 select "up to surface" and pick the bottom surface of the oil pan. Now click on "selected contours" and select the 8 pillars to extrude.
-
Step 2

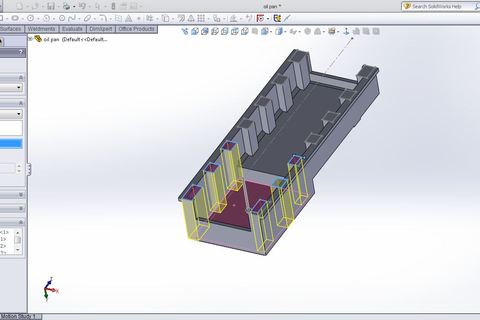

Again, select extruded boss/base, under direction 1 select "up to surface" and pick the deeper bottom surface of the oil pan. Now click on "selected contours" and select the 6 pillars to extrude.
-
-
