connecting rod part 2

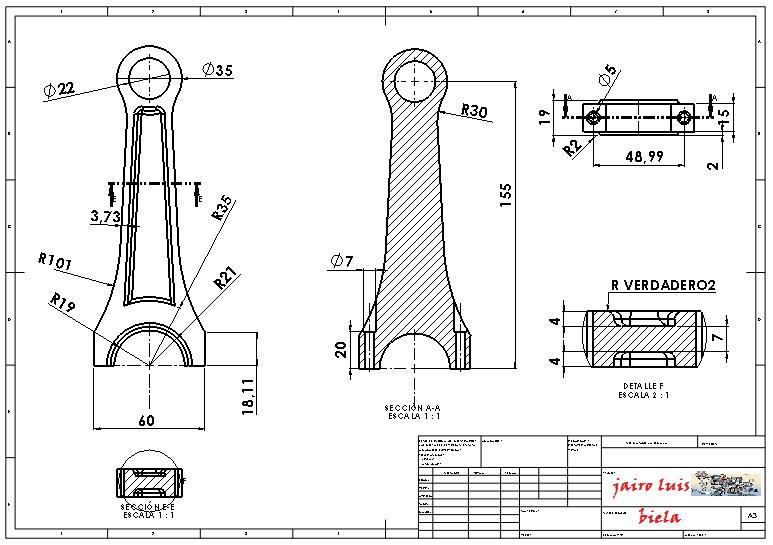

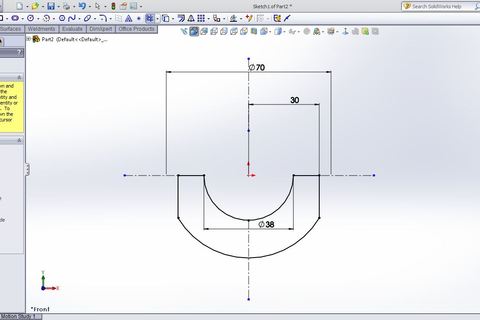

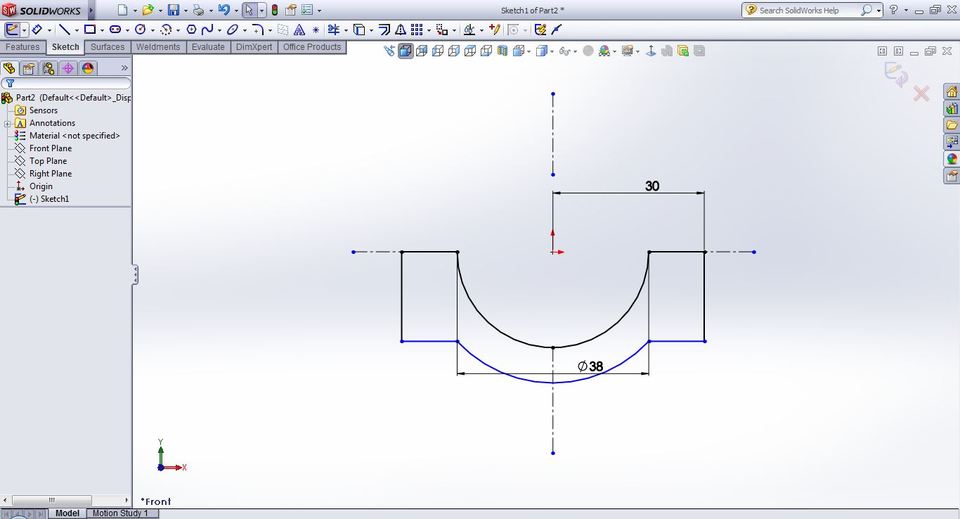

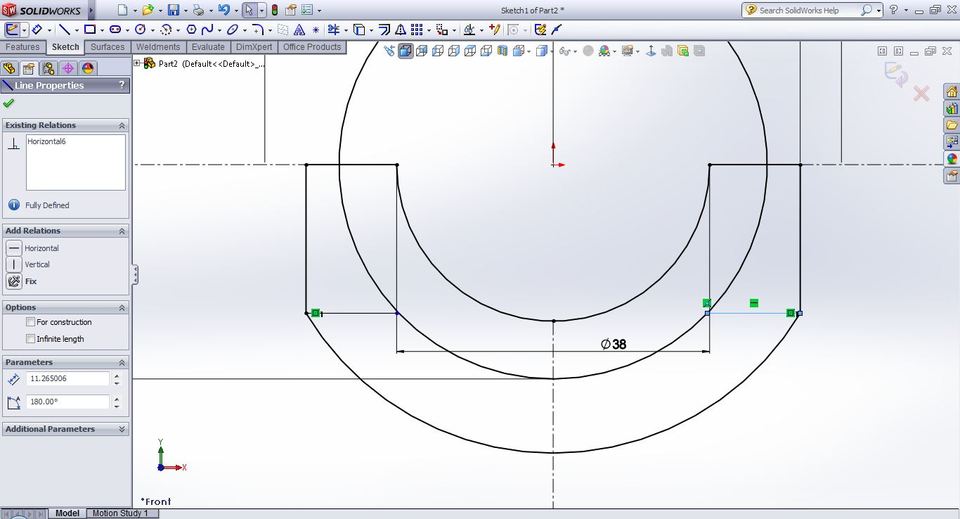

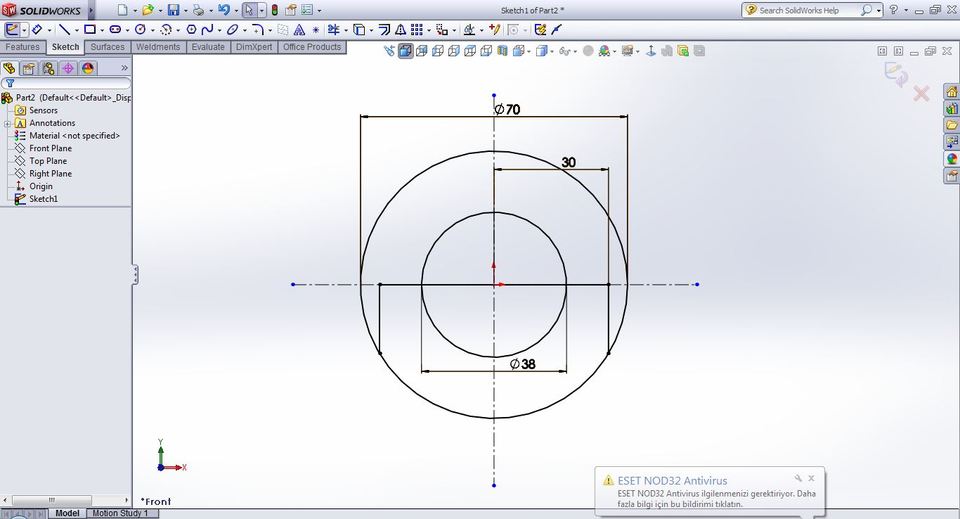

open sketch on the front plane and draw shown sketch

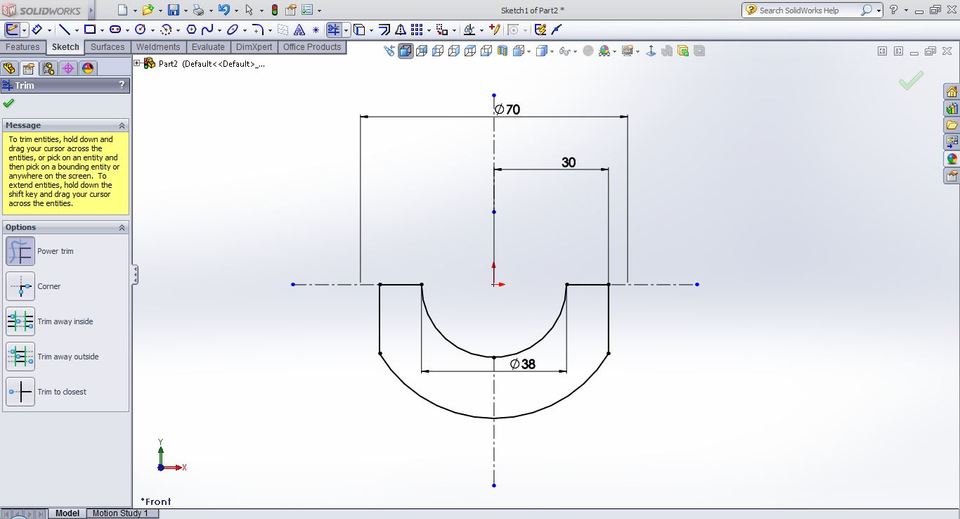

use trim command
add a circle
add two line
use trim command

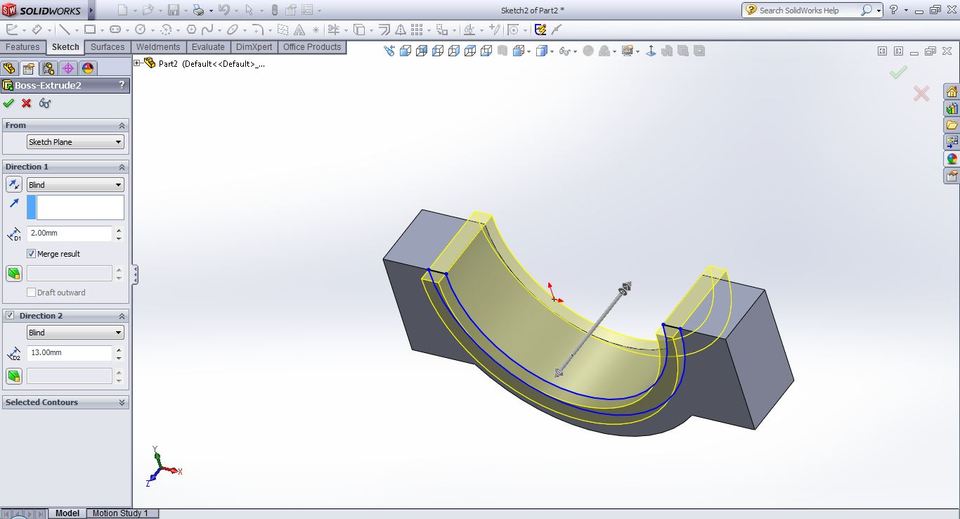

extrude the body in two directions
draw shown sketch on the body

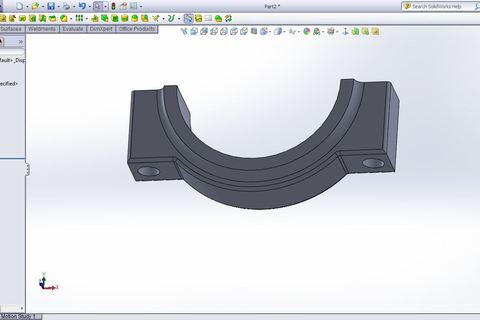

extrude it like this

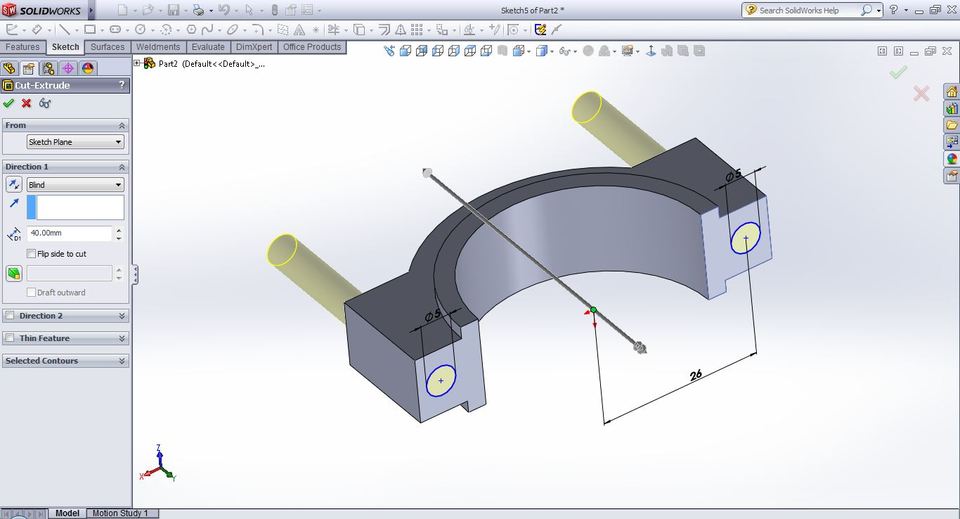

draw the shown sketch and cut the body

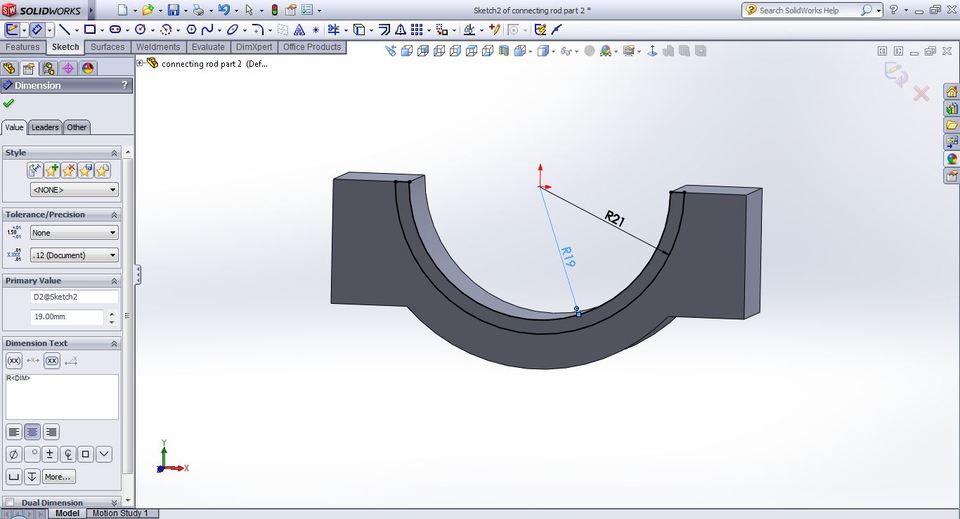

use fillet command

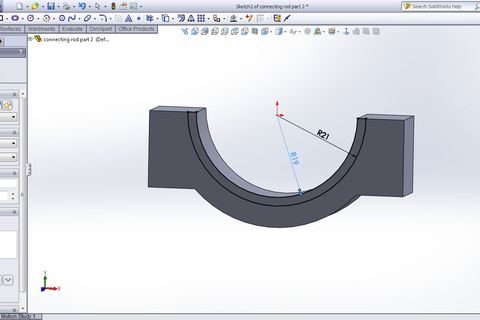

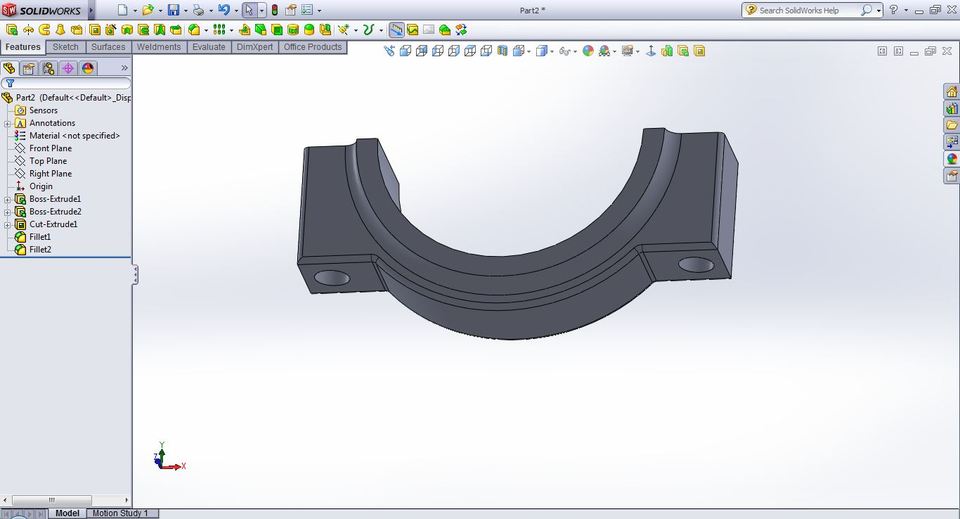

your part is ready to use
