Tutorial how to make engine part 26
How to make engine - part 26 -
part 1: http://grabcad.com/questions/tutorial-how-to-make-engine-part-1
part 2: http://grabcad.com/questions/tutorial-how-to-make-engine-part-2--1
part 3: http://grabcad.com/questions/tutorial-how-to-make-engine-part-3
part 4: http://grabcad.com/questions/tutorial-how-to-make-engine-part-4
part 5: http://grabcad.com/questions/tutorial-how-to-make-engine-part-5
part 6: http://grabcad.com/questions/tutorial-how-to-make-engine-part-6
part 7: http://grabcad.com/questions/tutorial-how-to-make-engine-part-7
part 8: http://grabcad.com/questions/tutorial-how-to-make-engine-part-8
part 9: http://grabcad.com/questions/tutorial-how-to-make-engine-part-9
part 10: http://grabcad.com/questions/tutorial-how-to-make-engine-part-10
part 11: http://grabcad.com/questions/tutorial-how-to-make-engine-part-11
part 12: http://grabcad.com/questions/tutorial-how-to-make-engine-part-12
part 13: http://grabcad.com/questions/tutorial-how-to-make-engine-part-13
part 14: http://grabcad.com/questions/tutorial-how-to-make-engine-part-14
part 15: http://grabcad.com/questions/tutorial-how-to-make-engine-part-15
part 16: http://grabcad.com/questions/tutorial-how-to-make-engine-part-16
part 17: http://grabcad.com/questions/tutorial-how-to-make-engine-part-17
part 18: http://grabcad.com/questions/tutorial-how-to-make-engine-part-18
part 19: http://grabcad.com/questions/tutorial-how-to-make-engine-part-19
part 20: http://grabcad.com/questions/tutorial-how-to-make-engine-part-20
part 21: http://grabcad.com/questions/tutorial-how-to-make-engine-part-21
part 22: http://grabcad.com/questions/tutorial-how-to-make-engine-part-22
part 23: http://grabcad.com/questions/tutorial-how-to-make-engine-part-23
part 24: http://grabcad.com/questions/tutorial-how-to-make-engine-part-24
part 25: http://grabcad.com/questions/tutorial-how-to-make-engine-part-25
part 26: http://grabcad.com/questions/tutorial-how-to-make-engine-part-26
semi final: http://grabcad.com/questions/tutorial-how-to-make-engine-final
part 27: http://grabcad.com/questions/tutorial-how-to-make-engine-part-27
FILE: V12 engine
semi final http://grabcad.com/questions/tutorial-how-to-make-engine-part-27
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-28
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-29
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-30
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-31
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-32
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-33
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-34
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-35
cylinder head http://grabcad.com/questions/tutorial-how-to-make-engine-part-36
camshaft http://grabcad.com/questions/tutorial-how-to-make-engine-part-37
camshaft http://grabcad.com/questions/tutorial-how-to-make-engine-part-38
valve seat, right side http://grabcad.com/questions/tutorial-how-to-make-engine-part-39
retainer, valve seat http://grabcad.com/questions/tutorial-how-to-make-engine-part-40
valve nails http://grabcad.com/questions/tutorial-how-to-make-engine-part-41
intake valve http://grabcad.com/questions/tutorial-how-to-make-engine-part-42
exhaust valve, springs http://grabcad.com/questions/tutorial-how-to-make-engine-part-43
springs http://grabcad.com/questions/tutorial-how-to-make-engine-part-44
springs http://grabcad.com/questions/tutorial-how-to-make-engine-part-45
spag plug http://grabcad.com/questions/tutorial-how-to-make-engine-part-46
spag plug http://grabcad.com/questions/tutorial-how-to-make-engine-part-47
spag plug http://grabcad.com/questions/tutorial-how-to-make-engine-part-48
Added images
11 answers
-
Aykut Dana about 1 year ago
Assembly 6
-

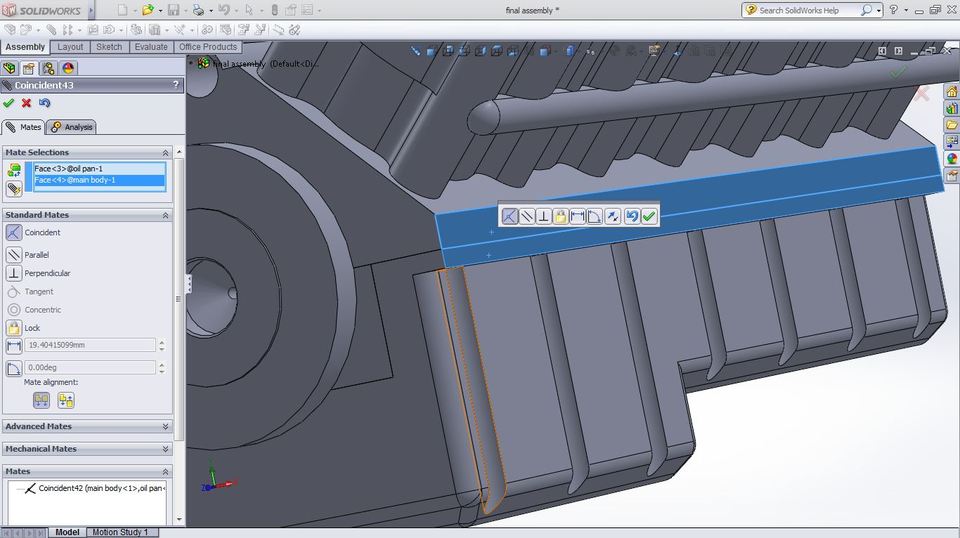

Step 1

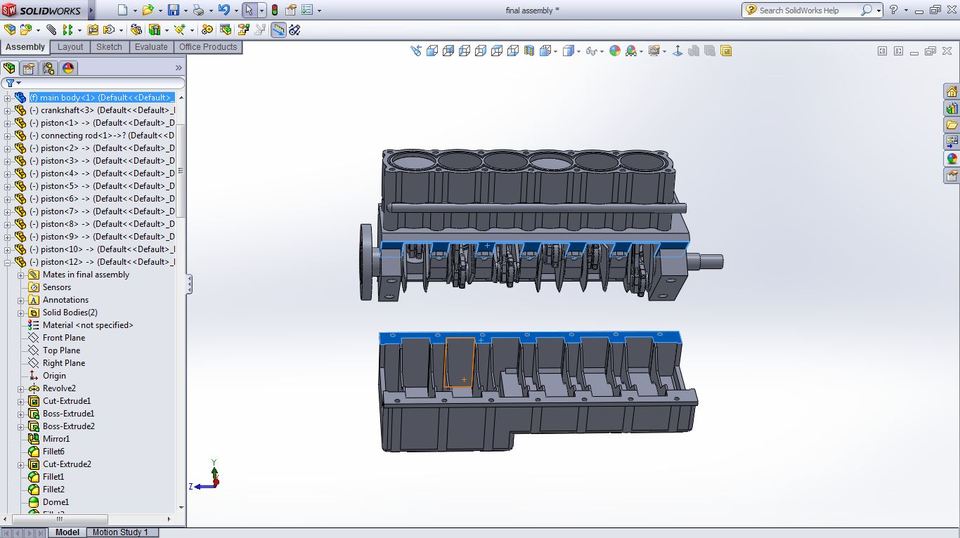

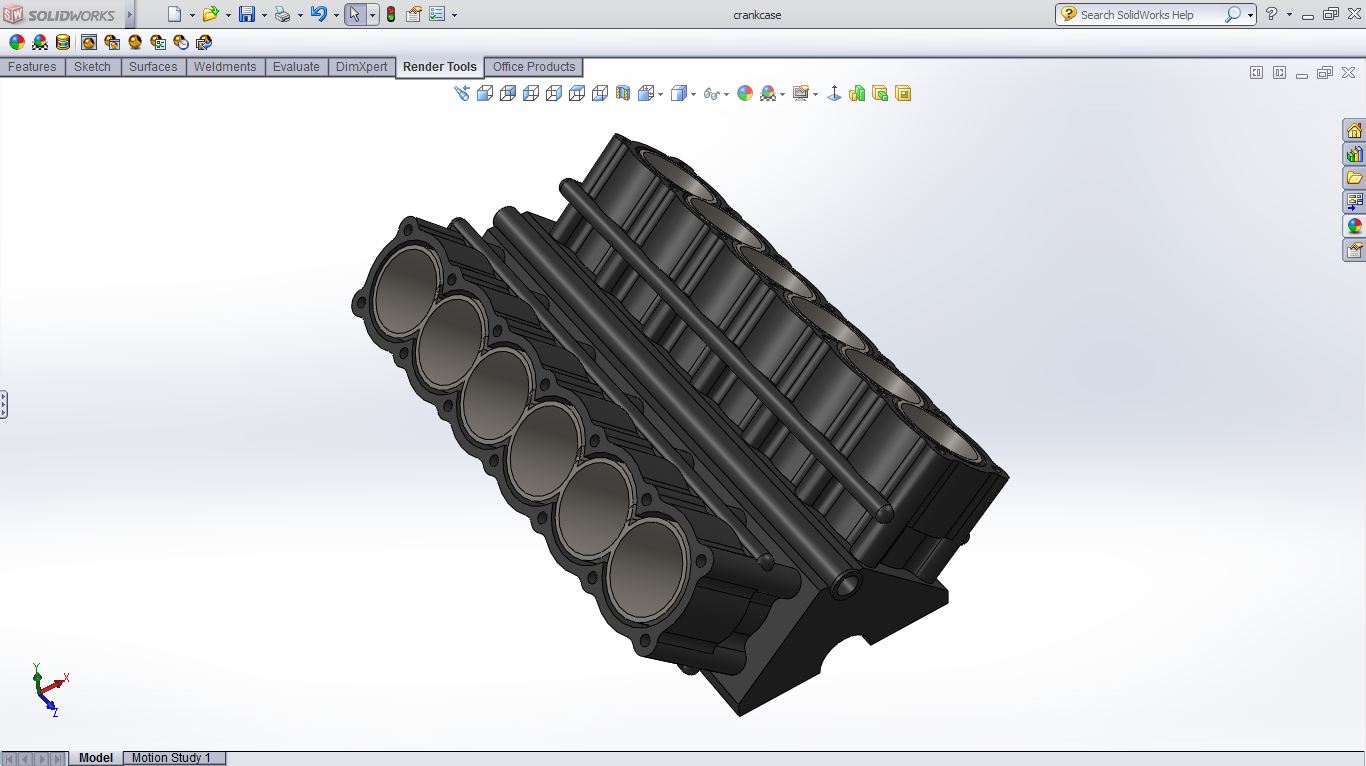

insert the carter
-
Step 2

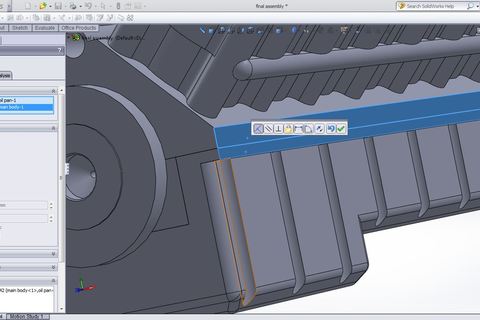

make this surfaces coincident
-
Step 3
do it for this surfaces again
-
Step 4
finally do it for this surfaces. click on ok.

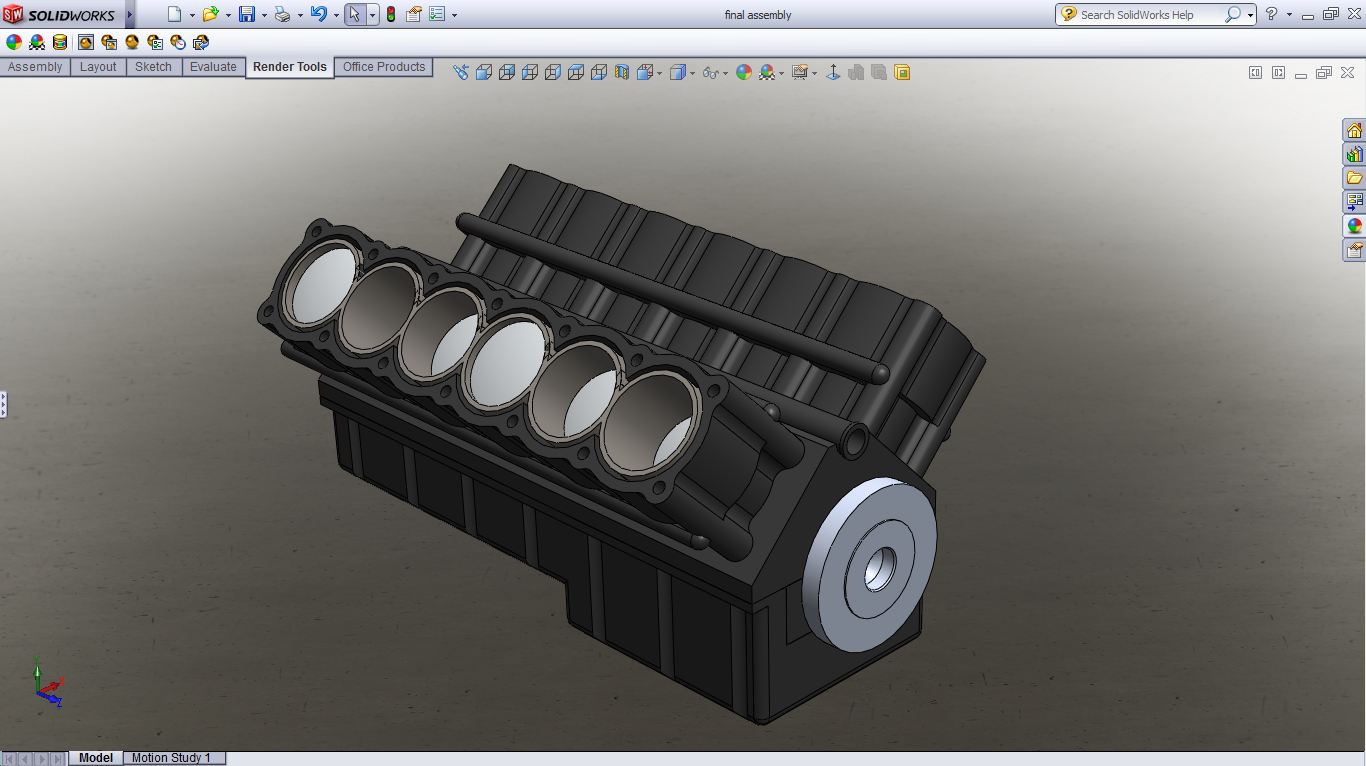

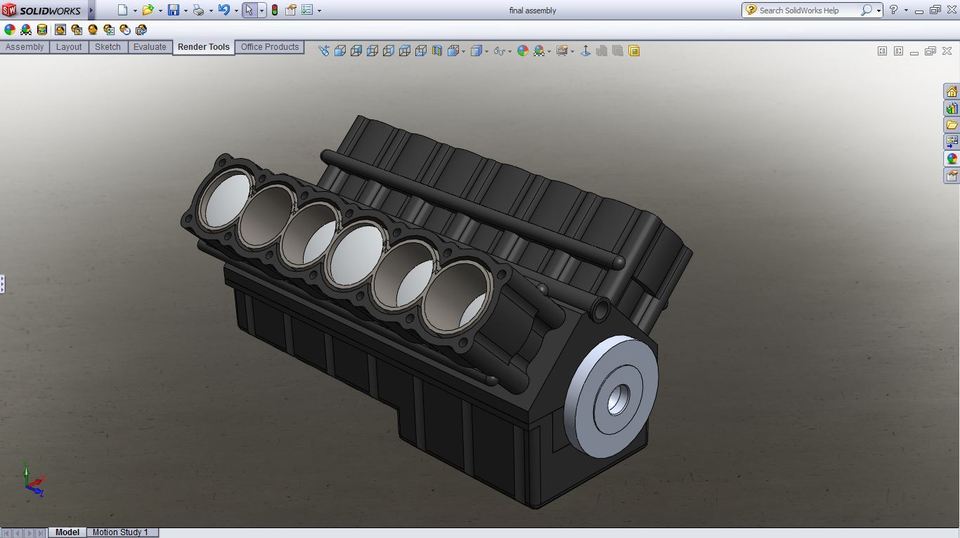

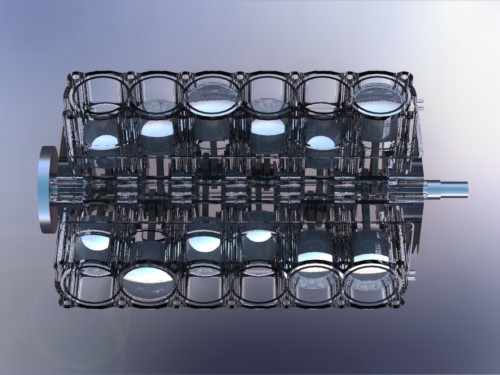

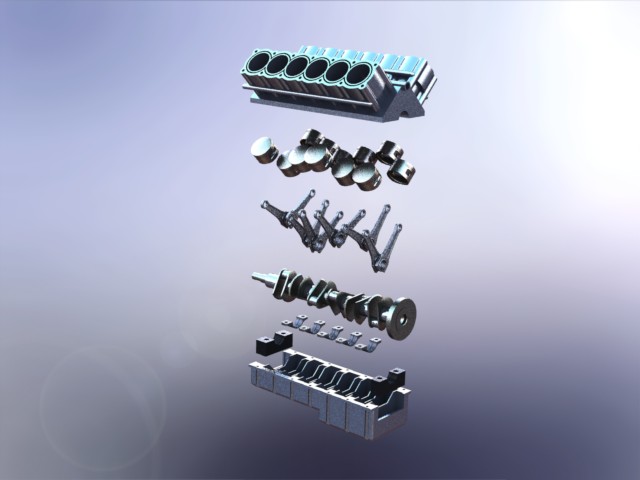

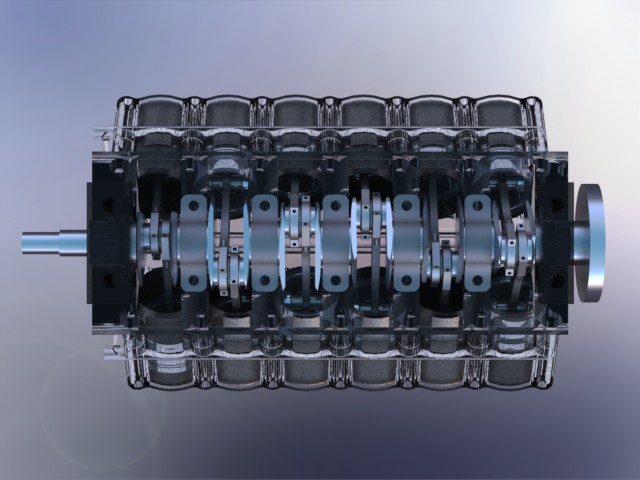

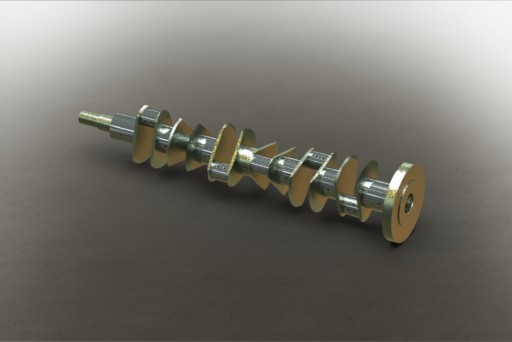

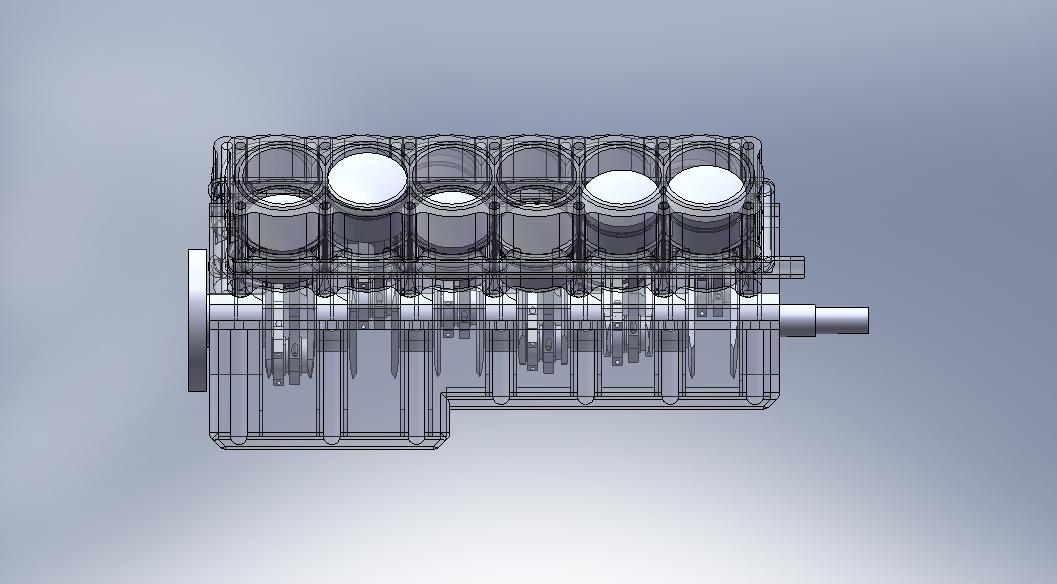

we finished the V12. of course I will generate new tutorials for new parts. please follow
-
Aykut Dana about 1 year ago
Thanks David. I am working on new projects. But if I set aside time, why not :)
-
David about 1 year agoHi, thought this tutorial was brilliant! Is there any possibility of a rocker cover design? also is it possible to add the compression rings to the pistons?
-
-
-
-
kandarp 10 months agoi m doinng one advencher.......!!!!!!!!!!!1
creating same engine useing proe 5.0...!!!!!!thanks for shear.........
-
-
semih 11 months ago
Dostum harikasın... Şu sitedeki en iyi proje helal olsun... Kocaeli' ye selamlar...
-
-
Leo Kiviluoma 10 months agoThousand thanks Aykut Dana. I learned SW lot with this tutor. I'm look forward to upper parts: valves, camshaft...
-
-
David Edwards 10 months ago
I was half expecting "Tutorial 26: Build the head, valves, cams and intake manifold. Like a boss"
Great tutorial though
-
porter 4 months agoThank you so much, I modified some things in the carter in order to avoid the interferences with some parts inside, but despite that, everything was soo cool :D
Added images
-
Süleyman Korkmaz 4 months agokardeş çok iyi bir çalışma olmuş . Eline koluna sağlık resimler ve anlatım için
